BROOKS INSTRUMENT

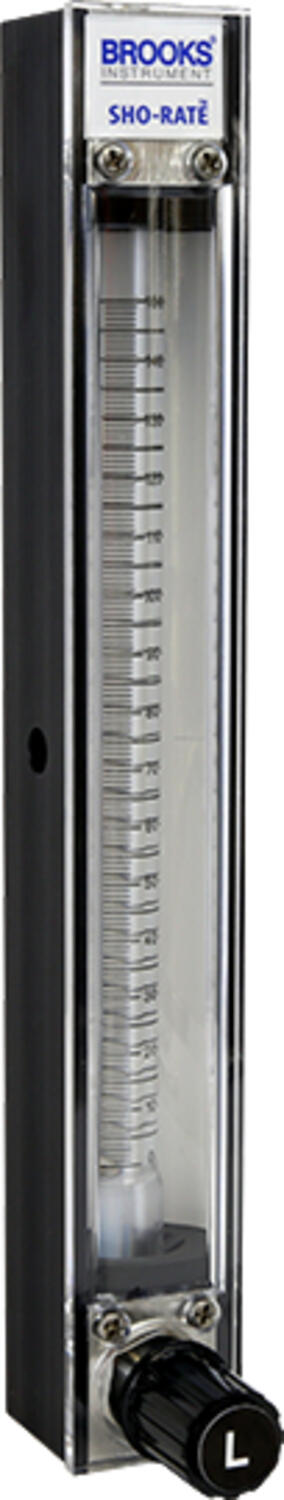

Rotameter 1350G/1355G
GT130x Series Glass Tube Variable Area Flow Meters are efficient and cost-effective for moderate accuracy requirements.
The GT130x Series glass tube VA flow meters are a family of versatile and economical meters designed for general use in applications with moderate metering accuracy requirements — typical accuracy ranges are 1% to 10% full scale, depending on the model selected. They are ideal for purge type service, seal oil systems, bearing lubrication and cooling water indication, and offer o-ring seal construction with ten-to-one rangeability, as well as a wide range of float types and capacity ranges.
The GT130x Seal Series flow meters provide an excellent and modular drop-in replacement for existing Brooks Instrument Full-View® 1100 Series meters: models 1110, 1114, 1140, 1144.
- Broad range of flow ratings from 0.8 to 25 gpm; 3 to 50 scfm
- Pressure ratings up to 500 psig / 34 bar
- Accuracy ranges from 1% to 10% Full Scale
- Calibrated to process conditions with 75mm, 127mm or high resolution 250mm direct reading scales
- Sturdy bolted side-plate construction
- Standard NPT or flanged connections
- Vertical inlets and outlets standard
- Glass containment safety sleeve ensures personal safety
- Standard direct read scales
- Scale length (approximate) 65mm, 150mm
- Magnifier built into front shield
- Suitable for most liquids and gases
Selected variant
Specifications
| Control range | max 63 ls/min |
|---|---|
| Length of scale | 65 mm |
| Material Connection Block | Brass, Stainless steel |
| Material of body | Aluminium |
| Materials O-Ring | Buna, Kalrez, Viton |
| Pressure Range Max | 13.8 bar |
| Temperature range from | 1 °C |
| Temperature range of media from | 1 °C |
| Temperature range of media to | 121 °C |
| Temperature range to | 121 °C |
| Valve type | Valve Plug, NRS-316SS #1 - 6, Cartridge ll/lll |
Product description
GT130x Series Glass Tube Variable Area Flow Meters are efficient and cost-effective for moderate accuracy requirements.
The GT130x Series glass tube VA flow meters are a family of versatile and economical meters designed for general use in applications with moderate metering accuracy requirements — typical accuracy ranges are 1% to 10% full scale, depending on the model selected. They are ideal for purge type service, seal oil systems, bearing lubrication and cooling water indication, and offer o-ring seal construction with ten-to-one rangeability, as well as a wide range of float types and capacity ranges.
The GT130x Seal Series flow meters provide an excellent and modular drop-in replacement for existing Brooks Instrument Full-View® 1100 Series meters: models 1110, 1114, 1140, 1144.
- Broad range of flow ratings from 0.8 to 25 gpm; 3 to 50 scfm
- Pressure ratings up to 500 psig / 34 bar
- Accuracy ranges from 1% to 10% Full Scale
- Calibrated to process conditions with 75mm, 127mm or high resolution 250mm direct reading scales
- Sturdy bolted side-plate construction
- Standard NPT or flanged connections
- Vertical inlets and outlets standard
- Glass containment safety sleeve ensures personal safety
