BROOKS INSTRUMENT
Rotameter MT3750C
MT3750 Series Metal Tube Variable Area Flow Meters provide high level of accuracy for low-flow measurement. Long-lasting performance in harsh environments.
Constructed from high-strength steel, the MT3750 Series VA low flow meter features a compact design and multiple threaded and flange connection options to make it easier to install and integrate into existing plants, as well as a cost-effective replacement for glass tube flow meters. Certified explosion proof, our low flow liquid flow meters also offer optional transmitters or inductive alarms for more advanced flow measurement and process data capture operations.
- Low flow ranges: Up to 100 I/h or 26 gph
- High pressure and temperature rating
- Compact size
- Multiple threaded or flanged connections
- Large, easy-to-read indicator
- No external power required

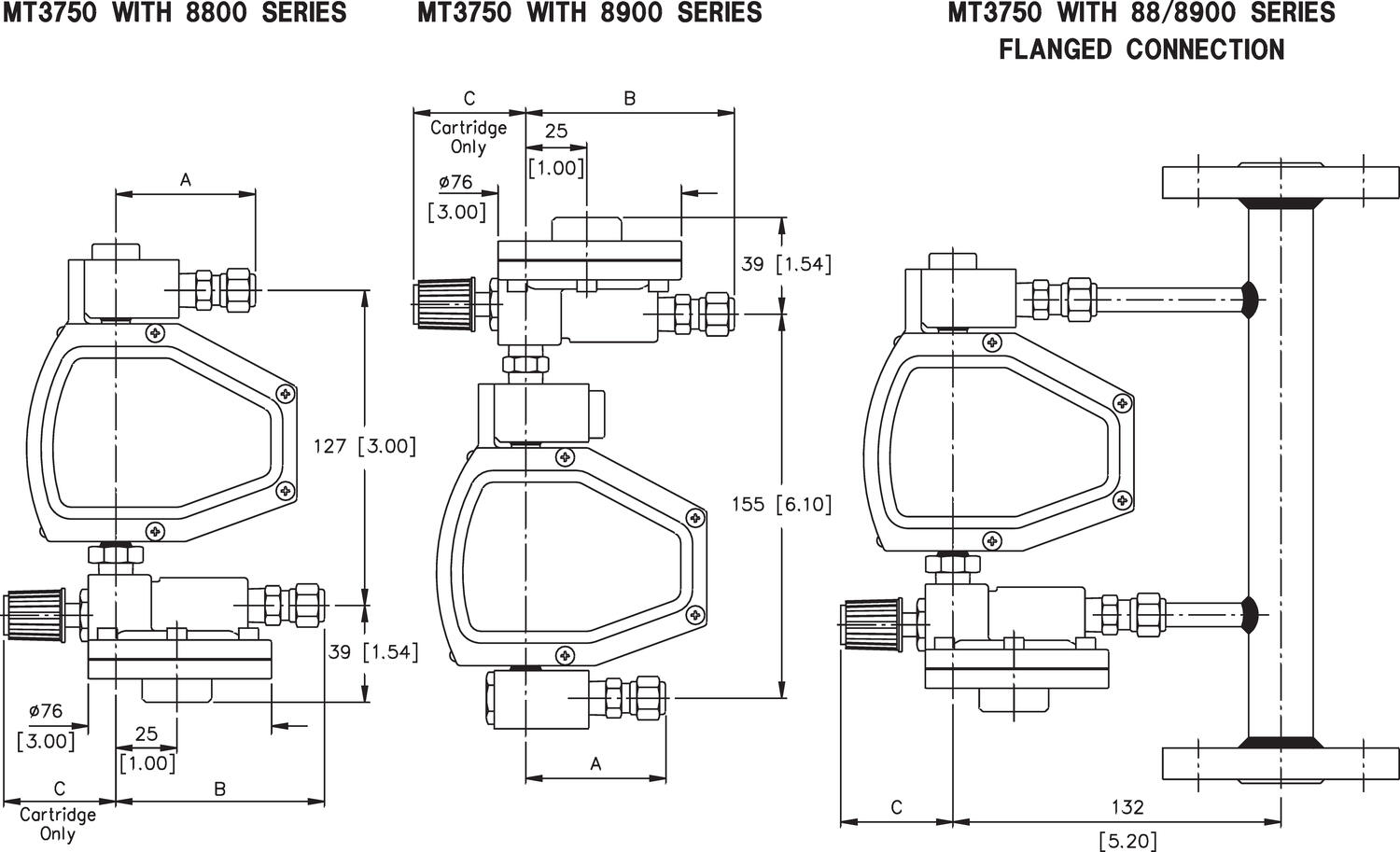

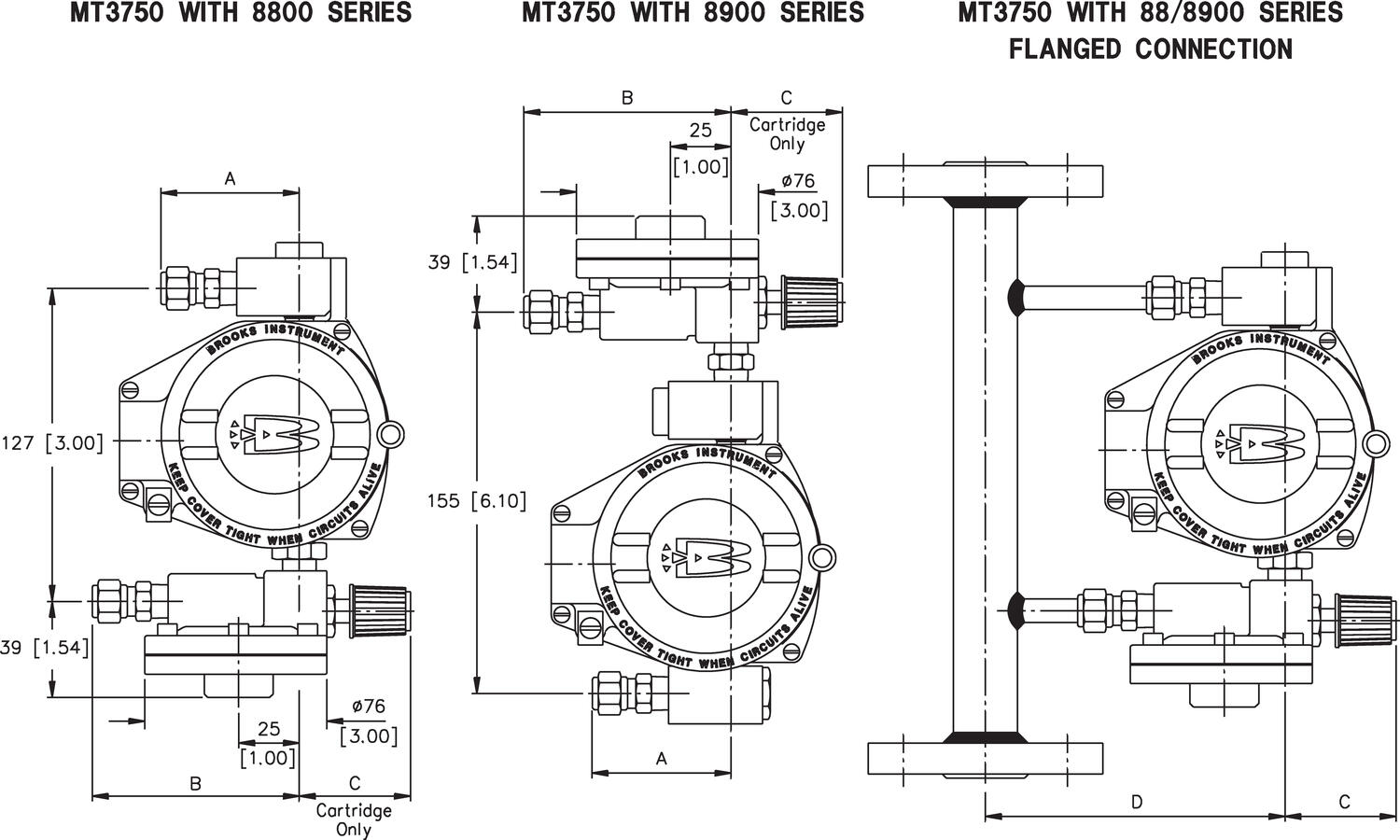

- Optional accessories include needle valve, flow controllers and alarms
- Available with 4-20 mA flow signal transmitter, and/or reed switch alarm signals or inductive alarms for high/low-flow conditions
- 316L Stainless Steel, Monel K-500
- Low flow ranges up to 100 I/h
- Large, easy-to-read indicator
- Optional accessories include needle valve, flow controllers and alarms
Selected variant
Specifications
| Approvals | ATEX, CE, CSA, IECEx, PED |
|---|---|
| Control range | 1:10 |
| IP Class | IP64, IP66, IP67 |
| Length of scale | 52 mm |
| Material of body | Stainless steel 316L, Titanium |
| Materials Float | Stainless steel 316L |
| Materials O-Ring | Buna, Kalrez, PTFE |
| Materials Wetted Parts | Stainless steel 316L, Titanium |
| Op. | 100 bar |
| Pressure Range Max | 276 bar |
|---|---|
| Supply Voltage | 24 V |
| Supply Voltage DC Max | 24 V DC |
| Temperature range from | -29 °C |
| Temperature range of media from | -50 °C |
| Temperature range of media to | 204 °C |
| Temperature range to | 65 °C |
Product description
MT3750 Series Metal Tube Variable Area Flow Meters provide high level of accuracy for low-flow measurement. Long-lasting performance in harsh environments.
Constructed from high-strength steel, the MT3750 Series VA low flow meter features a compact design and multiple threaded and flange connection options to make it easier to install and integrate into existing plants, as well as a cost-effective replacement for glass tube flow meters. Certified explosion proof, our low flow liquid flow meters also offer optional transmitters or inductive alarms for more advanced flow measurement and process data capture operations.
- Low flow ranges: Up to 100 I/h or 26 gph
- High pressure and temperature rating
- Compact size
- Multiple threaded or flanged connections
- Large, easy-to-read indicator
- No external power required
- Optional accessories include needle valve, flow controllers and alarms
- Available with 4-20 mA flow signal transmitter, and/or reed switch alarm signals or inductive alarms for high/low-flow conditions
