BEI SENSORS

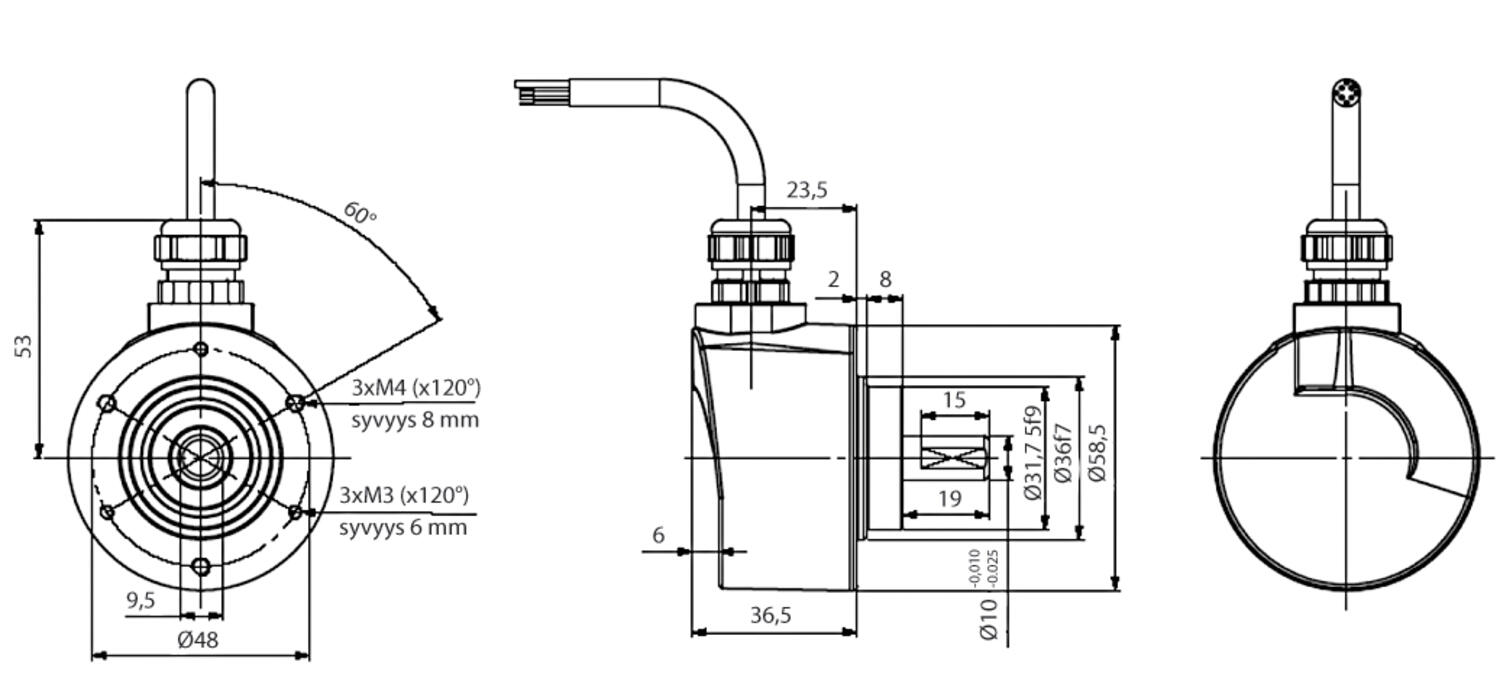

CHM5 absolute shaft encoder
- Diameter 58mm, shaft diameter 6mm or 10mm
- Resolution max. 20 bit
- Output SSI, parallel, Biss and CANopen
- IP65, IP67 available
- Also available with magnetic encoder
Selected variant
Specifications
| Sensor type | Absolute |
|---|---|
| Housing diametre | 58 mm |
| Shaft Diameter | 10 mm |
| Connection Thread | M23 contact |
| IP Class | IP65 |
| Speed max. | 9000 rpm |
| Supply Voltage DC Min | 5 V DC |
| Supply Voltage DC Max | 30 V DC |
|---|---|
| Temperature range from | -20 °C |
| Temperature range to | 90 °C |

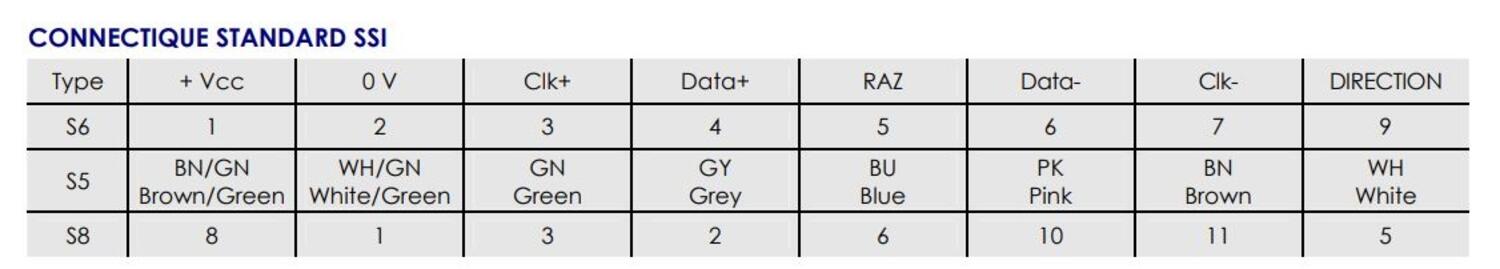

| Output | SSI |
| Version | Singleturn |
