BEI SENSORS
AHM5 - magnetic analog absolute single turn encoder
AHM5 is a new magnetic absolute single turn encoders generation. It characterizes itself by its strong robustness of the mechanical and electro-magnetic parts.
- Application fields : agriculture, construction, forestry vehicles, medical applications, solar panels…
- Magnetic technology, contactless.
- Strong robustness with its reinforced bearing block and its stopped bearings.
- Available resolution up to 12 bits per revolution.
- Power supply from 10 to 30Vdc.
- Available output interfaces : 0..10V, 0.5..4.5V, 4..20mA.
- Available in option : Extended temperature range (up to -40..+125°C), IP67/IP69K…
- Also available : PWM, SSI and CANopen outputs.

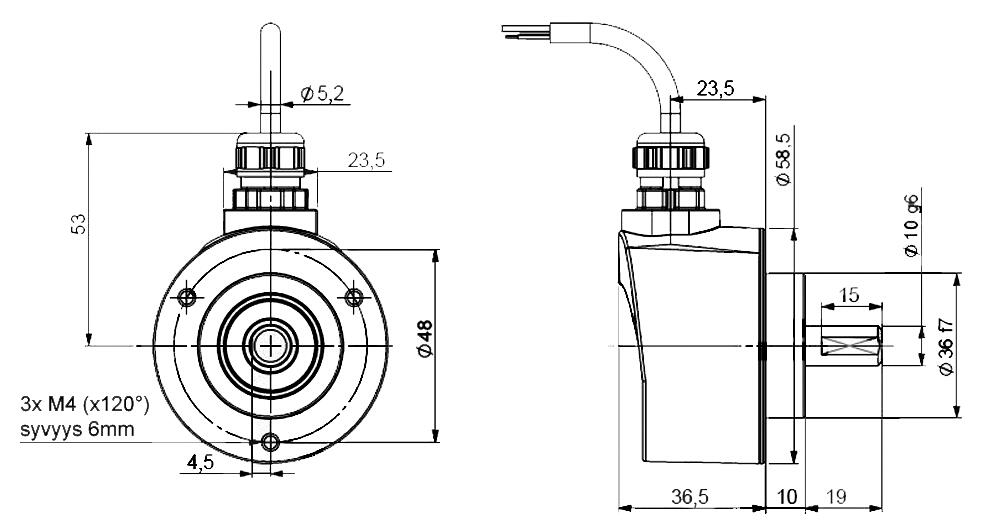

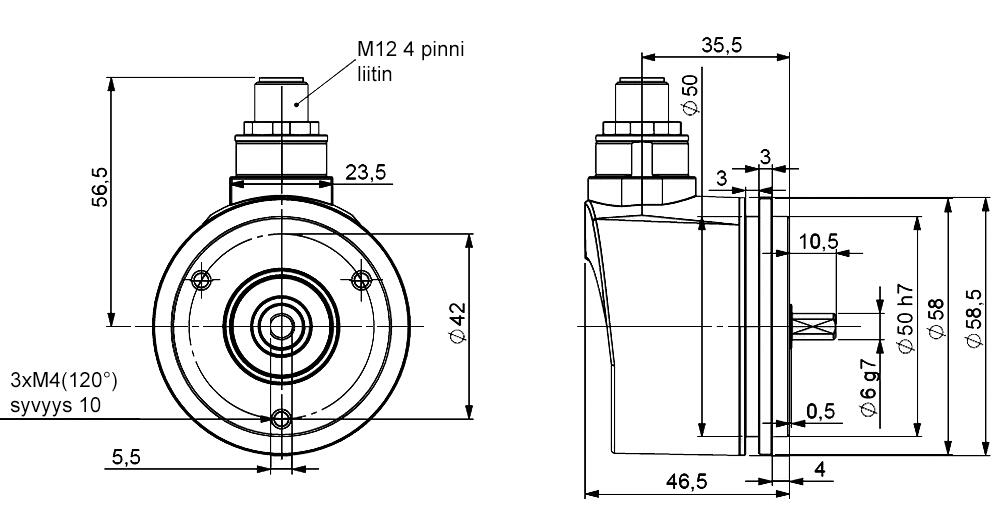

- Diameter 58mm, shaft 10mm
- Resolution up to 12 bit

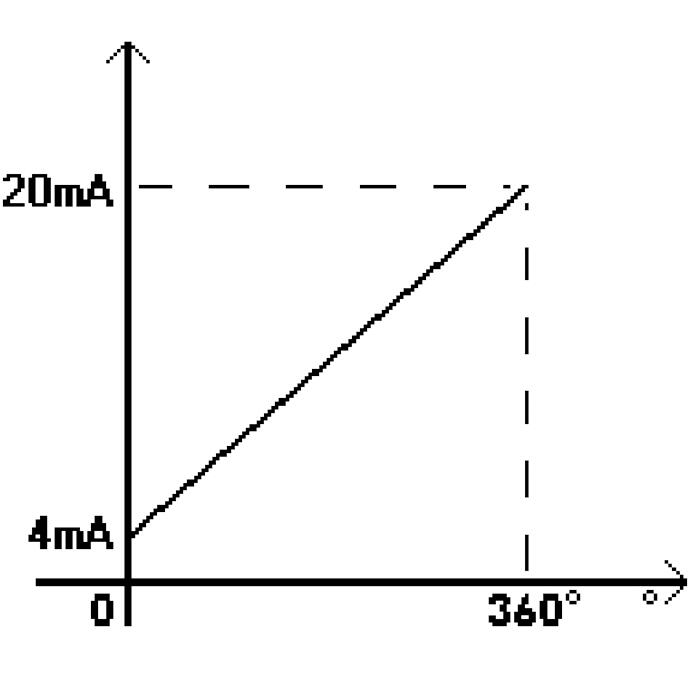

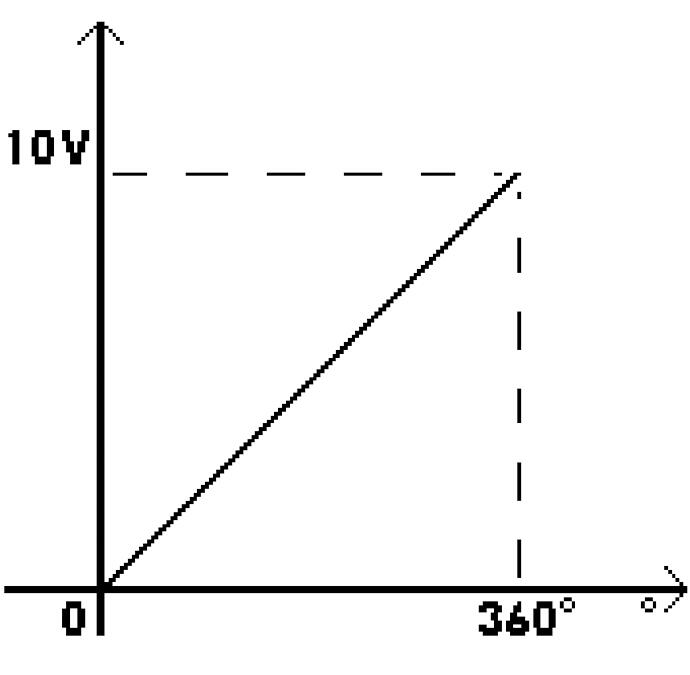

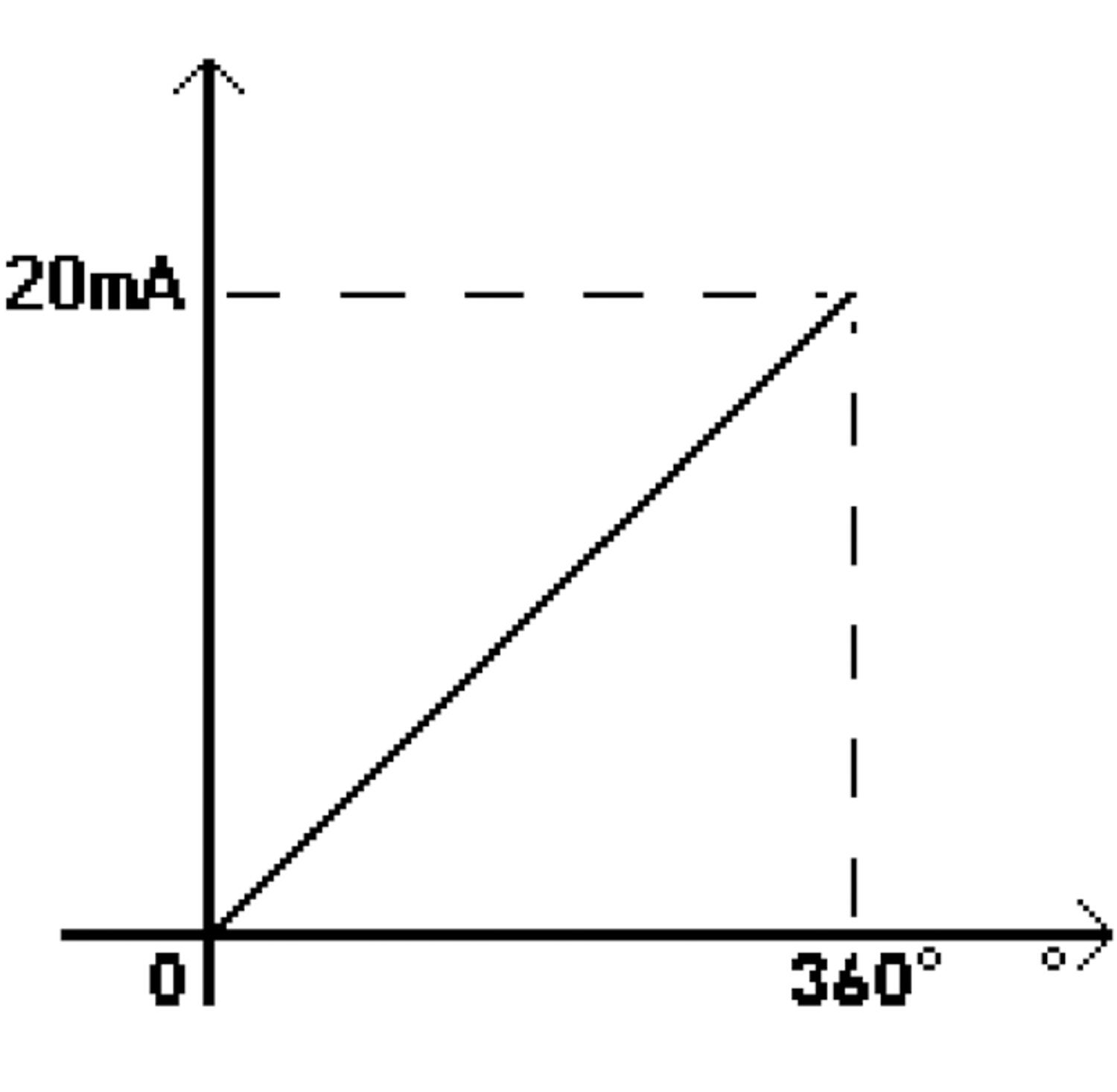

- Output 0-10 V, 0,5-4,5 V, 0-20 mA or 4-20 mA
- IP65, IP67 and IP69K available
- 2m connecting cable or M12 connector
Selected variant
Specifications
| Sensor type | Absolute |
|---|---|
| Housing diametre | 58 mm |
| Shaft Diameter | 10 mm |
| Resolution | Max. 12 bit |
| Connection Thread | M12 |
| IP Class | IP65 |
| Speed max. | 6000 rpm |
| Supply Voltage DC Min | 10 V DC |
|---|---|
| Supply Voltage DC Max | 30 V DC |
| Temperature range from | -40 °C |
| Temperature range to | 85 °C |
| Output | 0-10V |
| Version | Singleturn |
Product description
AHM5 is a new magnetic absolute single turn encoders generation. It characterizes itself by its strong robustness of the mechanical and electro-magnetic parts.
- Application fields : agriculture, construction, forestry vehicles, medical applications, solar panels…
- Magnetic technology, contactless.
- Strong robustness with its reinforced bearing block and its stopped bearings.
- Available resolution up to 12 bits per revolution.
- Power supply from 10 to 30Vdc.
- Available output interfaces : 0..10V, 0.5..4.5V, 4..20mA.
- Available in option : Extended temperature range (up to -40..+125°C), IP67/IP69K…
- Also available : PWM, SSI and CANopen outputs.
