BEI SENSORS

HCW4 - non-contacting sensor, incremental output

Ordering reference

	Type	Supply voltage and output	Channels	Resolution	Connection	Connection orientation
HCW4: Incremental sensor	00: Modular	2G2: 5 V DC TTL/RS422 output PG5: 5...30 V DC Push-pull output (TTL / RS422 available if encoder supply 5 V DC)	9: A, A/, B, B/, 0, 0/	XXXXX: Available resolutions: 32, 64, 128, 256, 1024 cycles/turn	G3: 8 wire PVC GP: 12 wire PUR	R020: 2m cable
Ex: HCW4_	00 //	PG5	9	// 01024 //	G3	R020

Magnetic incremental modular sensor
Resolution up to 1024
A, B and Z channels, also inverted
IP67, IP69K available
2m connecting cable

Selected variant

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

IP Class	IP67
Connection Thread	Cable
Temperature range to	85 °C
Resolution	32 P/R
Housing diametre	50 mm
Temperature range from	-40 °C
Supply Voltage DC Max	30 V DC
Output	Push/Pull
Supply Voltage DC Min	5 V DC
Sensor type	Incremental

Downloads

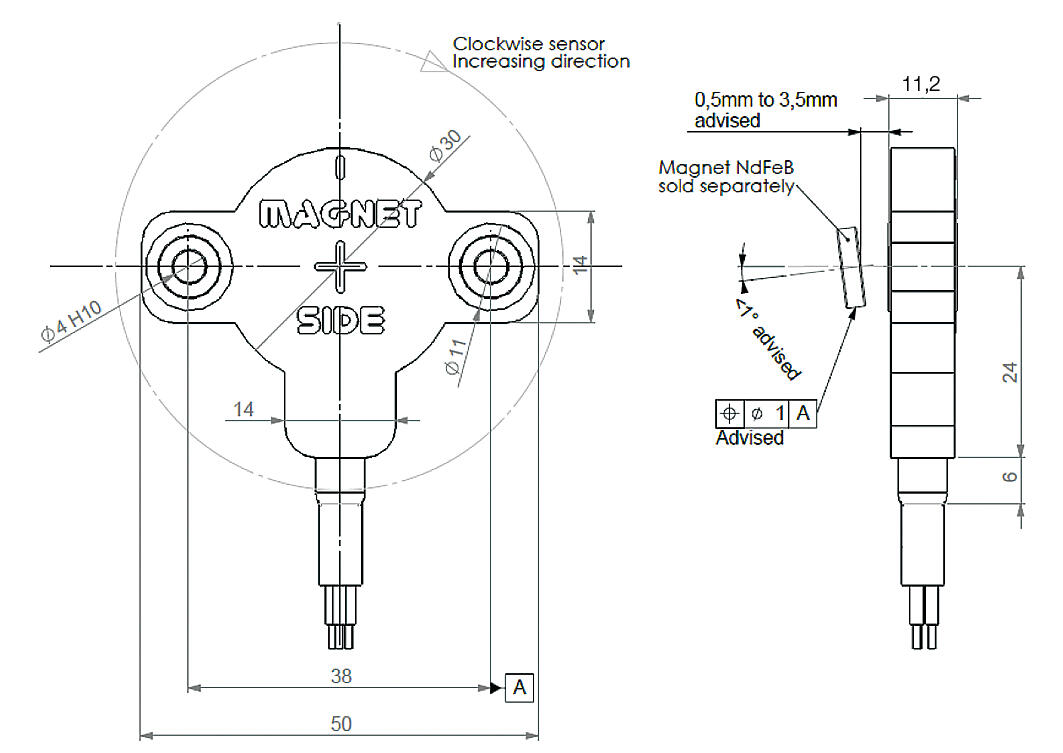

Measurements and connections

Technical illustrations

Product description

Ordering reference

	Type	Supply voltage and output	Channels	Resolution	Connection	Connection orientation
HCW4: Incremental sensor	00: Modular	2G2: 5 V DC TTL/RS422 output PG5: 5...30 V DC Push-pull output (TTL / RS422 available if encoder supply 5 V DC)	9: A, A/, B, B/, 0, 0/	XXXXX: Available resolutions: 32, 64, 128, 256, 1024 cycles/turn	G3: 8 wire PVC GP: 12 wire PUR	R020: 2m cable
Ex: HCW4_	00 //	PG5	9	// 01024 //	G3	R020

Accessories

Related products

Articles	IP Class	Connection Thread	Temperature range to	Resolution	Housing diametre	Temperature range from	Supply Voltage DC Max	Output	Supply Voltage DC Min	Sensor type
Incremental sensor, 32 c/t, 2m cable Art: HCW4PG590032G3 Copied	IP67	Cable	85 °C	32 P/R	50 mm	-40 °C	30 V DC	Push/Pull	5 V DC	Incremental
Incremental sensor, 64 c/t, 2m cable Art: HCW4PG590064G3 Copied	IP67	Cable	85 °C	64 P/R	50 mm	-40 °C	30 V DC	Push/Pull	5 V DC	Incremental
Incremental sensor, 128 c/t, 2m cable Art: HCW4PG590128G3 Copied	IP67	Cable	85 °C	128 P/R	50 mm	-40 °C	30 V DC	Push/Pull	5 V DC	Incremental
Incremental sensor, 256 c/t, 2m cable Art: HCW4PG590256G3 Copied	IP67	Cable	85 °C	256 P/R	50 mm	-40 °C	30 V DC	Push/Pull	5 V DC	Incremental
Incremental sensor, 1024 c/t, 2m cable Art: HCW4PG591024G3 Copied	IP67	Cable	85 °C	1024 P/R	50 mm	-40 °C	30 V DC	Push/Pull	5 V DC	Incremental

Selected variant

Select a variant in the list
