BEI SENSORS
GHM306 incremental encoder
With its 30mm size and a 6mm solid shaft, this encoder characterizes itself by its strong robustness of the mechanical and optical parts, it’s the most compact really industrial encoder with a solid shaft.
- High accuracy optical technology
- Available resolution up to 1024 pulses per revolution
- Universal electronics 5 to 30VDC available
- Application fields : agriculture, construction, forestry vehicles…
- Diameter 30mm, 6mm shaft
- Resolution max. 1024 P/R
- A, B and Z channels, also inverted
- IP65, IP67 available

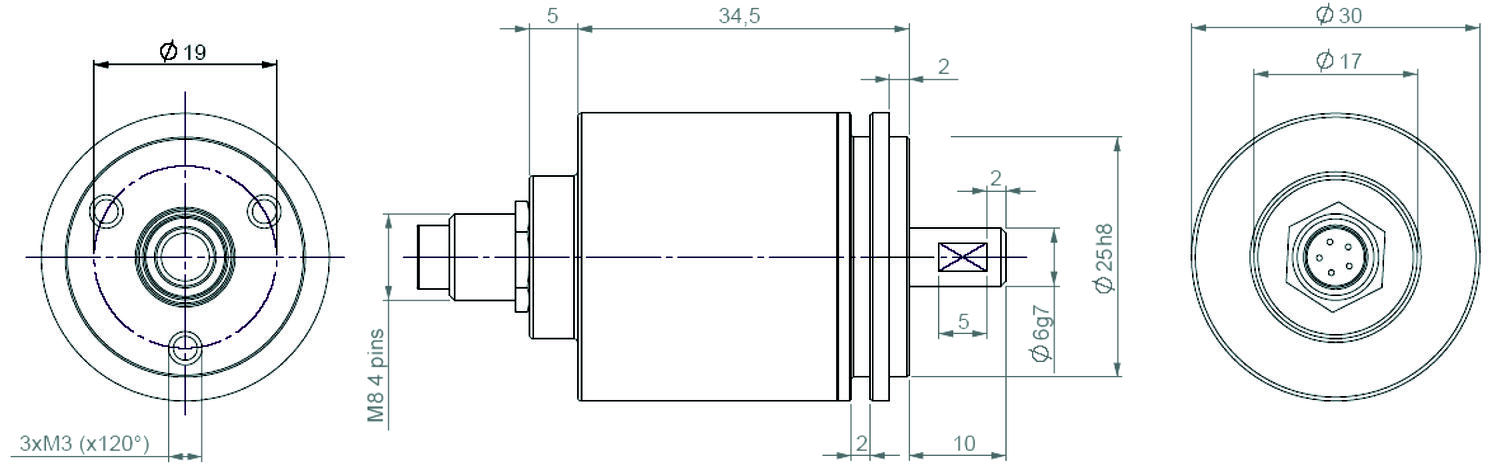

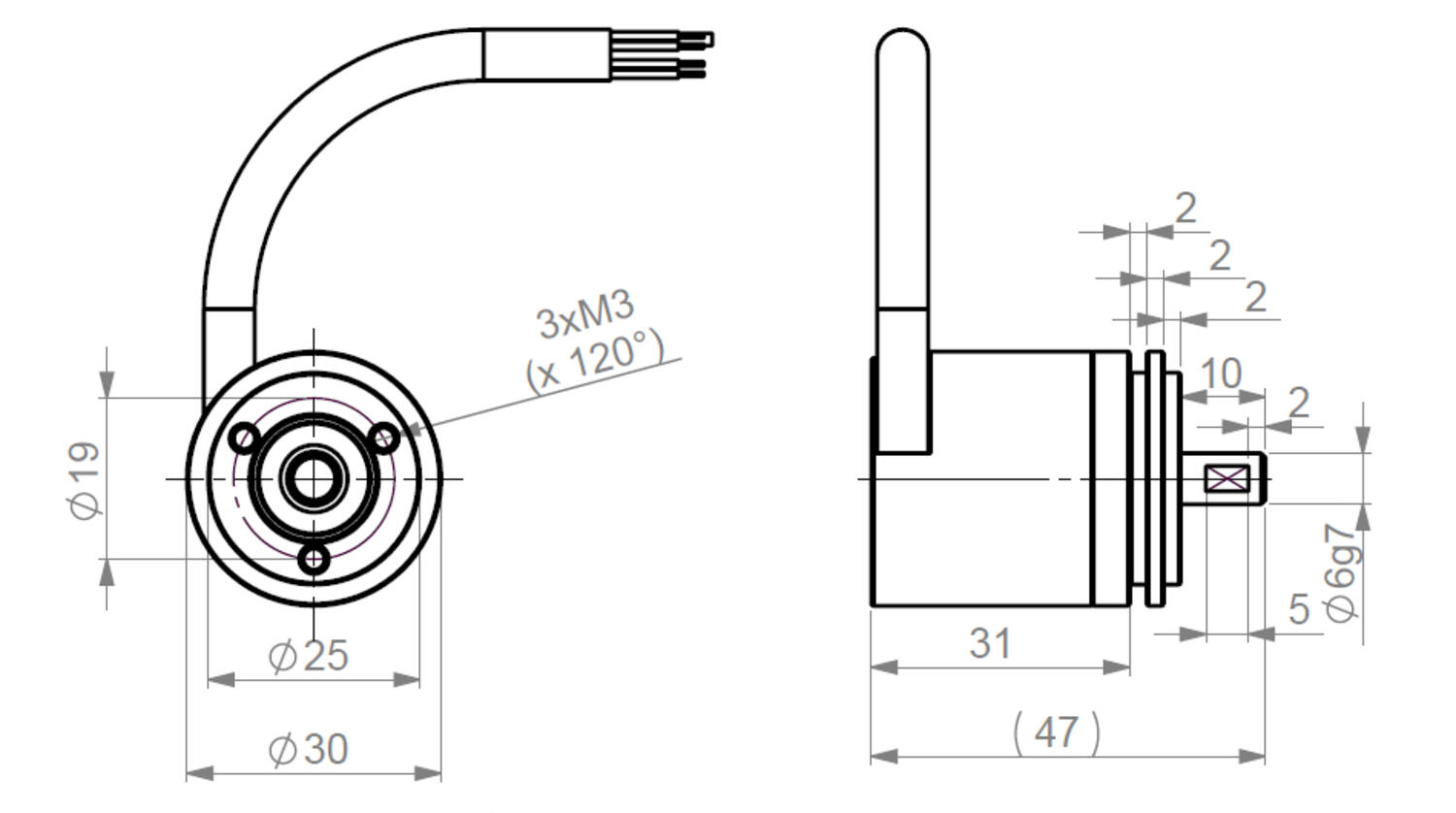

- Equipped with 2m connecting cable or M8 connector
Selected variant
Specifications
| Sensor type | Incremental |
|---|---|
| Housing diametre | 30 mm |
| Shaft Diameter | 6 mm |
| Resolution | 50 P/R |
| Connection Thread | Cable |
| IP Class | IP65 |
| Speed max. | 6000 rpm |
| Supply Voltage DC Min | 5 V DC |
|---|---|
| Supply Voltage DC Max | 30 V DC |
| Temperature range from | -35 °C |
| Temperature range to | 80 °C |
| Output | Push/Pull |
Product description
With its 30mm size and a 6mm solid shaft, this encoder characterizes itself by its strong robustness of the mechanical and optical parts, it’s the most compact really industrial encoder with a solid shaft.
- High accuracy optical technology
- Available resolution up to 1024 pulses per revolution
- Universal electronics 5 to 30VDC available
- Application fields : agriculture, construction, forestry vehicles…
