PIL P43 Ultrasonic Sensor Analog Output M12 Connector

  • Sensing distance 25-6000 mm
  • Output 4-20 mA or 0-10 V
  • Scalable sensing distance
  • IP67

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Distance Max 400 mm
Distance Min 30 mm
Electrical connection M12 5 pole connector
IP Class IP67
Material of body PBT
Resolution 0,125 mm
Supply Voltage DC Max 30 V DC
Supply Voltage DC Min 15 V DC
Temperature range from -20 °C
Temperature range to 70 °C

Downloads

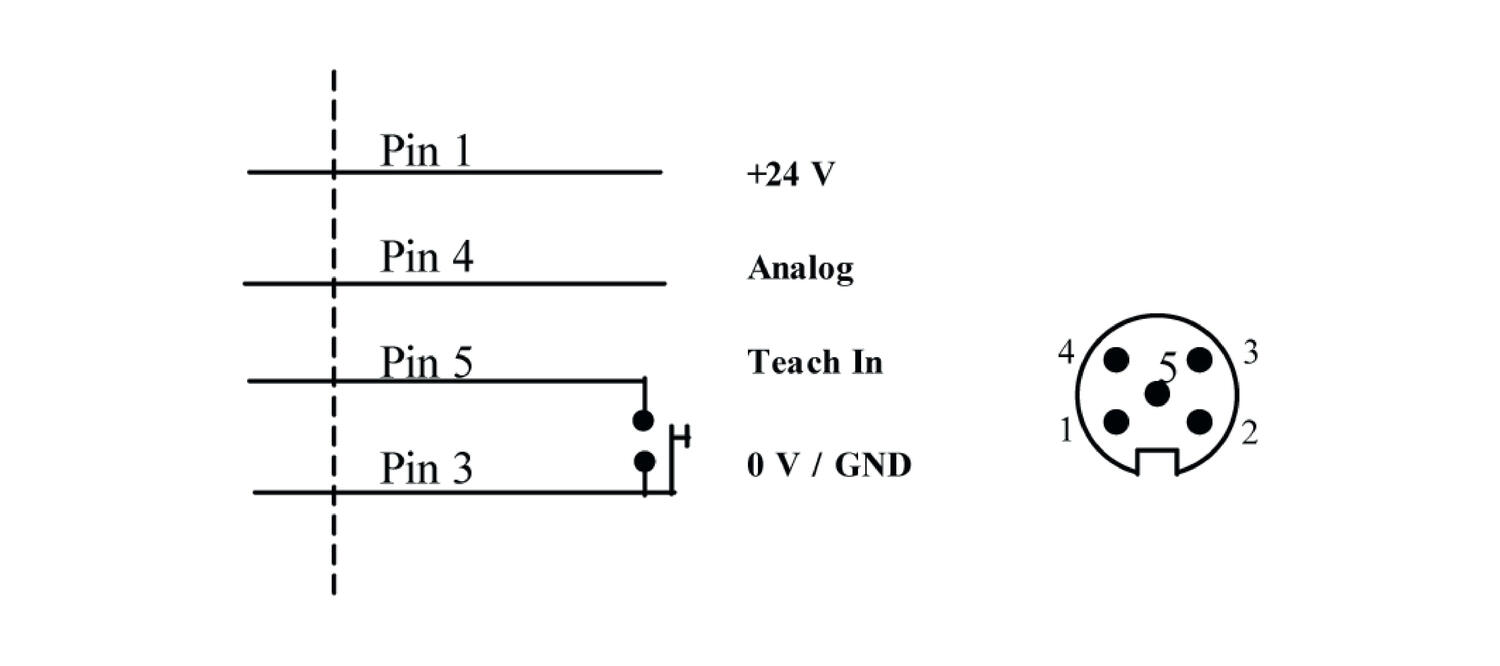

Measurements and connections

Technical illustrations

Accessories

Related products

Related

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

TFT displays
Product news

TFT-displays for indoor and outdoor solutions

Constantly evolving applications place ever greater demands on user interfaces. A display for presenting information on the device itself is usually the most natural choice. Read more!

Bopla BoVersa IIoT
Product news

Bopla BoVersa: optimal enclosure for IIoT environments

Comprising three parts, BoVersa can be extensively customized in terms of materials, such as metal and plastic, and colors. It is also easy to integrate various stylish display and keyboard solutions.

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Articles Distance Max Distance Min Electrical connection IP Class Operating Frequency Output current max Resolution Sensor type Supply Voltage DC Min Temperature range from
264833_812.tif
Ultrasonic sensor, M18, 400mm, 4-20mA, connector
Art:
P43-40-M18-PBTICM Copied
400 mm
30 mm
M12 5 pole connector
IP67
0,125 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 500mm, 4-20mA, connector
Art:
P43-50-M18-PBTICM Copied
500 mm
60 mm
M12 5 pole connector
IP67
0,25 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 800mm, 4-20mA, connector
Art:
P43-80-M18-PBTICM Copied
800 mm
100 mm
M12 5 pole connector
IP67
0,25 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 1,6m, 4-20mA, connector
Art:
P43-160-M18-PBTICM Copied
1600 mm
80 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 2 m, 4-20mA, connector
Art:
P43-200-M18-PBTICM Copied
2000 mm
200 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M30, 3,5m, 4-20mA, connector
Art:
P43-350-M30-PBTICM Copied
3500 mm
300 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 400mm, 0-10V, connector
Art:
P43-40-M18-PBTUCM Copied
400 mm
30 mm
M12 5 pole connector
IP67
0,125 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 500mm, 0-10V, connector
Art:
P43-50-M18-PBTUCM Copied
500 mm
60 mm
M12 5 pole connector
IP67
0,25 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 800mm, 0-10V, connector
Art:
P43-80-M18-PBTUCM Copied
800 mm
100 mm
M12 5 pole connector
IP67
0,25 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 1,6m, 0-10V, connector
Art:
P43-160-M18-PBTUCM Copied
1600 mm
80 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M18, 2 m, 0-10V, connector
Art:
P43-200-M18-PBTUCM Copied
2000 mm
200 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
264833_812.tif
Ultrasonic sensor, M30, 3,5m, 0-10V, connector
Art:
P43-350-M30-PBTUCM Copied
3500 mm
300 mm
M12 5 pole connector
IP67
1 mm
15 V DC
-20 °C
227640_812.tif
Ultrasonic sensor, 40x26x12mm, 250mm, 0-10V
Art:
P43-25-R40-PBTUCM8 Copied
250 mm
25 mm
M12 5 pole connector
IP67
0,125 mm
12 V DC
-20 °C
227641_812.tif
Ultrasonic sensor, 6m, 4-20mA, connector
Art:
P43-600-Q50-PBTICM Copied
6000 mm
600 mm
M12 5 pole connector
IP67
1,5 mm
15 V DC
-20 °C
227641_812.tif
Ultrasonic sensor, 6m, 0-10V, connector
Art:
P43-600-Q50-PBTUCM Copied
6000 mm
600 mm
M12 5 pole connector
IP67
1,5 mm
15 V DC
-20 °C
227640_812.tif
Ultrasonic switching 250mm M8-con
Art:
P43K4U2G1C0400E Copied
250 mm
25 mm
M8 4 pole connector
IP67
0,125 mm
Ultrasonic
12 V DC
-20 °C
227643_812.tif
M18 / 0-10 V / Connector M12
Art:
P43F4V2D1C0360E Copied
400 mm
30 mm
M12 5 pole connector
IP65
0,125 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
M18 / 0-10 V / Connector M12 / 60-500mm
Art:
P43F4V2D1C0330E Copied
500 mm
60 mm
M12 5 pole connector
IP67
0,25 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
Ultrasonic analog 0-10V 800mm M12-con
Art:
P43F4V2D1C0300E Copied
800 mm
100 mm
M12 5 pole connector
IP67
1 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
ULTRA SENS M18 0-10V CONNECTOR
Art:
P43F4V2D1C0220E Copied
1600 mm
80 mm
M12 5 pole connector
IP65
1 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
ULTRA SENS M18 0-10V CONNECTOR
Art:
P43F4V2D1C0180E Copied
2000 mm
200 mm
M12 5 pole connector
IP67
1 mm
Ultrasonic
15 V DC
-20 °C
227645_812.tif
ULTRASONIC M30 / 0-10 V / Connector M12
Art:
P43T4V2D1C0130E Copied
3500 mm
300 mm
M12 5 pole connector
IP67
1 mm
Ultrasonic
15 V DC
-20 °C
227641_812.tif
Ultrasonic analog 0-10V 6000mm M12-con
Art:
P43O4V2D1C080E Copied
6000 mm
600 mm
M12 5 pole connector
IP65
1 mm
Ultrasonic
15 V DC
-15 °C
227643_812.tif
ULTRA SENS 400mm 4..20mA CONN
Art:
P43F4V2D1D0360E Copied
400 mm
30 mm
M12 5 pole connector
IP65
0,125 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
Ultrasonic analog 4-20mA 500mm M12-con
Art:
P43F4V2D1D0330E Copied
500 mm
60 mm
M12 5 pole connector
IP67
0,25 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
ULTRA SENS 800mm 4..20mA CONN
Art:
P43F4V2D1D0300E Copied
800 mm
100 mm
M12 5 pole connector
IP67
1 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
Ultrasonic analog 4-20mA 1600mm M12-con
Art:
P43F4V2D1D0220E Copied
1600 mm
80 mm
M12 5 pole connector
IP65
1 mm
Ultrasonic
15 V DC
-20 °C
227643_812.tif
ULTRA SENS 2000mm 4..20mA CONN
Art:
P43F4V2D1D0180E Copied
2000 mm
200 mm
M12 5 pole connector
IP67
5 Hz
0.5 A
1 mm
Ultrasonic
12 V DC
-20 °C
227645_812.tif
Ultrasonic analog 4-20mA 3500mm M12-con
Art:
P43T4V2D1D0130E Copied
3500 mm
300 mm
M12 5 pole connector
IP67
1 mm
Ultrasonic
15 V DC
-20 °C
227641_812.tif
Ultrasonic analog 4-20mA 6000mm M12-con
Art:
P43O4V2D1D080E Copied
6000 mm
600 mm
M12 5 pole connector
IP65
1 mm
Ultrasonic
15 V DC
-15 °C
