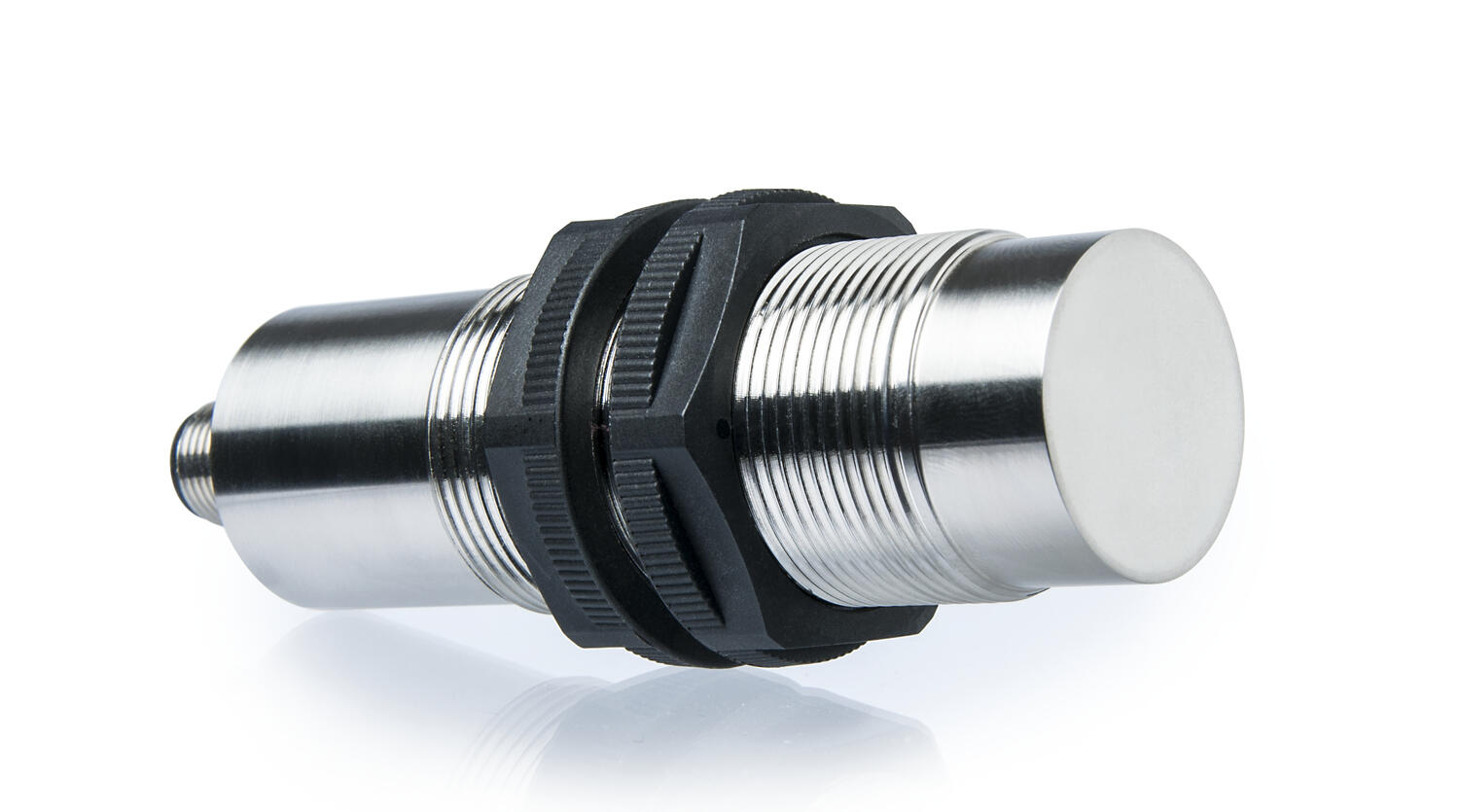

PIL P53 Ultrasonic Stainless Steel Sensor

  • Made of stainless steel, suitable for food industry
  • M30 or D30 housing, M12 connector
  • Sensing distance 150-1500 mm
  • Output 4-20 mA, 0-10 V or PNP
  • M30 or D30 housing, M12 connector

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Distance Max 1500 mm
Distance Min 150 mm
Electrical connection M12 5 pole connector
IP Class IP68, IP69K
Material of body Stainless steel
Resolution 1 mm
Supply Voltage DC Max 28.8 V DC
Supply Voltage DC Min 19.2 V DC
Temperature range from -15 °C
Temperature range to 70 °C

Downloads

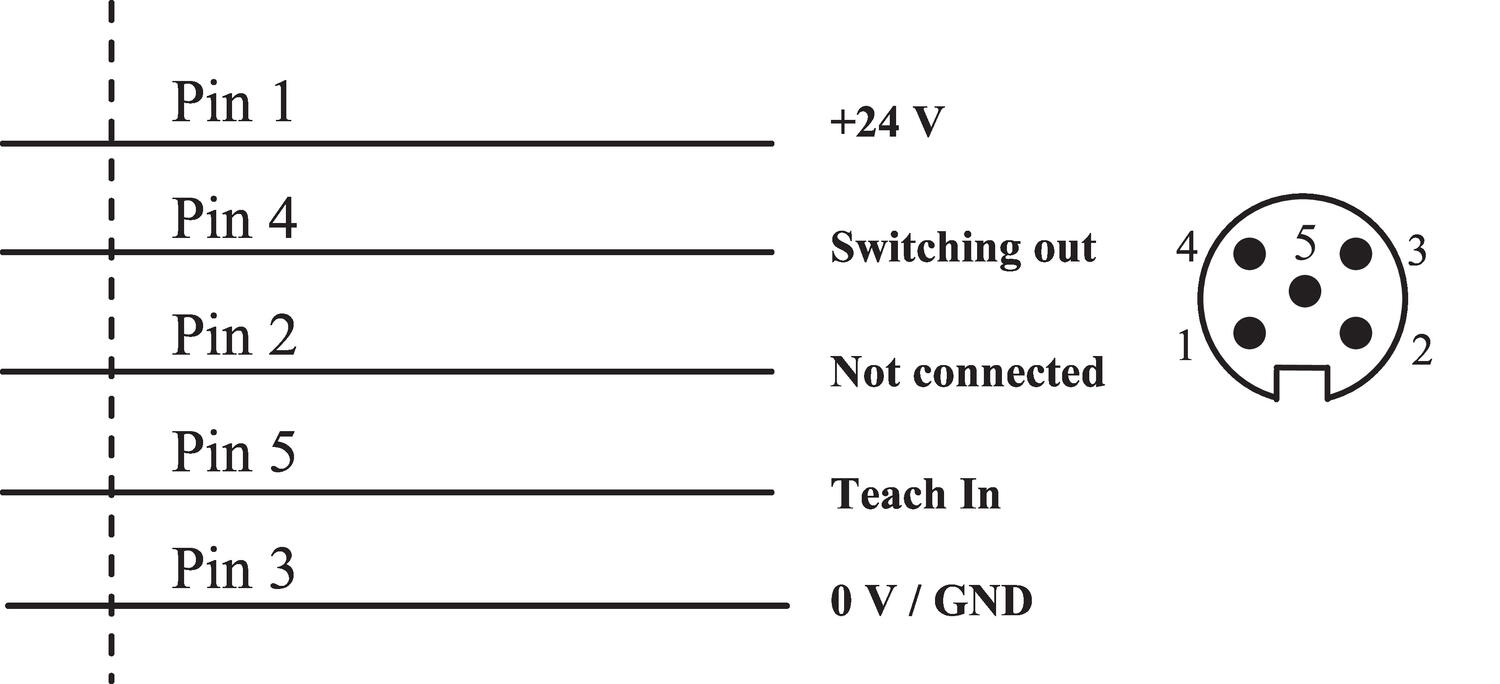

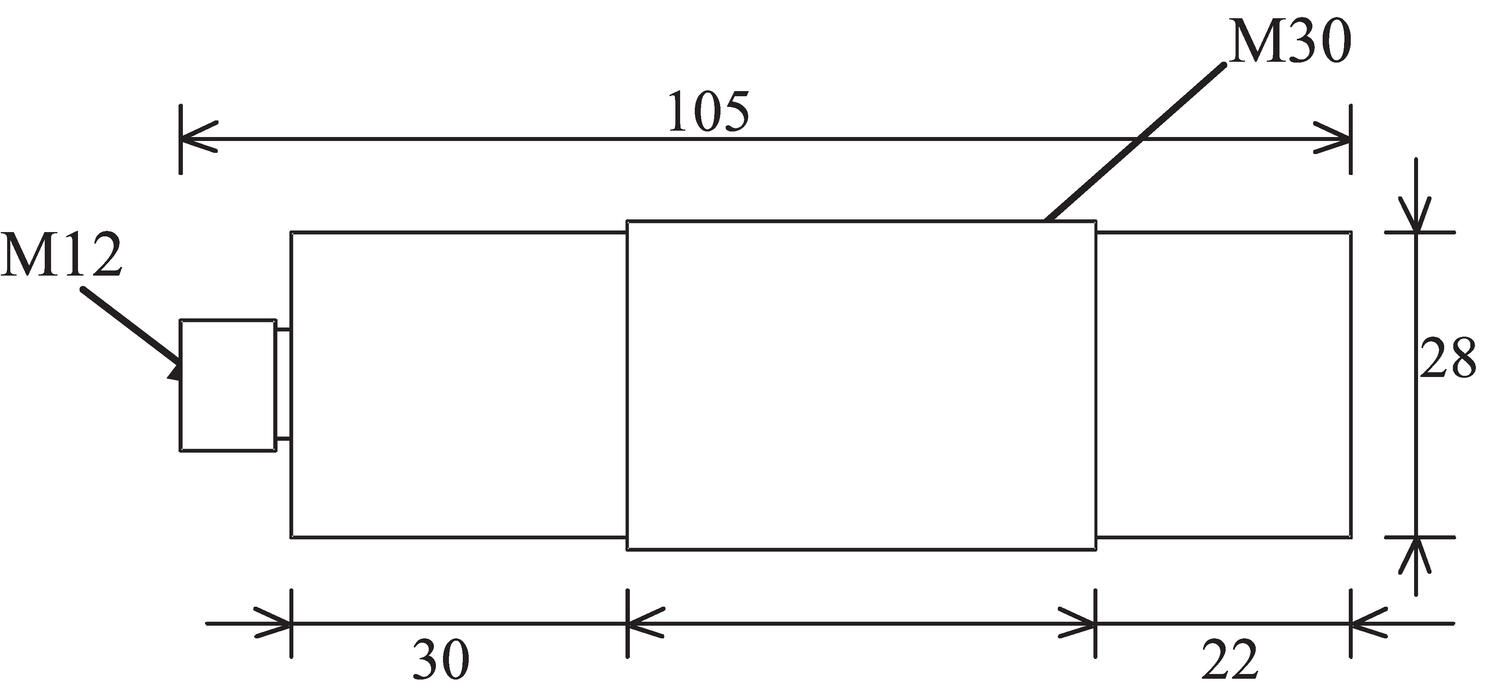

Measurements and connections

Technical illustrations

Accessories

Articles Operating Frequency Resolution
357620_566.tif
Ultrasonic sensor, Ø30, 1,5m, stainless steel, 4-20mA, connector
Art:
P53-150-D30-ICM Copied
1 mm
357620_566.tif
Ultrasonic sensor, Ø30, 1,5m, stainless steel, PNP, NC, connector
Art:
P53-150-D30-PNCCM Copied
7 Hz
2 mm
357620_566.tif
Ultrasonic sensor, Ø30, 1,5m, stainless steel, PNP, NO, connector
Art:
P53-150-D30-PNOCM Copied
7 Hz
2 mm
357620_566.tif
Ultrasonic sensor, Ø30, 1,5m, stainless steel, 0-10V, connector
Art:
P53-150-D30-UCM Copied
1 mm
357620_566.tif
Ultrasonic sensor, M30, 1,5m, stainless steel, 4-20mA, connector
Art:
P53-150-M30-ICM Copied
1 mm
357620_566.tif
Ultrasonic sensor, M30, 1,5m, stainless steel, PNP, NC, connector
Art:
P53-150-M30-PNCCM Copied
7 Hz
2 mm
357620_566.tif
Ultrasonic sensor, M30, 1,5m, stainless steel, PNP, NO, connector
Art:
P53-150-M30-PNOCM Copied
7 Hz
2 mm
357620_566.tif
Ultrasonic sensor, M30, 1,5m, stainless steel, 0-10V, connector
Art:
P53-150-M30-UCM Copied
1 mm
