PIL
Ultrasonic sensor P41, 2xPNP/NPN or analogue output
- Sensing distance 30-3500 mm
- Output 2xPNP/NPN, 4-20 mA or 0-10 V
- M12 connector
- Teach button
Selected variant
Specifications
| Distance Max | 400 mm |
|---|---|
| Distance Min | 30 mm |

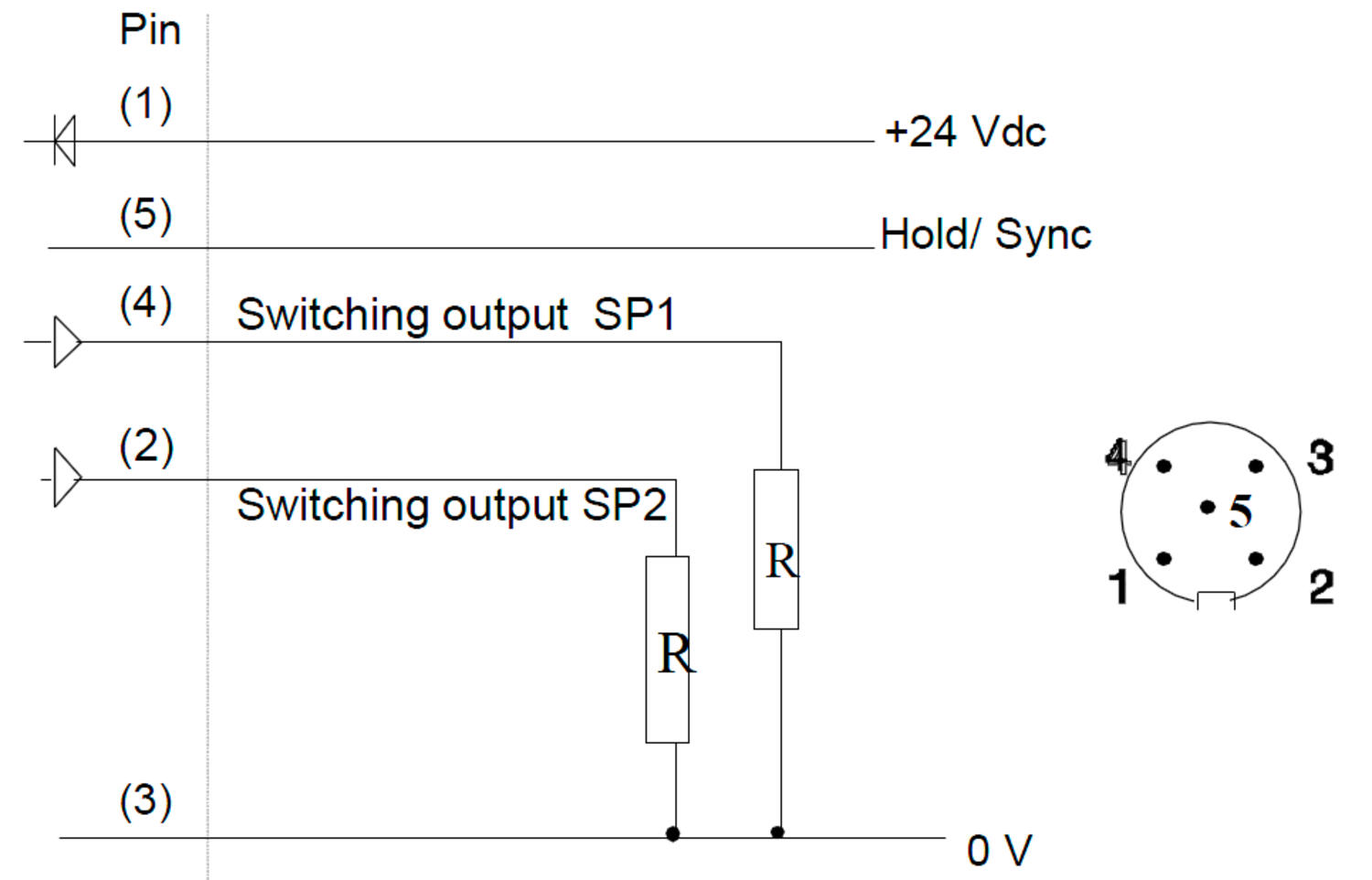

| Electrical connection | M12 5 pole connector |
| IP Class | IP67 |
| Material of body | PBT |
| Operating Frequency | 10 Hz |
| Output current max | 0.5 A |
| Resolution | 2mm |
|---|---|
| Supply Voltage DC Max | 30 V DC |
| Supply Voltage DC Min | 12 V DC |
| Temperature range from | -15 °C |
| Temperature range to | 70 °C |
