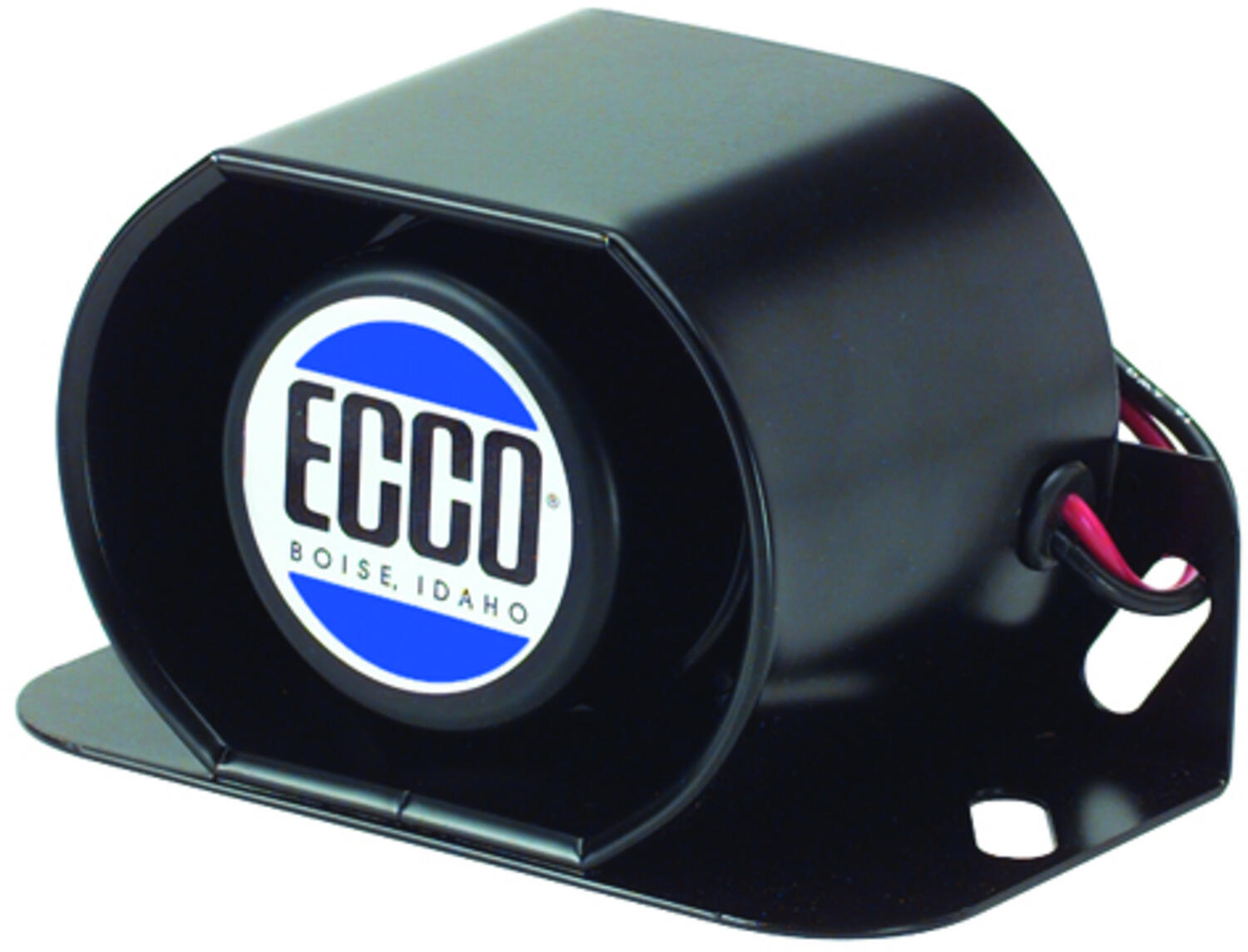

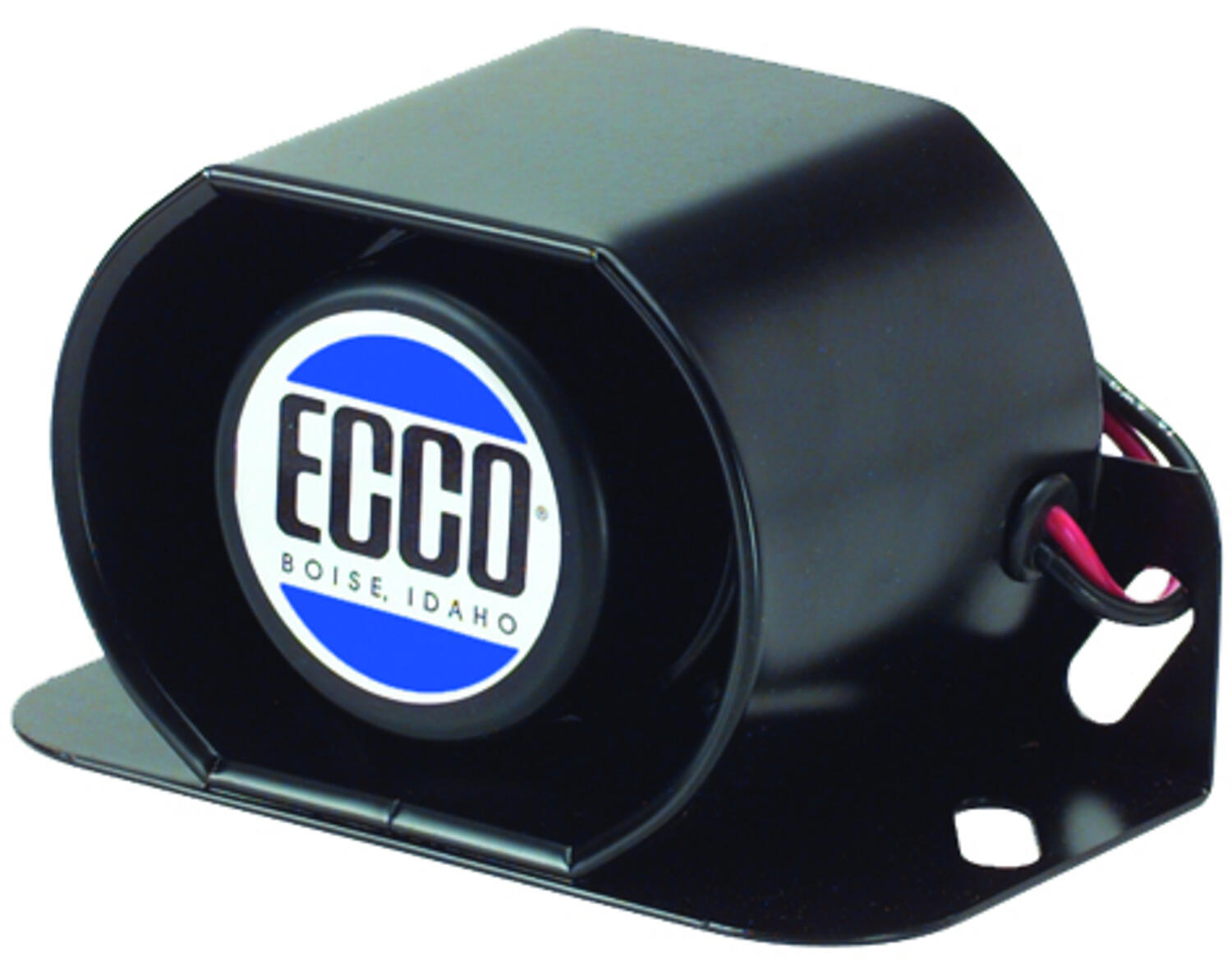

ECCO
600 series
The Smart Alarm® from ECCO was the worlds first self-adjusting back-up alarm, constantly measuring ambient noise and adjusting their sound level, creating a volume that is safe without being annoying or contributing to noise pollution. Smart Alarms® eliminate the need for constant manual adjustment and help prevent intentional alarm disconnection. Compact housing and rugged construction designed for demanding applications, reverse mounted speaker enhances sound and protects the alarm from dust and moisture ingress. Epoxy sealed against dust, moisture and vibration.
- Reinforced nylon housing
- 4 volume ranges available
- 12-24V, 12-48V or 12-36V
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|
| Connection Thread | Wire output right |
| EMC | R10 |
| Height | 78 mm |
| IP Class | IP64 |
| Length | 127 mm |
| Multi frequence sound | No |
| Power consumption | 0.2 A |
| Smart Alarm | Yes |
|---|---|
| Sound strength max | 102 dB |
| Sound strength min | 82 dB |
| Temperature range from | -40 °C |
| Temperature range to | 85 °C |
| Width | 68 mm |
| Voltage | 12-36 V |
Downloads
Product description
The Smart Alarm® from ECCO was the worlds first self-adjusting back-up alarm, constantly measuring ambient noise and adjusting their sound level, creating a volume that is safe without being annoying or contributing to noise pollution. Smart Alarms® eliminate the need for constant manual adjustment and help prevent intentional alarm disconnection. Compact housing and rugged construction designed for demanding applications, reverse mounted speaker enhances sound and protects the alarm from dust and moisture ingress. Epoxy sealed against dust, moisture and vibration.
