ECCO

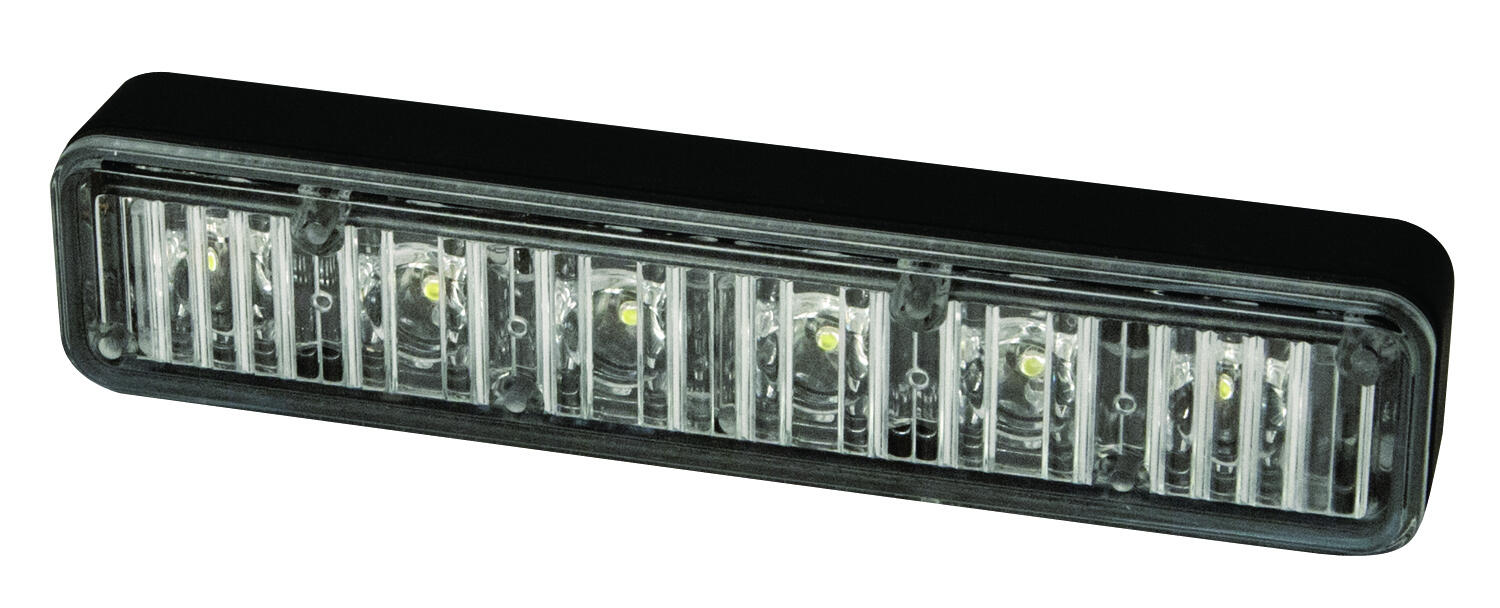

Multi mount LED ED3706
The ED3706 series is an ultra thin, low profile LED. Available in solid and split colour, this compact LED is ideal for a wide variety of applications, offering the flexibility of four mounting options: surface mount, tilt bracket, self-adhesive mount, and edge mount (all necessary hardware is included with each light). Featuring 13 flash patterns and synchronisation capability, this super bright LED is designed for maximum light output at all angles.
- Ultra thin, low profile design
- Four mounting options, hardware included in delivery
- 13 flash patterns
- Available in solid or split colors
Selected variant
Specifications
| Approvals | SAE Class I |
|---|---|
| Color Lens | Clear |
| Color light | Orange |
| EMC | R10 |
| Height | 32 mm |
| IP Class | IP67 |
| Length | 132 mm |
| Light type | LED |
| Number of light pattern | 13 |
|---|---|
| Power consumption | 0.9 A |
| R65 | Yes |
| Temperature range from | -22 °C |
| Temperature range to | 50 °C |
| Voltage | 12-24 V |
| Width | 21 mm |
Downloads
Product description
The ED3706 series is an ultra thin, low profile LED. Available in solid and split colour, this compact LED is ideal for a wide variety of applications, offering the flexibility of four mounting options: surface mount, tilt bracket, self-adhesive mount, and edge mount (all necessary hardware is included with each light). Featuring 13 flash patterns and synchronisation capability, this super bright LED is designed for maximum light output at all angles.
