ECCO
Surface mount LED 3510
The 3510 surface mount LED warning light is designed to offer maximum performance with minimum size. This slimline LED measures only 83.8 x 27.9mm and only 10.2mm deep, comprised of 24 1-watt high-intensity LEDs in an ultra compact housing. Its small footprint allows for mounting in almost any location on a vehicle body. It is synchronisable with additional units and any Hide-A-LED model. The 3510 includes 16 flash patterns and is available in amber, blue, clear and red (colourless when not illuminated). Additional benefits of LED technology include high-intensity light output, low current draw and long maintenance-free service life.

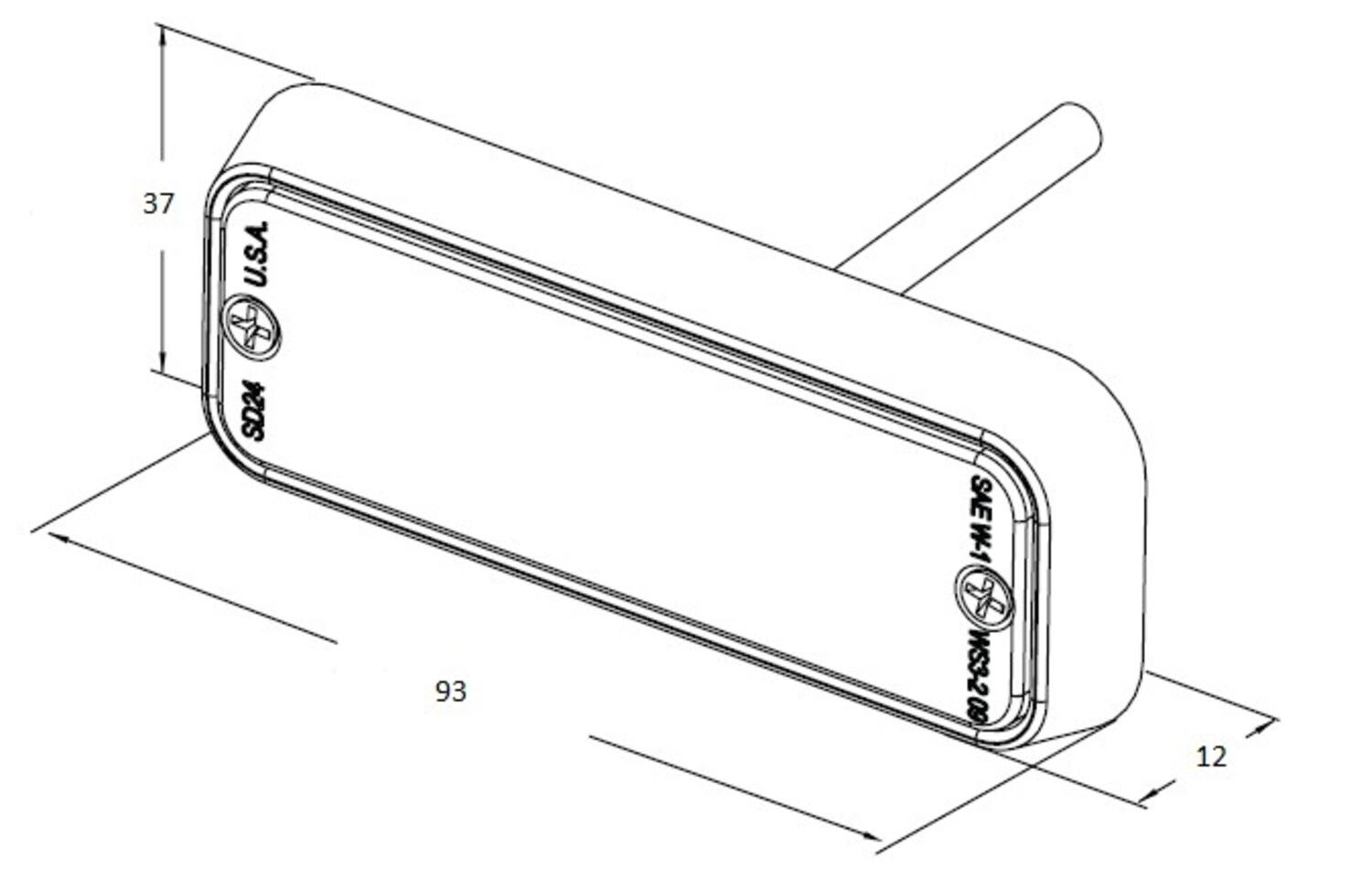

- Measures only 83.8 x 27.9 x 10.2mm
- Comprised of 24 1-watt high-intensity LEDs
- 16 flash patterns
- Available in amber, blue, clear and red
Selected variant
Specifications
| Approvals | SAE Class I |
|---|---|
| Color Lens | Clear |
| Color light | Orange |
| EMC | R10 |
| Height | 37 mm |
| IP Class | IP67 |
| Length | 93 mm |
| Light type | LED |
|---|---|
| Number of light pattern | 16 |
| Power consumption | 0.75 A |
| R65 | No |
| Voltage | 12-24 V |
| Width | 12 mm |
Product description
The 3510 surface mount LED warning light is designed to offer maximum performance with minimum size. This slimline LED measures only 83.8 x 27.9mm and only 10.2mm deep, comprised of 24 1-watt high-intensity LEDs in an ultra compact housing. Its small footprint allows for mounting in almost any location on a vehicle body. It is synchronisable with additional units and any Hide-A-LED model. The 3510 includes 16 flash patterns and is available in amber, blue, clear and red (colourless when not illuminated). Additional benefits of LED technology include high-intensity light output, low current draw and long maintenance-free service life.
