ECCO

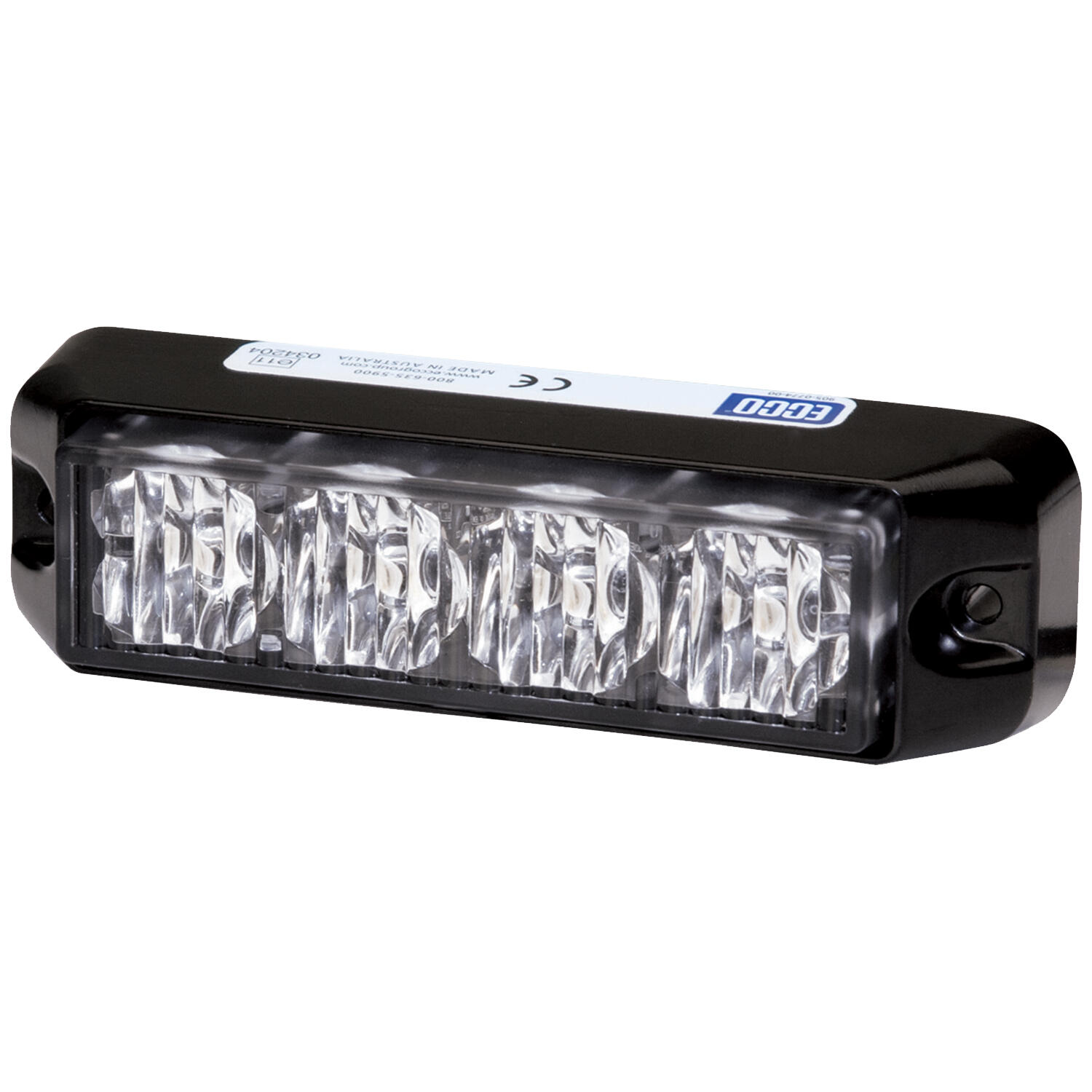

Surface mount LED 3715
This compact and versatile LED directional light is ideal for applications requiring high intensity output, low current draw and maintenance-free operation. These premium LED heads feature a clear polycarbonate lens with LEDs that illuminate in the colour of your choice. Warning capability can be customised by selecting from nine flash patterns (via a trigger wire) and synchronising multiple heads simultaneously or alternately. With epoxysealed electronics, these light heads are one of the most rugged and flexible LED products around.
- For applications requiring high intensity output
- Clear polycarbonate lens
- 9 flash patterns
- Extremely rugged build
Selected variant
Specifications
| Approvals | SAE Class I |
|---|---|
| Color Lens | Clear |
| Color light | Orange |
| EMC | R10 |

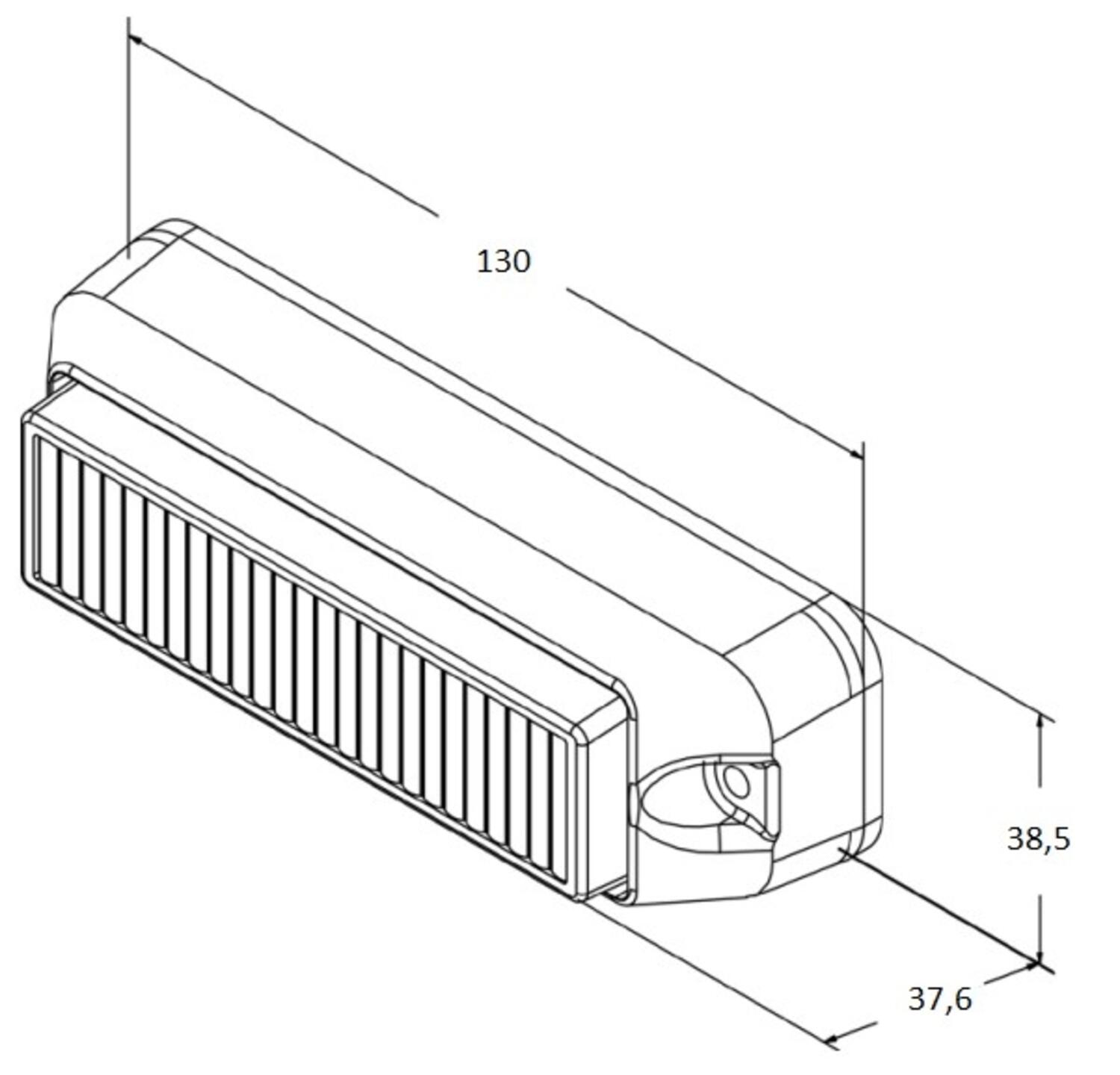

| Height | 38 mm |
| IP Class | IP67 |
| Length | 130 mm |
| Light type | LED |
| Number of light pattern | 9 |
|---|---|
| Power consumption | 0.4 A |
| R65 | No |
| Temperature range from | -30 °C |
| Temperature range to | 50 °C |
| Width | 38 mm |
| Voltage | 12 V |
Product description
This compact and versatile LED directional light is ideal for applications requiring high intensity output, low current draw and maintenance-free operation. These premium LED heads feature a clear polycarbonate lens with LEDs that illuminate in the colour of your choice. Warning capability can be customised by selecting from nine flash patterns (via a trigger wire) and synchronising multiple heads simultaneously or alternately. With epoxysealed electronics, these light heads are one of the most rugged and flexible LED products around.
