ECCO

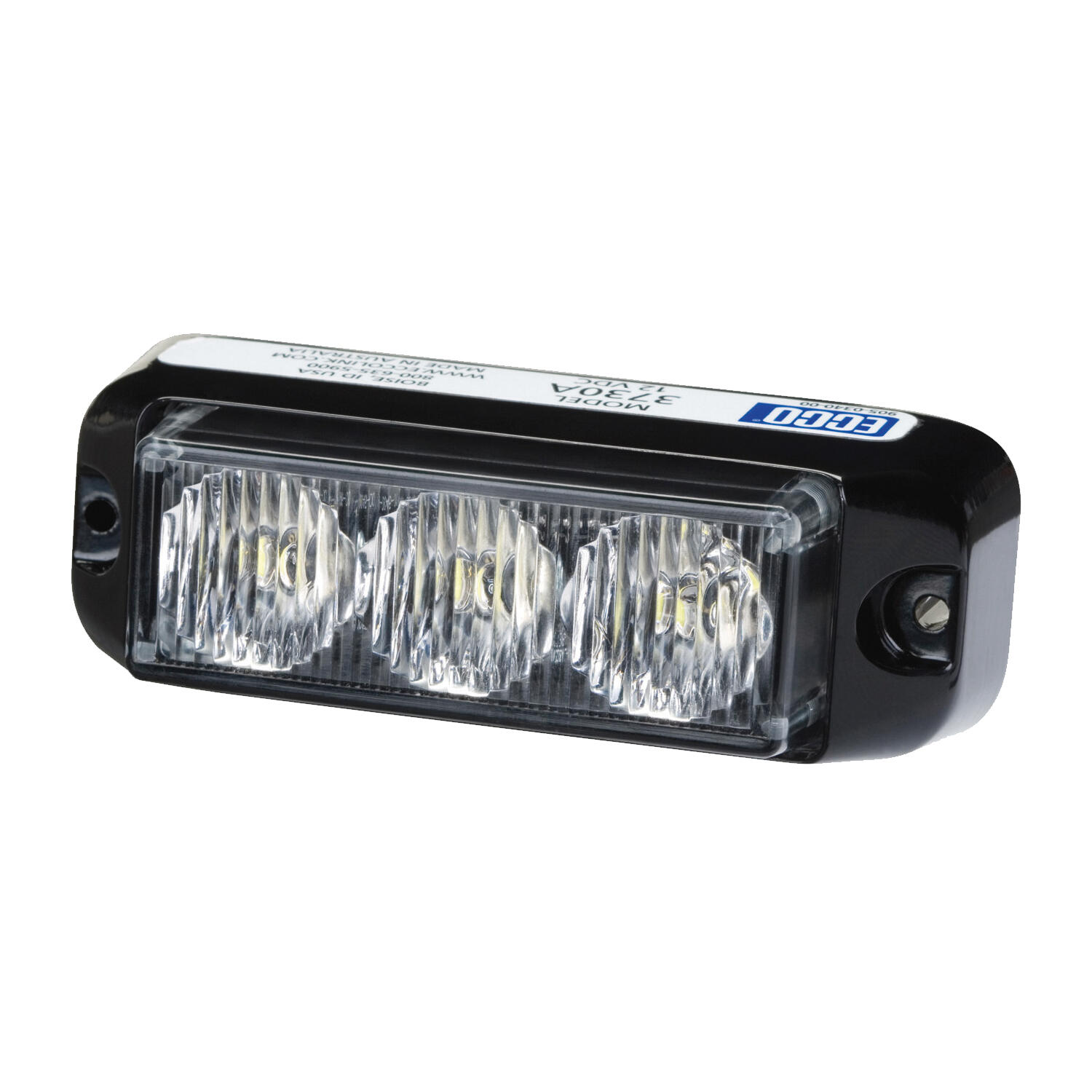

Surface mount LED 3730
This compact and versatile surface-mount LED directional light is ideal for applications requiring high intensity output, low current draw and maintenance-free operation. Premium LED heads feature a clear acrylic lens optic with LEDs that illuminate in the colour of your choice. Warning capability can be customised by selecting from 14 flash patterns (via a trigger wire) and synchronising multiple heads simultaneously or alternately. The coated aluminium base and urethane-sealed electronics protect the unit against the environment, making this one of the most rugged LED products available.
- Compact and versatile design
- Clear acrylic lens optic
- 14 flash patterns
- Coated aluminium base, urethane-sealed electronics
Selected variant
Specifications
| Approvals | SAE Class I |
|---|---|
| Color Lens | Clear |
| Color light | Orange |
| EMC | R10 |
| Height | 34 mm |
| IP Class | IP67 |
| Length | 94 mm |
| Light type | LED |
| Material | Aluminium |
|---|---|
| Number of light pattern | 14 |
| Power consumption | 0.2 A |
| R65 | No |
| Width | 39 mm |
| Voltage | 12/24 V |
Downloads
Product description
This compact and versatile surface-mount LED directional light is ideal for applications requiring high intensity output, low current draw and maintenance-free operation. Premium LED heads feature a clear acrylic lens optic with LEDs that illuminate in the colour of your choice. Warning capability can be customised by selecting from 14 flash patterns (via a trigger wire) and synchronising multiple heads simultaneously or alternately. The coated aluminium base and urethane-sealed electronics protect the unit against the environment, making this one of the most rugged LED products available.
