ECCO

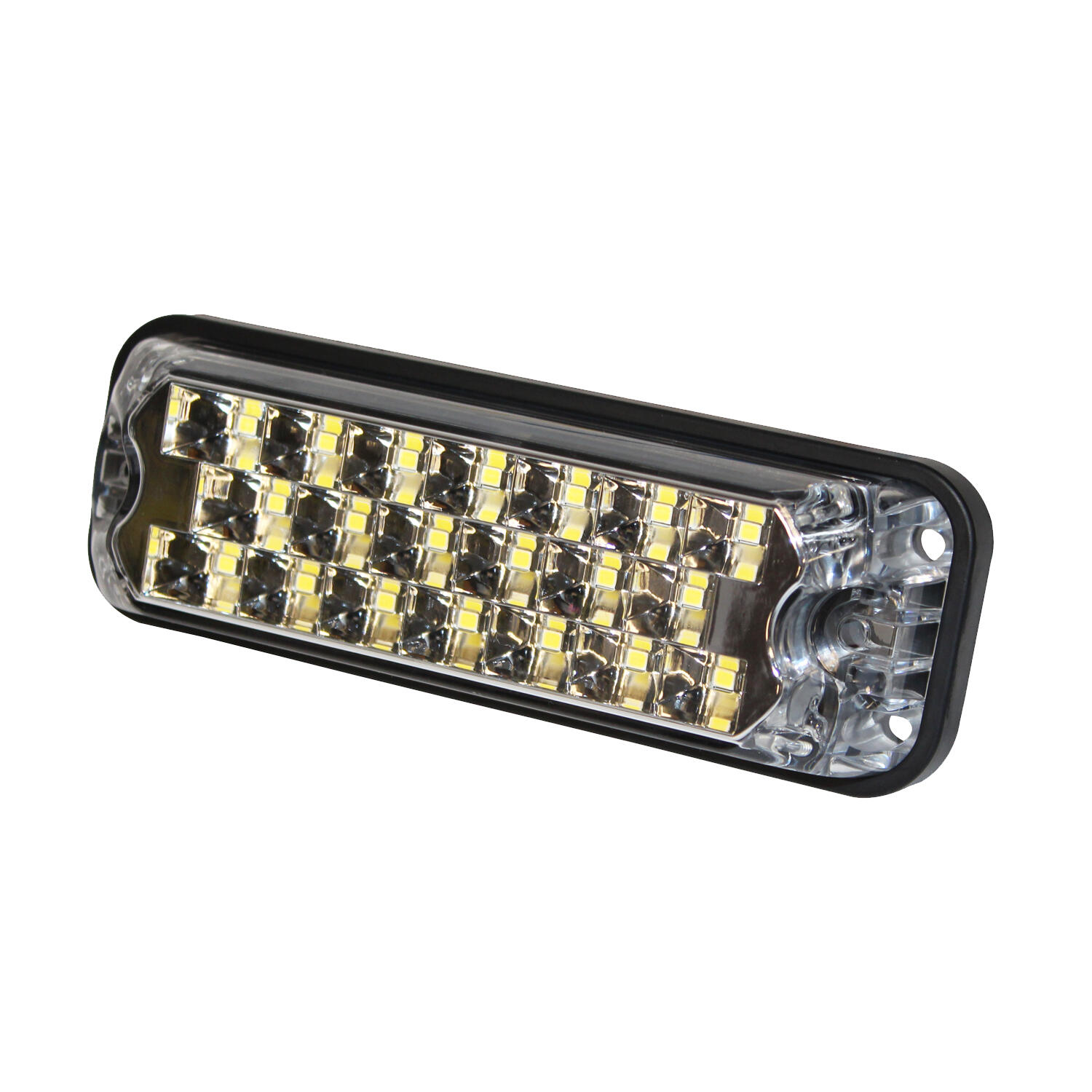

Surface mount LED 3812
3812 Series directional LEDs feature 20 high intensity LEDs with individual reflectors to provide truly outstanding light output in a very cost-effective package. Featuring fifteen flash patterns and synchronisation capability, offering fit-and-forget maintenance-free operation and low amp draw.
- 20 high intensity LEDs with individual reflectors
- Outstanding light output
- 15 flash patterns
- Synchronisation capability
Selected variant
Specifications
| Color Lens | Clear |
|---|---|
| Color light | Orange |
| EMC | R10 |
| Height | 53 mm |
| IP Class | IP67 |
| Length | 151 mm |
| Light type | LED |
| Number of LED | 20 |
| Number of light pattern | 15 |
|---|---|
| Power consumption | 0.4 A |
| R65 | Yes |
| Temperature range from | -30 °C |
| Temperature range to | 50 °C |
| Width | 30 mm |
| Voltage | 12-48 V |
Downloads
Product description
3812 Series directional LEDs feature 20 high intensity LEDs with individual reflectors to provide truly outstanding light output in a very cost-effective package. Featuring fifteen flash patterns and synchronisation capability, offering fit-and-forget maintenance-free operation and low amp draw.
