ECCO

400 series LED interior lighting

These heavy-duty surface mount LED interior lights feature aluminum housings and frosted lenses designed for optimum light diffusion. Suited to a wide variety of interior applications these lights are available in three length options.

Read more

Selected variant

ECCO_Color.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE, RoHS
Color light White
Height 51 mm
IP Class IP65
Length 137 mm
Light spread Flood beam
Light type LED
Lumen 200 lm
Number of LED 10
Power consumption 0.4 A
Width 13 mm
Voltage 12-24 V
Working light Yes

Downloads

Product description

These heavy-duty surface mount LED interior lights feature aluminum housings and frosted lenses designed for optimum light diffusion. Suited to a wide variety of interior applications these lights are available in three length options.

Accessories

Related products

Related

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

TFT displays
Product news

TFT-displays for indoor and outdoor solutions

Constantly evolving applications place ever greater demands on user interfaces. A display for presenting information on the device itself is usually the most natural choice. Read more!

Bopla BoVersa IIoT
Product news

Bopla BoVersa: optimal enclosure for IIoT environments

Comprising three parts, BoVersa can be extensively customized in terms of materials, such as metal and plastic, and colors. It is also easy to integrate various stylish display and keyboard solutions.

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Articles Length Lumen Number of LED Power consumption

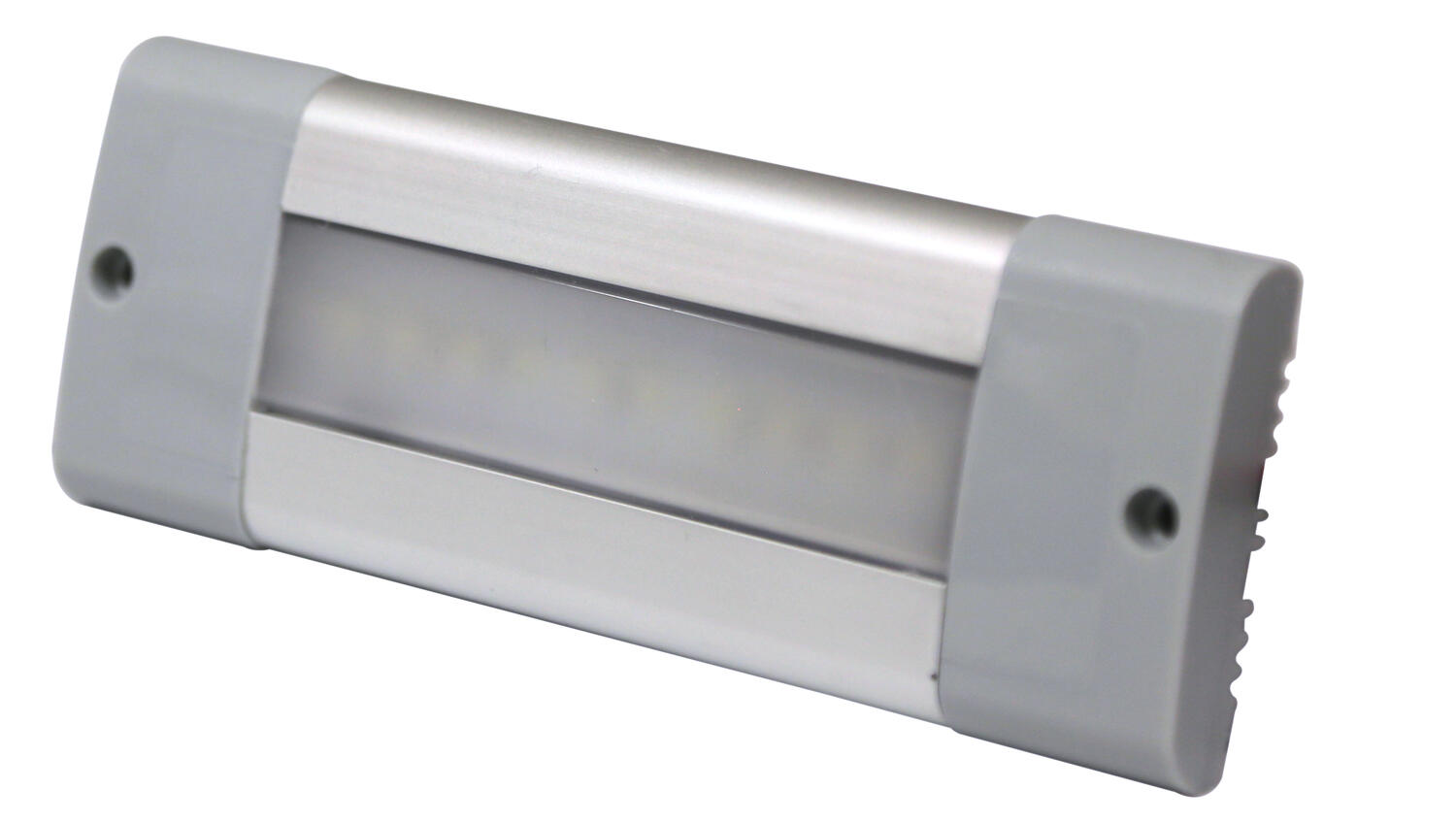

Rectangular interior light 5,5"
Art:
EEW0400 Copied
137 mm
200 lm
10
0.4 A
Rectangular interior light 12"
Art:
EEW0401 Copied
300 mm
450 lm
22
0.7 A
Rectangular interior light 18"
Art:
EEW0402 Copied
450 mm
650 lm
32
1.2 A

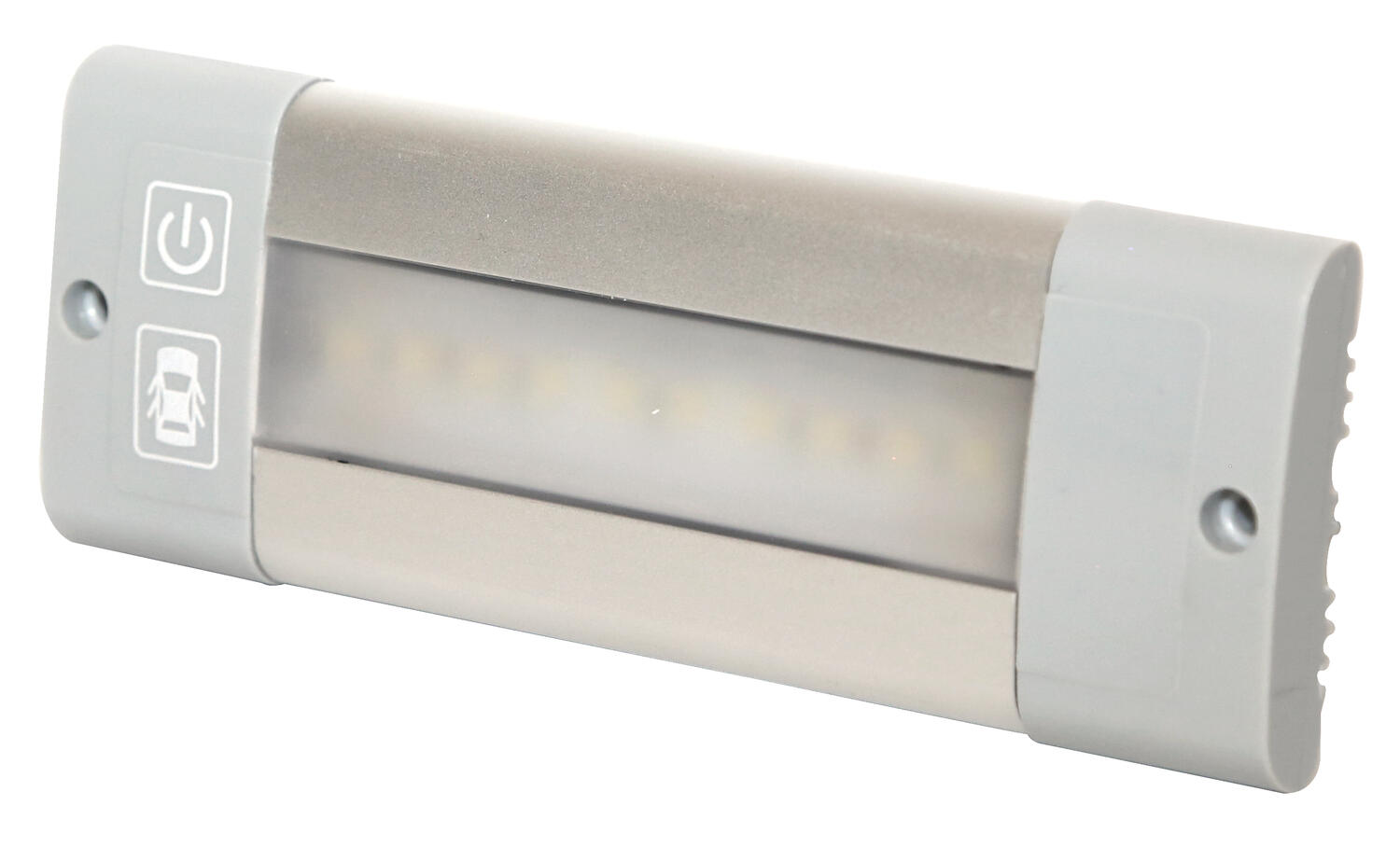

Rectangular interior light 5,5"
Art:
EEW0410 Copied
137 mm
200 lm
10
0.4 A
Rectangular interior light 12"
Art:
EEW0411 Copied
300 mm
450 lm
22
0.7 A

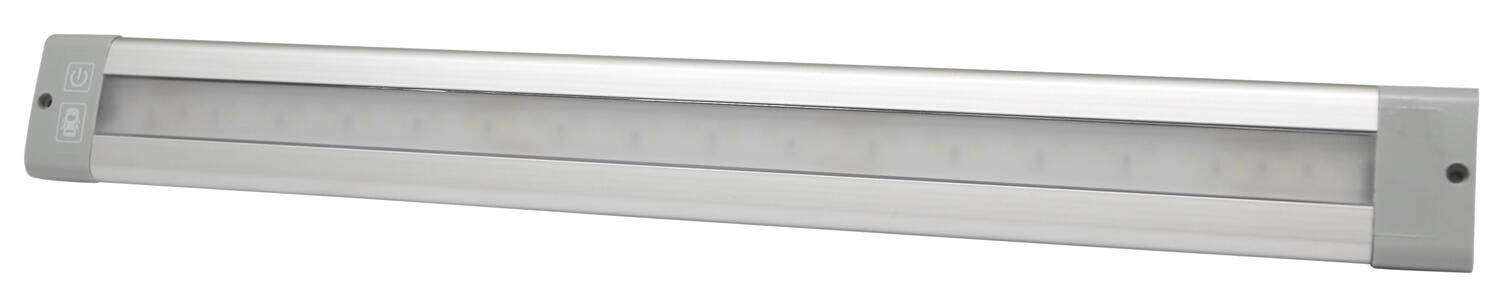

Rectangular interior light 18"
Art:
EEW0412 Copied
450 mm
650 lm
32
1.2 A
