ORLACO

Connecting cables

  • Cable sets for combination vehicles
  • Trailer cables

Selected variant

Stoneridge_24_ORLACO_RGB.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cable length 3600 mm
Temperature range from -20 °C
Temperature range to 80 °C
Type Analogue

Downloads

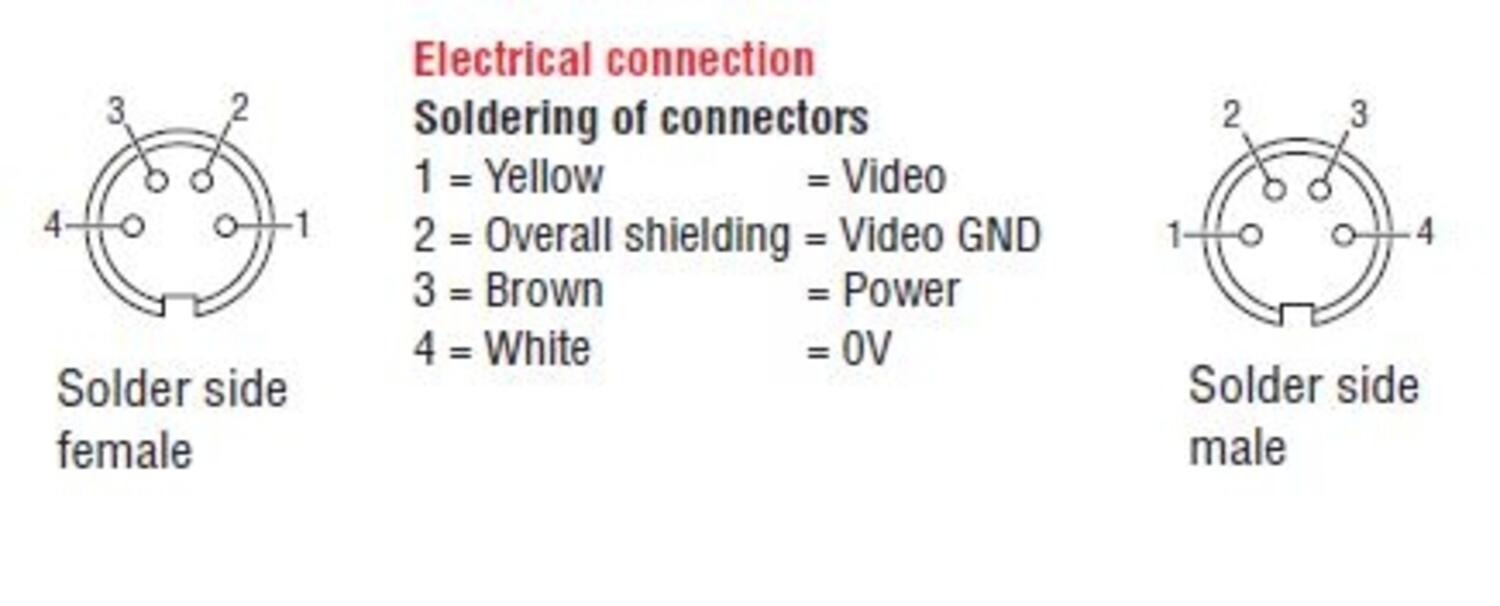

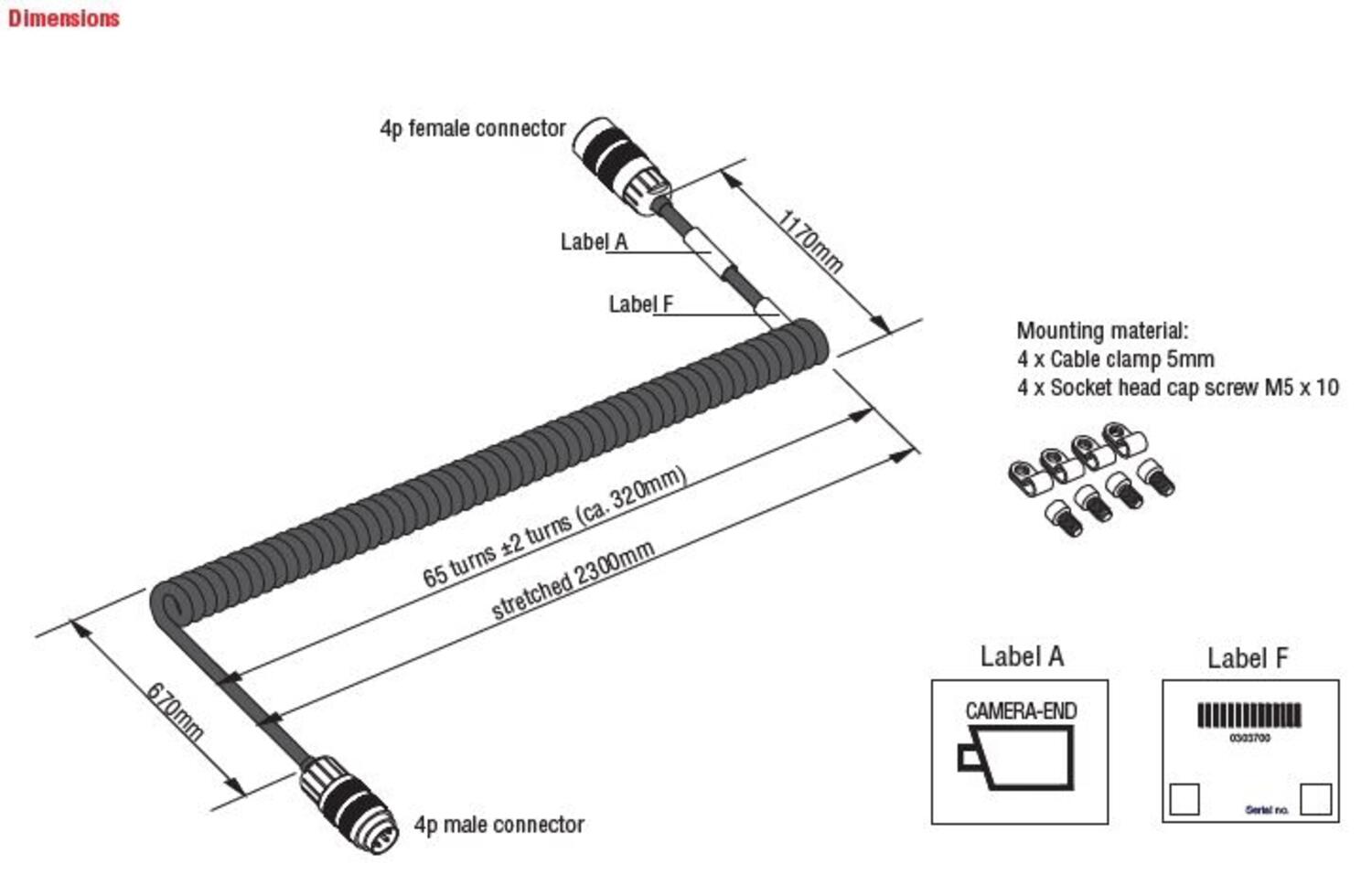

Measurements and connections

Technical illustrations

Accessories

Related products

Related

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

TFT displays
Product news

TFT-displays for indoor and outdoor solutions

Constantly evolving applications place ever greater demands on user interfaces. A display for presenting information on the device itself is usually the most natural choice. Read more!

Bopla BoVersa IIoT
Product news

Bopla BoVersa: optimal enclosure for IIoT environments

Comprising three parts, BoVersa can be extensively customized in terms of materials, such as metal and plastic, and colors. It is also easy to integrate various stylish display and keyboard solutions.

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Articles Cable Diameter Cable length IP Class Material Temperature range from Temperature range to

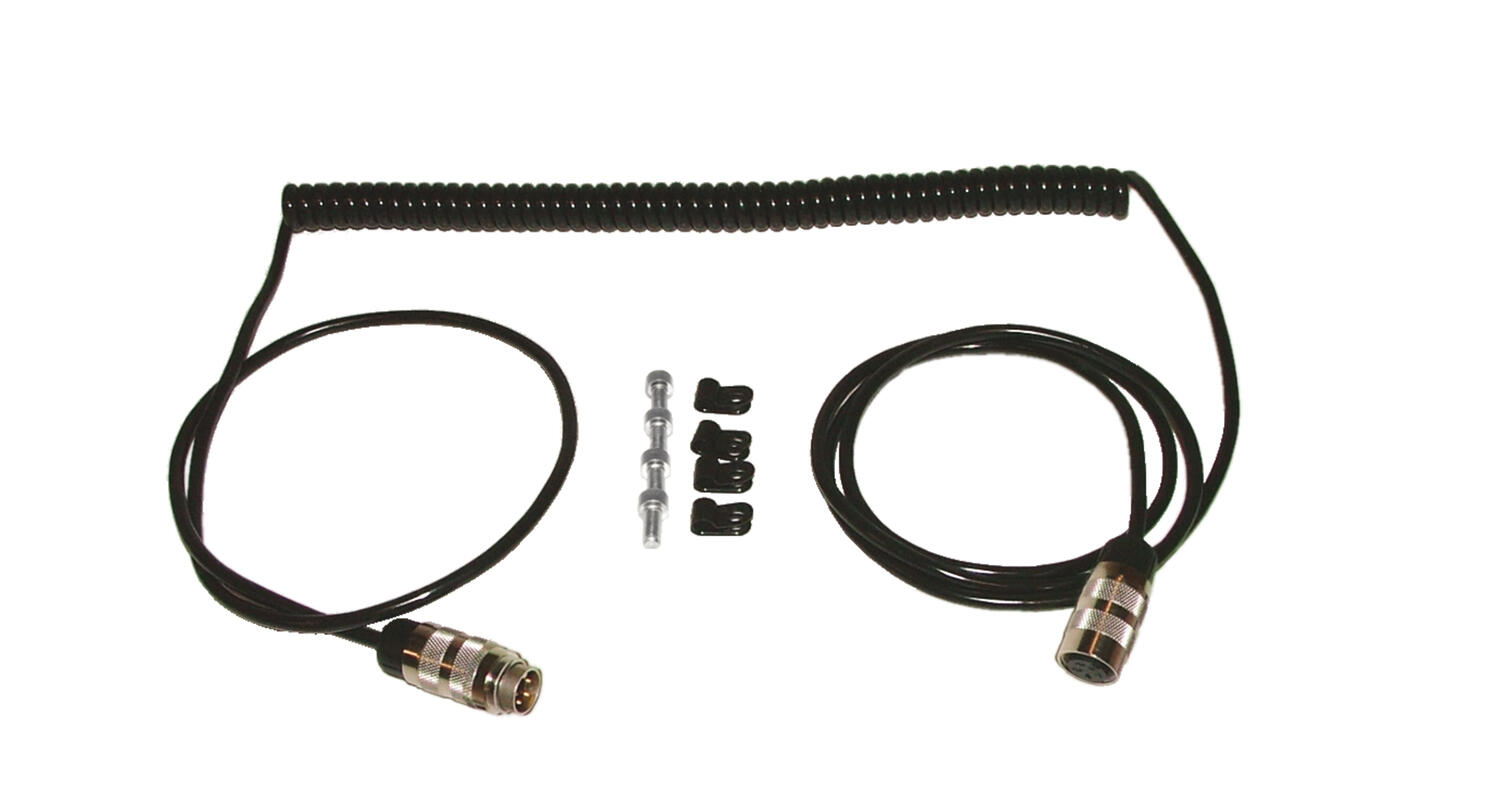

Spiral cable 3,5 m, 4pM - 4pF
Art:
ORL0303700 Copied
3600 mm
-20 °C
80 °C

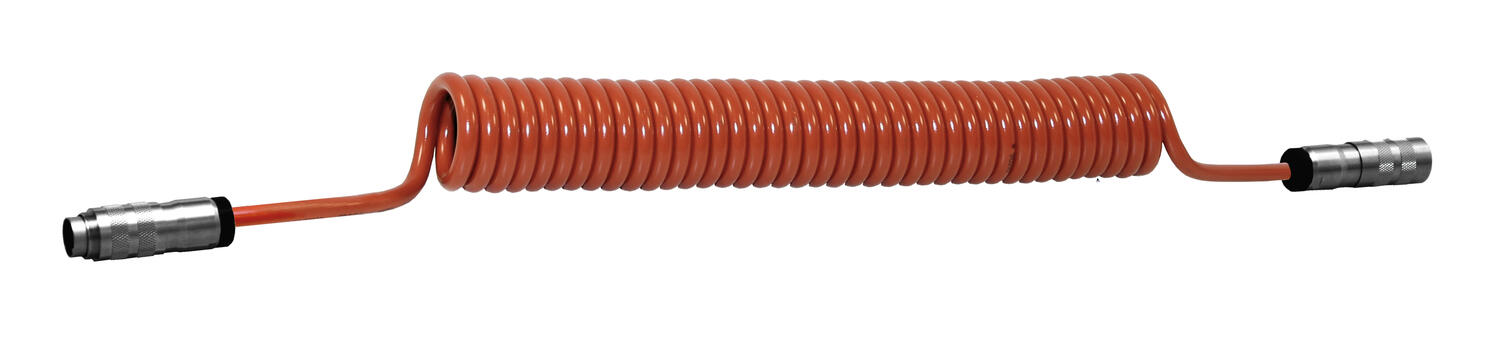

Spiral cable UNI 6,5 m, 4pM - 4pF
Art:
ORL0303570 Copied
6500 mm
IP67
TPE
-40 °C
80 °C
Spira l cable UNI 4,5 m, 4pM - 4pF
Art:
ORL0303560 Copied
9.1 mm
4500 mm
IP67
TPE
-40 °C
80 °C
0304020 Cable 8m truck.jpg

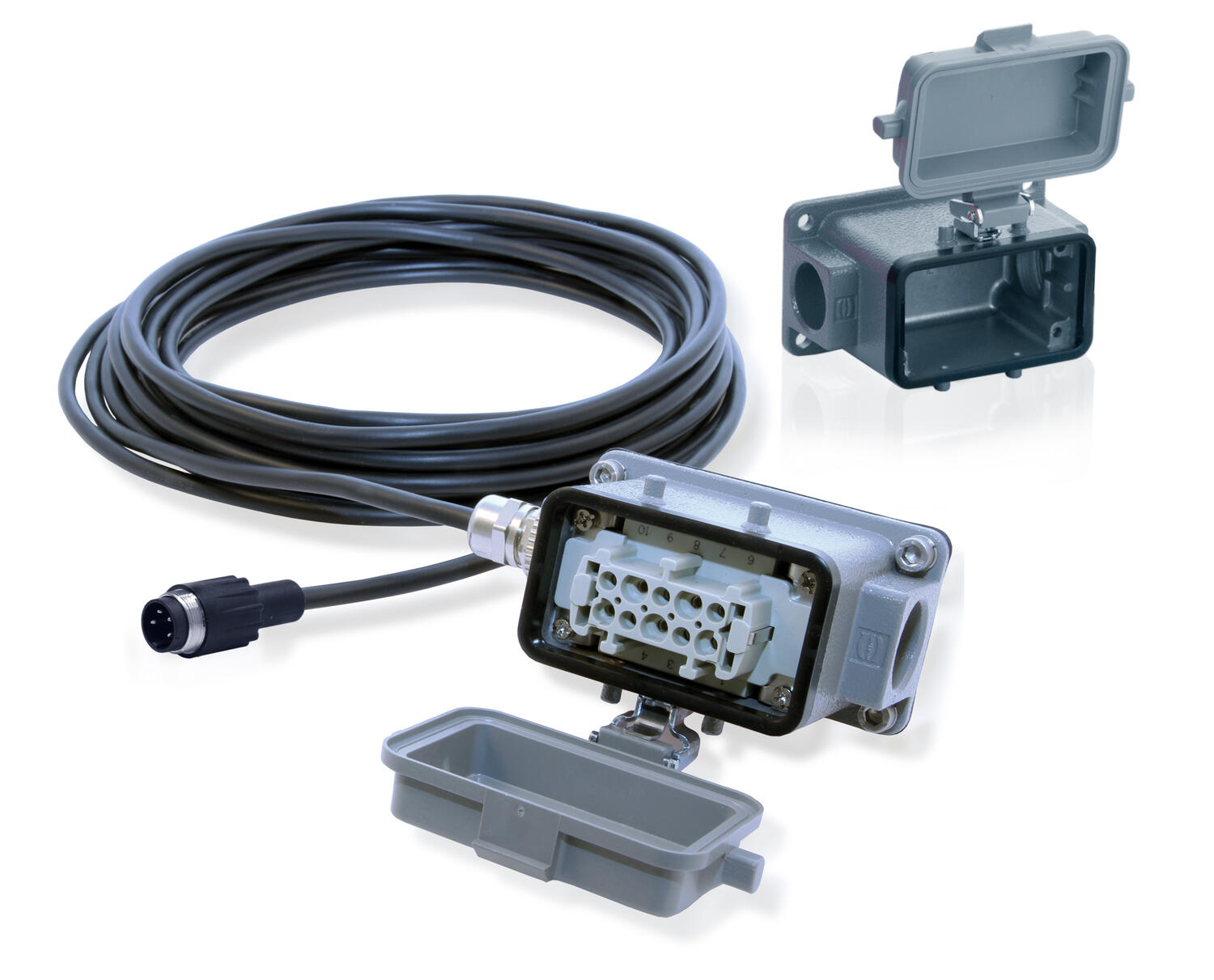

Cable 8M Truck
Art:
ORL0304020 Copied
6 mm
8000 mm
IP67
-40 °C
85 °C
0301780 2Cam Cable 8m truck.jpg
Cabin cable 8m for 2 cameras, 2 x 4pM -10pF Harting
Art:
ORL0301780 Copied
6 mm
8000 mm
IP67
-40 °C
85 °C
0303630 Cable Extension Spiral 3,5m.jpg

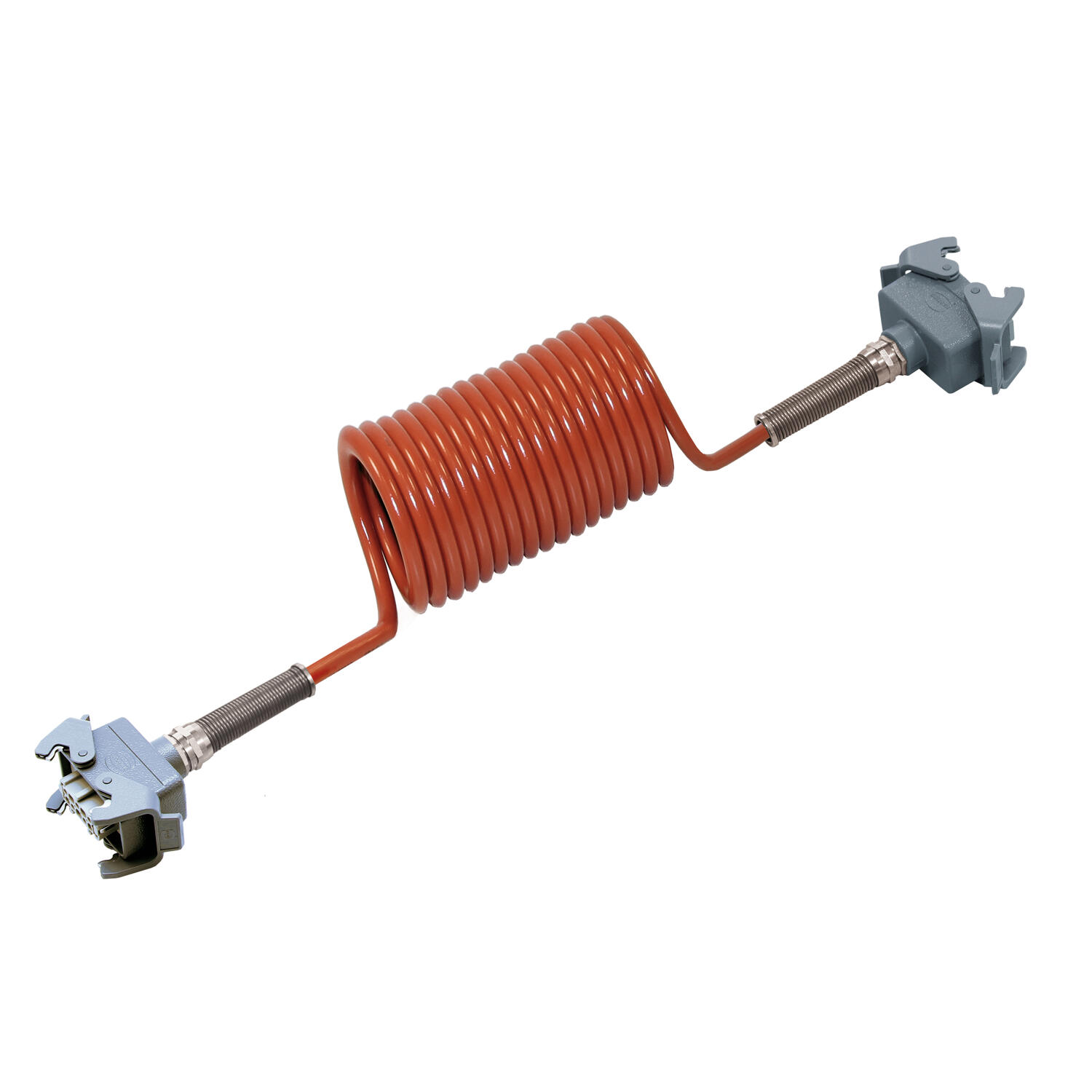

Cable Extension Spiral 3,5M
Art:
ORL0303630 Copied
3500 mm
IP67
-40 °C
85 °C

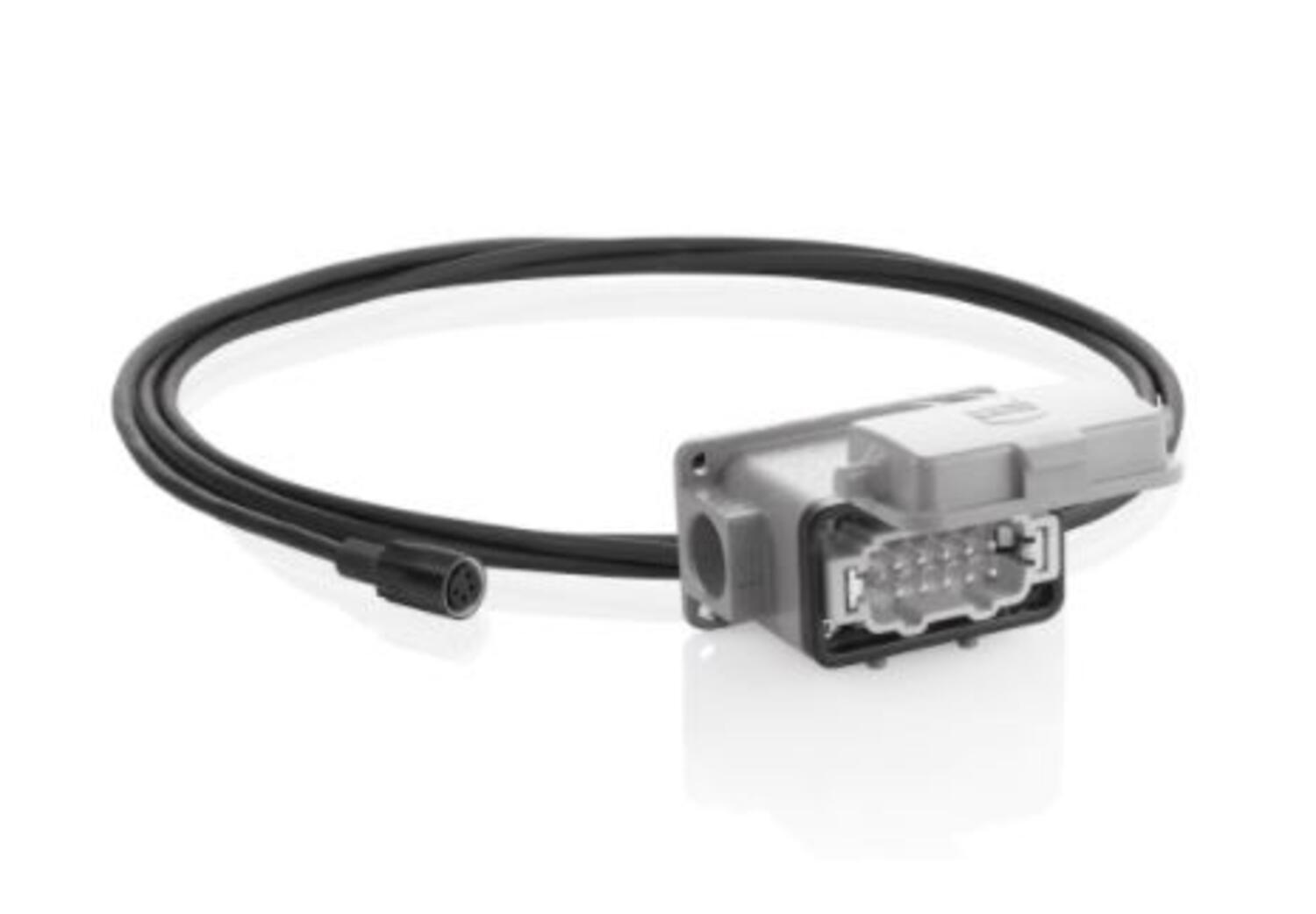

Trailer cable 2 m, 4pM - h10M
Art:
ORL0301770 Copied
6 mm
2000 mm
IP67
-40 °C
85 °C
Trailer cable 25m
Art:
ORL0303740 Copied
6 mm
25000 mm
IP67
-40 °C
85 °C

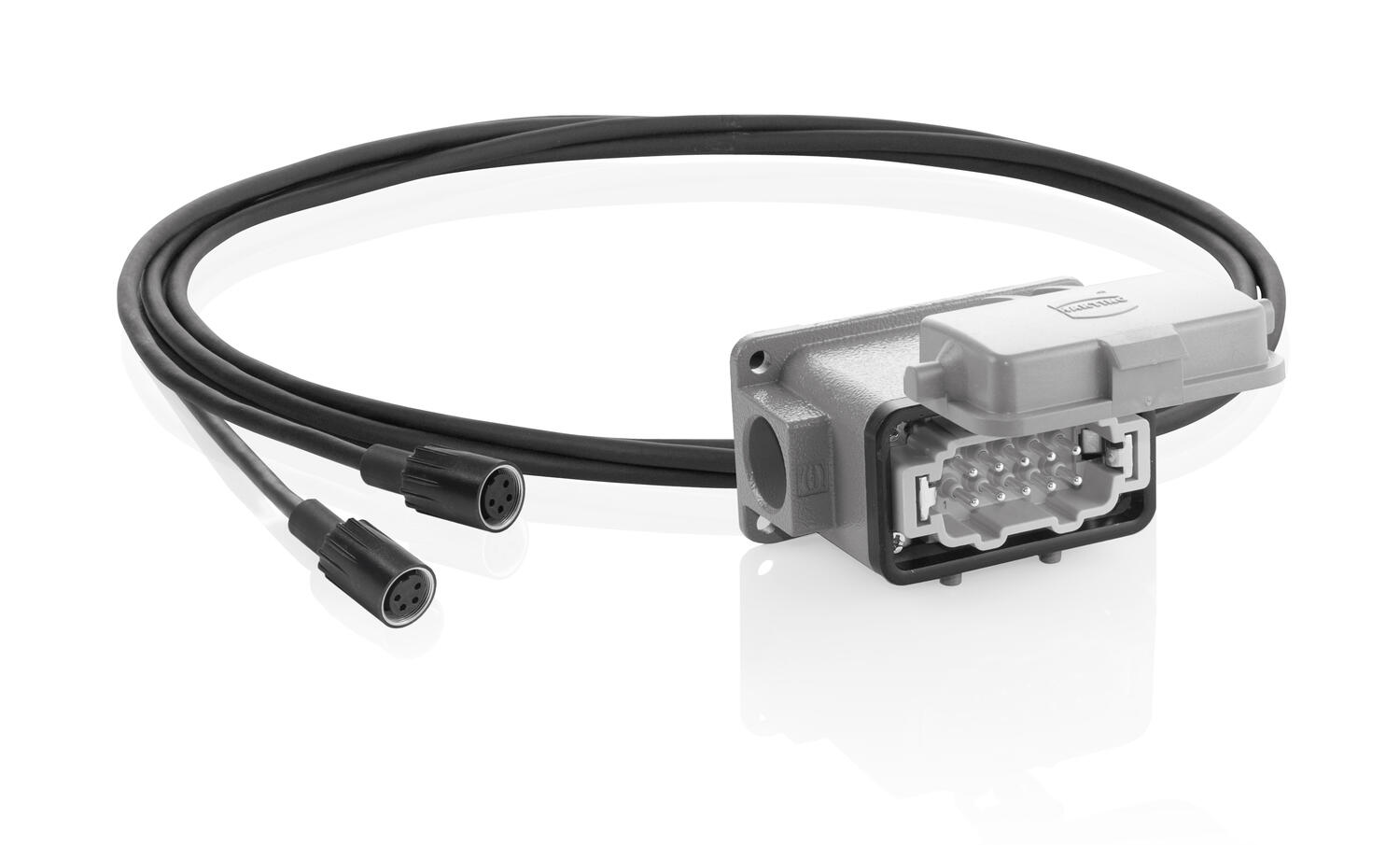

0301790_Trailer 2Cam cable_Orlaco.jpg
 Trailer cable 0,5m for 2 cameras, 2 x 4pF - h10pM
Art:
ORL0301790 Copied
500 mm
IP67
-40 °C
85 °C

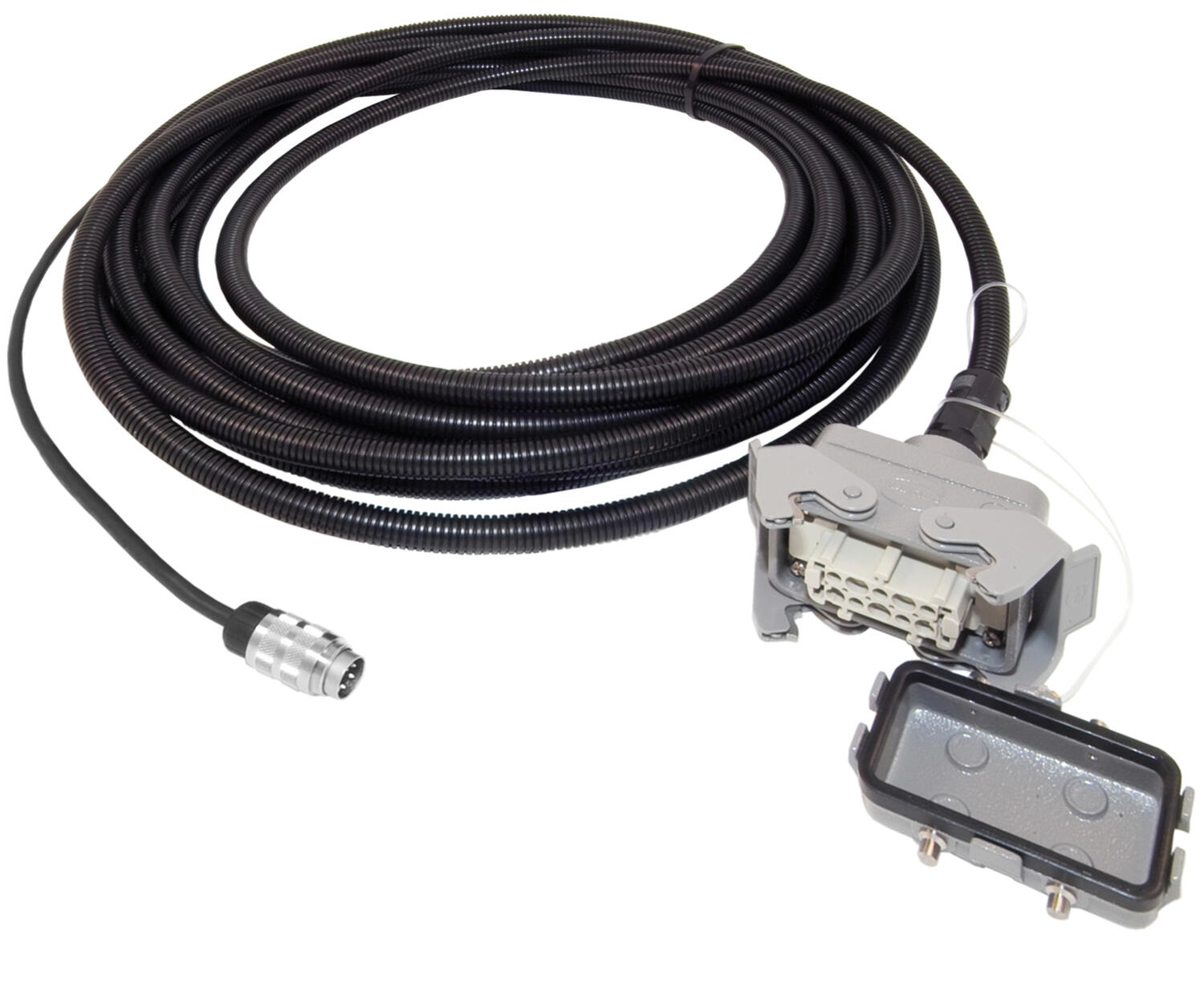

Shielded cabin cable 11m, 4pM - h10pF
Art:
ORL0303870 Copied
11000 mm
IP67
-40 °C
85 °C

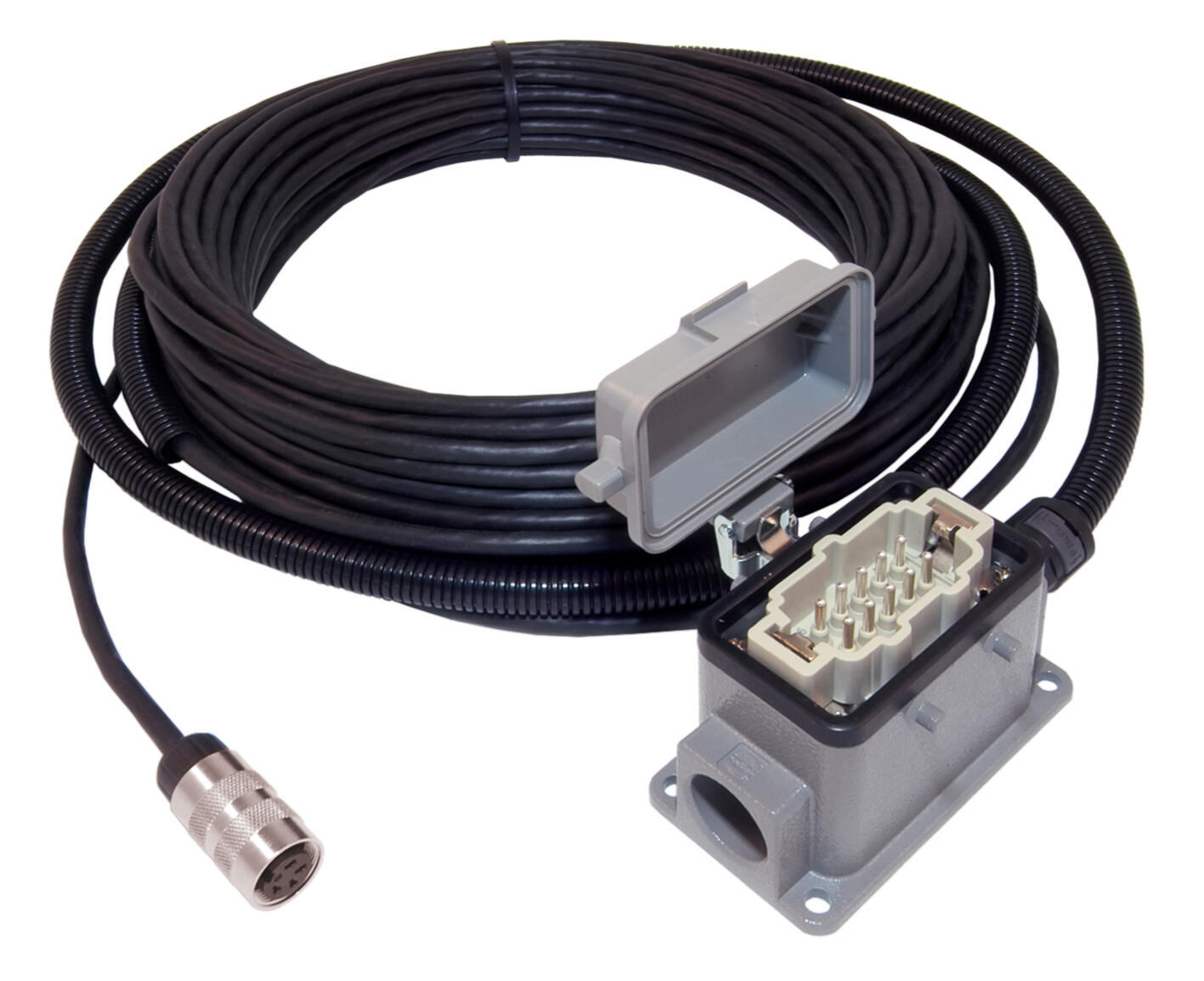

Swivelling arm Trailer cable 21m, 4pF - h10pM
Art:
ORL0303880 Copied
21000 mm
IP67
-40 °C
85 °C

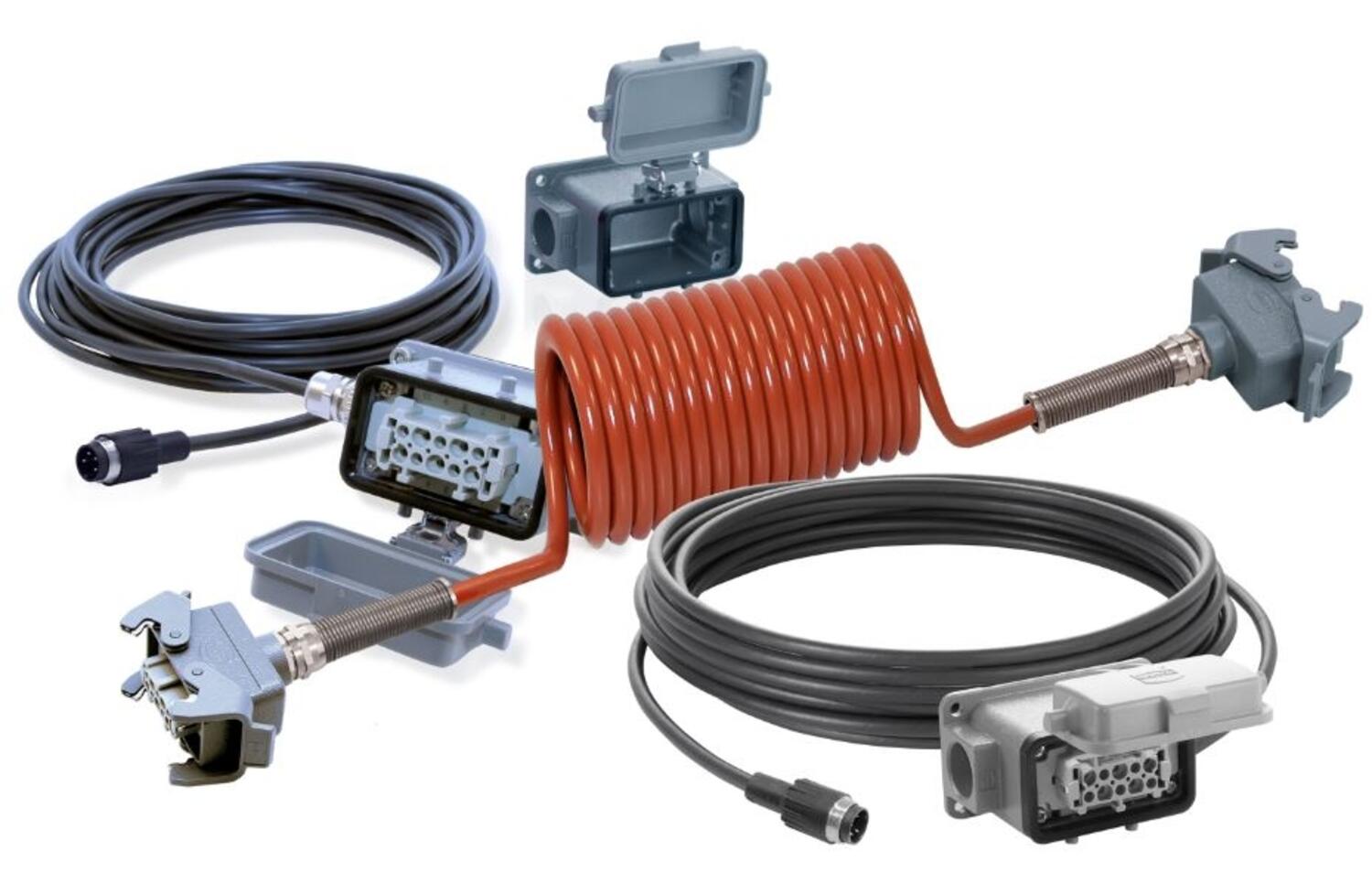

0403770 picture.JPG
Cable set for truck-trailer (0301780+0303630+0303740)
Art:
ORL0403770 Copied
IP67
-40 °C
85 °C

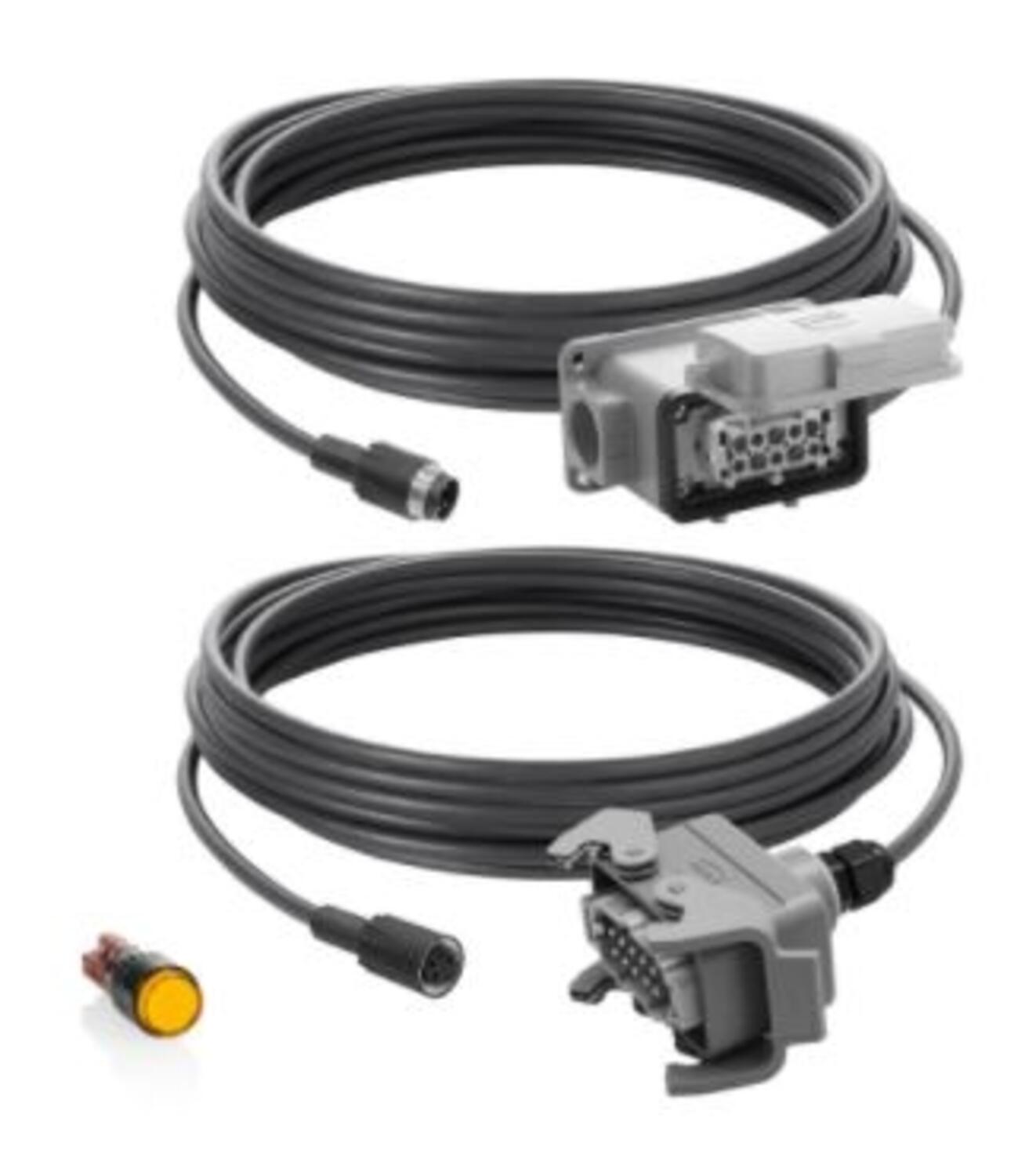

Cable set for truck with drawbar-trailer,16 m + 21 m, (Manual)
Art:
ORL0303960 Copied
IP67
-40 °C
85 °C

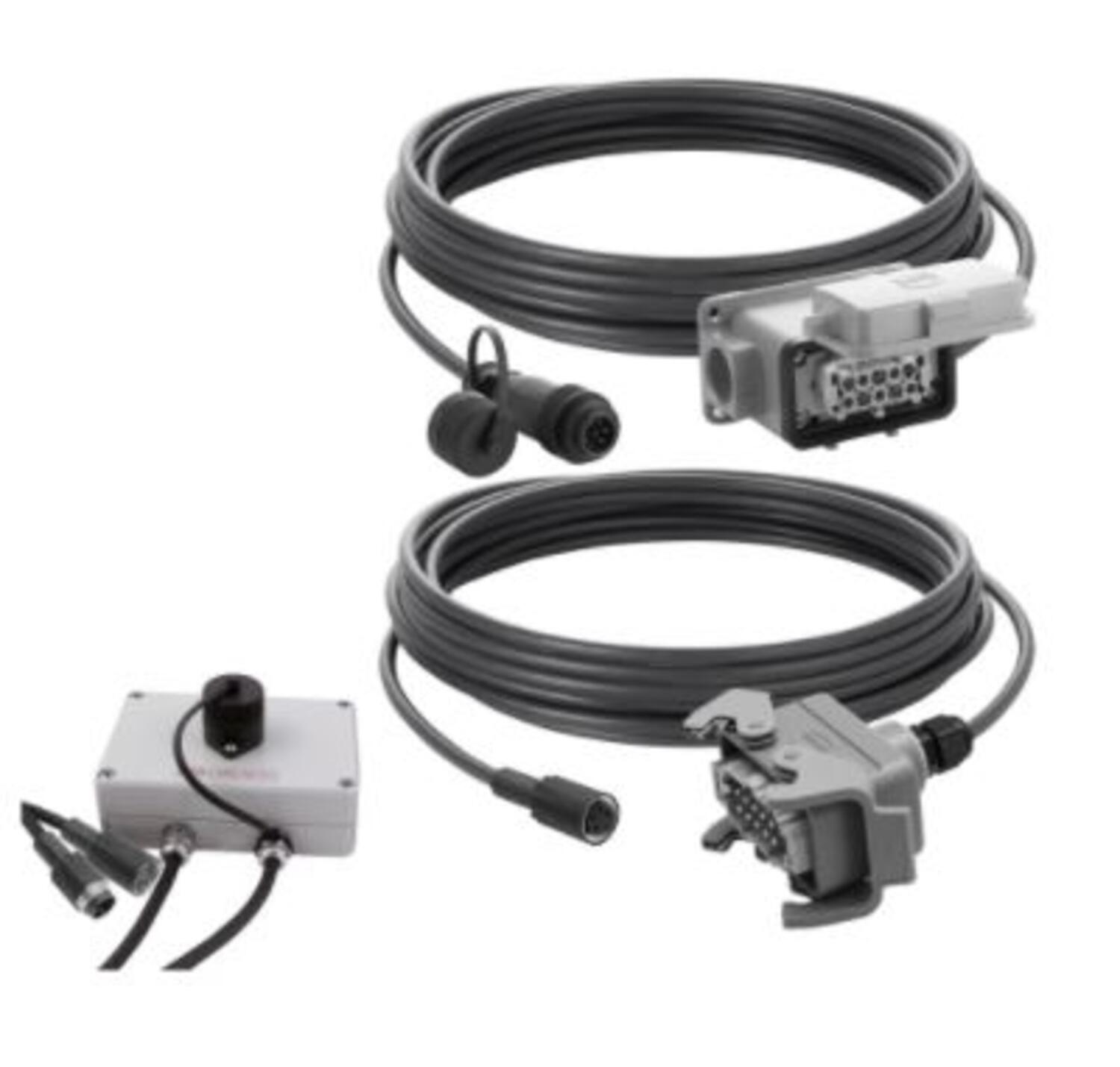

Cable set for truck with drawbar-trailer,16 m + 21 m, (Automatic)
Art:
ORL0303970 Copied
IP67
-40 °C
85 °C

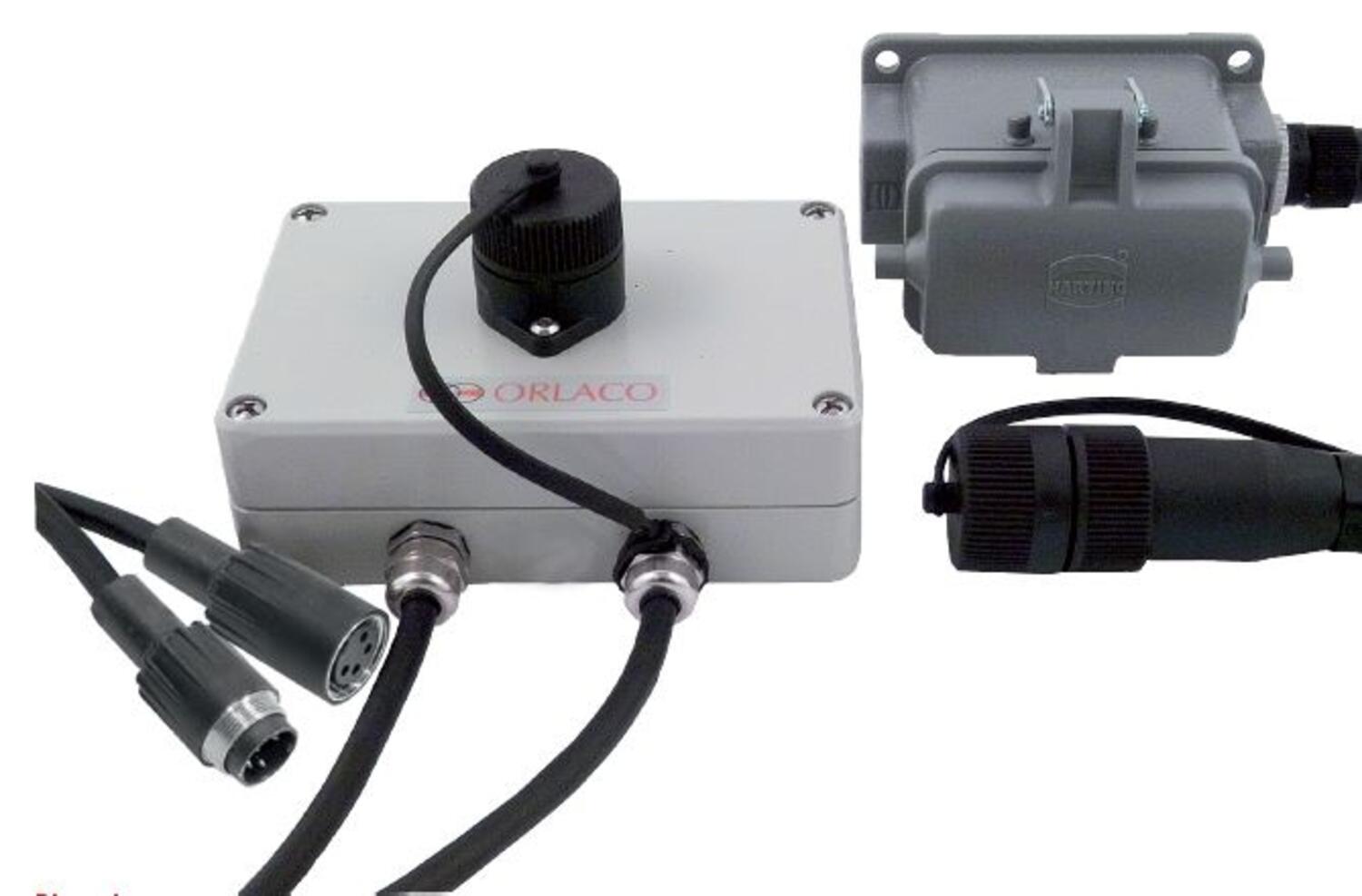

0405600 picture.JPG
Trailer switcher & 16m multi cable
Art:
ORL0405600 Copied
-40 °C
85 °C

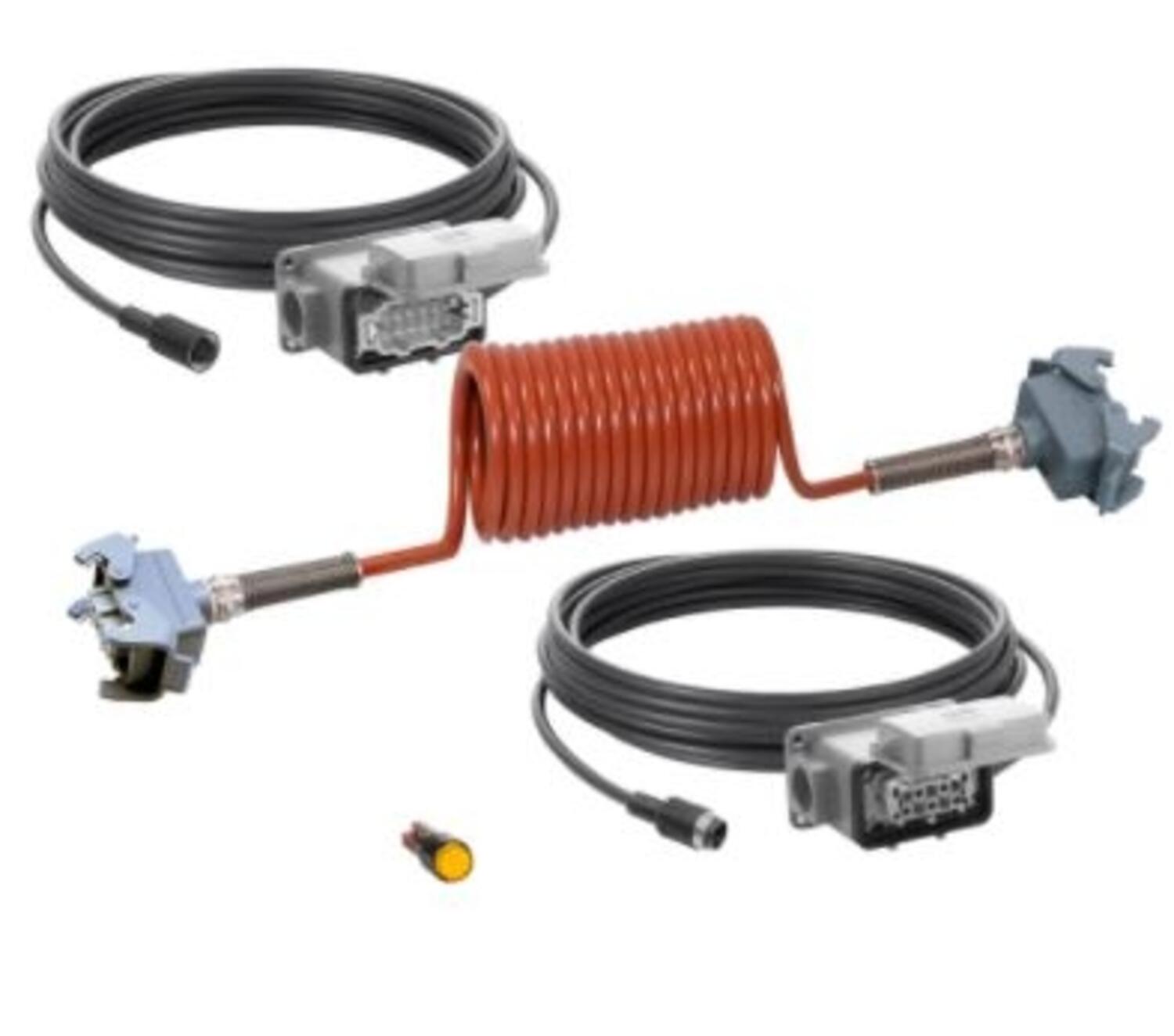

Cable set truck-trailer, 16m - 21m, manual switch
Art:
ORL0303980 Copied
IP67
-40 °C
85 °C

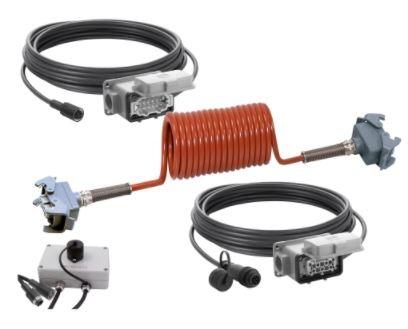

Cable set for truck with center axle-trailer (Automatic)
Art:
ORL0303990 Copied
IP67
-40 °C
85 °C
