ORLACO
Orlaco - Dynamic-/ Mast Cable
Suitable for use in moving applications, for example, for a gear camera mounted on an arm, a excavator boom or on a truck with a tipping platform. Works well in the mast on your truck.
- Soft surface with a small bend radius

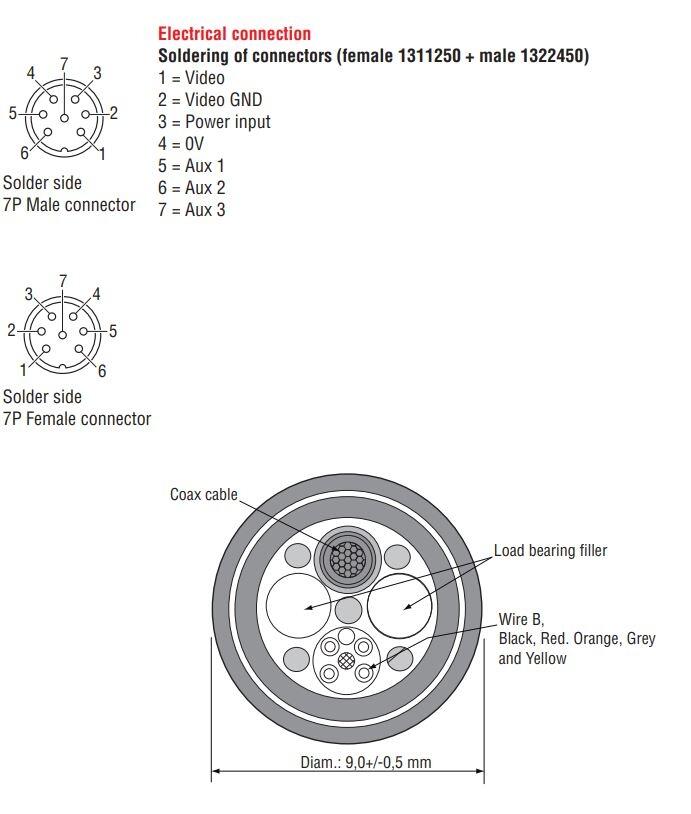

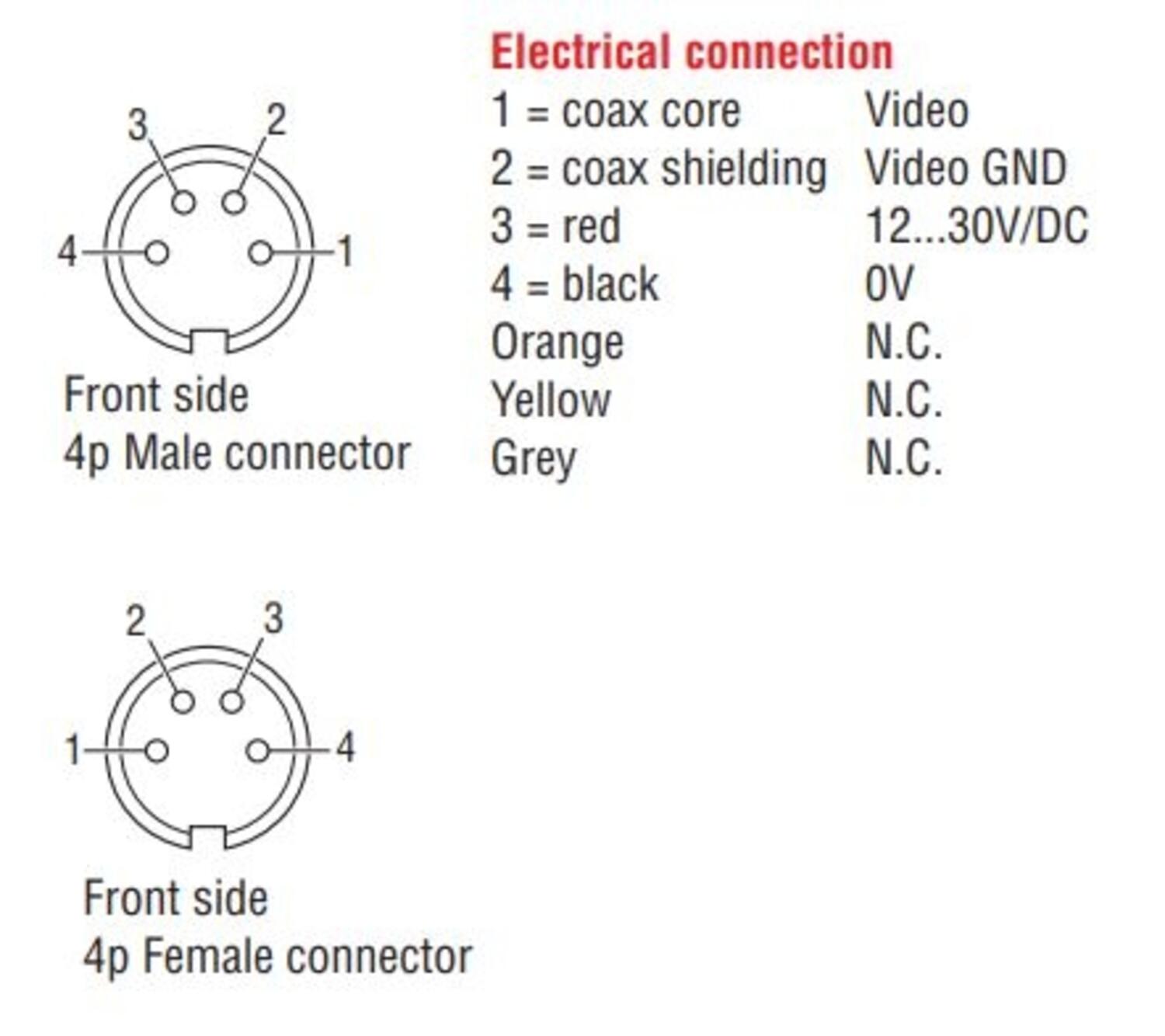

- M16 4-pole cast contacts or M16 7-pole cast contacts
- -40 to +85 °C
Selected variant
Specifications

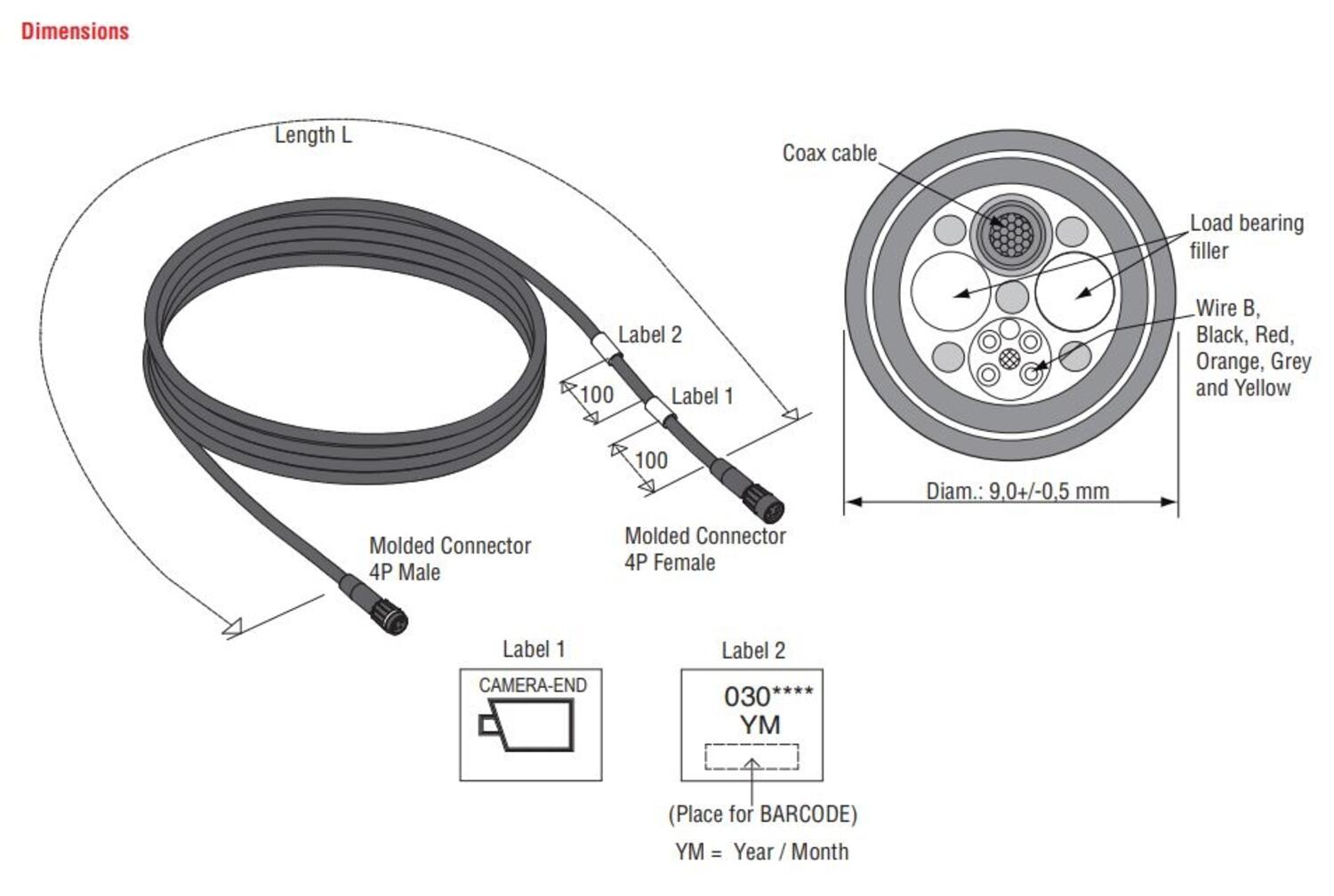

| Cable Diameter | 9 mm |
|---|---|

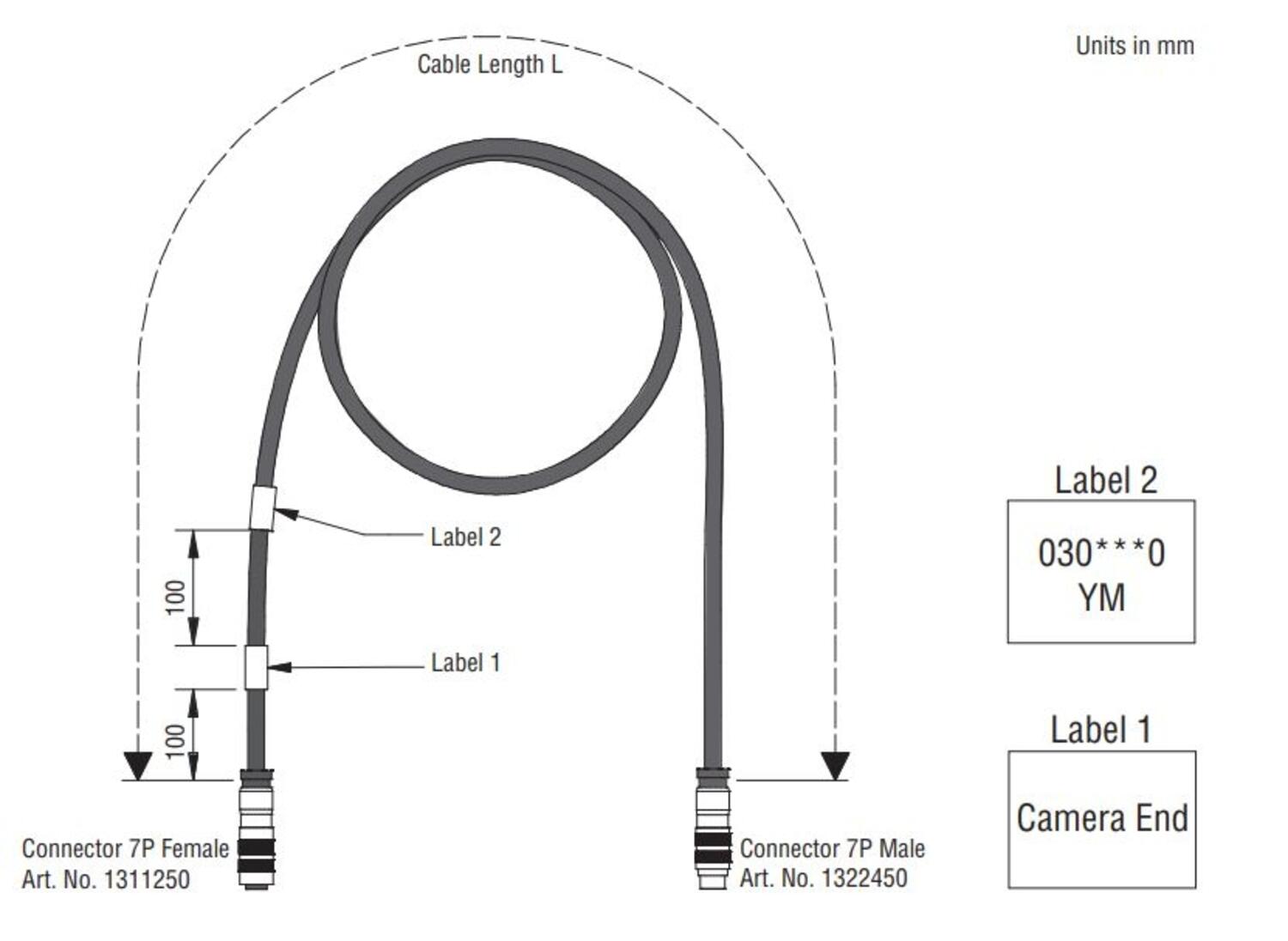

| Cable length | 500 mm |
| IP Class | IP67 |
| Material | PUR |
| Temperature range from | -40 °C |
| Temperature range to | 85 °C |
| Type | Analogue |
Product description
Suitable for use in moving applications, for example, for a gear camera mounted on an arm, a excavator boom or on a truck with a tipping platform. Works well in the mast on your truck.
