ORLACO
CPH AMOS

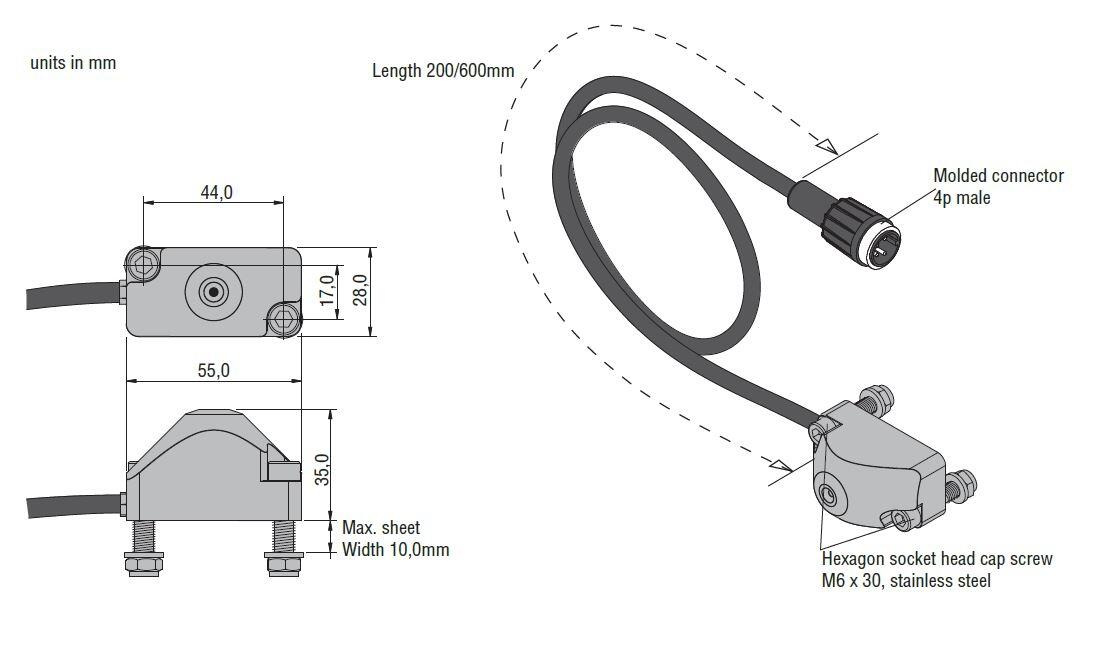

Orlaco's pinhole camera (CPH) is perfect for use when, for example, you can not mount a camera on the fork. Since the camera has small dimensions (55x28 mm) it can be placed very easily below the fork carrier. Also works very well as mid-range camera. Due to the robust construction of the camera, it is advisable to use the camera as a tool camera, for example, on the stick of a excavator.
- 12 V DC
- IP69K
- Shockproof and vibration resistant
- New AMOS sensor
Selected variant
Specifications
| Cable length | 600 mm |
|---|---|
| Camera Angle | 51 |
| Image Format | PAL |
| IP Class | IP68, IP69K |
| Supply Voltage DC Max | 24 V DC |
| Supply Voltage DC Min | 12 V DC |
| Temperature range from | -40 °C |
| Temperature range to | 85 °C |
| Vibration Resistance | 50G |
Product description
Orlaco's pinhole camera (CPH) is perfect for use when, for example, you can not mount a camera on the fork. Since the camera has small dimensions (55x28 mm) it can be placed very easily below the fork carrier. Also works very well as mid-range camera. Due to the robust construction of the camera, it is advisable to use the camera as a tool camera, for example, on the stick of a excavator.
