ORLACO
Orlaco CornerEye Kit
Blind spots on trucks

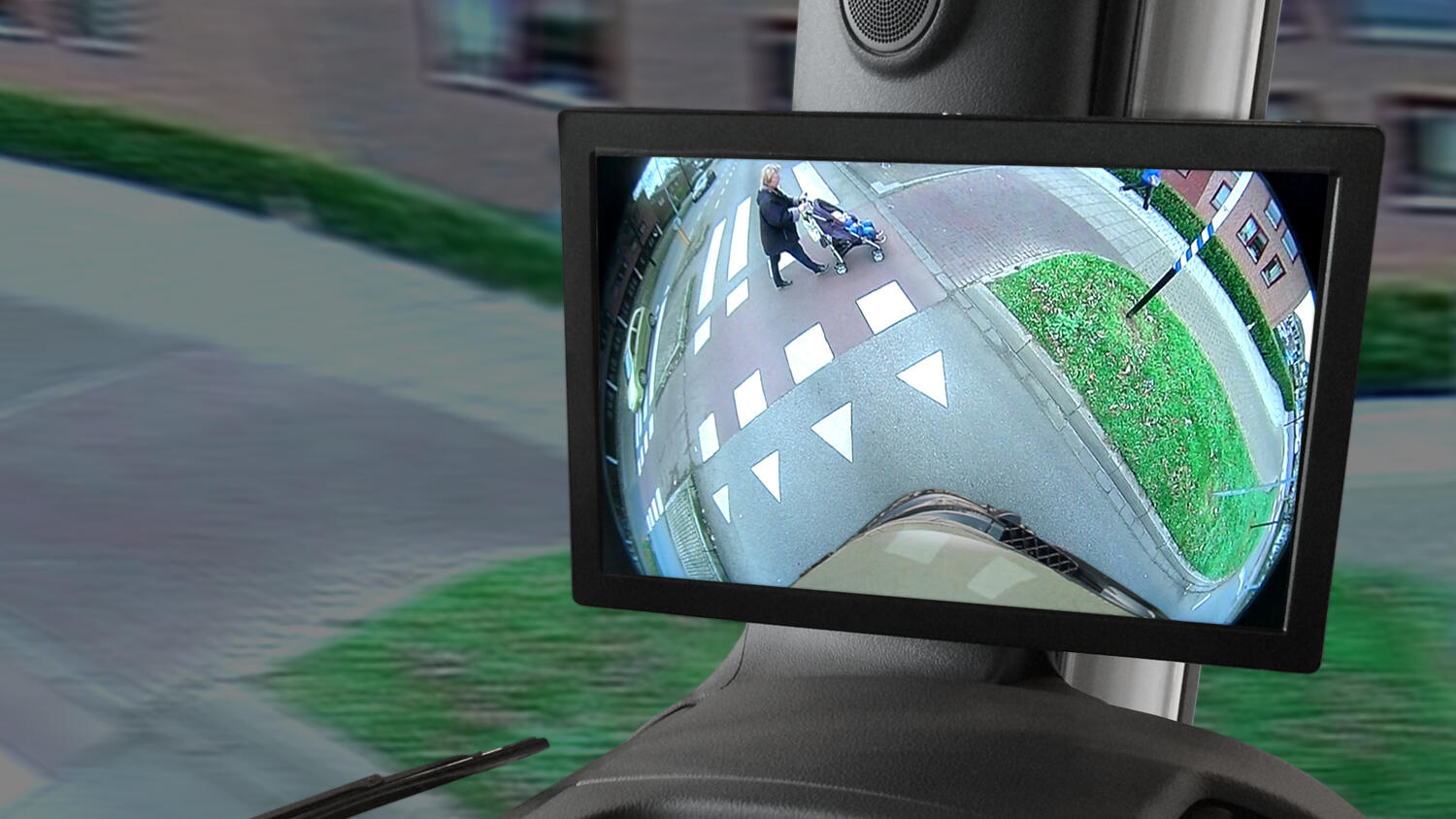

The camera system that gives you an overview of the "dead angle" both in front and on the side of the truck. Prevent accidents with the help of CornerEye, with this unique camera system you are constantly on the lookout for cyclists, pedestrians, objects and anything else that may appear in the daily traffic.

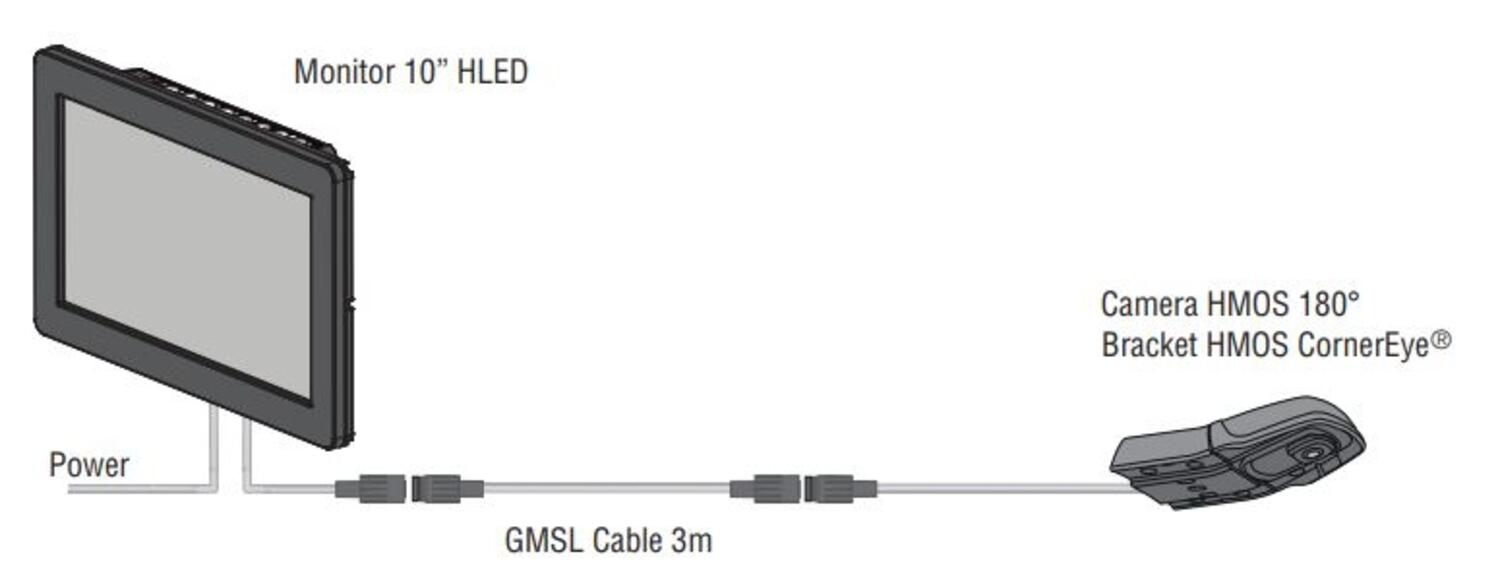

Kit can include:
- Digital GMSL Camera HMOS: high speed digital GMSL camera, Various lens angles from 30° to 180°
- Digital GMSL monitor HLED 7": Optical bonded panel with touch pads, auto brightness control
- Digital GMSL Monitor HLED 10": LCD mdule with white LED backlight, auto brightness control
- Digital GMSL HMOS Camera Switcher: Inputs and power supply for up to 4 cameras, output for monitor
- Digital GMSL standard and dynamic cables: EMC screening nd ADR approved
- Bracket HMOS CornerEye: Bracket for GMSL Camera HMOS
- Monitor Bracket: Montor Bracket Suitable for 10" or 7" HLED
Contact us to discuss your application and we can advise on what kit you need.

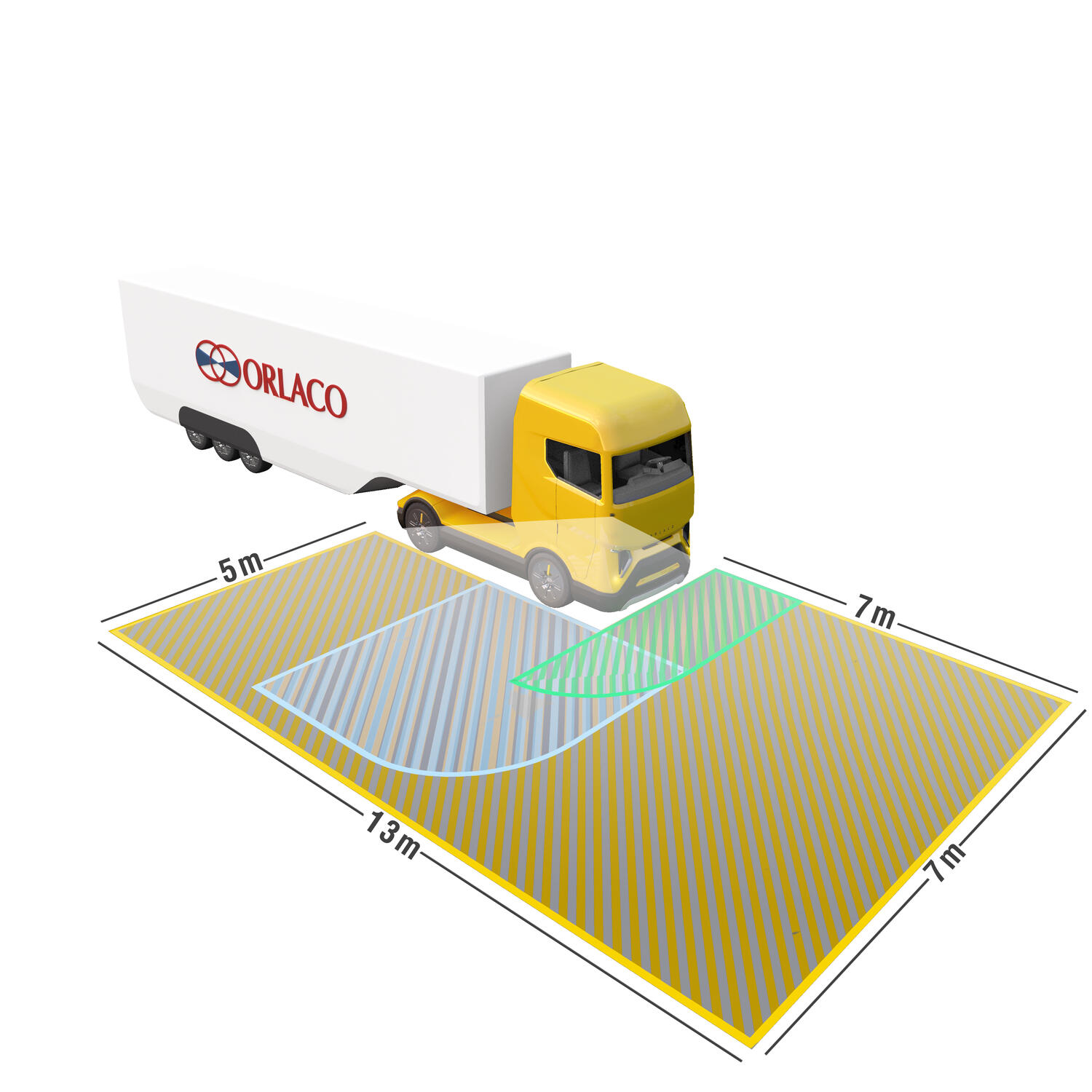

- 270° Field of view
- Aerodynamic design
- Plug and play
- 12-24 V DC supply voltage
Selected variant
Specifications
| Camera Angle | 180 |
|---|---|
| Display Size | 10 en |
| IP Class | IP67, IP68, IP69K |
| Supply Voltage DC Max | 24 V DC |
| Supply Voltage DC Min | 12 V DC |
| Temperature range from | -40 °C |
| Temperature range to | 85 °C |
Product description
The camera system that gives you an overview of the "dead angle" both in front and on the side of the truck. Prevent accidents with the help of CornerEye, with this unique camera system you are constantly on the lookout for cyclists, pedestrians, objects and anything else that may appear in the daily traffic.
Kit can include:
- Digital GMSL Camera HMOS: high speed digital GMSL camera, Various lens angles from 30° to 180°
- Digital GMSL monitor HLED 7": Optical bonded panel with touch pads, auto brightness control
- Digital GMSL Monitor HLED 10": LCD mdule with white LED backlight, auto brightness control
- Digital GMSL HMOS Camera Switcher: Inputs and power supply for up to 4 cameras, output for monitor
- Digital GMSL standard and dynamic cables: EMC screening nd ADR approved
- Bracket HMOS CornerEye: Bracket for GMSL Camera HMOS
- Monitor Bracket: Montor Bracket Suitable for 10" or 7" HLED
Contact us to discuss your application and we can advise on what kit you need.
