BASLER

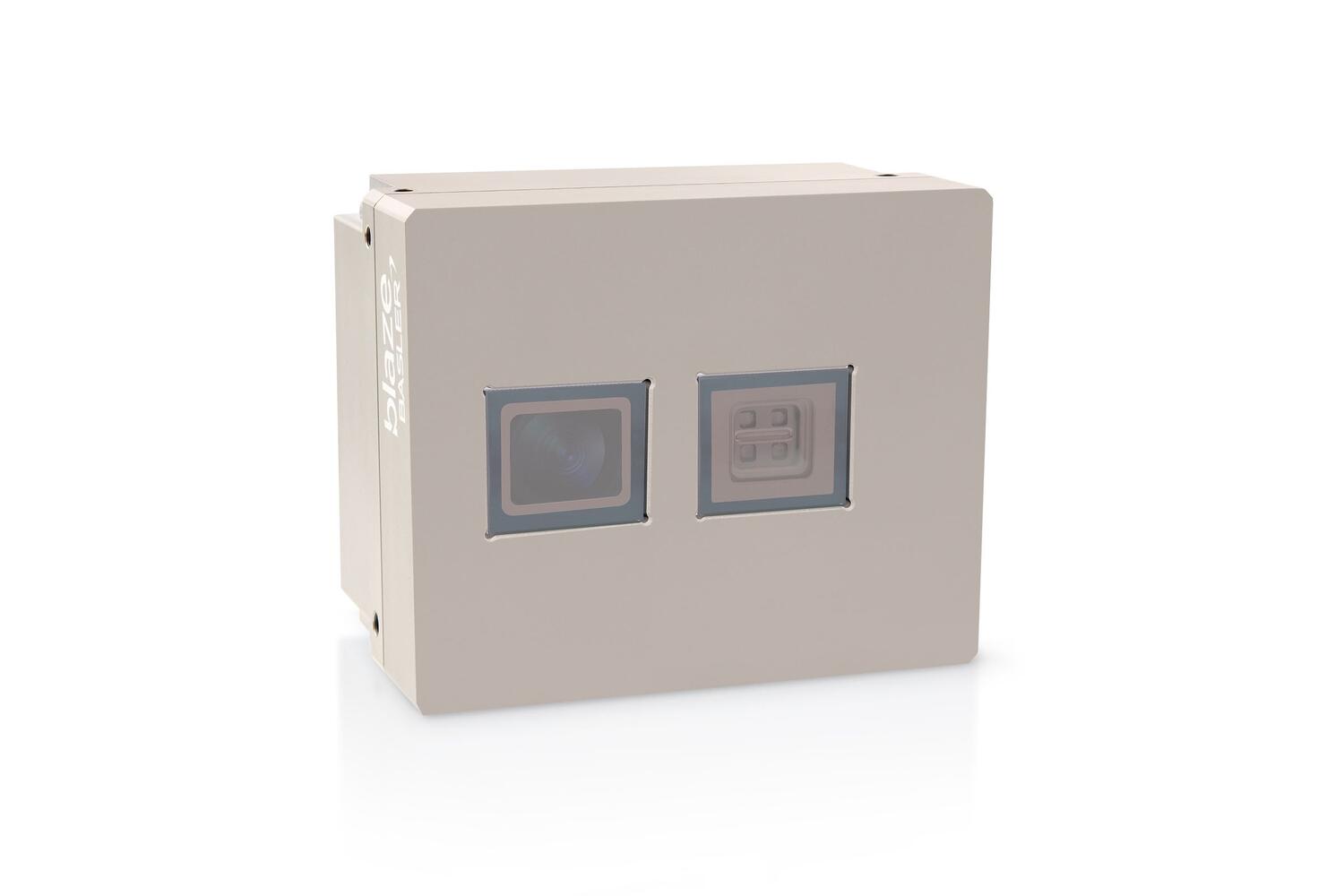

Basler Blaze Time Of Flight Camera
ToF 3D Camera
Basler Blaze Time-of-Flight (ToF) 3D Camera provides you with a 2D and a 3D image in one shot, offering an attractive solution for a wide variety of applications including logistics, factory automation, and biometrics.
Operating on the pulsed Time-of-Flight principle, the Basler Blaze camera offers high resolution VGA, with Sony's DepthSense™ technology. The large measuring range can cover approximately two Euro pallets or a small car, with accuracy almost millimetre accurate in time-of-flight measurement. Additionally, thanks to its compact design and Gigabit Ethernet it is easily integrated into a system, with user-friendly and platform-independent programming.
How Does a Time-of-Flight (ToF) Camera Work?
A Time-of-Flight camera works by measuring the time the light needs to travel from the light source to an object/s and then back to the camera, by synchronising both the light source and image acquisition, the distances can be extracted and calculated from the image data.
- Resolution 640x480
- Speed up to 30 fps
- Large measuring area
- IP67 protection class (blaze)
- GigE Vision, GenICam, GenTL comliant

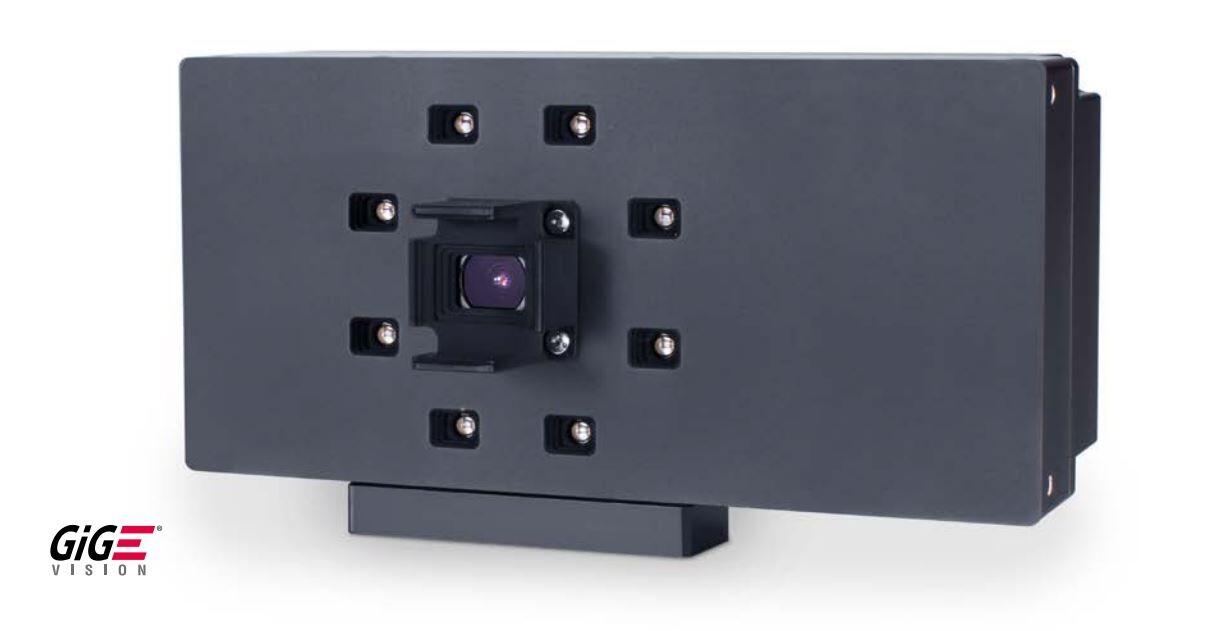

Selected variant
Specifications
| Approvals | CE, FCC, GenICam, GigE Vision, RoHS |
|---|---|
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Frame Rate Max | 20 fps |
| IP Class | IP30 |
| Lens Barrel | S-mount |
| Mono/Color | Mono |
| Power Consumption | 15 W |
| Resolution | VGA |
| Resolution Max | 640x480 |
|---|---|
| Sensor size | 1/4" |
| Sensor supplier | Panasonic |
| Sensor type | CCD |
| Supply Voltage | 24 V |
| Temperature range to | 50 °C |
| Weight | 0.4 kg |
Downloads
Product description
Basler Blaze Time-of-Flight (ToF) 3D Camera provides you with a 2D and a 3D image in one shot, offering an attractive solution for a wide variety of applications including logistics, factory automation, and biometrics.
Operating on the pulsed Time-of-Flight principle, the Basler Blaze camera offers high resolution VGA, with Sony's DepthSense™ technology. The large measuring range can cover approximately two Euro pallets or a small car, with accuracy almost millimetre accurate in time-of-flight measurement. Additionally, thanks to its compact design and Gigabit Ethernet it is easily integrated into a system, with user-friendly and platform-independent programming.
How Does a Time-of-Flight (ToF) Camera Work?
A Time-of-Flight camera works by measuring the time the light needs to travel from the light source to an object/s and then back to the camera, by synchronising both the light source and image acquisition, the distances can be extracted and calculated from the image data.
