SMARTRAY

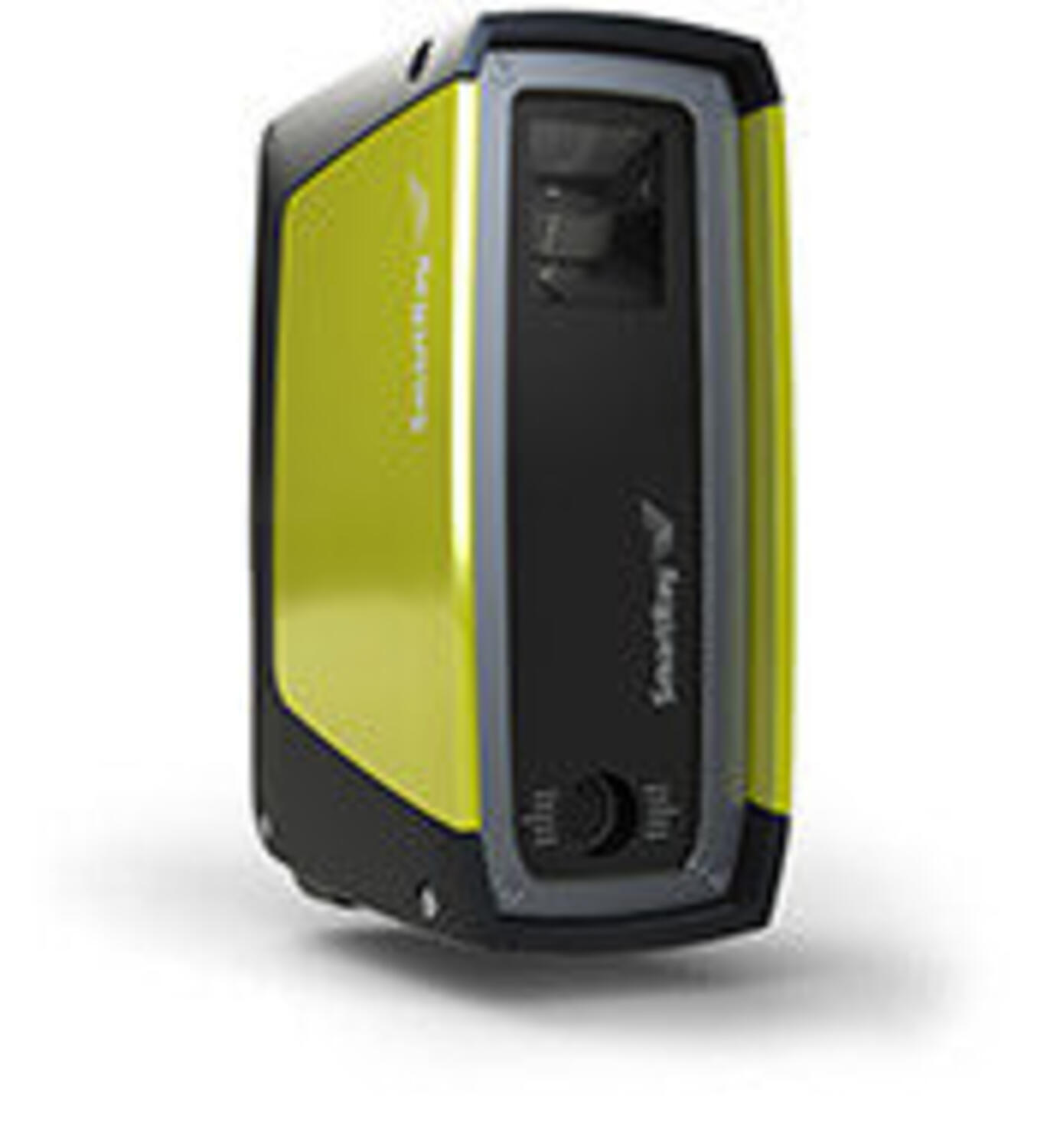

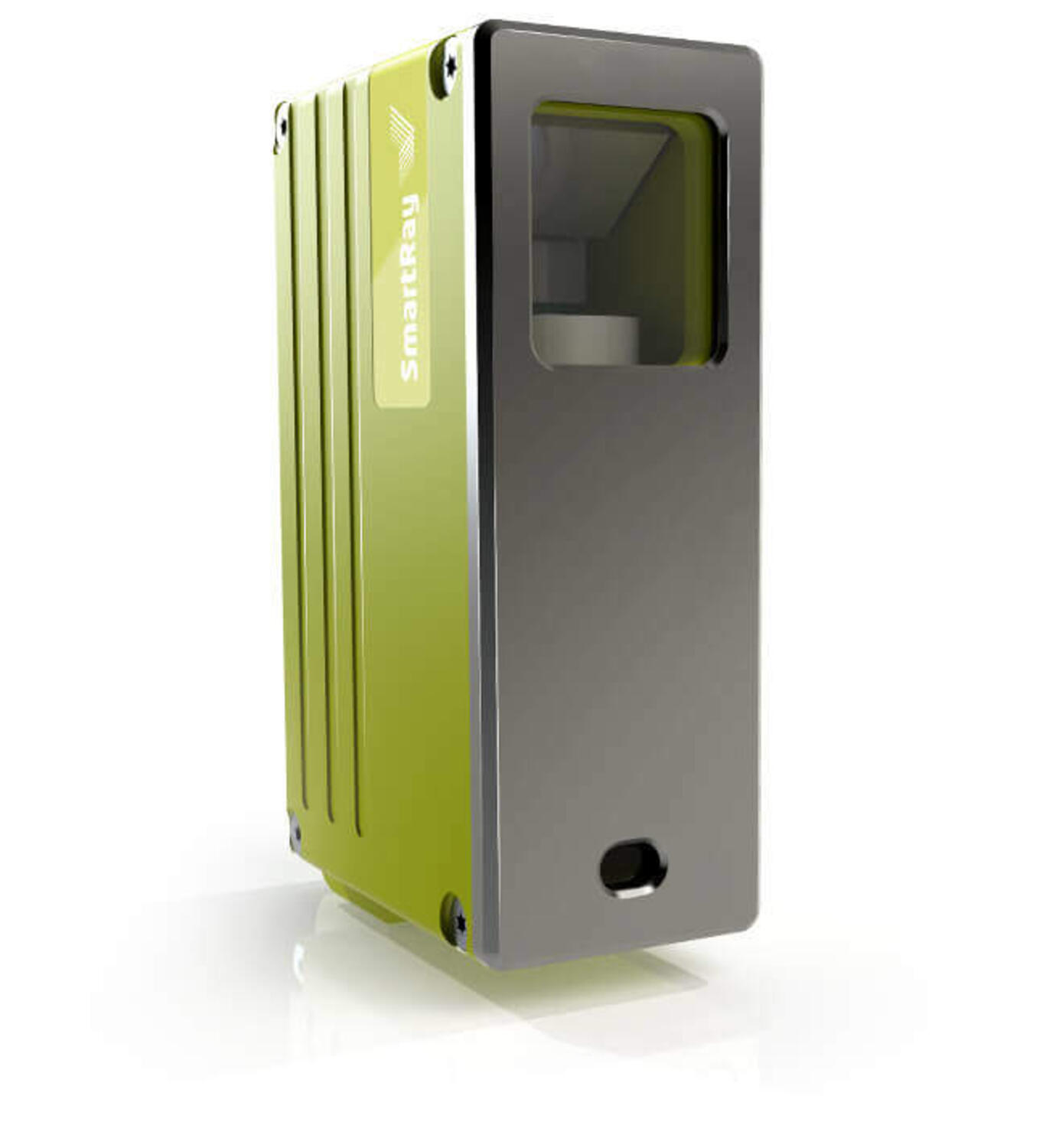

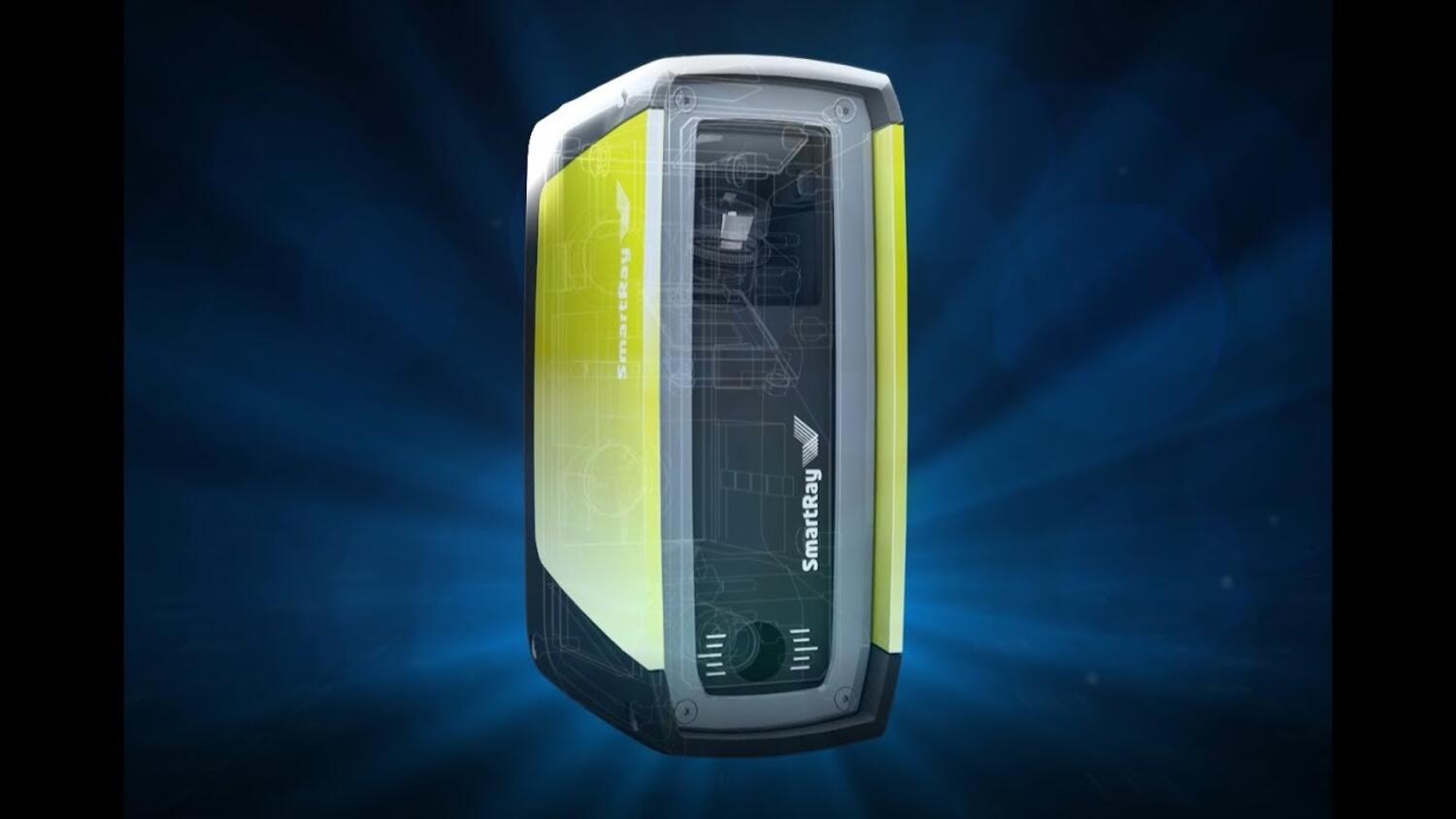

ECCO SmartRay 3D-camera

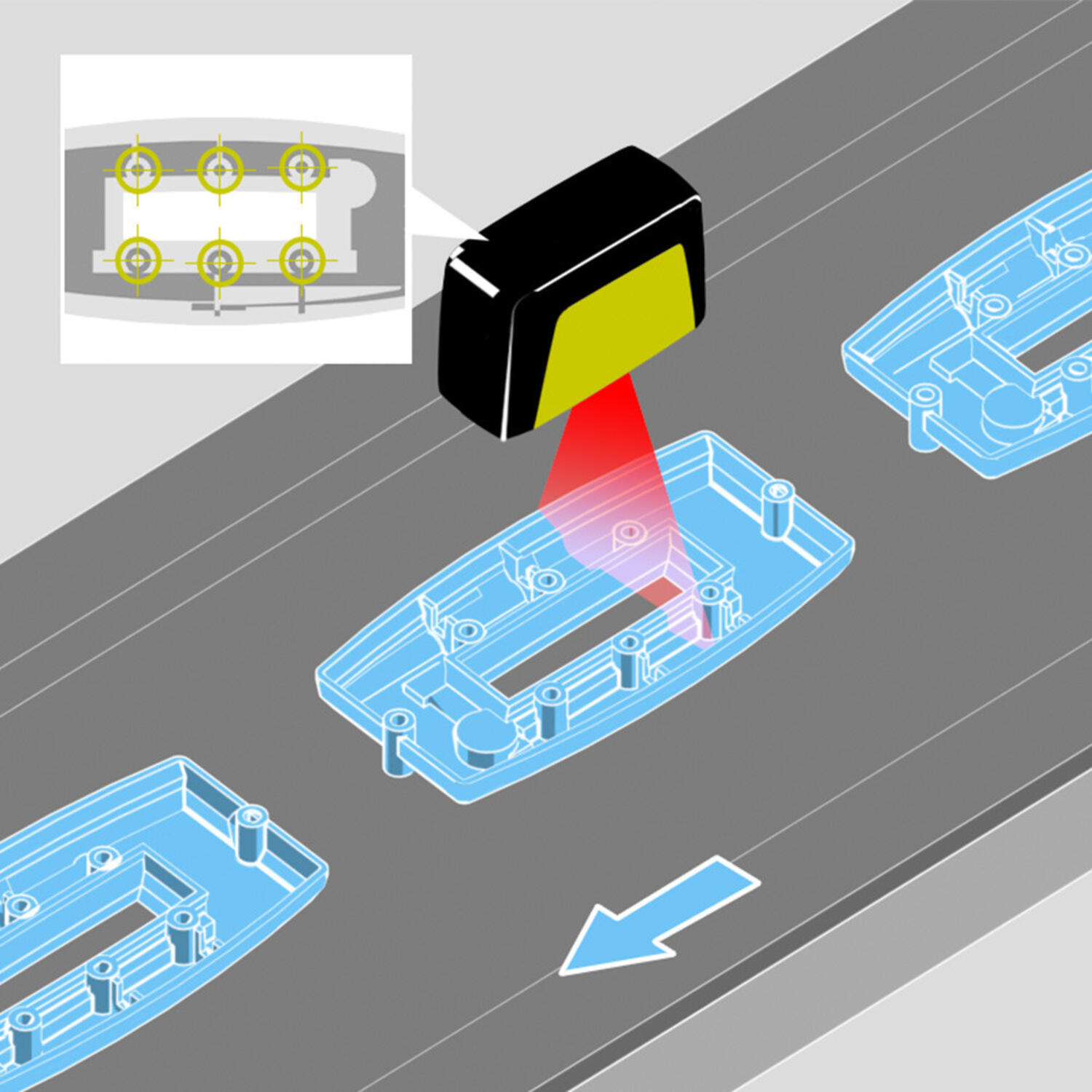

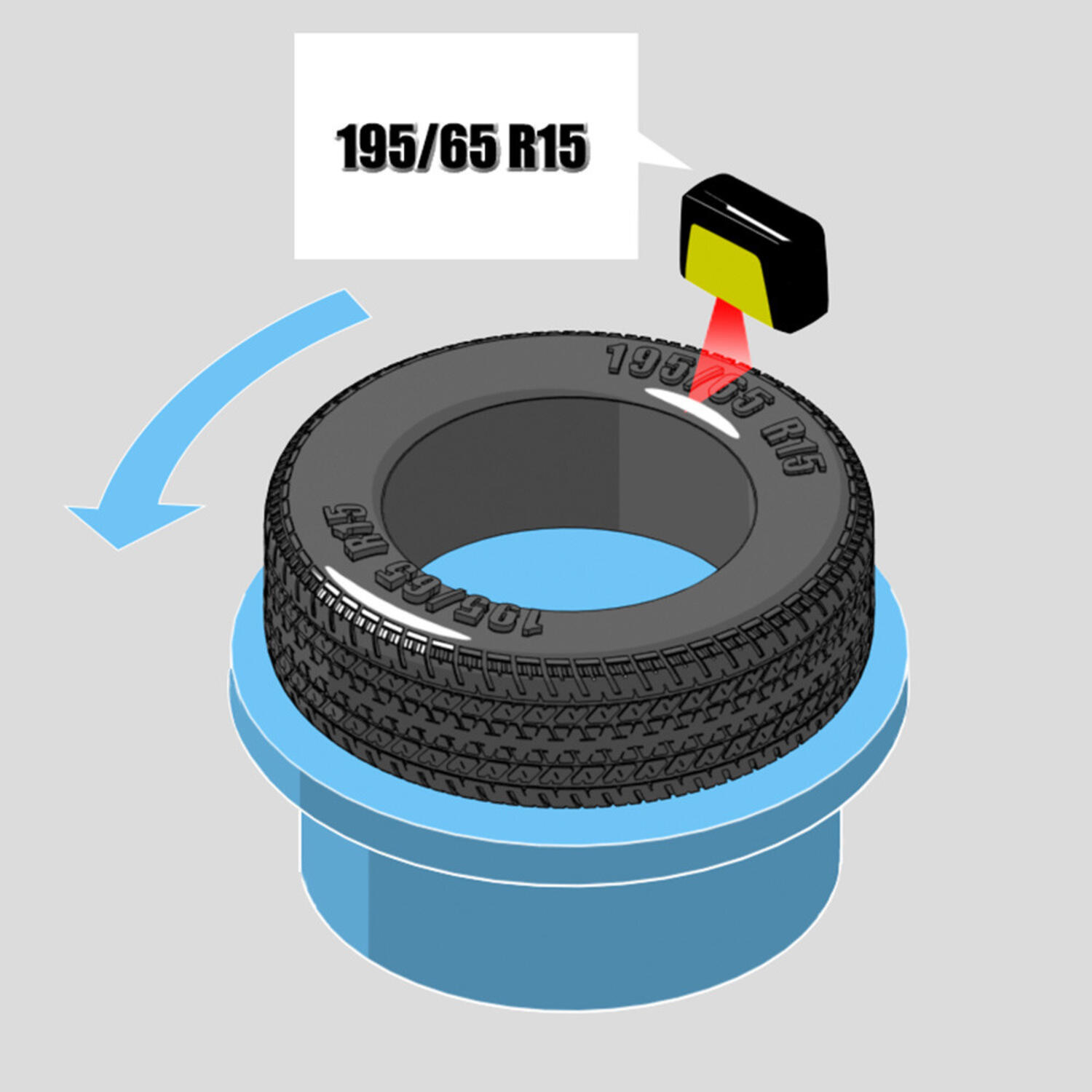

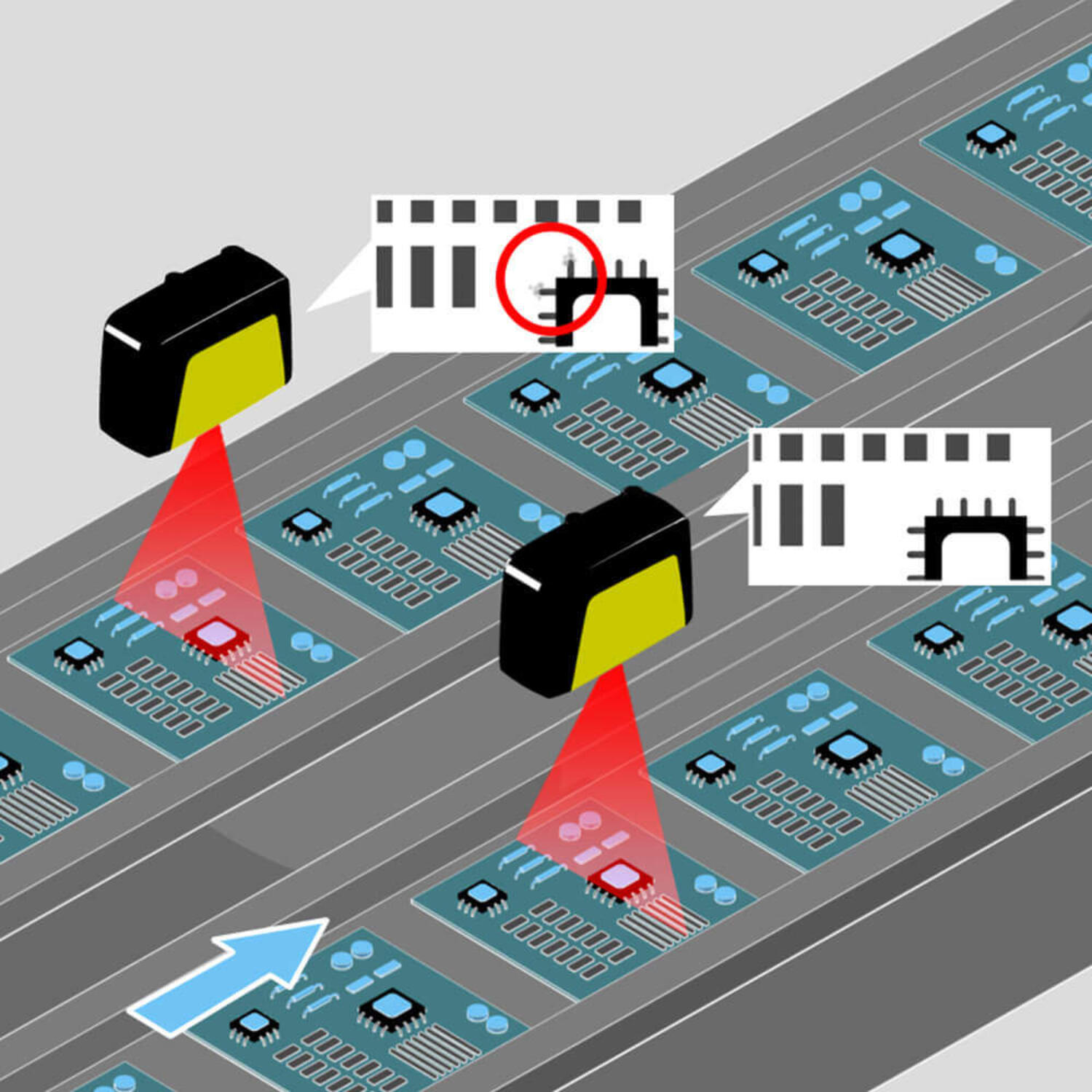

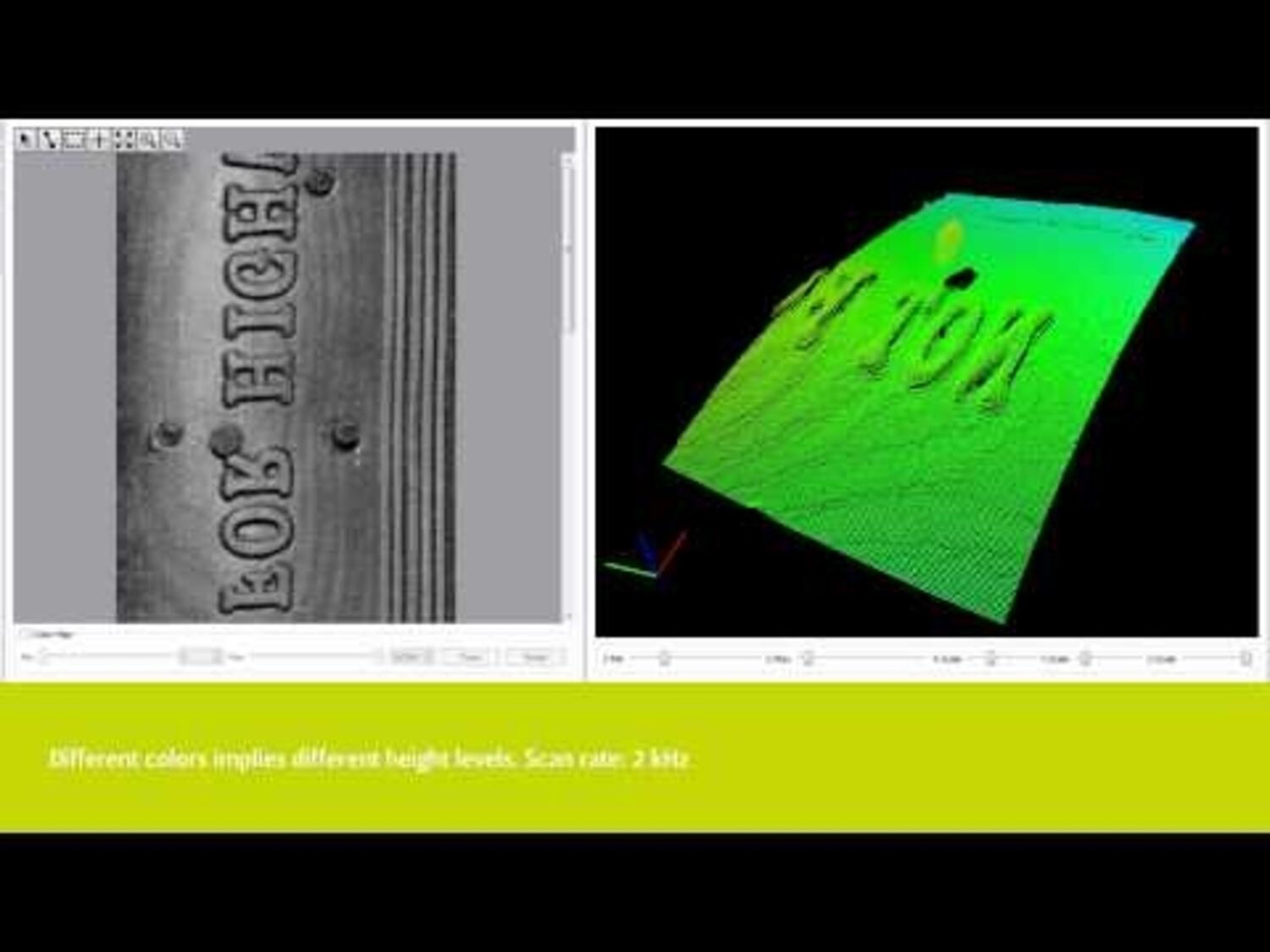

  • Inspection, guidance and measurement applications
  • Ultra modern laser triangulation technology
  • Wide selection of models to suit all needs
  • Gigabit Ethernet interface

Selected variant

Selected variant

Specifications

3D point rate 0.7 to 15 million points/sec
Ambient light max 10000 lx
EMC EN61000-6-2, EN61000-6-4
Field of view max 124 mm
Field of view min 72 mm
Inputs 4 x Inputs, 5 – 24 VDC, Quadrature Encoder (AB-Channel, RS-422 Standard)
Interface Gigabit Ethernet ( 1 Gbit/ sec)
IP Class IP65
Laser Class 2M, 3M
Laser wavelength 450 nm
Maximum points / 3D-profile 1920
Measuring range 100 mm
Outputs 2 x Outputs, 24 VDC (max. 20 mA)
Protection Class III according to EN 61040-3
Resolution max (Y) 70 µm
Resolution max (Z) 12 µm
Resolution min (Y) 42 µm
Resolution min (Z) 5 µm
Scan rate 8000 Hz
Temperature range bearing, from -20 °C
Temperature range bearing, to 70 °C
Temperature range to 40 °C
Trigger START Trigger support on Input 1-4, DATA Trigger support on Quadrature Encoder Input (Max. DATA trigger rate: 100 kHz), DATA Trigger support on Input 2, 3 (Max. DATA trigger rate: 10 kHz)
Weight 490 g
Voltage 24 VDC, ± 15 % ripple , 8.5 W
Working Distance 150 mm

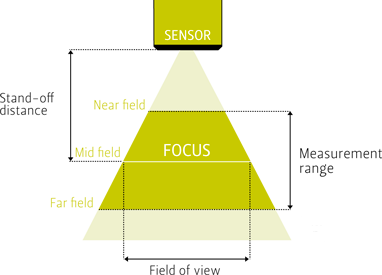

Technical illustrations

Accessories

Related products

Related

Photoneo 3D scanner
Product news

Photoneo PhoXi 3D scanners

PhoXi 3D scanners are based on sophisticated structured light imaging technology, in which the second camera in the traditional two-camera stereo capture has been replaced with a pattern projector.

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

Product news

Safety systems and intelligent detection

Inxpect safety radars detect access or presence of operators in dangerous areas and also have the ability to dynamically set the detection and warning zones.

Product news

Cost-effective circuit board protective coating for demanding conditions

Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles 3D point rate Field of view max Field of view min Interface Laser Class Laser wavelength Maximum points / 3D-profile Measuring range Resolution max (Y) Resolution max (Z) Resolution min (Y) Resolution min (Z) Scan rate Weight Voltage Working Distance Z-linearity Z-repeatability
0.7 to 15 million points/sec
124 mm
72 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M, 3M
450 nm
1920
100 mm
70 µm
12 µm
42 µm
5 µm
8000 Hz
490 g
24 VDC, ± 15 % ripple , 8.5 W
150 mm
0.7 to 15 million points/sec
38 mm
34 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M, 3M
450 nm
1920
16 mm
20 µm
1.8 µm
18 µm
1.4 µm
8000 Hz
490 g
24 VDC, ± 15 % ripple , 8.5 W
60 mm
0.7 to 15 million points/sec
11.5 mm
10.5 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M, 3M
450 nm
1920
4 mm
6.8 µm
0.45 µm
5.8 µm
0.37 µm
8000 Hz
650 g
24 VDC, ± 15 % ripple , 8.5 W
23.5 mm
0.3 to 7.6 million points/sec
250 mm
125 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M
660 nm
1920
250 mm
138 µm
50 µm
66 µm
12 µm
4000 Hz
480 g
24 VDC, ± 15 % ripple , 7.5 W
325 mm
0.1 µm/mm
2.5 µm
0.3 to 7.6 million points/sec
124 mm
72 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M
660 nm
1920
100 mm
70 µm
12 µm
42 µm
5 µm
4000 Hz
480 g
24 VDC, ± 15 % ripple , 7.5 W
150 mm
0.08 µm/mm
0.8 µm
0.3 to 7.6 million points/sec
38 mm
34 mm
Gigabit Ethernet ( 1 Gbit/ sec)
2M
660 nm
1920
16 mm
20 µm
1.8 µm
18 µm
1.4 µm
4000 Hz
480 g
24 VDC, ± 15 % ripple , 7.5 W
60 mm
0.1 µm/mm
0.8 µm
0.3 to 3.9 million points/sec
148 mm
88 mm
Fast Ethernet ( 100 Mbit/ sec)
2M
660 nm
640
100 mm
228 µm
53.5 µm
136 µm
19 µm
6000 Hz
180 g
24 VDC, ± 15 % ripple , 4.5 W
150 mm
0.1 µm/mm
4.2 µm
0.3 to 3.9 million points/sec
81 mm
58 mm
Fast Ethernet ( 100 Mbit/ sec)
2M
660 nm
640
60 mm
115 µm
27 µm
85 µm
13.5 µm
6000 Hz
180 g
24 VDC, ± 15 % ripple , 4.5 W
150 mm
0.1 µm/mm
1 µm
0.3 to 3.9 million points/sec
26 mm
22 mm
Fast Ethernet ( 100 Mbit/ sec)
2M
660 nm
640
20 mm
40 µm
4.75 µm
35 µm
3.25 µm
6000 Hz
180 g
24 VDC, ± 15 % ripple , 4.5 W
70 mm
0.1 µm/mm
3.8 µm
0.07 to 0.3 million points/sec
103 mm
61 mm
Fast Ethernet ( 100 Mbit/ sec)
2M
660 nm
752
100 mm
135 µm
32.5 µm
82 µm
11.5 µm
500 Hz
180 g
24 VDC, ± 15 % ripple , 4.5 W
150 mm
0.1 µm/mm
3.8 µm
0.07 to 0.3 million points/sec
103 mm
61 mm
Fast Ethernet ( 100 Mbit/ sec)
2M
660 nm
752
60 mm
80 µm
16.5 µm
57 µm
8.5 µm
500 Hz
180 g
24 VDC, ± 15 % ripple , 4.5 W
150 mm
0.2 µm/mm
1.8 µm
