BASLER

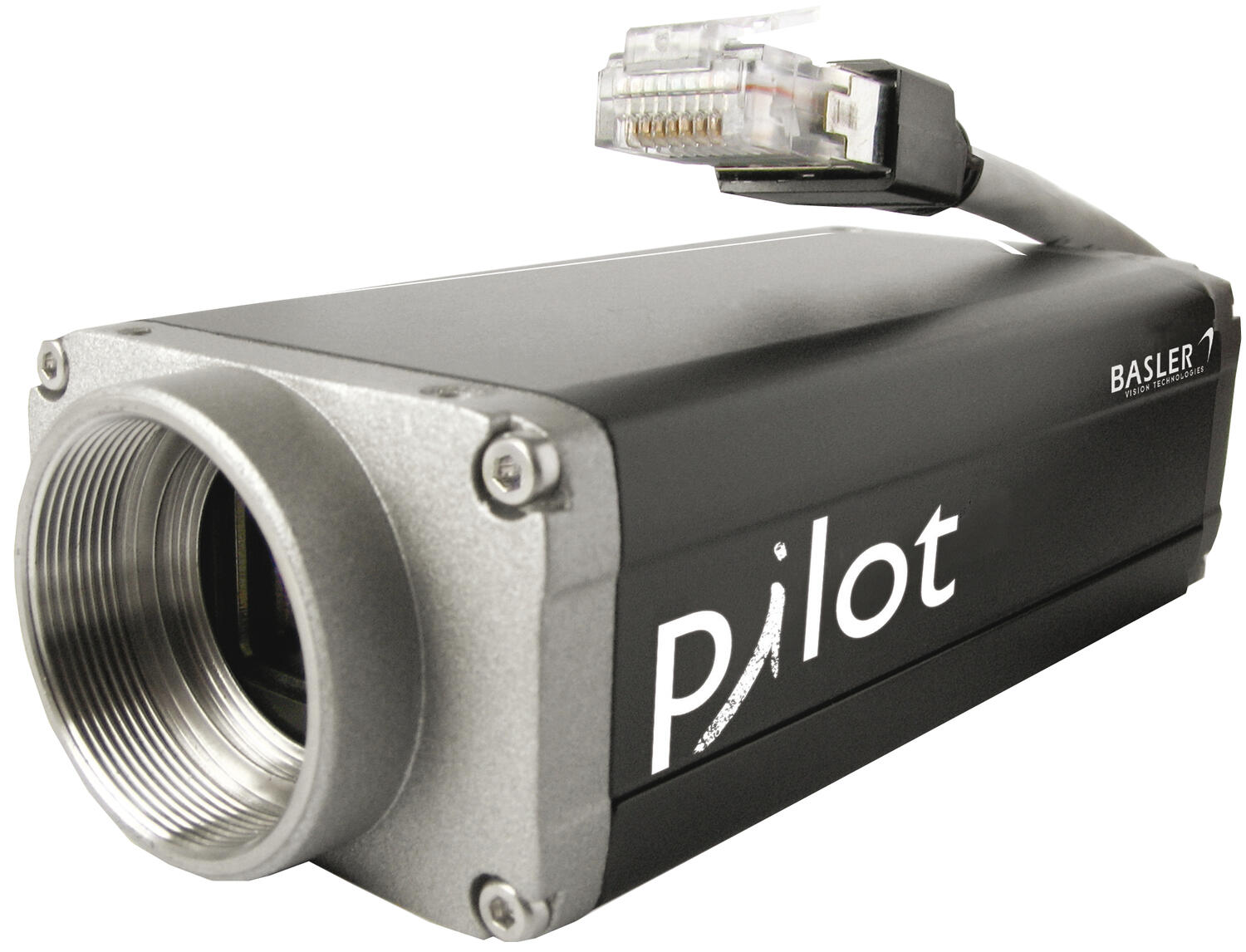

Basler Pilot - High-End GigE Cameras
Basler Pilot is a series of GigE vision compliant cameras with a high performance. In combination with high qualitative
sensors from Kodak and Sony, and Gigabit Ethernet interface gives excellent performance both in terms of resolution and the maximum frame rate.
- VGA to 5 Mpixel
- Sensors with large pixel area
- High End CCD sensors from Kodak and Sony
- GigE Vision compatible
Selected variant
Specifications
| Sensor model | KAI-0340 |
|---|---|
| Resolution | VGA |
| Resolution Max | 648 x 488 px |
| Frame Rate Max | 210 fps |
| Mono/Color | Mono |
| Shutter type | Global |
| Pixel size | 7,4 x 7,4 |
| Sensor size | 1/3" |
| Digital Outputs | 4 |
| Digital Inputs | 2 |
|---|---|
| Approvals | CE, FCC, GenICam, GigE Vision, RoHS |
| IP Class | IP30 |
| Sensor supplier | ON Semiconductor |
| Sensor type | CCD |
| Lens Barrel | C-mount |
| Weight | 220 g |
| Power Consumption | 4.5 W |
Downloads
Product description
Basler Pilot is a series of GigE vision compliant cameras with a high performance. In combination with high qualitative
sensors from Kodak and Sony, and Gigabit Ethernet interface gives excellent performance both in terms of resolution and the maximum frame rate.
