BASLER

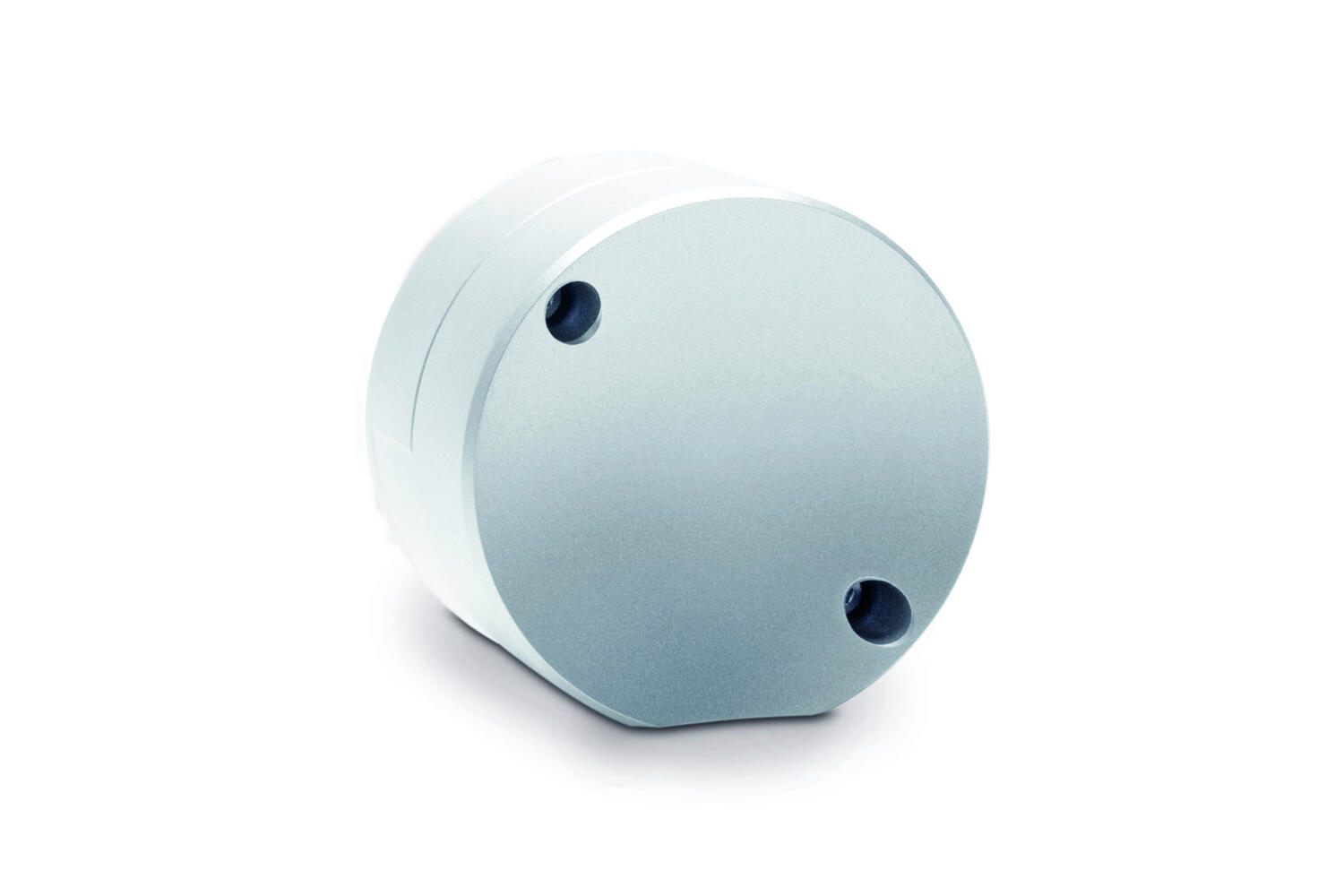

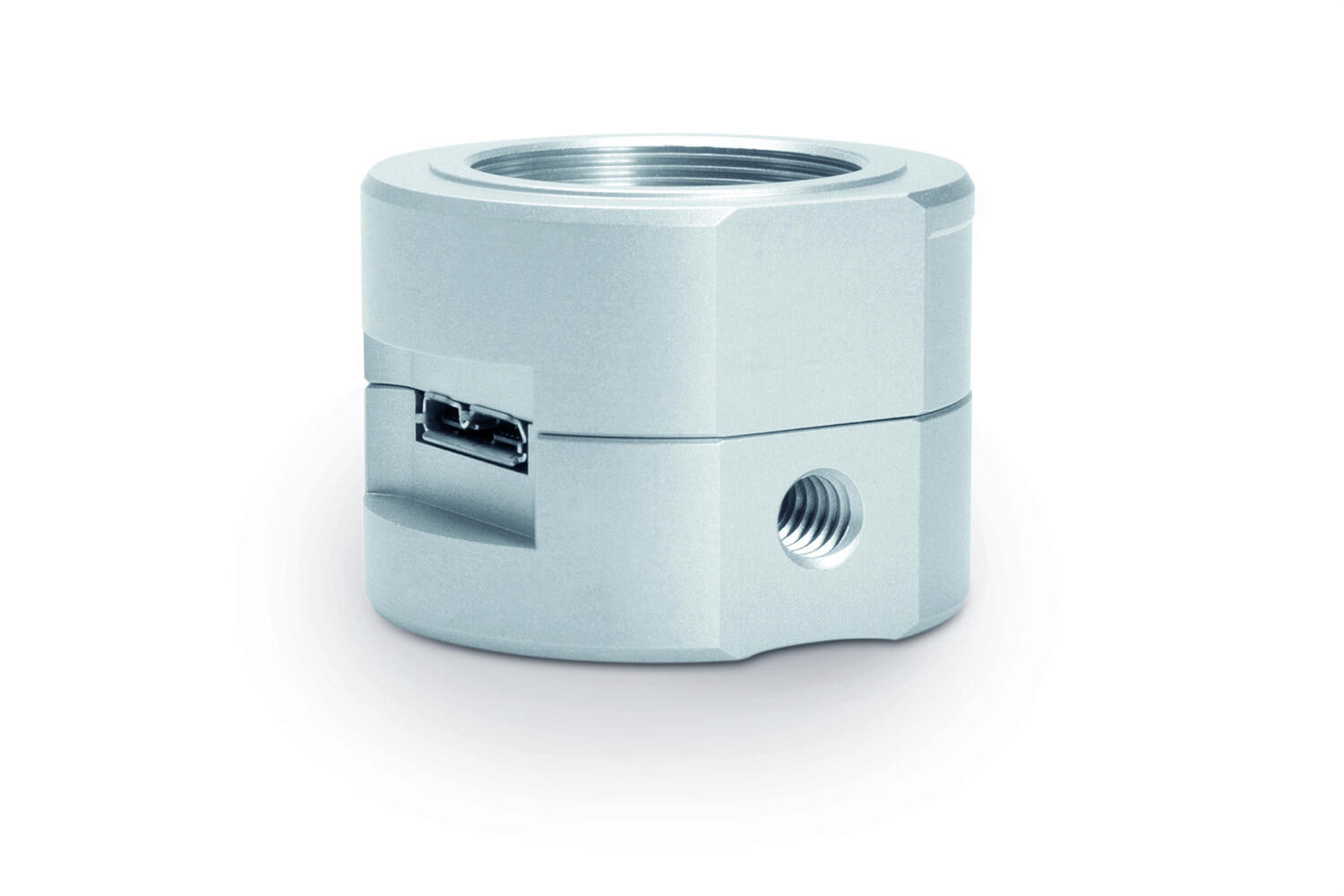

Basler Pulse - Compact USB3.0 Cameras
Compact Cameras
The Basler pulse cameras is developed to meet the requirements of a broad variety of vision applications, it combines the established Basler quality with a sophisticated design.
The pulse series stands out, starting with a sharp, robust metal housing including tripod adapter and a CS-mount which easily can be converted to C- or S-mount. pulse is equipped with the USB3 Vision plug and play interface and offers great stability and impressively low power consumption. These and other features make the Basler pulse a very compact solution for easy system integration as well as for the switch from analog to digital vision technology.
With its new generation of CMOS sensor technology, the pulse series offers global shutter and rolling shutter options, making it the natural choice for users who need most pristine and colorful images together with live footage.
- 1.2 - 5 Mpixel
- Elegant design
- Compact size
- USB3.0 Vision compatible
Selected variant
Specifications
| Sensor model | ARO134 |
|---|---|
| Resolution | 1.2MP |
| Resolution Max | 1280 x 960 px |
| Frame Rate Max | 54 fps |
| Mono/Color | Mono |
| Shutter type | Global |
| Pixel size | 3.75 x 3.75 |
| Sensor size | 1/3" |
| Approvals | CE, FCC, GenICam, RoHS, UL, USB3 Vision, EAC |
| Sensor supplier | ON Semiconductor |
|---|---|
| Sensor type | CMOS |
| Lens Barrel | CS-mount |
| Weight | 60 g |
| Length | 28.2 mm |
| Power Consumption | 1.3 W |
| Operating temperature | 0°C … 50°C |
Product description
The Basler pulse cameras is developed to meet the requirements of a broad variety of vision applications, it combines the established Basler quality with a sophisticated design.
The pulse series stands out, starting with a sharp, robust metal housing including tripod adapter and a CS-mount which easily can be converted to C- or S-mount. pulse is equipped with the USB3 Vision plug and play interface and offers great stability and impressively low power consumption. These and other features make the Basler pulse a very compact solution for easy system integration as well as for the switch from analog to digital vision technology.
With its new generation of CMOS sensor technology, the pulse series offers global shutter and rolling shutter options, making it the natural choice for users who need most pristine and colorful images together with live footage.
