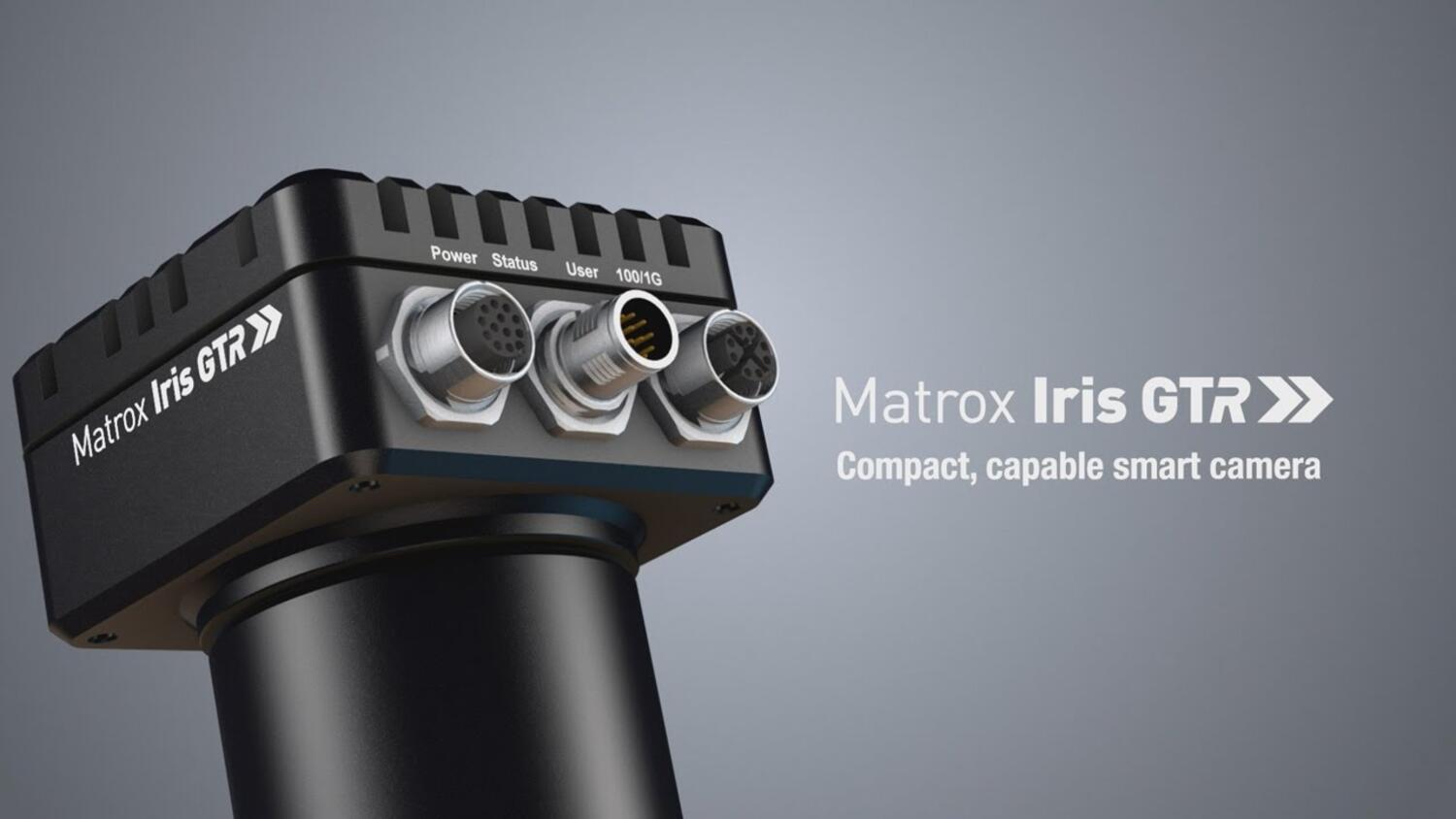

Matrox® Iris GTR combines fast image sensing, efficient embedded processing, and comprehensive I/O capabilities for an effective all-in-one vision system.
It comes with a CMOS image sensor of choice—from a range of increasing resolutions in monochrome or color—to meet application requirements for scene coverage and detail, type of analysis, and throughput. An Intel® Celeron® dual-core processor running Microsoft® Windows® or Linux® gives Matrox Iris GTR the power needed to perform regular inspection tasks at typical rates on a familiar software platform.
Digital I/Os, Gigabit Ethernet and USB ports, and a VGA video output provide the connectivity to fully integrate the Matrox Iris GTR within an automation cell or machine.
Approvals | FCC Part 15 Class A, CE mark, EN55011 Class A, EN61326-1, ICES-003/NMB-003 Class A |
---|---|
Delay External Trigger | 7.1 µs |
Frame Rate Max | 293 fps |
Gain Max | 19.4 dB |
IP Class | IP67 |
IR Cut Filter | Yes |
Lens Barrel | C-mount |
Memory RAM | 2 GB |
Mono/Color | Mono |
Pixel size | 4,8x4,8 |
Power consumption | 10,8 W |
Processor | Intel Celeron N2807 (dual core 1.58 GHz) |
Resolution | VGA |
Resolution Max | 640x480 |
Sensor model | PYTHON 300 |
---|---|
Sensor size | 1/4" |
Sensor supplier | ON Semiconductor |
Shutter Max | 4 s |
Shutter Min | 50 µs |
Shutter type | Global |
Storage | 32 GB |
Temperature range from | 0 °C |
Temperature range to | 50 °C |
The Delay To The External Trigger Strobe | 9.1 µs |
Weight | 0.46 kg |
Vibration Resistance | EN60721-3-3/A2, Category 3M8, IEC 60068-2-6, IEC60068-2-64, 10 Hz - 500 Hz, 5 g, 100 min |
Matrox® Iris GTR combines fast image sensing, efficient embedded processing, and comprehensive I/O capabilities for an effective all-in-one vision system.
It comes with a CMOS image sensor of choice—from a range of increasing resolutions in monochrome or color—to meet application requirements for scene coverage and detail, type of analysis, and throughput. An Intel® Celeron® dual-core processor running Microsoft® Windows® or Linux® gives Matrox Iris GTR the power needed to perform regular inspection tasks at typical rates on a familiar software platform.
Digital I/Os, Gigabit Ethernet and USB ports, and a VGA video output provide the connectivity to fully integrate the Matrox Iris GTR within an automation cell or machine.
PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
Inxpect safety radars detect access or presence of operators in dangerous areas and also have the ability to dynamically set the detection and warning zones.
With the help of our technical department, we can offer efficient and comprehensive delivery of safety edges, ready for plug-and-play installation.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Delay External Trigger | Frame Rate Max | Mono/Color | Resolution | Resolution Max | Sensor model | Sensor size | The Delay To The External Trigger Strobe | ||
---|---|---|---|---|---|---|---|---|---|---|
![]()
Matrox Iris GTR smart camera 640x480 293fps DA mono
Art:
GTR300
Copied
|
7.1 µs
|
293 fps
|
Mono
|
VGA
|
640x480
|
PYTHON 300
|
1/4"
|
9.1 µs
|
| |
![]()
Matrox Iris GTR smart camera 640x480 147fps DA color
Art:
GTR300C
Copied
|
7.1 µs
|
147 fps
|
Color
|
VGA
|
640x480
|
PYTHON 300
|
1/4"
|
9.1 µs
|
| |
![]()
Matrox Iris GTR smart camera 1280x1024 85fps DA mono
Art:
GTR1300
Copied
|
7.2 µs
|
85 fps
|
Mono
|
1,3MP
|
1280x1024
|
PYTHON 1300
|
1/2"
|
9.2 µs
|
| |
![]()
Matrox Iris GTR smart camera 1280x1024 35fps DA color
Art:
GTR1300C
Copied
|
7.2 µs
|
35 fps
|
Color
|
1,3MP
|
1280x1024
|
PYTHON 1300
|
1/2"
|
9.2 µs
|
| |
![]()
Matrox Iris GTR smart camera 1920x1200 45fps DA mono
Art:
GTR2000
Copied
|
8 µs
|
45 fps
|
Mono
|
2,3MP
|
1920x1200
|
PYTHON 2000
|
2/3"
|
10 µs
|
| |
![]()
Matrox Iris GTR smart camera 1920x1200 20fps DA color
Art:
GTR2000C
Copied
|
8 µs
|
20 fps
|
Color
|
2,3MP
|
1920x1200
|
PYTHON 2000
|
2/3"
|
10 µs
|
| |
![]()
Matrox Iris GTR smart camera 2592x2048 21fps DA mono
Art:
GTR5000
Copied
|
8 µs
|
21 fps
|
Mono
|
5MP
|
2592x2048
|
PYTHON 5000
|
1"
|
10 µs
|
| |
![]()
Matrox Iris GTR smart camera 2592x2048 8fps DA color
Art:
GTR5000C
Copied
|
8 µs
|
8.5 fps
|
Color
|
5MP
|
2592x2048
|
PYTHON 5000
|
1"
|
10 µs
|
|
Select a variant in the list
