ZEBRA TECHNOLOGIES

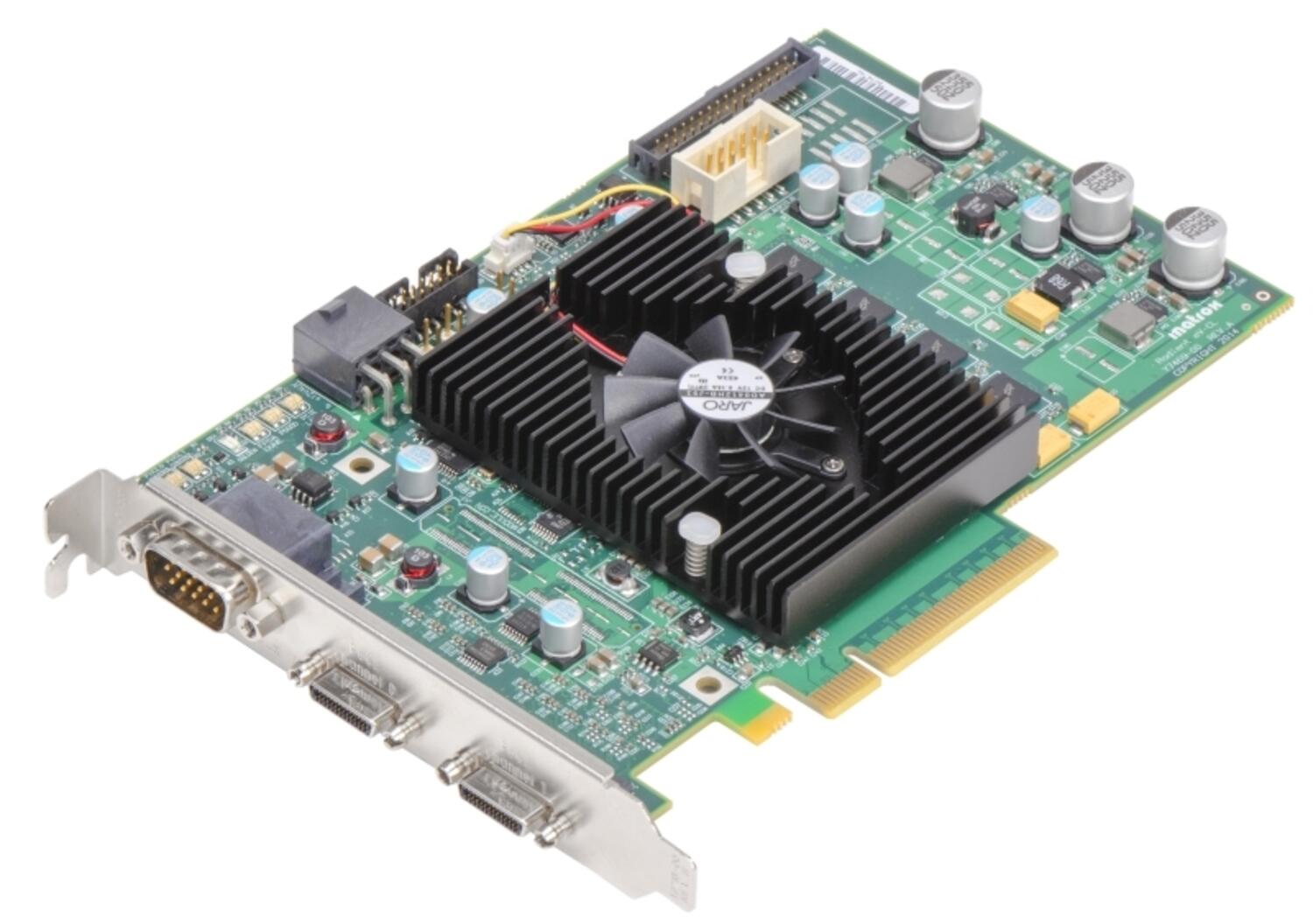

Radient Ev-CL CameraLink frame grabber
The Matrox Radient eV-CL is a Camera Link frame grabber with the most
comprehensive features currently available in the industry. Built upon the field-proven
design of the Radient eV–series of frame grabbers, the new Matrox Radient eV-CL offers
reliable image acquisition, extended cable length support, and high frame rate image
capture that will extend the effectiveness of the Camera Link standard for many years to
come.
The Matrox Radient eV-CL is capable of handling image capture from a single lowestdata-rate Camera Link device to multiple maximum-bandwidth Camera Link cameras.
With the possibility of interfacing up to four (4) Base or two (2) Full/80-bit mode
Camera Link cameras at up to 85 MHz on a single board with Power over Camera
Link (PoCL) support, the Matrox Radient eV-CL provides users with the flexibility to
configure the system to best match their imaging needs while simplifying overall
setup.
A PCIe 2.0 x8 host interface provides the throughput necessary to ensure the
continuous flow of pixels from the Matrox Radient eV-CL to host memory. With a peak
bandwidth of up to 4GB/s, the Matrox Radient eV-CL’s host interface prevents pixels
from inadvertently being discarded. Furthermore, via a programmable option, the
Matrox Radient eV-CL is capable of handling applications where image capture rates
exceed the tens of thousands of frames per seconds, all without host intervention.
The Matrox Radient eV-CL is also designed to work at extended cable lengths. The
feature allows cameras to be placed at distances previously not possible from the
computer while maintaining the same maximum throughput.
Specifications:
- Half-length, full-height board
- PCIe® 2.0 x8 host bus interface
- 1 GB of DDR3 SDRAM
- Camera Link® 2.0 compliant
- Two (2) independent Base Camera Link® ports (dual-Base)
- One (1) Medium/Full Camera Link® port (single-Full)
- up to 80-bit mode
- Four (4) independent Base Camera Link® ports (quad-Base)
- Two (2) independent Medium/Full Camera Link® ports (dual-Full)
- up to 80-bit mode
- 20 MHz to 85 MHz Camera Link® clock
- Power over Camera Link® with SafePower
- Extended Camera Link® cable length support
- Supports frame and line scan sources
- On-board image reconstruction
- On-board color space conversion
- Input formats
- Mono/Bayer 8-bit and 16-bit
- BGR packed 24-bit and 48-bit
- Output formats
- Mono 8-bit and 16-bit
- BGR packed 24-bit and 48-bit
- BGR planar 24-bit and 48-bit
- YUV 16-bit
- BGRa 32-bit
- On-board look-up tables (LUTs)
- 8/10/12 bit support
- On-board Bayer conversion
- GB, BG, GR, RG pattern support
- One (1) / two (2) DBHD-15 male GPIO connector(s) (dual-Base and single-Full / quad-Base and dual-Full)
- Three (3) TTL configurable auxiliary I/O’s
- Two (2) LVDS auxiliary inputs
- One (1) LVDS auxiliary output
- Two (2) opto-isolated auxiliary inputs
- One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)
- Three (3) TTL configurable auxiliary I/O’s
- Two (2) LVDS auxiliary inputs
- One (1) LVDS auxiliary output
- Two (2) opto-isolated auxiliary inputs
- Support for one (1) quadrature rotary encoder per Camera Link® port
- MIL license fingerprint and storage
- CameraLink 2.0
- CL Full 80-bit 85 MHz
- Up to 4 Base or 2 Full cameras per board
- Power over Camera Link (PoCL)
Selected variant
Specifications
| Bustyp | PCI Express 2.0 x8 |
|---|---|
| Height | 18.7 mm |
| Length | 167.7 mm |
| Memory RAM | 1024 MB |
| Temperature range from | 0 °C |
| Temperature range to | 55 °C |
| Width | 111.1 mm |
Downloads
Product description
The Matrox Radient eV-CL is a Camera Link frame grabber with the most
comprehensive features currently available in the industry. Built upon the field-proven
design of the Radient eV–series of frame grabbers, the new Matrox Radient eV-CL offers
reliable image acquisition, extended cable length support, and high frame rate image
capture that will extend the effectiveness of the Camera Link standard for many years to
come.
The Matrox Radient eV-CL is capable of handling image capture from a single lowestdata-rate Camera Link device to multiple maximum-bandwidth Camera Link cameras.
With the possibility of interfacing up to four (4) Base or two (2) Full/80-bit mode
Camera Link cameras at up to 85 MHz on a single board with Power over Camera
Link (PoCL) support, the Matrox Radient eV-CL provides users with the flexibility to
configure the system to best match their imaging needs while simplifying overall
setup.
A PCIe 2.0 x8 host interface provides the throughput necessary to ensure the
continuous flow of pixels from the Matrox Radient eV-CL to host memory. With a peak
bandwidth of up to 4GB/s, the Matrox Radient eV-CL’s host interface prevents pixels
from inadvertently being discarded. Furthermore, via a programmable option, the
Matrox Radient eV-CL is capable of handling applications where image capture rates
exceed the tens of thousands of frames per seconds, all without host intervention.
The Matrox Radient eV-CL is also designed to work at extended cable lengths. The
feature allows cameras to be placed at distances previously not possible from the
computer while maintaining the same maximum throughput.
Specifications:
- Half-length, full-height board
- PCIe® 2.0 x8 host bus interface
- 1 GB of DDR3 SDRAM
- Camera Link® 2.0 compliant
- Two (2) independent Base Camera Link® ports (dual-Base)
- One (1) Medium/Full Camera Link® port (single-Full)
- up to 80-bit mode
- Four (4) independent Base Camera Link® ports (quad-Base)
- Two (2) independent Medium/Full Camera Link® ports (dual-Full)
- up to 80-bit mode
- 20 MHz to 85 MHz Camera Link® clock
- Power over Camera Link® with SafePower
- Extended Camera Link® cable length support
- Supports frame and line scan sources
- On-board image reconstruction
- On-board color space conversion
- Input formats
- Mono/Bayer 8-bit and 16-bit
- BGR packed 24-bit and 48-bit
- Output formats
- Mono 8-bit and 16-bit
- BGR packed 24-bit and 48-bit
- BGR planar 24-bit and 48-bit
- YUV 16-bit
- BGRa 32-bit
- On-board look-up tables (LUTs)
- 8/10/12 bit support
- On-board Bayer conversion
- GB, BG, GR, RG pattern support
- One (1) / two (2) DBHD-15 male GPIO connector(s) (dual-Base and single-Full / quad-Base and dual-Full)
- Three (3) TTL configurable auxiliary I/O’s
- Two (2) LVDS auxiliary inputs
- One (1) LVDS auxiliary output
- Two (2) opto-isolated auxiliary inputs
- One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)
- Three (3) TTL configurable auxiliary I/O’s
- Two (2) LVDS auxiliary inputs
- One (1) LVDS auxiliary output
- Two (2) opto-isolated auxiliary inputs
- Support for one (1) quadrature rotary encoder per Camera Link® port
- MIL license fingerprint and storage
