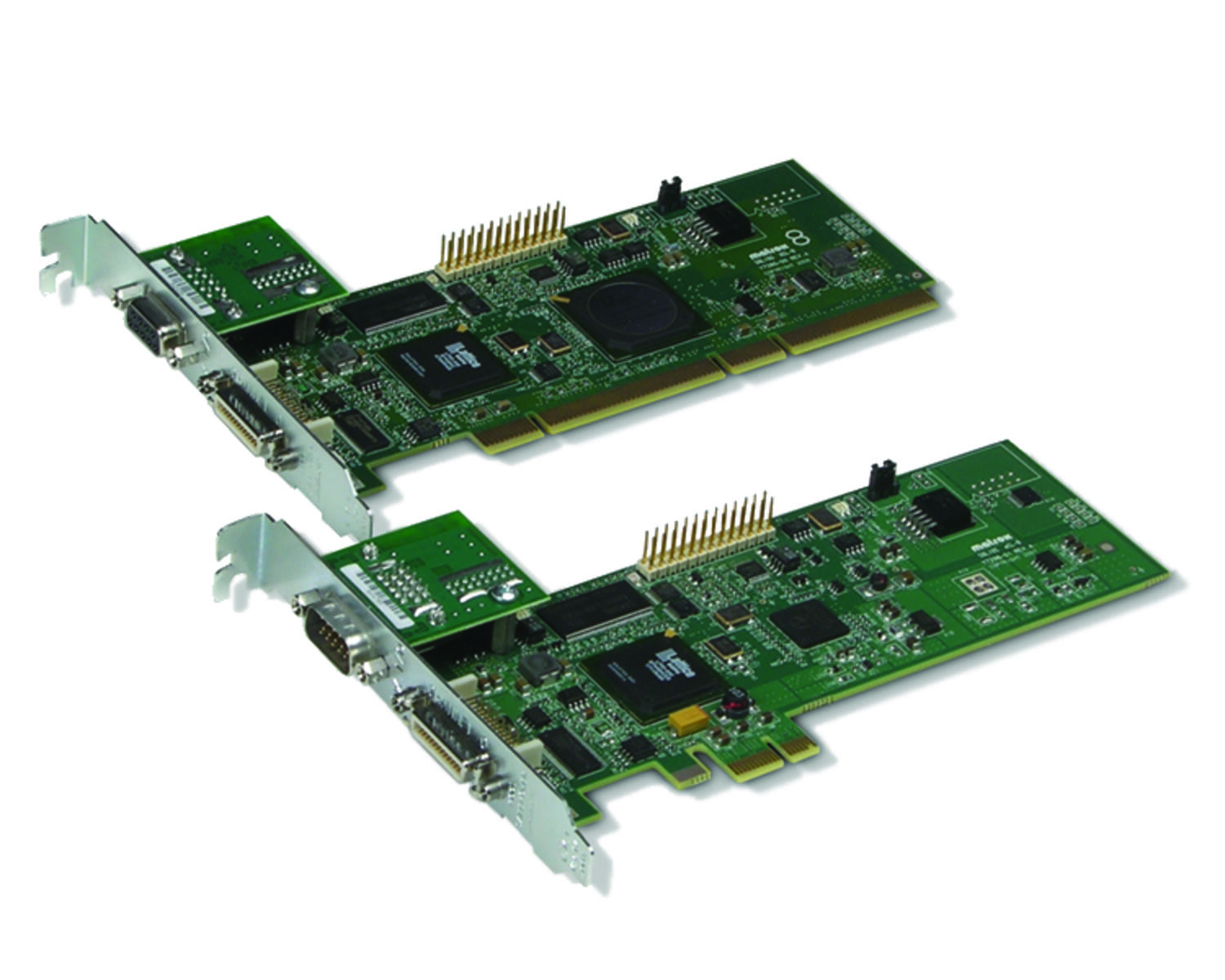

Solios eCL / XCL-B Camera Link frame grabber
The Matrox Solios eCL/XCL-B is a Camera Link® frame grabber for cost sensitive
applications. Its acquisition capabilities and PCI Express® (PCIe®) or PCI-X® bus
interface make the Matrox Solios eCL/XCL-B an excellent match for entry-level
cameras.
Matrox Solios eCL/XCL-B operates as a single-Base Camera Link® frame grabber
featuring Power over Camera Link® (PoCL) with SafePower. With an acquisition speed
of up to 85 MHz4 and multi-tap support including complete image reconstruction the Matrox Solios eCL/XCL-B is able to handle the most popular entry-level industrial
or scientific area and line scan cameras. It can also transparently convert between
monochrome and packaged/planar RGB color spaces enabling optimum representation
of image data for processing and/or display freeing valuable host resources.
One lane PCIe® (x1) and PCI-X® are the interfaces used to connect to the host PC
on the Matrox Solios eCL-B and Matrox Solios XCL-B frame grabber boards
respectively. PCIe® is the follow-on to conventional PCI and PCI-X® whereas PCI-X®
is a backwards-compatible enhancement to conventional PCI. Both the PCIe® x1 and
PCI-X® implementations offers the right balance of performance and cost.
Technical specifications
Hardware:
- PCIe® x1 card or PCI/PCI-X® card with universal 64-bit card edge connector (64-bit 33/66 MHz 5V/3.3V PCI and 64-bit 66/100/133 MHz PCI-X®)
- 64 MB of 100 MHz DDR SDRAM for acquisition
- handles a single Camera Link® Base port2, 3
- PoCL (Power over Camera Link®) with SafePower support
- Channel Link™ speed of up to 85 MHz4
- supports frame and line-scan video sources
- full tap reconstruction from multi-tap sources3
- one 4K x 12-bit or three 256 x 8-bit LUTs
- three TTL configurable auxiliary I/Os
- two LVDS configurable auxiliary inputs
- one LVDS configurable auxiliary outputs
- two opto-isolated configurable auxiliary inputs
- serial communication port mapped as a PC COM port

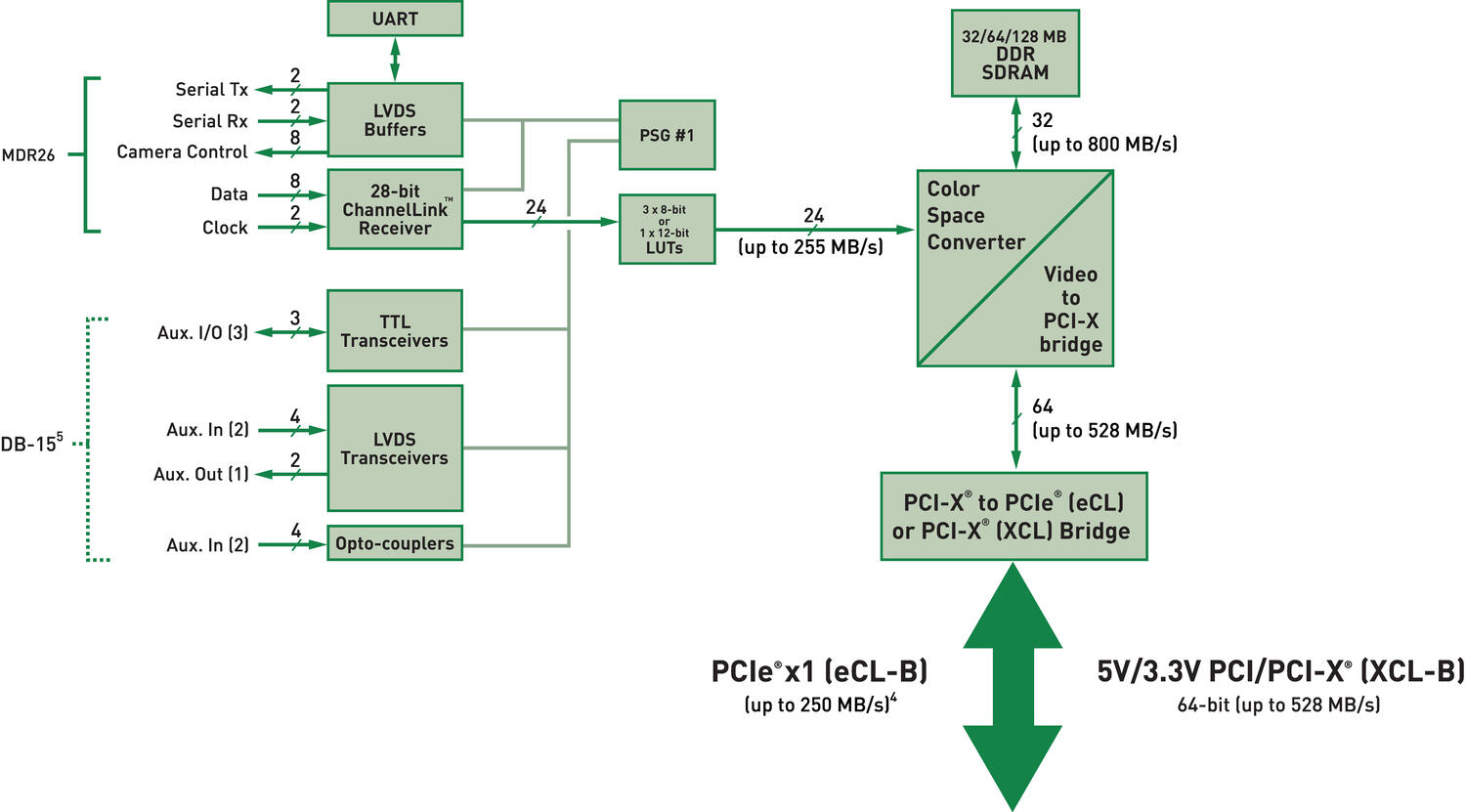

Block diagram
Matrox Solios eCL/XCL-B |
|
- Low profile frame grabber
- Captures from frame and line scan cameras
- Handles one Base Camera Link configuration
- PCI-E x1 or PCI-X interface
Selected variant
Specifications
| Bustyp | PCI-X |
|---|---|
| Memory RAM | 64 MB |
Product description
The Matrox Solios eCL/XCL-B is a Camera Link® frame grabber for cost sensitive
applications. Its acquisition capabilities and PCI Express® (PCIe®) or PCI-X® bus
interface make the Matrox Solios eCL/XCL-B an excellent match for entry-level
cameras.
Matrox Solios eCL/XCL-B operates as a single-Base Camera Link® frame grabber
featuring Power over Camera Link® (PoCL) with SafePower. With an acquisition speed
of up to 85 MHz4 and multi-tap support including complete image reconstruction the Matrox Solios eCL/XCL-B is able to handle the most popular entry-level industrial
or scientific area and line scan cameras. It can also transparently convert between
monochrome and packaged/planar RGB color spaces enabling optimum representation
of image data for processing and/or display freeing valuable host resources.
One lane PCIe® (x1) and PCI-X® are the interfaces used to connect to the host PC
on the Matrox Solios eCL-B and Matrox Solios XCL-B frame grabber boards
respectively. PCIe® is the follow-on to conventional PCI and PCI-X® whereas PCI-X®
is a backwards-compatible enhancement to conventional PCI. Both the PCIe® x1 and
PCI-X® implementations offers the right balance of performance and cost.
Technical specifications
Hardware:
- PCIe® x1 card or PCI/PCI-X® card with universal 64-bit card edge connector (64-bit 33/66 MHz 5V/3.3V PCI and 64-bit 66/100/133 MHz PCI-X®)
- 64 MB of 100 MHz DDR SDRAM for acquisition
- handles a single Camera Link® Base port2, 3
- PoCL (Power over Camera Link®) with SafePower support
- Channel Link™ speed of up to 85 MHz4
- supports frame and line-scan video sources
- full tap reconstruction from multi-tap sources3
- one 4K x 12-bit or three 256 x 8-bit LUTs
- three TTL configurable auxiliary I/Os
- two LVDS configurable auxiliary inputs
- one LVDS configurable auxiliary outputs
- two opto-isolated configurable auxiliary inputs
- serial communication port mapped as a PC COM port
Block diagram
Matrox Solios eCL/XCL-B |
|
