NEOUSYS

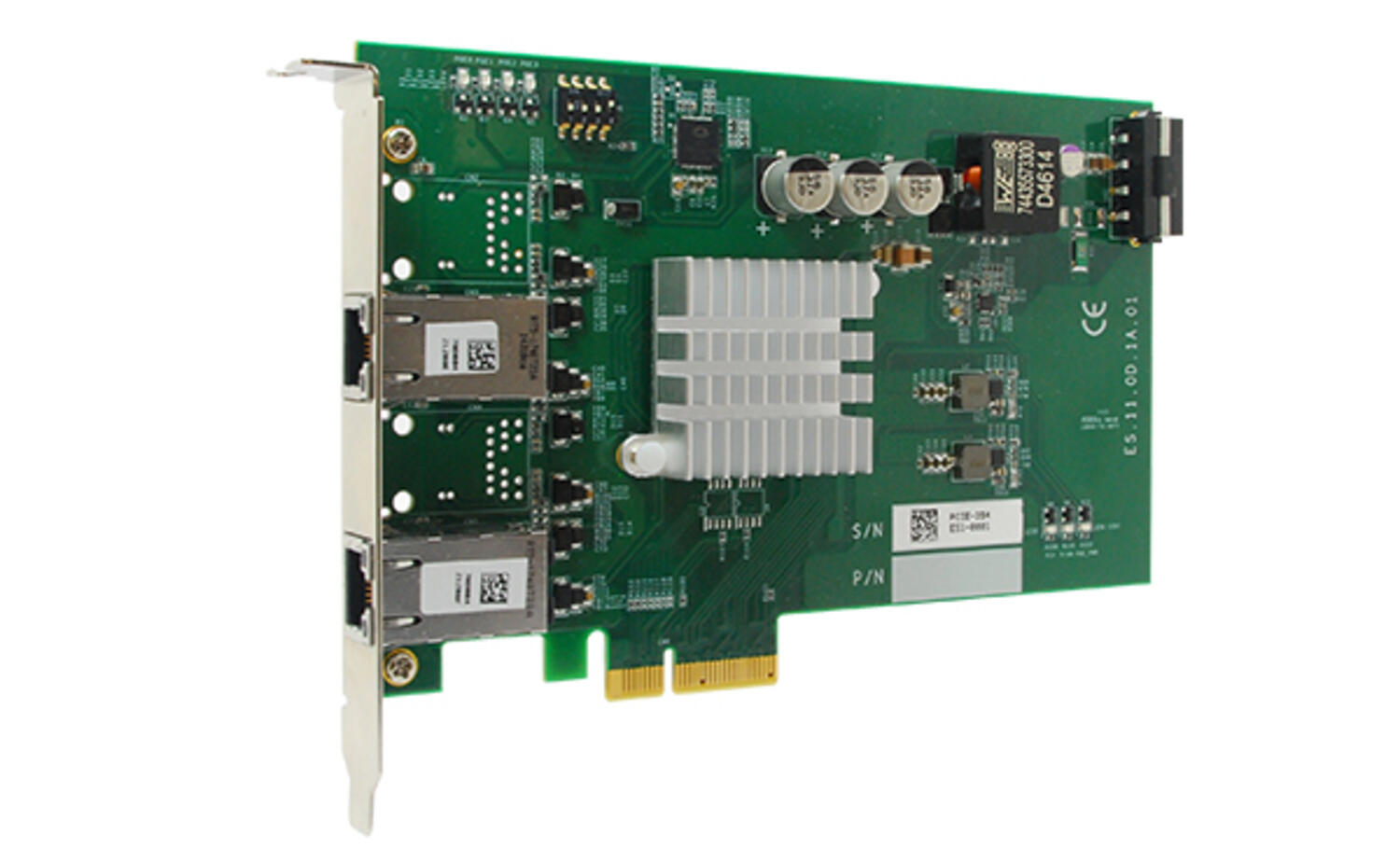

PCIe-PoE352at/354at Gigabit Ethernet frame grabber card
PCIe-PoE354at is world’s first PoE frame grabber card combing server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys' expertise on PoE technology, PCIe-PoE354at further implements the updated 802.3at-2009 standard and offers up to 25.5W of power each port.
PCIe-PoE354at is designed with state-of-the-art Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features, such as checksum offloading, segmentation offloading and intelligent interrupt generation/moderation, to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes the compatibility issue with off-the-shelf motherboards when installing multiple cards.
Machine vision applications can be benefited by PCIe-PoE354at’s server-grade network performance. Its 25.5W PoE+ can now power PTZ (pan-tilt-zoom) cameras for surveillance applications. PCIe-PoE354at presents the best cost/performance ratio for your Power over Ethernet solution.
| PCIe-PoE354at | PCIe-PoE352at |
Bus Interface | x4, Gen2 PCI Express | x4, Gen2 PCI Express |
Gigabit Ethernet Port | 4x GigE ports by Intel® I350-AM4 controller, supporting 9.5 kB jumbo frame, teaming and IEEE 1588 | 2x GigE ports by Intel® I350-AM2 controller, supporting 9.5 kB jumbo frame, teaming and IEEE 1588 |
PoE Capability | In compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power | In compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power |
Cable Requirement | CAT-5e or CAT-6 cable, 100 meters maximal | CAT-5e or CAT-6 cable, 100 meters maximal |
Power Requirement | Maximal 1.2 A @ 3.3 V from PCI Express bus Maximal 9.6 A @ 12 V from PCI Express bus or on-board 4-pin power connector | Maximal 0.9 A @ 3.3 V from PCI Express bus Maximal 4.8 A @ 12 V from PCI Express bus |
Operating Temperature | 0°C ~ 55°C with air flow | 0°C ~ 55°C with air flow |
Dimension | 167.7 mm (W) x 111.2 mm (H) | 167.7 mm (W) x 111.2 mm (H) |

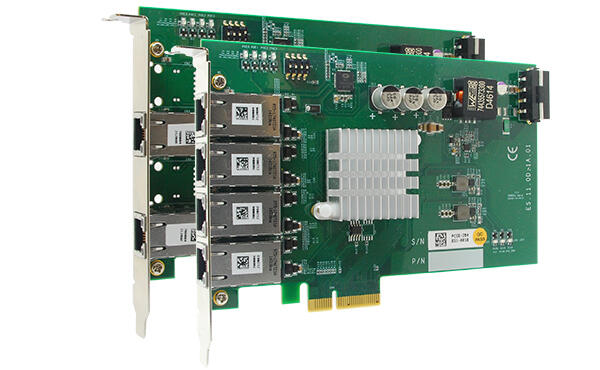

- 2 or 4 port versions available
- 802.3at PoE+, up to 25,5W/port
- 2 GB/s total band width
- Per-port PoE+ power on/off control
Selected variant
Specifications
| Height | 111.2 mm |
|---|---|
| Power consumption | Maks. 1.2 A @ 3.3 V / 9.6 A @ 12 V |
| Temperature range from | 0 °C |
| Temperature range to | 55 °C |
| Width | 167.7 mm |
Downloads
Product description
PCIe-PoE354at is world’s first PoE frame grabber card combing server-grade GigE controller and 802.3at PoE+ capability. Inheriting Neousys' expertise on PoE technology, PCIe-PoE354at further implements the updated 802.3at-2009 standard and offers up to 25.5W of power each port.
PCIe-PoE354at is designed with state-of-the-art Intel® I350 Gigabit Ethernet controller. This server-grade GigE controller incorporates advanced features, such as checksum offloading, segmentation offloading and intelligent interrupt generation/moderation, to increase overall Ethernet performance and reduce CPU utilization. In addition, its single-bus, multi-port topology minimizes the compatibility issue with off-the-shelf motherboards when installing multiple cards.
Machine vision applications can be benefited by PCIe-PoE354at’s server-grade network performance. Its 25.5W PoE+ can now power PTZ (pan-tilt-zoom) cameras for surveillance applications. PCIe-PoE354at presents the best cost/performance ratio for your Power over Ethernet solution.
| PCIe-PoE354at | PCIe-PoE352at |
Bus Interface | x4, Gen2 PCI Express | x4, Gen2 PCI Express |
Gigabit Ethernet Port | 4x GigE ports by Intel® I350-AM4 controller, supporting 9.5 kB jumbo frame, teaming and IEEE 1588 | 2x GigE ports by Intel® I350-AM2 controller, supporting 9.5 kB jumbo frame, teaming and IEEE 1588 |
PoE Capability | In compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power | In compliant with IEEE 802.3at-2009 (PoE+), each port delivers up to 25.5 W of power |
Cable Requirement | CAT-5e or CAT-6 cable, 100 meters maximal | CAT-5e or CAT-6 cable, 100 meters maximal |
Power Requirement | Maximal 1.2 A @ 3.3 V from PCI Express bus Maximal 9.6 A @ 12 V from PCI Express bus or on-board 4-pin power connector | Maximal 0.9 A @ 3.3 V from PCI Express bus Maximal 4.8 A @ 12 V from PCI Express bus |
Operating Temperature | 0°C ~ 55°C with air flow | 0°C ~ 55°C with air flow |
Dimension | 167.7 mm (W) x 111.2 mm (H) | 167.7 mm (W) x 111.2 mm (H) |
