NEOUSYS
Nuvo-3600VR -series industrial computers
End-of-Life 07/2019

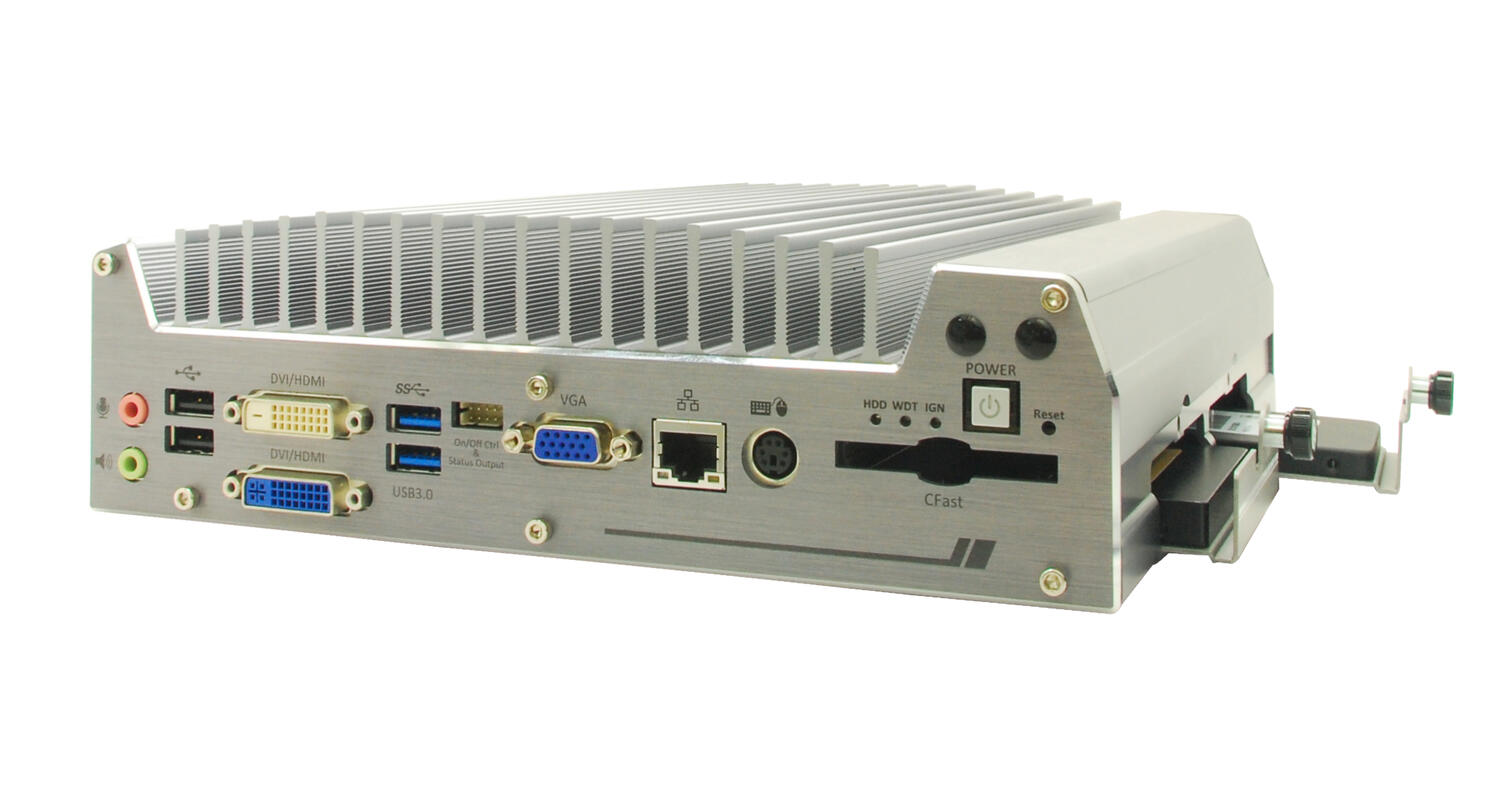

Nuvo-3616VR is a surveillance platform that features 16 PoE+ ports, i7 CPU and RAID in a compact, fanless chassis. It is designed to meet requirements of a stationary or mobile surveillance system and is capable not only for video recording but also high-end video analytic purposes. A typical surveillance system uses a NVR to connect IP cameras and record video streams on its disk array. Similar to a NVR, Nuvo-3616VR features

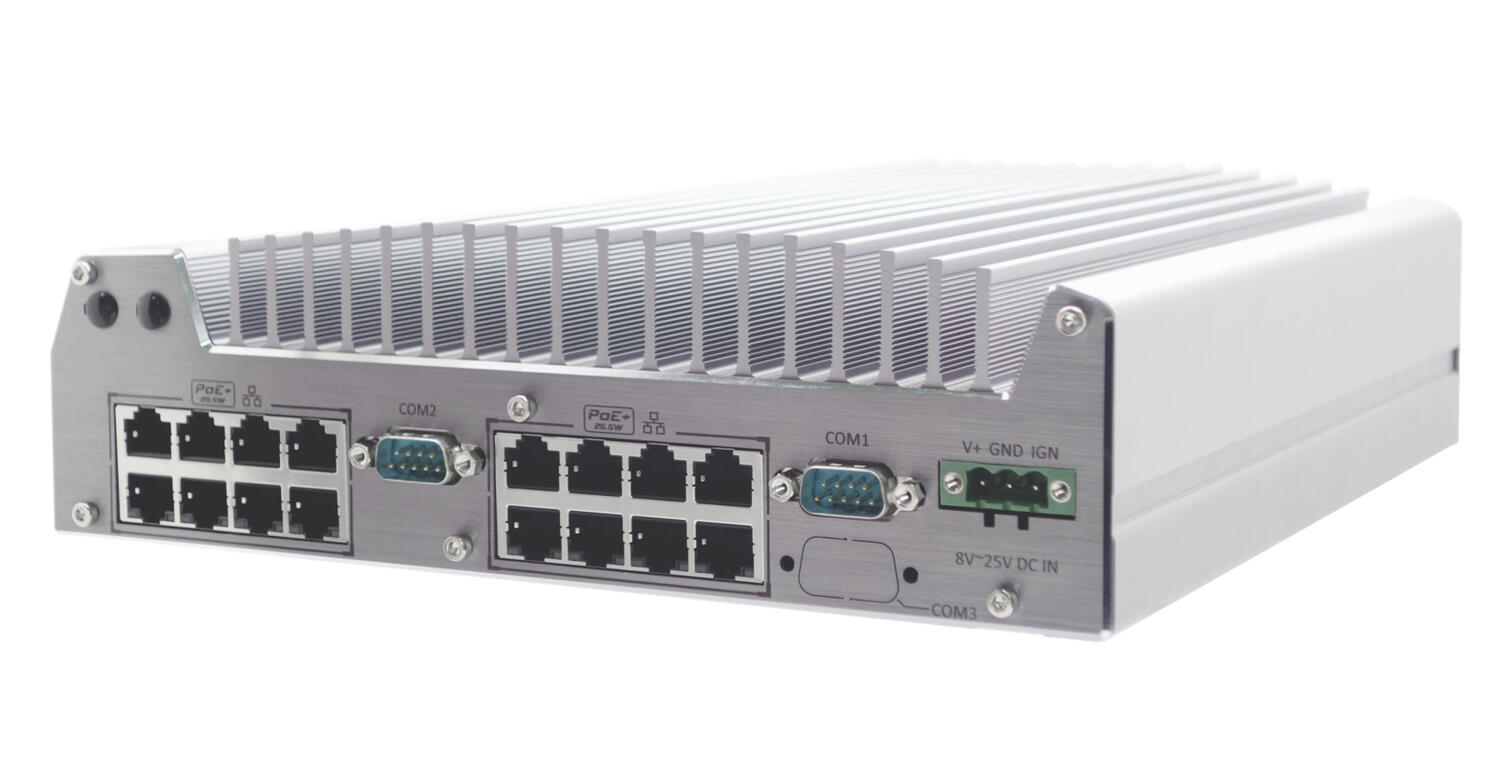

16 PoE+ ports and built-in disk array for video recording. Each of its 802.3at PoE+ ports can supply 25.5W to power a bullet, dome or PTZ camera.
Nuvo-3616VR can also accommodate 4 hard drives with RAID support. Not your typical off-the-shelf NVR, Nuvo-3616VR comes with a quad-core i7 CPU to offerexceptional computing performance to facilitate advanced video analytics algorithms.

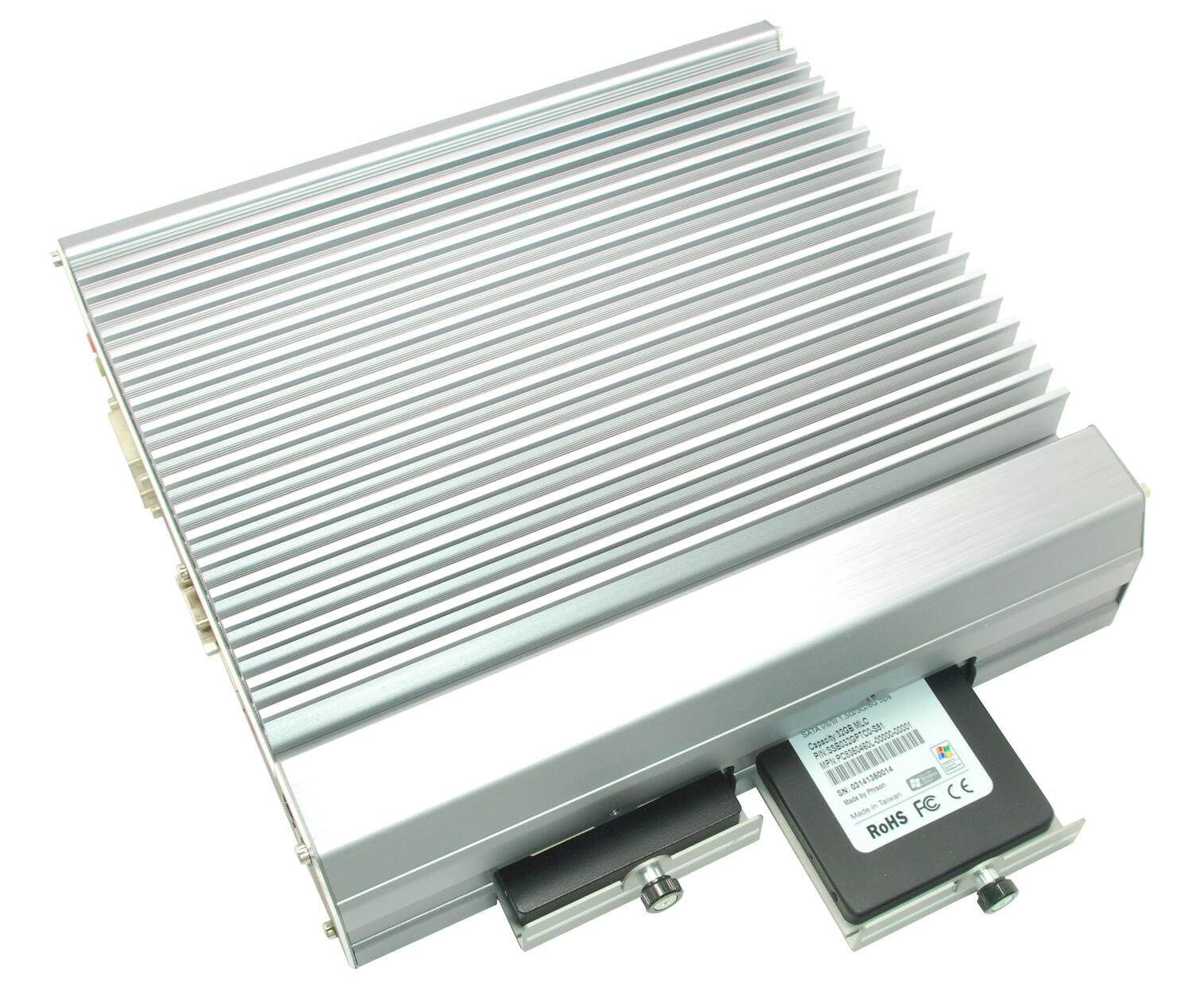

Nuvo-3616VR inherits Neousys’ proven fanless architecture to ensure true wide-temperature operation. Two of its four 2.5” drives come with Neousys’ patented easy-swap trays for simple HDD/ SSD replacement. Nuvo-3616VR also features 8~35V wide-range DC input and ignition control
for stationary or in-vehicle usage. Combining numerous PoE+ ports, RAID storage and superb computing power, Nuvo-3616VR opens a new page for surveillance applications!
Features:
- Intel® 3rd-Gen i7 quad-core processor
- Up to 16x IEEE 802.3at (25.5W) PoE+ ports
- Rugged, -25 °C to 60 °C fanless operation
- Four 2.5” SATA HDDs with RAID 0/ 1/ 5/ 10 support
- Patented easy-swap trays* for HDD replacement
- 8~35V wide-range DC input with built-in ignition power control
- Per-port power on/ off control for each PoE+ port
- Intel® 3rd Gen. Core™ processor
- 8x/16x IEEE 802.3at (25.5W) PoE+ ports
- 4x 2.5” SATA HDD - RAID 0/1/5/10
- Wide temperature-range -25°C ... +60°C
Selected variant
Specifications
| Chipset | Intel® QM77 |
|---|---|
| Depth | 255 mm |
| GPU | Intel® HD Graphics 4000 |
| Height | 70 mm |
| Memory RAM | 16 GB |
| Processor | Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) |
| Shock Resistance | 50 Grms (IEC60068-2-27) |
| Supply Voltage DC Max | 35 V DC |
| Supply Voltage DC Min | 8 V DC |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 85 °C |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Weight | 5 kg |
| Vibration Resistance | 5 Grms (IEC60068-2-64) |
| Width | 240 mm |
Downloads
Product description
Nuvo-3616VR is a surveillance platform that features 16 PoE+ ports, i7 CPU and RAID in a compact, fanless chassis. It is designed to meet requirements of a stationary or mobile surveillance system and is capable not only for video recording but also high-end video analytic purposes. A typical surveillance system uses a NVR to connect IP cameras and record video streams on its disk array. Similar to a NVR, Nuvo-3616VR features
16 PoE+ ports and built-in disk array for video recording. Each of its 802.3at PoE+ ports can supply 25.5W to power a bullet, dome or PTZ camera.
Nuvo-3616VR can also accommodate 4 hard drives with RAID support. Not your typical off-the-shelf NVR, Nuvo-3616VR comes with a quad-core i7 CPU to offerexceptional computing performance to facilitate advanced video analytics algorithms.
Nuvo-3616VR inherits Neousys’ proven fanless architecture to ensure true wide-temperature operation. Two of its four 2.5” drives come with Neousys’ patented easy-swap trays for simple HDD/ SSD replacement. Nuvo-3616VR also features 8~35V wide-range DC input and ignition control
for stationary or in-vehicle usage. Combining numerous PoE+ ports, RAID storage and superb computing power, Nuvo-3616VR opens a new page for surveillance applications!
Features:
- Intel® 3rd-Gen i7 quad-core processor
- Up to 16x IEEE 802.3at (25.5W) PoE+ ports
- Rugged, -25 °C to 60 °C fanless operation
- Four 2.5” SATA HDDs with RAID 0/ 1/ 5/ 10 support
- Patented easy-swap trays* for HDD replacement
- 8~35V wide-range DC input with built-in ignition power control
- Per-port power on/ off control for each PoE+ port
