NEOUSYS

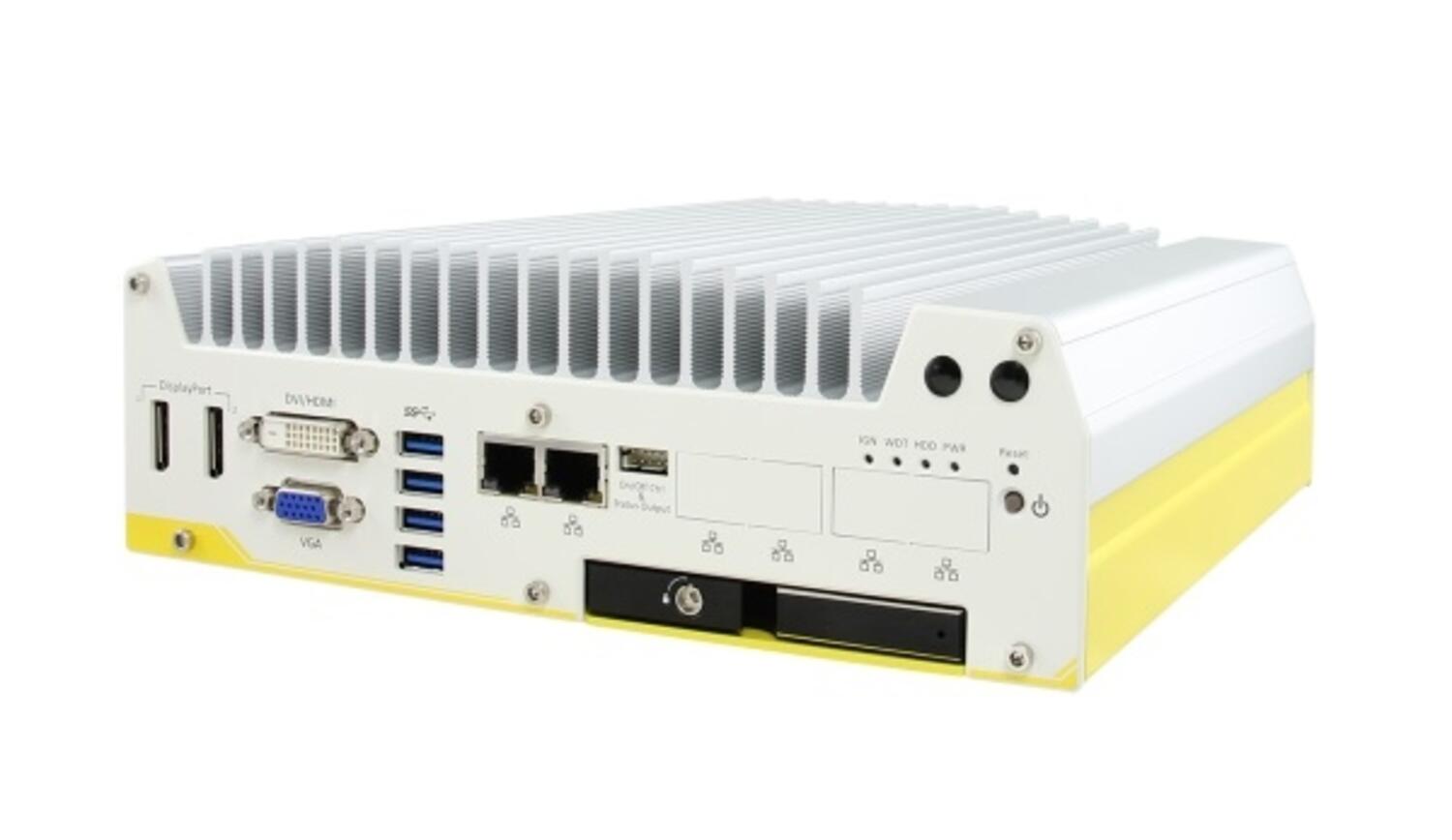

Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controlloer in compliant with EN50155 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.
Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.

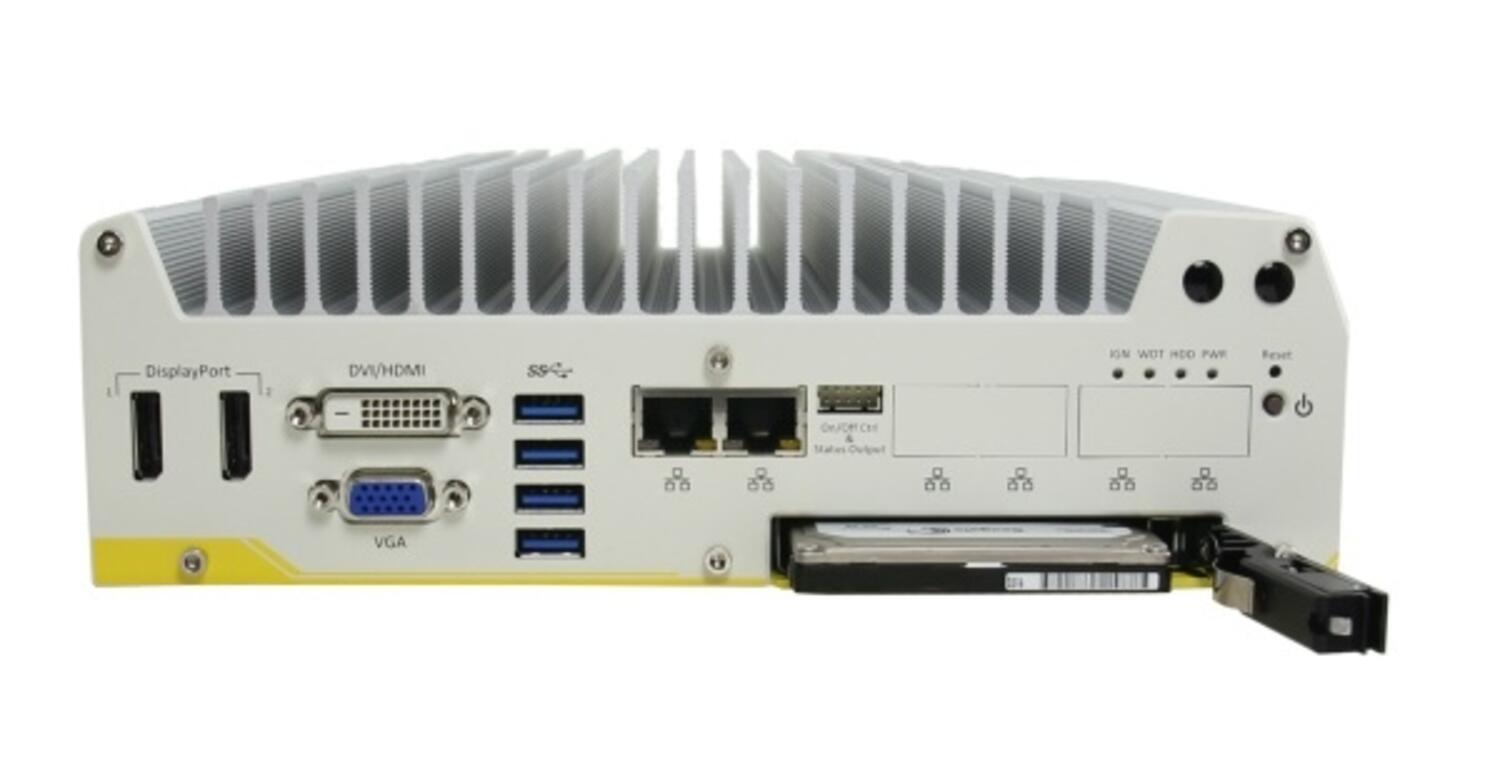

In addition, Nuvo-5100VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices. There is also an isolated DIO for sensor/ actuator control, ignition power control and dual-drive RAID storage which makes Nuvo-5100VTC simply the controller that can satisfy all your in-vehicle application needs.
Features:
AMT | AMT 11.0 |
---|---|
CAN | 1x CAN 2.0 port |
Chipset | Intel® Q170 Platform Controller Hub |
Depth | 225 mm |
Height | 79 mm |
Memory RAM | 32 GB |
Processor | Intel® Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP) |
Supply Voltage DC Max | 35 V DC |
Supply Voltage DC Min | 8 V DC |
Temperature range bearing, from | -40 °C |
---|---|
Temperature range bearing, to | 85 °C |
Temperature range from | -25 °C |
Temperature range to | 70 °C |
TPM | TPM 2.0 |
Weight | 3.3 kg |
Vibration Resistance | 5 Grms (IEC60068-2-64) |
Width | 240 mm |
Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controlloer in compliant with EN50155 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.
Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.
In addition, Nuvo-5100VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices. There is also an isolated DIO for sensor/ actuator control, ignition power control and dual-drive RAID storage which makes Nuvo-5100VTC simply the controller that can satisfy all your in-vehicle application needs.
Features:
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Since 2002, 2J Antennas has become a global supplier of antenna solutions, dedicated to developing innovative technologies for an increasingly networked world. Read more!
You can save space and time during installation with BACO multi-function buttons! Read more.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Processor | ||
---|---|---|---|
![]()
Nuvo-5100VTC Core i7-6700TE
Art:
N5100VTC-I7TE
Copied
|
Intel® Core™ i7-6700TE(8M Cache, 2.4/3.4 GHz, 35W TDP)
|
| |
![]()
Nuvo-5100VTC Core i5-6500TE
Art:
N5100VTC-I5TE
Copied
|
Intel® Core™ i5-6500TE(6M Cache, 2.3/3.3 GHz, 35W TDP)
|
| |
![]()
Nuvo-5100VTC Core i3-6100TE
Art:
N5100VTC-I3TE
Copied
|
Intel® Core™ i3-6100TE(4M Cache, 2.7 GHz, 35W TDP)
|
|
Select a variant in the list
