NEOUSYS
Nuvo-8108GC is a rugged edge AI platform with industrial-grade design and in-vehicle features. Designed specifically to support a high-end 250W NVIDIA® graphics card, it offers tremendous GPU power up to 14 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.
Nuvo-8108GC is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates an internal 2.5" HDD/ SSD tray and one hot-swappable 2.5" HDD/ SSD tray for easy replacement. There is also an M.2 2280 NVMe socket for the fast read/ write performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the x16 PCIe slot (8-lanes) for GPU installation, Nuvo-8108GC has other two x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for expansion cards to extend function sets like data collection,analytics and communication.
Nuvo-8108GC has a brand new power delivery design to accept 8~35V wide-range DC input and to handle heavy power requirements from 250W GPU. Along with built-in ignition control, it's feasible to deploy it on a vehicle and directly power it via the car's power system. Mechanical wise, Nuvo-8108GC incorporates Neousys' patented heat dissipation design*, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions. The Nuvo-8108GC is Neousys' response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile AI inference applications from laboratories to field applications, where reliability matters.
AMT | AMT 12.0 |
---|---|
Chipset | Intel® C246 Platform Controller Hub |

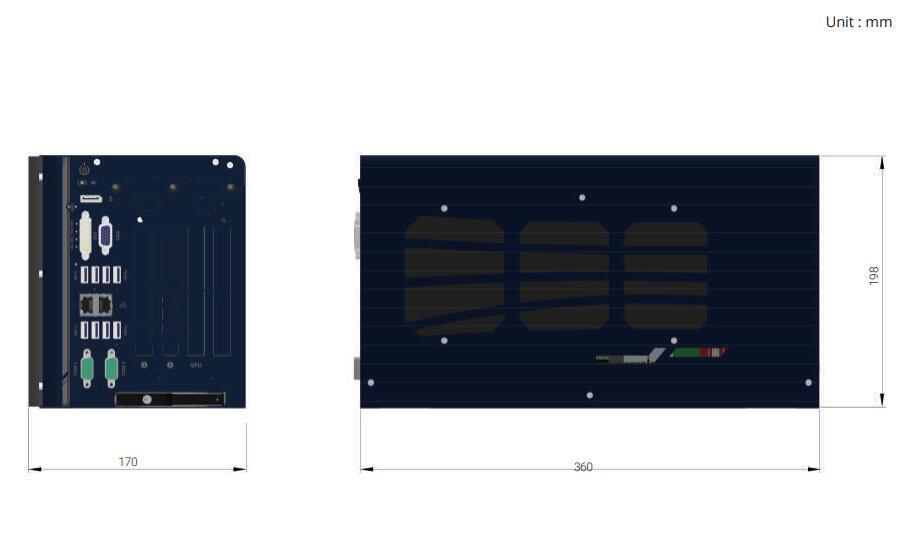

Depth | 360 mm |
GPU | Yes |
Hard Drive Interface - Mini-Pcie | 2x full-size mini PCI Express |
Hard Drive Interface - MSATA | 2x full-size mSATA |
Hard Drive Interface - SATA | 1x hot-swap 2.5", 1x 2.5" (RAID 0/1 support) |
Height | 198 mm |
Humidity | 10%~90% , non-condensing |
I / O Ports - Audio | 1x Speaker-out |
I / O Ports - Connection | 4+4 channel isolated digital I/O |
I / O Ports - Ethernet Port | 2x Gigabit Ethernet (Intel® I219-LM/I210-IT) |
I / O Ports - Serial | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) |
I / O Ports - USB | 4x USB 3.1 Gen2 (10 Gbps), 4x USB 3.1 Gen1 (5 Gbps), 1x USB 2.0 (internal for dongle use) |
I / O Ports - Video | 1x VGA (1920x1200), 1x DVI-D (1920x1200), 1x DisplayPort (4096x2304) |
I/O ports - M.2 | 1x M.2 2280 M key (PCIe Gen3 x4 NVMe/Optane) |
I/O ports - PCI Express | 2x PCIe Gen3 x16@x8, 2x PCIe Gen3 x8@4 |
---|---|
Ignition Control | Built-in, on DC input |
Memory RAM | 128 GB |
Mounting | Damping brackets (standard) |
Processor | Intel® Core™ i7-8700 |
Supply Voltage DC Max | 48 V DC |
Supply Voltage DC Min | 8 V DC |
Temperature range bearing, from | -40 °C |
Temperature range bearing, to | 85 °C |
Temperature range from | -25 °C |
Temperature range to | 50 °C |
TPM | TPM 2.0 |
Type of memory | 4x ECC/non-ECC DDR4 2133 SDRAM SODIMM) |
Weight | 5 kg |
Width | 170 mm |
Nuvo-8108GC is a rugged edge AI platform with industrial-grade design and in-vehicle features. Designed specifically to support a high-end 250W NVIDIA® graphics card, it offers tremendous GPU power up to 14 TFLOPS in FP32 for emerging GPU-accelerated edge computing, such as autonomous driving, vision inspection and surveillance/ security.
Nuvo-8108GC is powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ (up to 8-core/ 16-thread) CPUs coupled with workstation-grade Intel® C246 chipset to support up to 128 GB ECC or non-ECC DDR4 memory. The system incorporates an internal 2.5" HDD/ SSD tray and one hot-swappable 2.5" HDD/ SSD tray for easy replacement. There is also an M.2 2280 NVMe socket for the fast read/ write performance. Its front-accessible GbE and USB 3.1 Gen1/ Gen2 ports feature screw-lock mechanisms for securing cable connections. In addition to the x16 PCIe slot (8-lanes) for GPU installation, Nuvo-8108GC has other two x8 PCIe slots (4-lanes) and one x16 PCIe slot (8-lanes) for expansion cards to extend function sets like data collection,analytics and communication.
Nuvo-8108GC has a brand new power delivery design to accept 8~35V wide-range DC input and to handle heavy power requirements from 250W GPU. Along with built-in ignition control, it's feasible to deploy it on a vehicle and directly power it via the car's power system. Mechanical wise, Nuvo-8108GC incorporates Neousys' patented heat dissipation design*, damping brackets* and patent-pending GPU press bar, making it steady and rock-solid in various conditions. The Nuvo-8108GC is Neousys' response to the never-ending demand of TFLOPS in industrial GPU platforms. With industrial-grade power, thermal and mechanical design, it pushes versatile AI inference applications from laboratories to field applications, where reliability matters.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Since 2002, 2J Antennas has become a global supplier of antenna solutions, dedicated to developing innovative technologies for an increasingly networked world. Read more!
Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.
You can save space and time during installation with BACO multi-function buttons! Read more.
The strategic partnership between OEM Automatic and KUKA Nordic is driving sales momentum. Read more!
Thanks to the new cooperation between OEM and KUKA Nordic, we are now able to offer our customers state-of-the-art cobots! Read more about the cooperation!
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Height | Processor | Supply Voltage DC Max | TPM | ||
---|---|---|---|---|---|---|
![]()
Art:
N8108GC-I7-65W
Copied
|
198 mm
|
Intel® Core™ i7-8700
|
48 V DC
|
TPM 2.0
|
| |
![]()
Nuvo-8108GC Core i7-8700T (35W TDP)
Art:
N8108GC-I7
Copied
|
86 mm
|
Intel® Core™ i7-8700T
|
35 V DC
|
|
| |
![]()
Nuvo-8108GC Core i5-8500 (65W TDP)
Art:
N8108GC-I5-65W
Copied
|
198 mm
|
Intel® Core™ i5-8500
|
48 V DC
|
TPM 2.0
|
| |
![]()
Nuvo-8108GC Core i5-8500T (35W TDP)
Art:
N8108GC-I5
Copied
|
86 mm
|
Intel® Core™ i5-8500T
|
35 V DC
|
|
| |
![]()
Nuvo-8108GC Core i5-8500 (65W TDP)
Art:
N8108GC-I3-65W
Copied
|
198 mm
|
Intel® Core™ i3-8100
|
48 V DC
|
TPM 2.0
|
| |
![]()
Nuvo-8108GC Core i3-8100T (35W TDP)
Art:
N8108GC-I3
Copied
|
86 mm
|
Intel® Core™ i3-8100T
|
35 V DC
|
|
| |
![]()
Nuvo-8108GC Xeon E 2176G
Art:
N8108GC-E2176G
Copied
|
86 mm
|
Intel® Xeon® E 2176G
|
35 V DC
|
|
| |
![]()
Nuvo-8108GC Xeon E 2278GE
Art:
N8108GC-E2278GE
Copied
|
86 mm
|
Intel® Xeon® E 2278GE
|
35 V DC
|
|
| |
![]()
Nuvo-8108GC Xeon E 2278GEL
Art:
N8108GC-E2278GEL
Copied
|
86 mm
|
Intel® Xeon® E 2278GEL
|
35 V DC
|
|
|
Select a variant in the list
