NEOUSYS
IGT-20 IOT Gateway

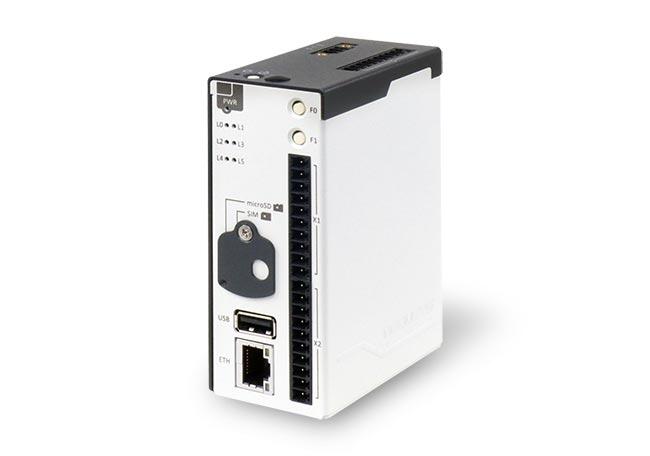

Neousys IGT-20 is a compact IoT Gateway that is aimed at industrial Internet of Things(IIoT) and Industry 4.0 applications. Unlike System on Module (SoM) that's commonly provided as a barebone component, IGT-20 is based on AM3352 processor from Texas Instrument's Sitara family and will be shipped as a ready system pre-installed with Debian. The industrial nature of IGT-20 means it is in compliance with common industrial certifications such as CE/FCC, shock and vibration. Another distinction IGT-20 has over SoM is that it accepts a wider range of power inputs ranging from 8 to 25 VDC (SoM usually accepts 5 VDC).

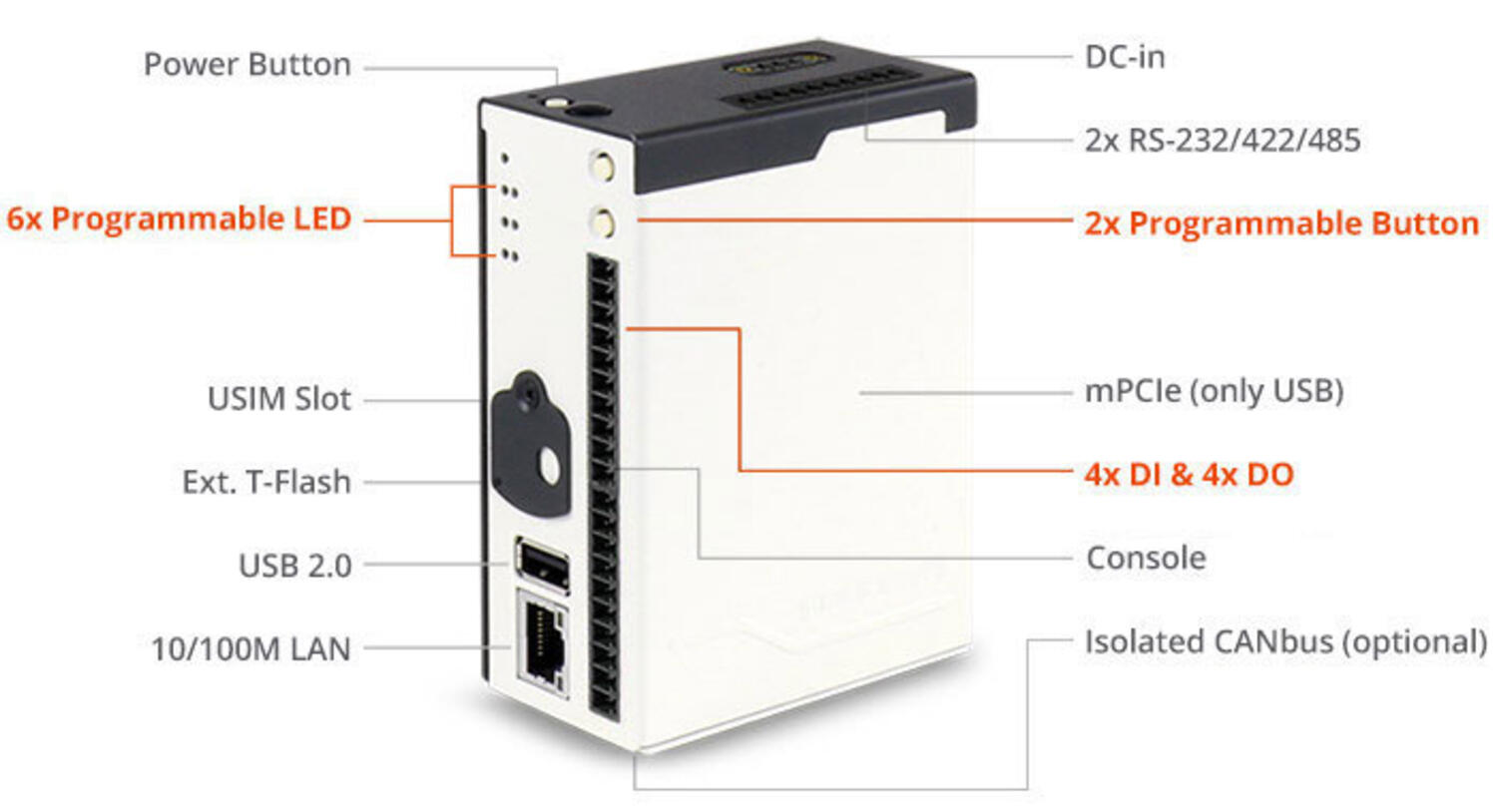

IGT-20 has I/Os that are applicable to a range of industrial grade sensors. It features one USB2.0, one 10/100M LAN, two configurable COM ports (RS-232/422/485) and an optional CAN bus port. In addition to the ports mentioned, there are 4 built-in isolated digital input channels that accept discrete signals from various sensors or buttons/ switches. There are also four built-in isolated digital output channels to control actuators and indicators.
Communication wise, IGT-20 has a mini PCIe slot and a USIM holder allowing it to transmit acquired data and system status via 3G, 4G or WiFi (mini PCIe WiFi module). There is an opening on top of IGT-20 for users to mount the SMA connector of the wireless module. In terms of storage, IGT-20 has dual microSDHC slots, one internal and one external. This design allows users to separate system/ user data and can expedite in OS deployment for mass production. As a gateway, users can take advantage of six programmable status LED indicators and two control buttons to operate IGT-20 without using a keyboard/ mouse.
- Extremely compact
- ARM/Linux-based
- Wide temperature range -25...+70℃
- Extensive IOs
- Supports wireless connections
Selected variant
Specifications
| Depth | 77 mm |
|---|---|
| Hard Drive Interface - Mini-Pcie | 1x full size mPCIe (USB2.0) |
| Height | 104 mm |
| I / O Ports - Connection | 4+4 channel isolated digital I/O |
| I / O Ports - Ethernet Port | 1x 10/100M Ethernet |
| I / O Ports - LED Lighting Control | 6x user programmable LED |
| I / O Ports - Serial | 2x user configurable RS-232/ 422/ 485 |
| I / O Ports - USB | 1x USB2.0 |
| Interface | 2x user configurable button, 1x Power, 1x Reset |
| Memory RAM | 1 GB |
| Mounting | DIN-rail mount |
| Operating | Debian 8 |
|---|---|
| Processor | TI Sitara AM3352 1GHz |
| Remote control | Console port (RS-232) or Ethernet (SSH) |
| Supply Voltage DC Max | 25 V DC |
| Supply Voltage DC Min | 8 V DC |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Type of memory | DDR3L SDRAM |
| Weight | 0.4 kg |
| Width | 41 mm |
Downloads
Product description
Neousys IGT-20 is a compact IoT Gateway that is aimed at industrial Internet of Things(IIoT) and Industry 4.0 applications. Unlike System on Module (SoM) that's commonly provided as a barebone component, IGT-20 is based on AM3352 processor from Texas Instrument's Sitara family and will be shipped as a ready system pre-installed with Debian. The industrial nature of IGT-20 means it is in compliance with common industrial certifications such as CE/FCC, shock and vibration. Another distinction IGT-20 has over SoM is that it accepts a wider range of power inputs ranging from 8 to 25 VDC (SoM usually accepts 5 VDC).
IGT-20 has I/Os that are applicable to a range of industrial grade sensors. It features one USB2.0, one 10/100M LAN, two configurable COM ports (RS-232/422/485) and an optional CAN bus port. In addition to the ports mentioned, there are 4 built-in isolated digital input channels that accept discrete signals from various sensors or buttons/ switches. There are also four built-in isolated digital output channels to control actuators and indicators.
Communication wise, IGT-20 has a mini PCIe slot and a USIM holder allowing it to transmit acquired data and system status via 3G, 4G or WiFi (mini PCIe WiFi module). There is an opening on top of IGT-20 for users to mount the SMA connector of the wireless module. In terms of storage, IGT-20 has dual microSDHC slots, one internal and one external. This design allows users to separate system/ user data and can expedite in OS deployment for mass production. As a gateway, users can take advantage of six programmable status LED indicators and two control buttons to operate IGT-20 without using a keyboard/ mouse.
