NEOUSYS
POC-200 ultra-compact industrial-grade computer
POC-200 is a breakthrough of Neousys' ultra-compact fanless embedded computer series. Inheriting the concept of favorable POC-100, POC-200 series further incorporates greater computing power and more versatile functions in its 3.5" HDD footprint.
The new Intel® Atom™ Bay Trail processor brings a leaping for both arithmetic and graphics performance. With Atom™ E3845 quad-core processor, POC-200 can deliver more than 200% performance over previous D525/D2550 platform. It also feature comprehensive I/O interfaces to make use of the advance of computing power. Two Gigabit Ethernet and three USB 3.0 ports are integrated so you can connect GigE/USB3 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable to supply 25.5W each port to power you IP camera for mobile surveillance applications. POC-200 also features up to four COM ports and digital I/O for general-purpose industrial applications.
Size is another attractive feature of POC-200. Its 6"x4" footprint makes installation of POC-200 extremely easy. And its -25°C to 70°C operating temperature eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configuration so you can always find a fit POC-200 for your application.
Product highlights:
- Ultra-compact 150 mm x 100 mm foot-print
- Intel® Atom™ E3845 1.91GHz Quad-core processor
- Rugged, wide temperature range from -25°C to 70°C fanless operation
- Two 802.3at (25.5W) Gigabit PoE ports
- Three USB 3.0 ports

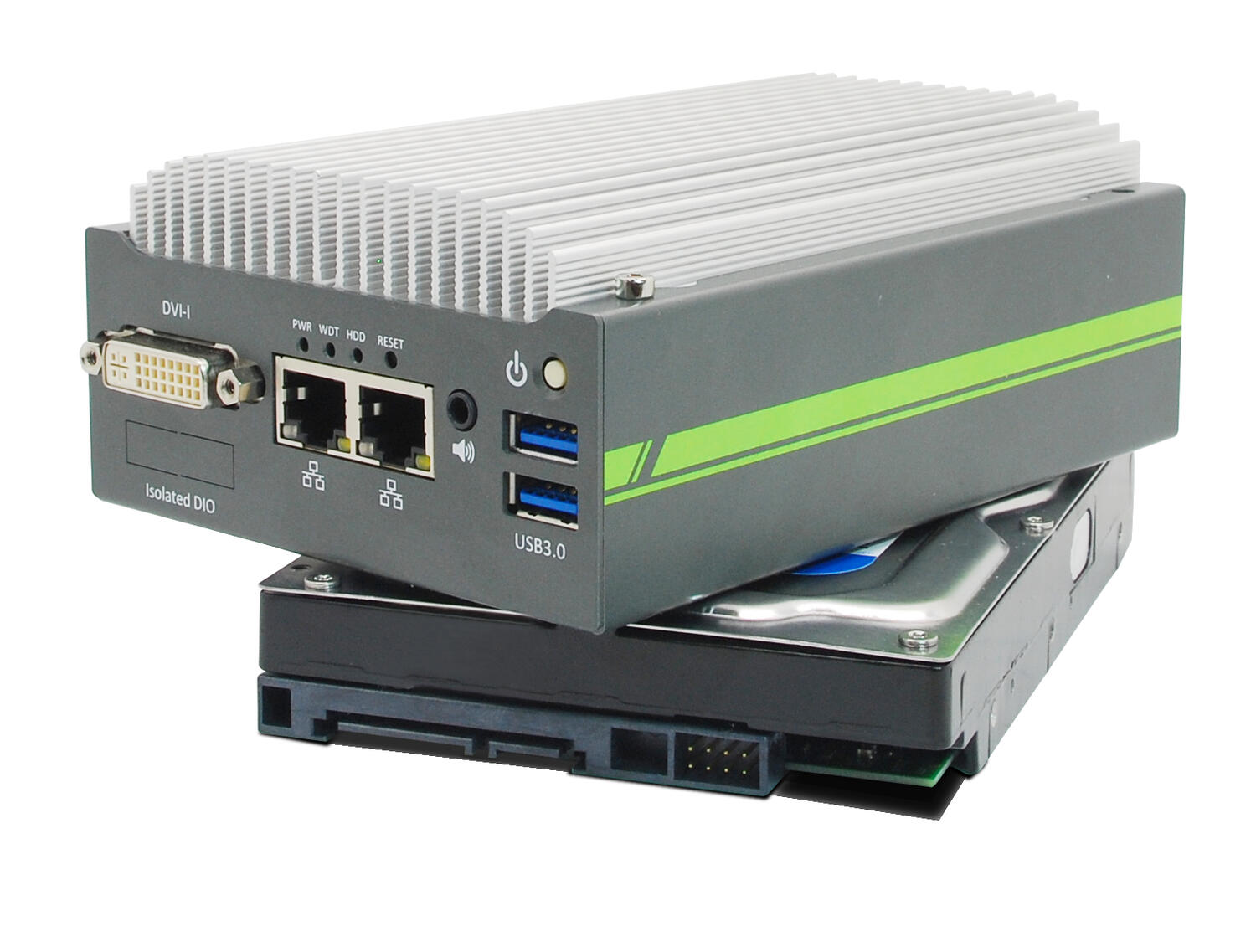

- Standard 2.5" SATA HDD/SSD accommodation and optional on-board eMMC

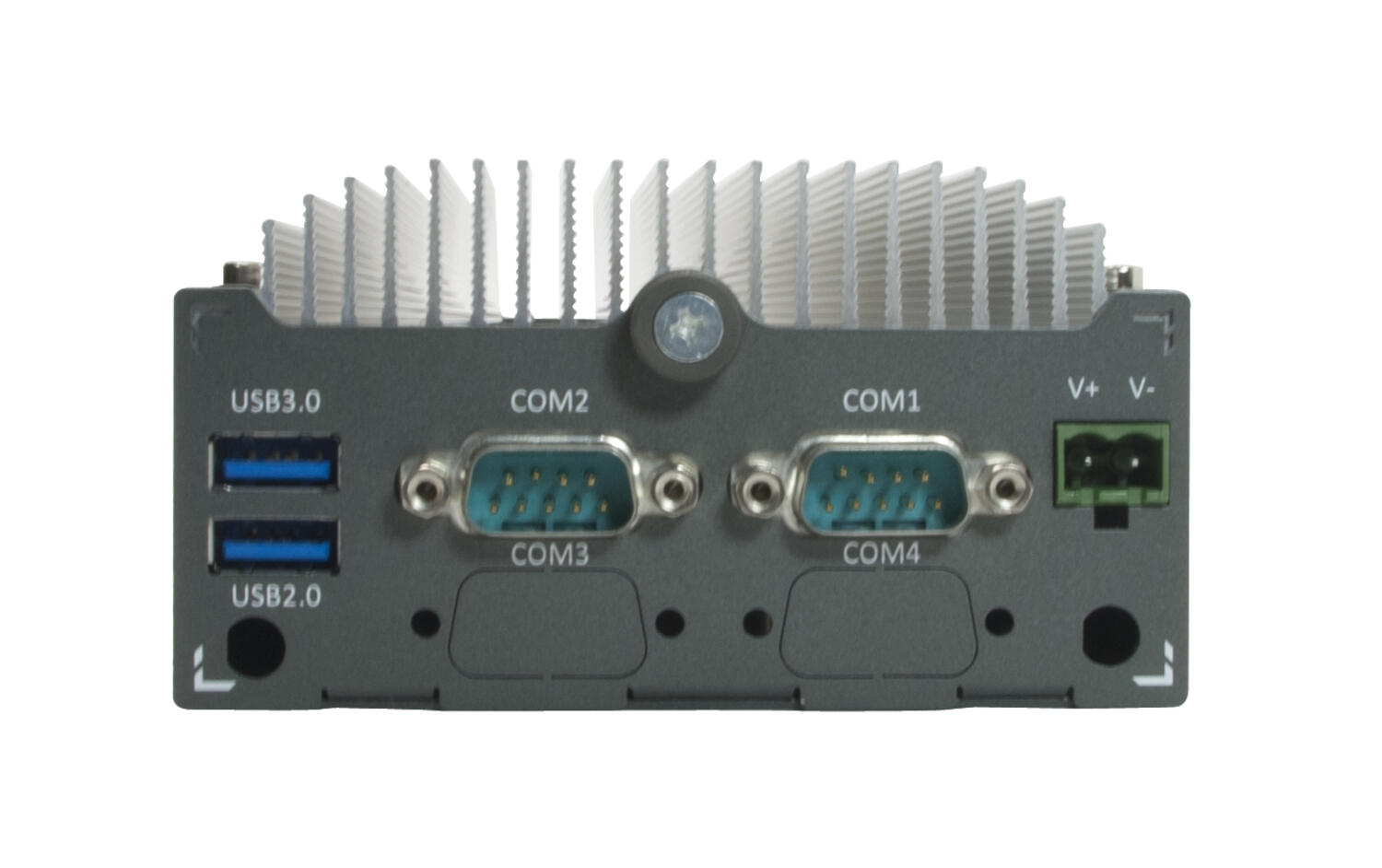

- Up to two RS-232/422/485 ports and two RS-232 ports
- Ultra-compcat design, 149x105x58 mm
- High-powered Intel Atom Bay Trail Quad-core processor
- Wide temperature range -20...+70 °C
Selected variant
Specifications
| Depth | 149 mm |
|---|---|
| Height | 57 mm |
| Memory RAM | 8 GB |
| Power supply | 2-pin plug |
| Processor | Intel® Atom™ E3845 |
| Shock Resistance | 50 Grms (IEC60068-2-27) |
| Supply Voltage DC Max | 35 V DC |
| Supply Voltage DC Min | 8 V DC |
| Temperature range bearing, from | -40 °C |
|---|---|
| Temperature range bearing, to | 85 °C |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 1.1 kg |
| Vibration Resistance | 10 g according to IEC 60068-2-6 |
| Width | 105 mm |
Downloads
Product description
POC-200 is a breakthrough of Neousys' ultra-compact fanless embedded computer series. Inheriting the concept of favorable POC-100, POC-200 series further incorporates greater computing power and more versatile functions in its 3.5" HDD footprint.
The new Intel® Atom™ Bay Trail processor brings a leaping for both arithmetic and graphics performance. With Atom™ E3845 quad-core processor, POC-200 can deliver more than 200% performance over previous D525/D2550 platform. It also feature comprehensive I/O interfaces to make use of the advance of computing power. Two Gigabit Ethernet and three USB 3.0 ports are integrated so you can connect GigE/USB3 cameras for vision applications. Its IEEE 802.3at PoE+ option is capable to supply 25.5W each port to power you IP camera for mobile surveillance applications. POC-200 also features up to four COM ports and digital I/O for general-purpose industrial applications.
Size is another attractive feature of POC-200. Its 6"x4" footprint makes installation of POC-200 extremely easy. And its -25°C to 70°C operating temperature eliminates the restriction for deployment environment. Neousys provides derivative models with different CPU and I/O configuration so you can always find a fit POC-200 for your application.
Product highlights:
- Ultra-compact 150 mm x 100 mm foot-print
- Intel® Atom™ E3845 1.91GHz Quad-core processor
- Rugged, wide temperature range from -25°C to 70°C fanless operation
- Two 802.3at (25.5W) Gigabit PoE ports
- Three USB 3.0 ports
- Standard 2.5" SATA HDD/SSD accommodation and optional on-board eMMC
- Up to two RS-232/422/485 ports and two RS-232 ports
