NEOUSYS

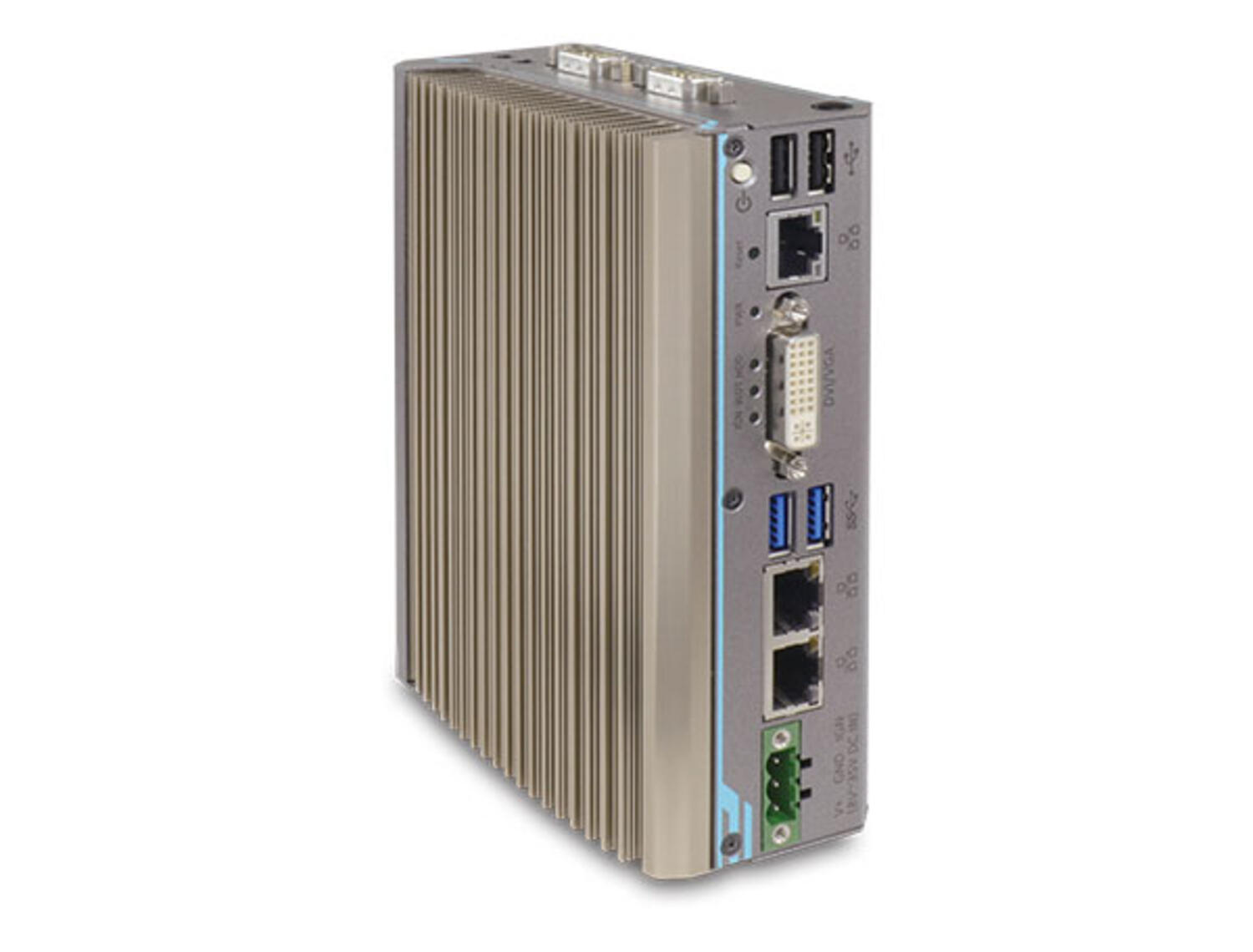

POC-300 ultra-compact industrial-grade computer
Experience the giant leap in performance of Intel® Apollo Lake Pentium® and Atom™ platform! POC-300 series features the latest Pentium® N4200 and Atom™ x7-E3950 quad-core processors which offers up to 1.5 times the CPU performance and 3 times the GPU performance improvement compared to previous generation Atom™ E3845 CPU.

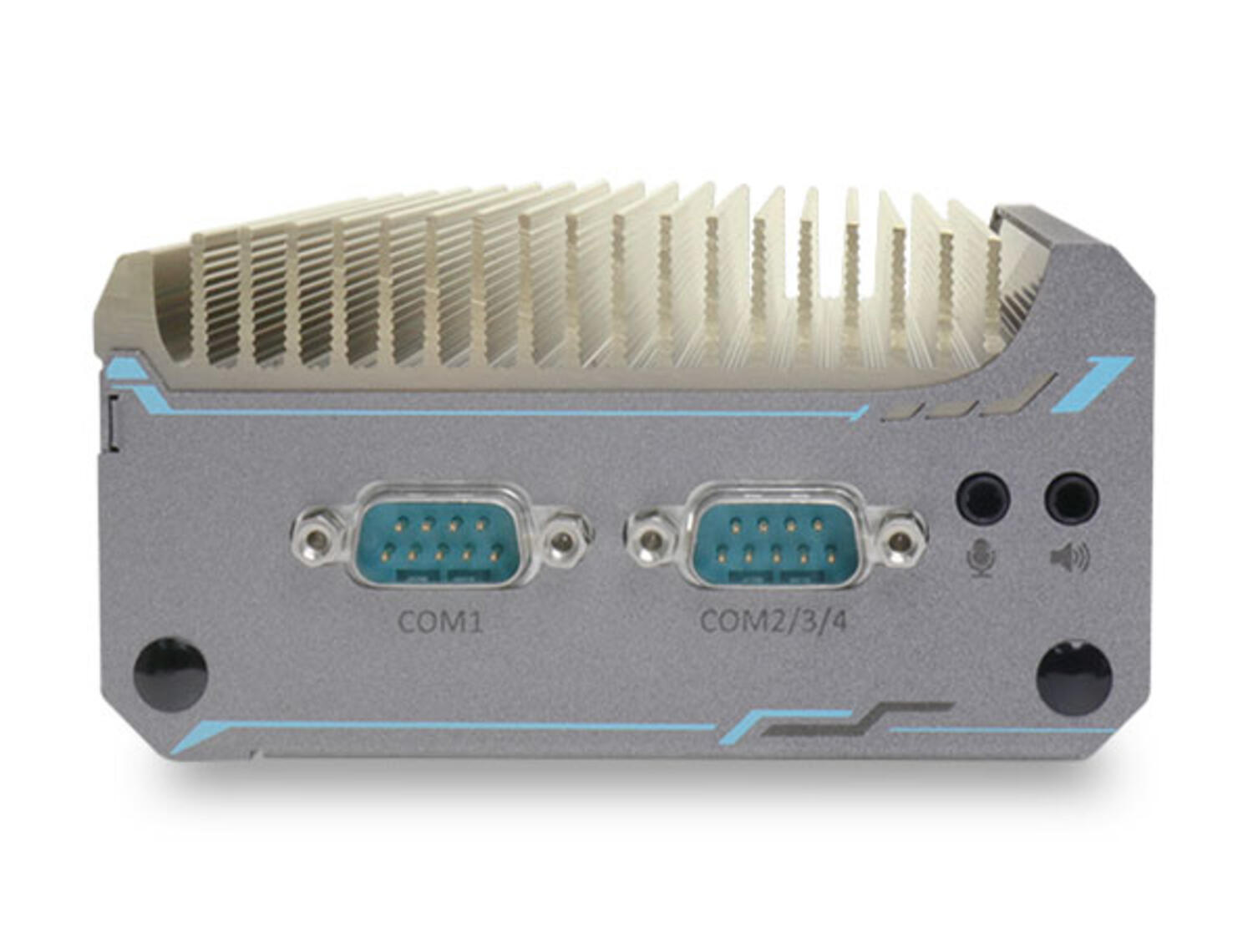

POC-300 series has an ingenious mechanical design that combines DIN-rail mounting chassis with front-accessible I/O in one ultra-compact enclosure. It has rich computer-like I/Os such as GbE, USB 3.0/2,0, COM ports and mSATA storage in a compact footprint that measures just 5.6 x 15 x 11 cm. IEEE 802.3at PoE+ function is also available on 2 of the 3 GbE ports to power cameras for machine vision or surveillance applications. POC-300 series features Neousys' MezIO™ interface for easy function expansion via versatile MezIO™ modules.
With Neousys' proven fanless design heritage, the POC-300 series thrives in harsh environments. Featuring rich I/Os, advanced CPU and compact size, POC-300 is a compelling fanless embedded controller beneficial for various industrial applications.
Product highlights:
- Intel® Apollo Lake Pentium® N4200 and Atom™ E3950 quad-core processor
- Fanless and rugged, wide temperature operation (-25 °C to 70 °C)
- One GbE port and two Gigabit PoE+ ports
- Two USB 3.0 and two USB 2.0 ports
- DVI + VGA dual display outputs
- Front I/O access DIN-mounting design
- MezIO™ compatible
- New generation Intel Apollo Lake architecture
- DIN-rail mounting
- Wide temperature range -25...+70 °C
- 3x GigE, 2x USB3.0, 2x USB2.0
Selected variant
Specifications

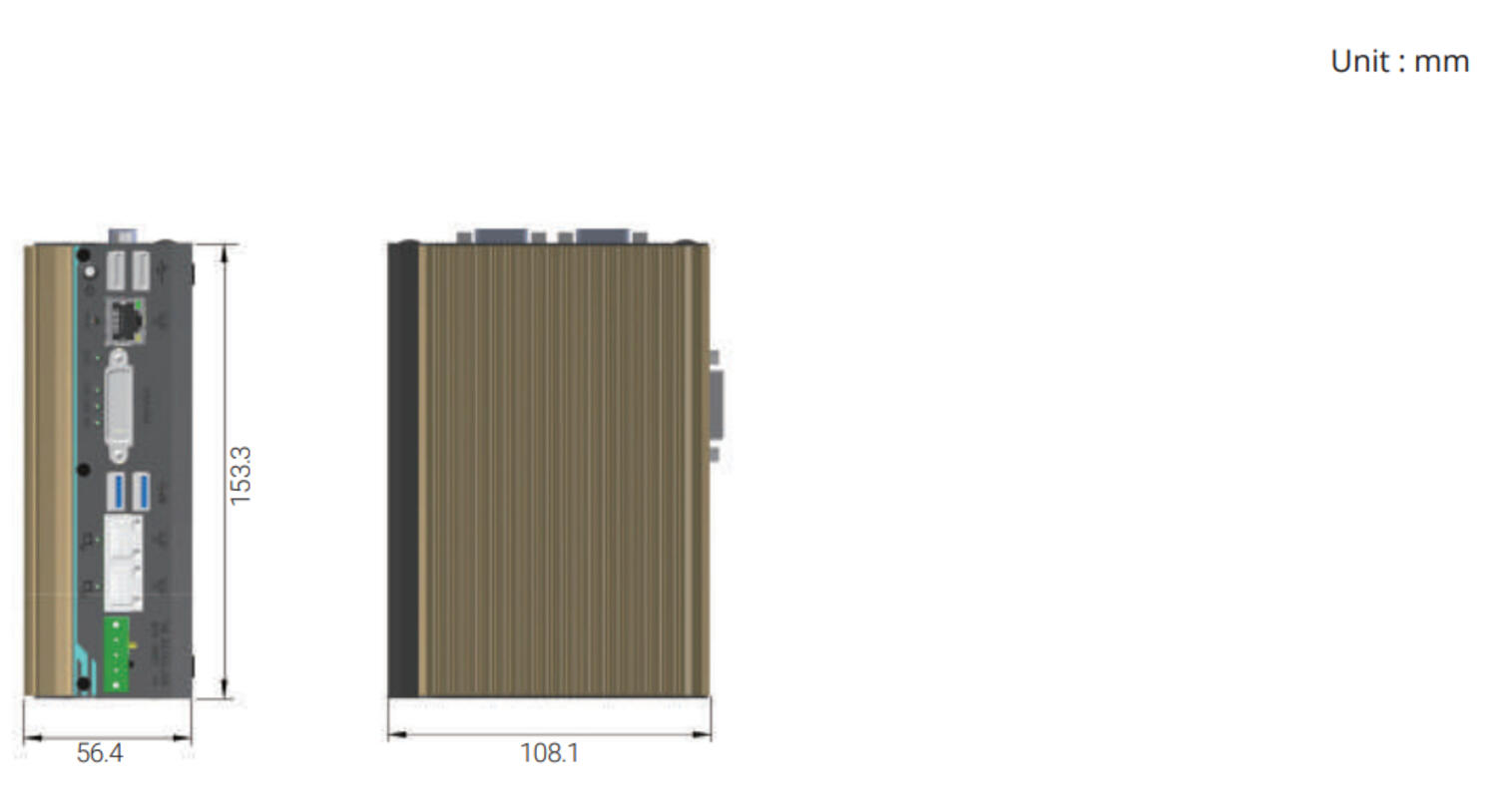

| Depth | 108 mm |
|---|---|
| Height | 153 mm |
| Memory RAM | 8 GB |
| Processor | Intel Atom E3950 1.6/2.0 GHz quad-core processor |
| Shock Resistance | 50 Grms (IEC60068-2-27) |
| Supply Voltage DC Max | 35 V DC |
| Supply Voltage DC Min | 8 V DC |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 85 °C |
|---|---|
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 1.1 kg |
| Vibration Resistance | 5 Grms (IEC60068-2-64) |
| Width | 56 mm |
Downloads
Product description
Experience the giant leap in performance of Intel® Apollo Lake Pentium® and Atom™ platform! POC-300 series features the latest Pentium® N4200 and Atom™ x7-E3950 quad-core processors which offers up to 1.5 times the CPU performance and 3 times the GPU performance improvement compared to previous generation Atom™ E3845 CPU.
POC-300 series has an ingenious mechanical design that combines DIN-rail mounting chassis with front-accessible I/O in one ultra-compact enclosure. It has rich computer-like I/Os such as GbE, USB 3.0/2,0, COM ports and mSATA storage in a compact footprint that measures just 5.6 x 15 x 11 cm. IEEE 802.3at PoE+ function is also available on 2 of the 3 GbE ports to power cameras for machine vision or surveillance applications. POC-300 series features Neousys' MezIO™ interface for easy function expansion via versatile MezIO™ modules.
With Neousys' proven fanless design heritage, the POC-300 series thrives in harsh environments. Featuring rich I/Os, advanced CPU and compact size, POC-300 is a compelling fanless embedded controller beneficial for various industrial applications.
Product highlights:
- Intel® Apollo Lake Pentium® N4200 and Atom™ E3950 quad-core processor
- Fanless and rugged, wide temperature operation (-25 °C to 70 °C)
- One GbE port and two Gigabit PoE+ ports
- Two USB 3.0 and two USB 2.0 ports
- DVI + VGA dual display outputs
- Front I/O access DIN-mounting design
- MezIO™ compatible
