NEOUSYS
POC-551VTC ultra-compact in-vehicle computer

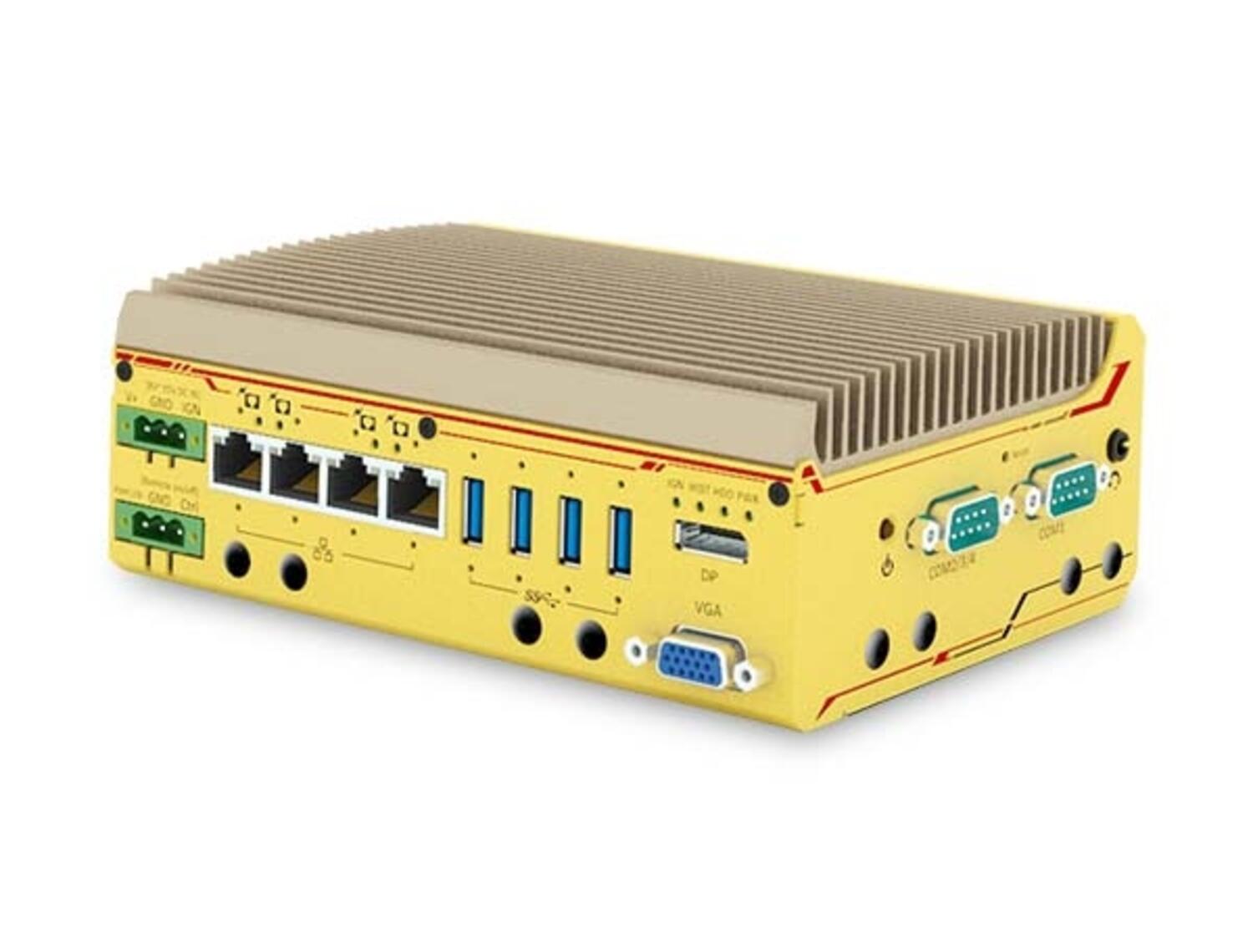

POC-551VTC is the next generation ultra-compact, fanless in-vehicle controller offering performances never-seen-before in this form factor.
Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor(V1605B), POC-551VTC delivers up to 3x times the CPU performance compared to previous POC series. It combines finesse performance, extraordinary reliability and affordability for versatile in-vehicle applications.
POC-551VTC offers four 802.3at PoE+ ports to supply 25W power to device such as IP cameras. As wireless connectivity is essential for modern invehicle application, POC-551VTC with built-in one M.2 and three mini-PCIe are more applicable for in-vehicle use nowadays. It also integrates CAN bus for in-vehicle communication, and isolated DIO for sensor/ actuator control.
Combining ignition power control and wide-range DC input along with superior performance, POC-551VTC can provides perfect solution for all your in-vehicle application needs in an extremely compact size!
- AMD Ryzen™ V1605B processor
- Built-in CAN 2.0
- 4x GigE PoE, 4x USB 3.0
- E-mark, EN 50155 certified
- Wide temperature range -40°C ~ 70°C
Selected variant
Specifications
| CAN | 1x CAN 2.0 |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8~35VDC |

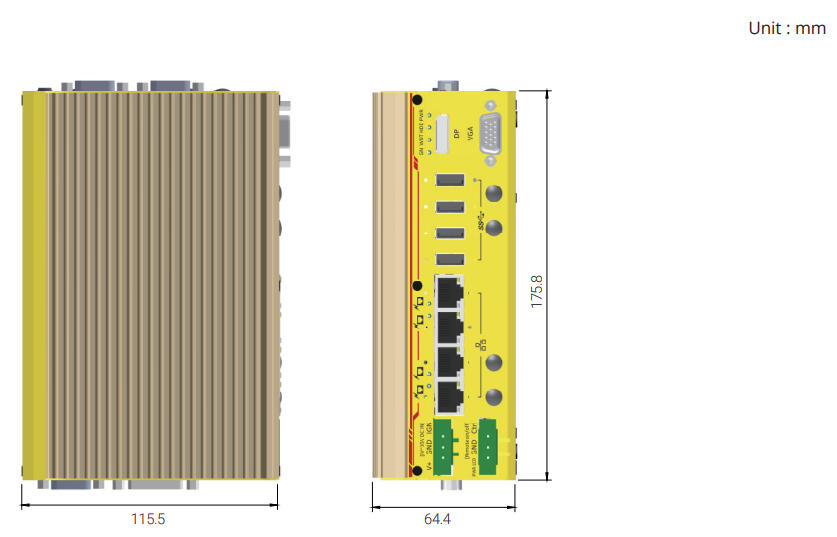

| Depth | 116 mm |
| GPU | Vega GPU with 6 compute units |
| Height | 176 mm |
| Memory RAM | 16 GB |
| PoE max | 4 |
| Processor | AMD Ryzen™ V1605B |
| Remote Control | Yes |
| Supply Voltage DC Max | 35 V DC |
|---|---|
| Supply Voltage DC Min | 8 V DC |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 85 °C |
| Temperature range from | -40 °C |
| Temperature range to | 70 °C |
| Weight | 1.3 kg |
| Width | 64 mm |
Downloads
Product description
POC-551VTC is the next generation ultra-compact, fanless in-vehicle controller offering performances never-seen-before in this form factor.
Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor(V1605B), POC-551VTC delivers up to 3x times the CPU performance compared to previous POC series. It combines finesse performance, extraordinary reliability and affordability for versatile in-vehicle applications.
POC-551VTC offers four 802.3at PoE+ ports to supply 25W power to device such as IP cameras. As wireless connectivity is essential for modern invehicle application, POC-551VTC with built-in one M.2 and three mini-PCIe are more applicable for in-vehicle use nowadays. It also integrates CAN bus for in-vehicle communication, and isolated DIO for sensor/ actuator control.
Combining ignition power control and wide-range DC input along with superior performance, POC-551VTC can provides perfect solution for all your in-vehicle application needs in an extremely compact size!
