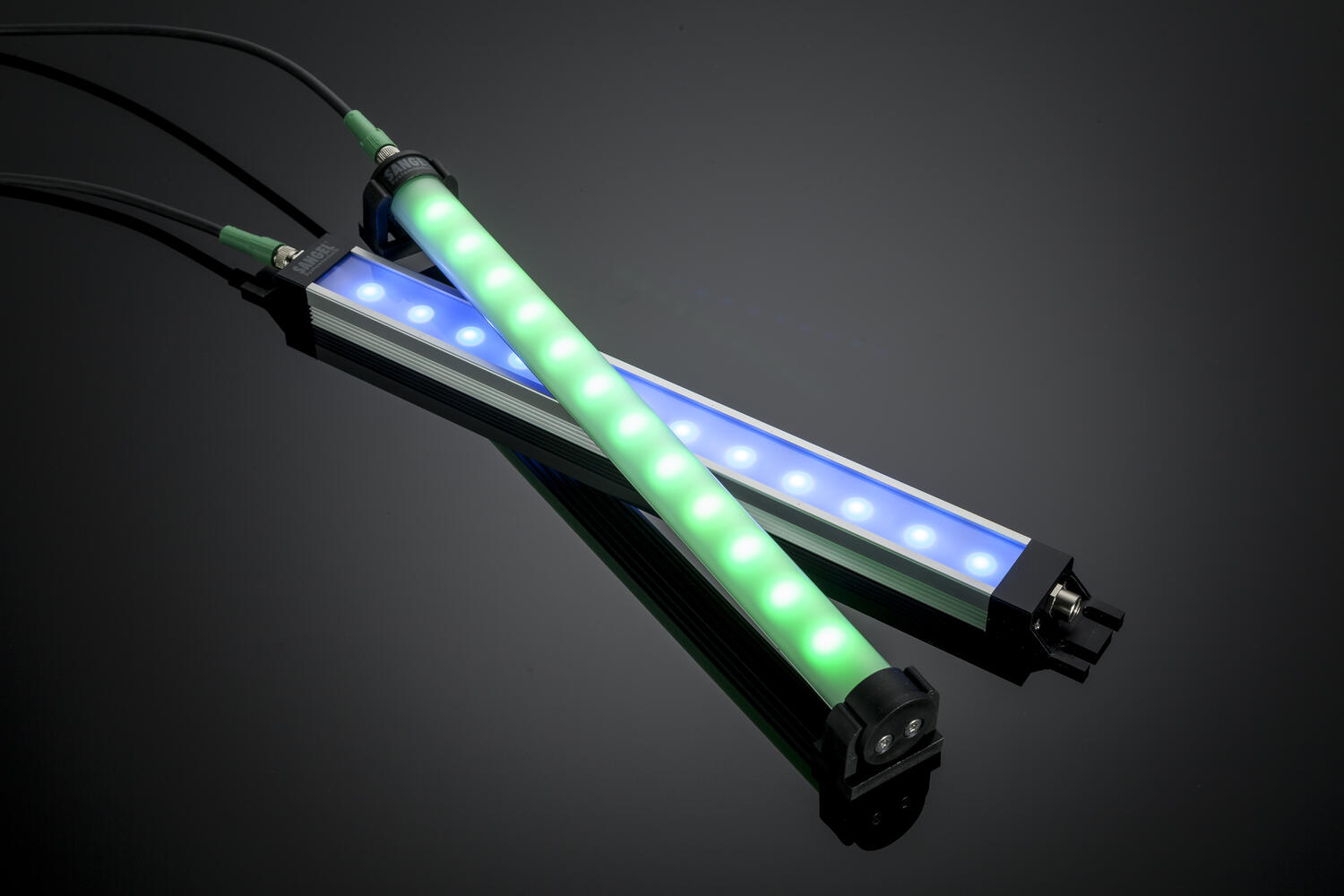

Surface mounted luminaire ELN-RGBW
The ELN-RGBW is a refinement of the ELN series. The almost identically
designed luminaire not only offers all the features of the conventional ELN, but
features a brilliant new technical accomplishment that is more or less unique
on the market at present.
In addition to white light, the ELN-RGBW can display various statuses in 7
different colours. For example, the luminaire may indicate a malfunction of a
machine or alert the operator to reload parts.
Unlike full-RGB luminaires, the ELN-RGBW can be used for illumination with
white light as well as for status indication, all with a single luminaire. And it
also achieves a CRI of more than 80, because the white light is produced with
separate LEDs rather than blending the three primary colours on the RGB
chips. This all-in-one solution not only saves time and money, but also space.
The ELN-RGBW therefore offers genuine added value.
- Tubular design, surface mounted, length 140 - 1120mm
- RGBW-function, 7 color options
- Anodised aluminium housing, plastic moun. brackets, IP54
- M8 connector
- Diffuse safety glass cover
Selected variant
Specifications
| Colour temperature | 5700 K |
|---|---|
| IP Class | IP54 |
| Length | 280 mm |
| Material Glass | PMMA |
| Power Consumption | 9.4 W |
| Supply voltage | 24 V DC |
| Temperature range to | 45 °C |
