Surface mounted luminaire FL/FLS

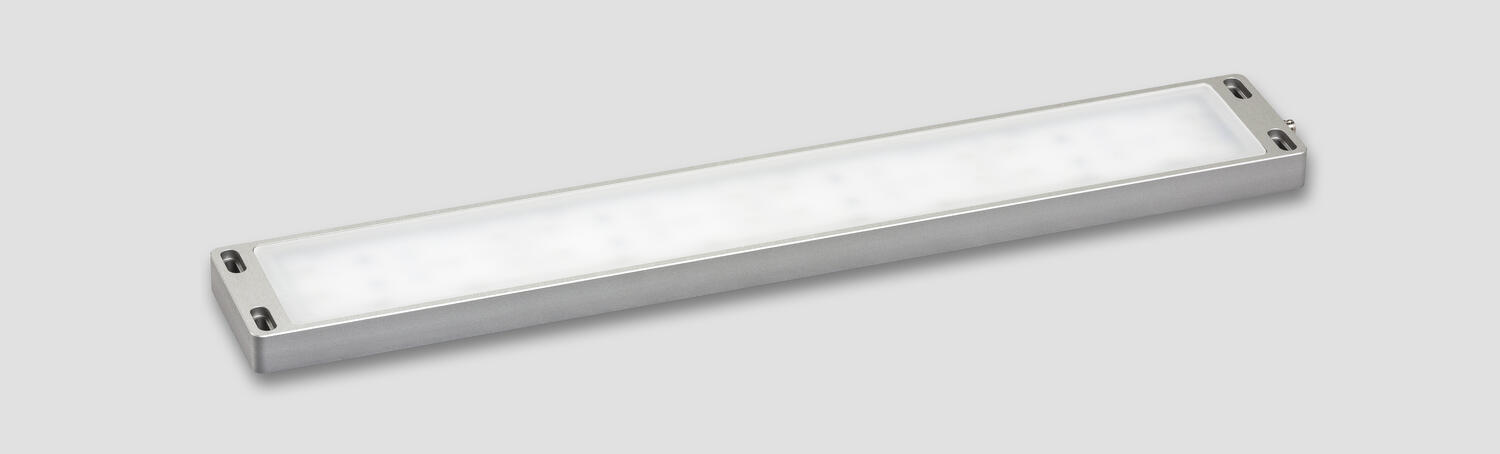

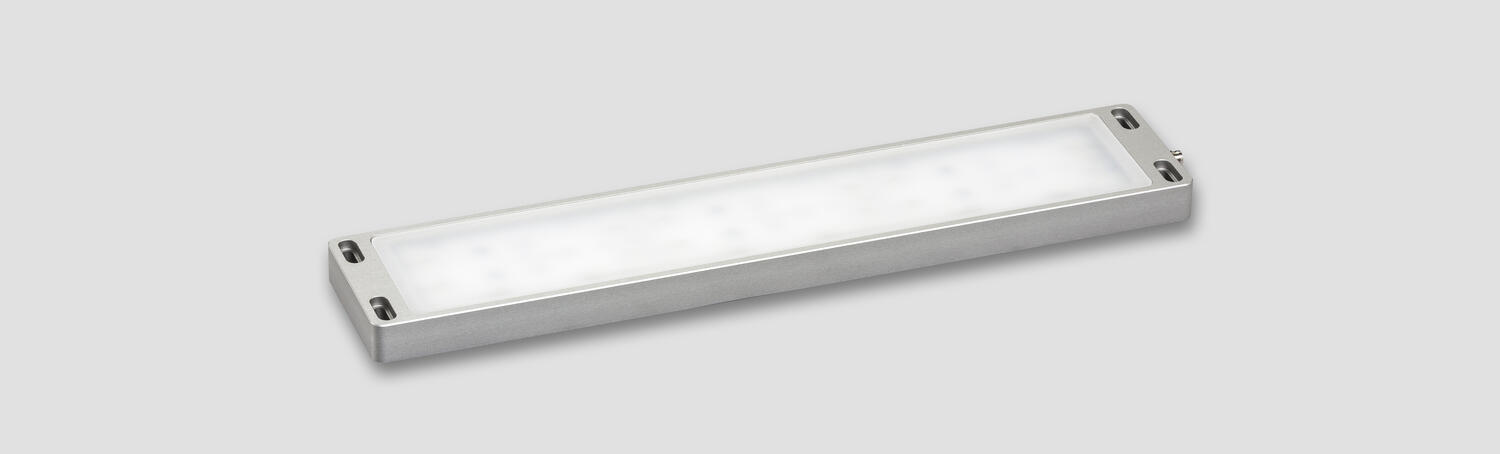

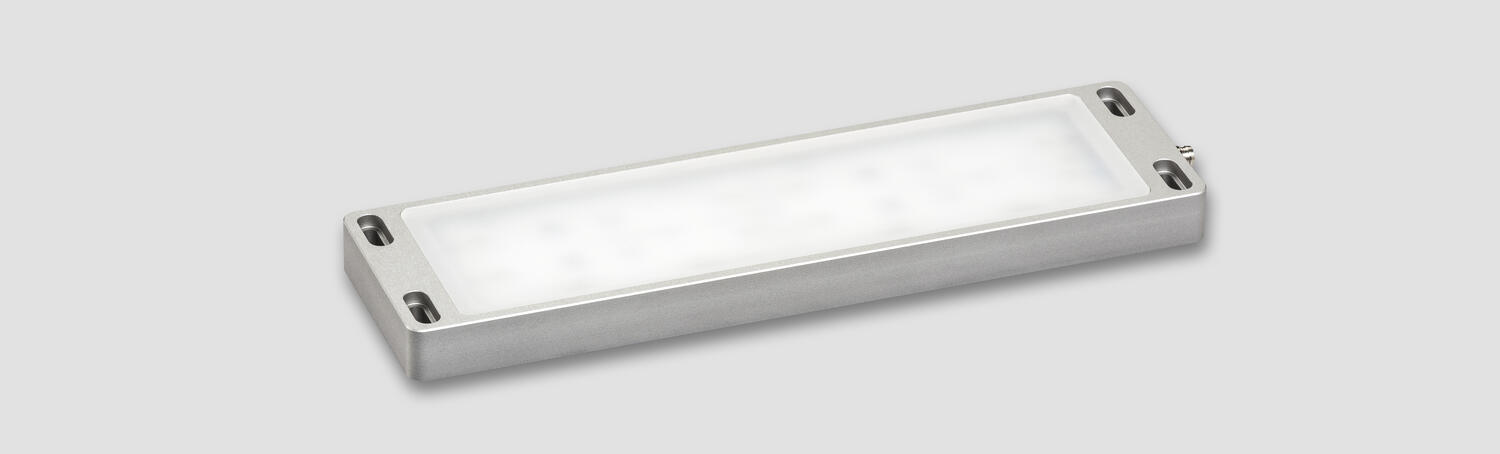

Available in four different lengths, our LED surface mounted luminaire
FLS boasts an impressively small installation height of just 17,5 mm.
Its anodised aluminium housing has an IP67 protection rating, with its
flat design and resistance to splashing water and dust ensuring it can
withstand any challenges, even close up.
The LED surface mounted luminaire FLS comes with your choice of a 3
metre cable or M8 connector as standard. For the light cover, you can
select from diffuse acrylic glass and diffuse single-pane safety glass.
There is even a version with clear single-pane safety glass for applications requiring more light.
- Flat design, surface mounted, length 150 - 450mm
- Anodised aluminium housing, IP67
- 3m connecting cable or M8 connector
- Diffuse acrylic, diffuse or clear safety glass cover
- Color temperature 4000 or 5700K
![Falk_28466[1].jpg](/ui/product-resources/oem/falk-28466-1--jpg-_-756155.jpg?mh=750&mw=750&att=False&hash=70B2A7C7E9D7625272C569BEAB4276CB)
![Falk_28463[1].jpg](/ui/product-resources/oem/falk-28463-1--jpg-_-756154.jpg?mh=750&mw=750&att=False&hash=875EE26675E1C80DCE97DBB8C7B86FD9)
![Falk_28461[1].jpg](/ui/product-resources/oem/falk-28461-1--jpg-_-756153.jpg?mh=750&mw=750&att=False&hash=3035D121A247B121B12CE93BC1E2D9D5)
Selected variant
Specifications
| Colour rendering index | ≥80 |
|---|---|
| Colour temperature | 5700 K |
| Height | 17.5 mm |
| IP Class | IP67 |
| Length | 150 mm |
| Lumen | 804 lm |
| Material Glass | ESG c |
| Power Consumption | 7 W |
|---|---|
| Supply voltage | 24 V DC |
| Temperature range from | -20 °C |
| Temperature range to | 45 °C |
| Width | 70 mm |
Downloads
Product description
Available in four different lengths, our LED surface mounted luminaire
FLS boasts an impressively small installation height of just 17,5 mm.
Its anodised aluminium housing has an IP67 protection rating, with its
flat design and resistance to splashing water and dust ensuring it can
withstand any challenges, even close up.
The LED surface mounted luminaire FLS comes with your choice of a 3
metre cable or M8 connector as standard. For the light cover, you can
select from diffuse acrylic glass and diffuse single-pane safety glass.
There is even a version with clear single-pane safety glass for applications requiring more light.
