Advanced Illumination - BL138 Series backlights
Expandable High Power Linear Backlights
The BL138 is a high intensity linear backlight offering 510 kLux output, making this perfect for back-lit, line scanning applications.
Available from 6" length up to 96" in increments of 6". A 3″ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6″ increment via a 0 – 10v input.
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
- 510,000 lux - perfect for line-scanning applications

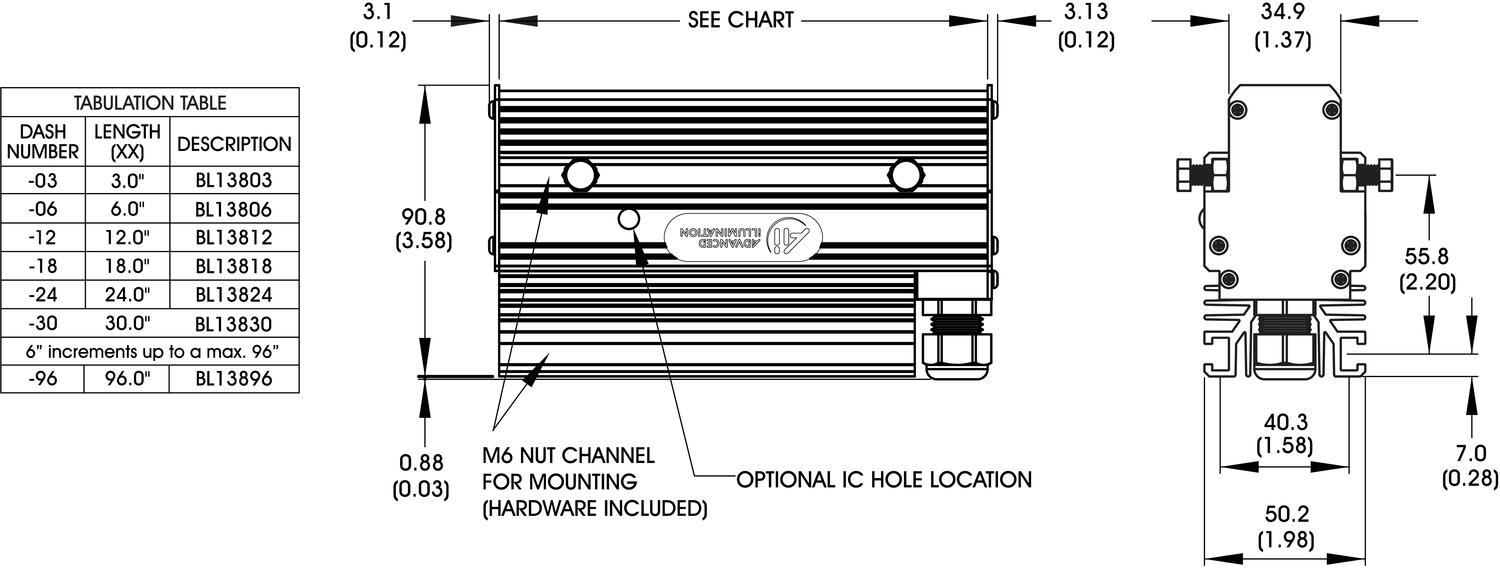

- Available 6” (152.4mm) increments from 6” (152.4mm) to 96” (2438.4mm) with the exception of a 3” (76.2mm)model
- Intensity control of entire light via 0 - 10v input
Selected variant
Specifications
| Approvals | CE, RoHS |
|---|---|
| Feed | C1, C5, IC, 24 |
| IP Class | IP50 |
| Life Span | 50000 h |
| Temperature range from | 0 °C |
| Temperature range to | 60 °C |
| Wave-Length | WHI, RGB, 455, 530, 625, 850 |
Product description
The BL138 is a high intensity linear backlight offering 510 kLux output, making this perfect for back-lit, line scanning applications.
Available from 6" length up to 96" in increments of 6". A 3″ (75mm) length option is also available. Available intensity control provides illuminance adjustability for every 6″ increment via a 0 – 10v input.
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
