ADVANCED ILLUMINATION

Advanced Illumination - DF197 MicroBrite™ Series Dark Field Ring Lights

MicroBrite™ Series

PRODUCT BEING DISCONTINUED - REFER TO PRODUCT CHANGE NOTICE FOR MORE DETAILS

Read more
  • Replaced by DF198 series
  • Lensed low-angle diffused illumination
  • Used to detect surface defects and edges on a variety of surfaces
  • Available in four sizes: 50mm, 100mm, 180mm, and 280mm
DF197.tif

DF197

Selected variant

DF197.tif

Ring light DF197

Art:

ADVANCEDILLUMINATION.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE, RoHS
Feed C1, C5, IC, I3, I3S, 24
Life Span 50000 h
Temperature range from 0 °C
Temperature range to 60 °C
Wave-Length WHI, 455, 530, 625

Downloads

Measurements and connections

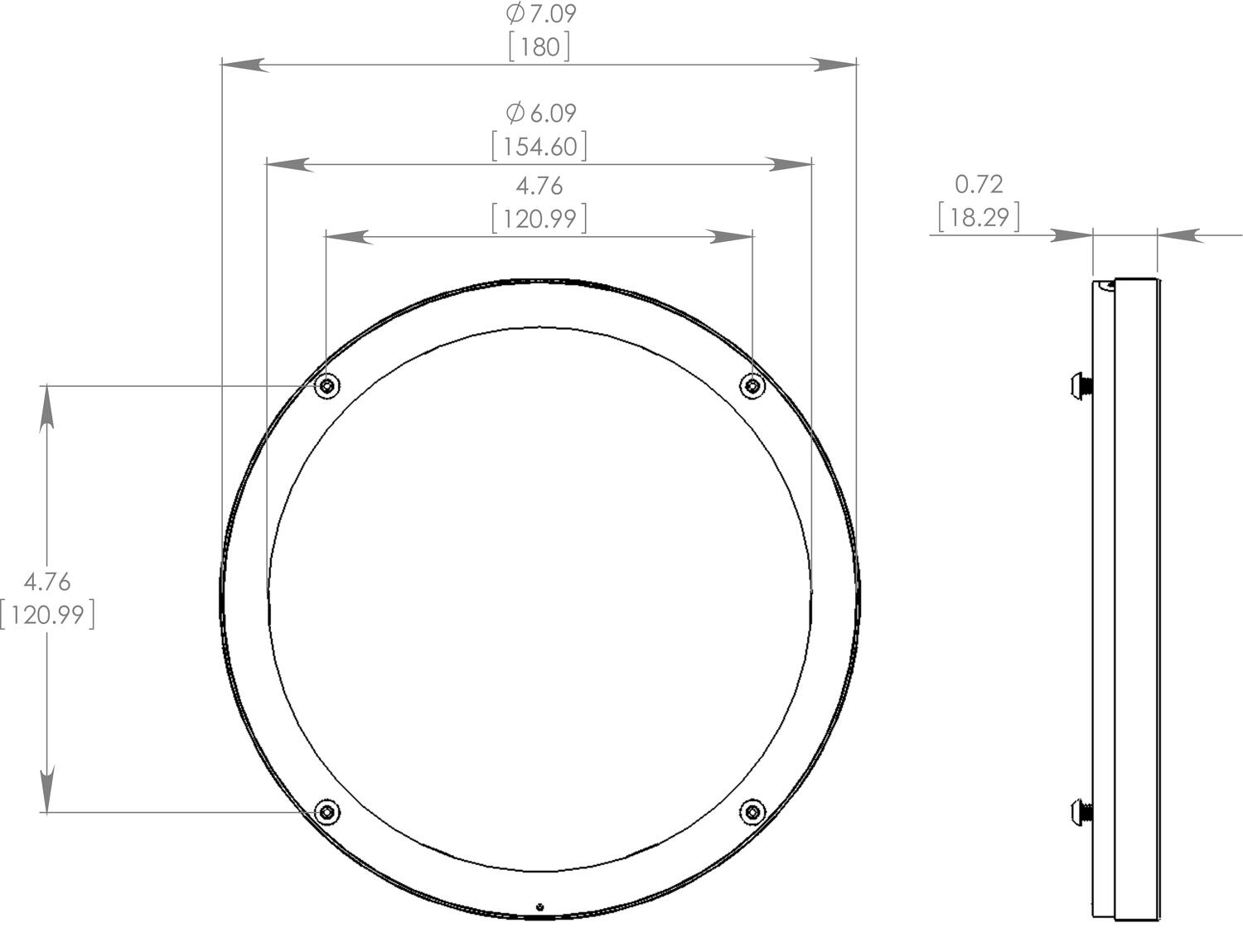

DF197-180.eps

DF197-180 image

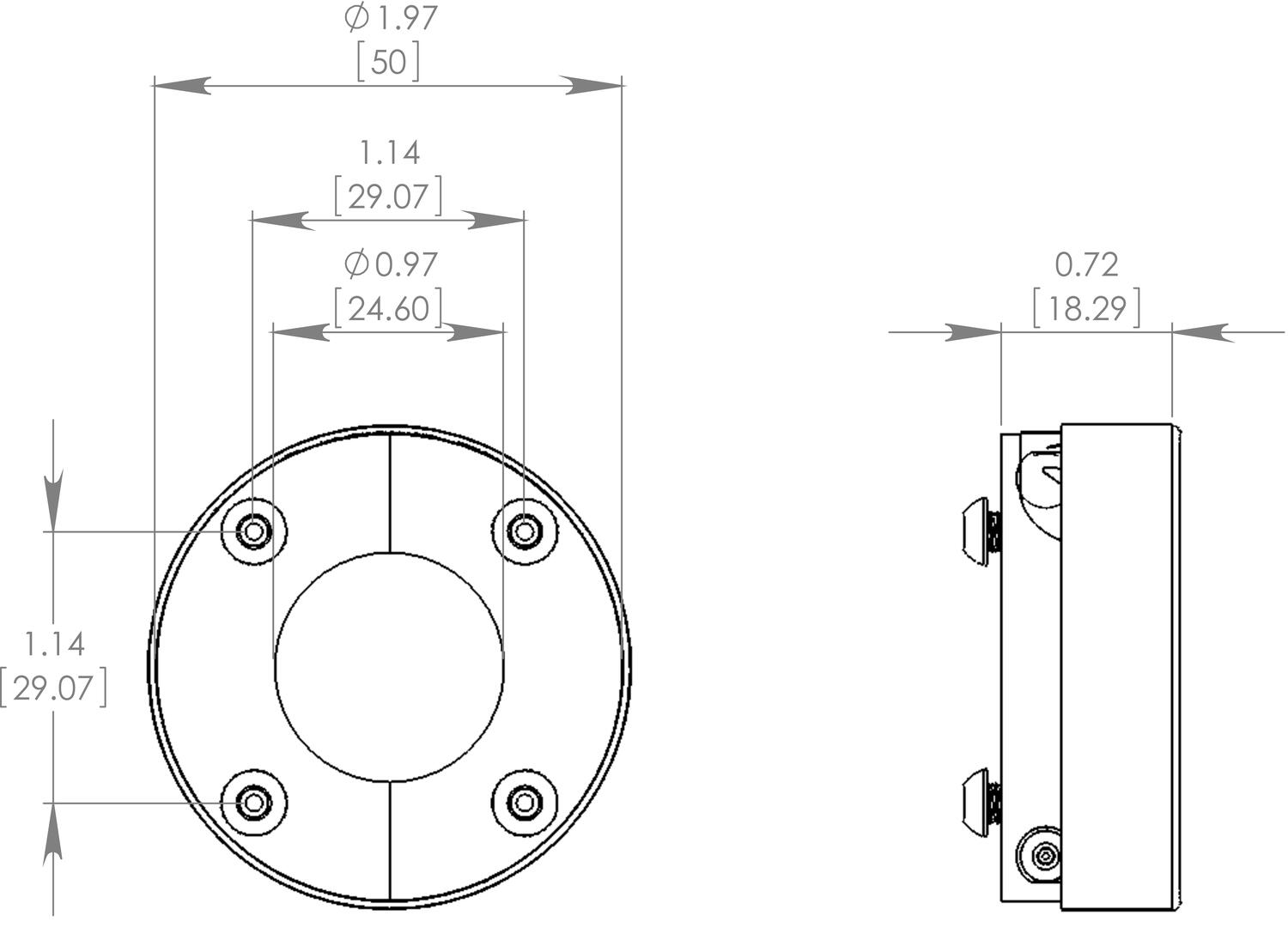

DF197-50.eps

DF197-50.eps

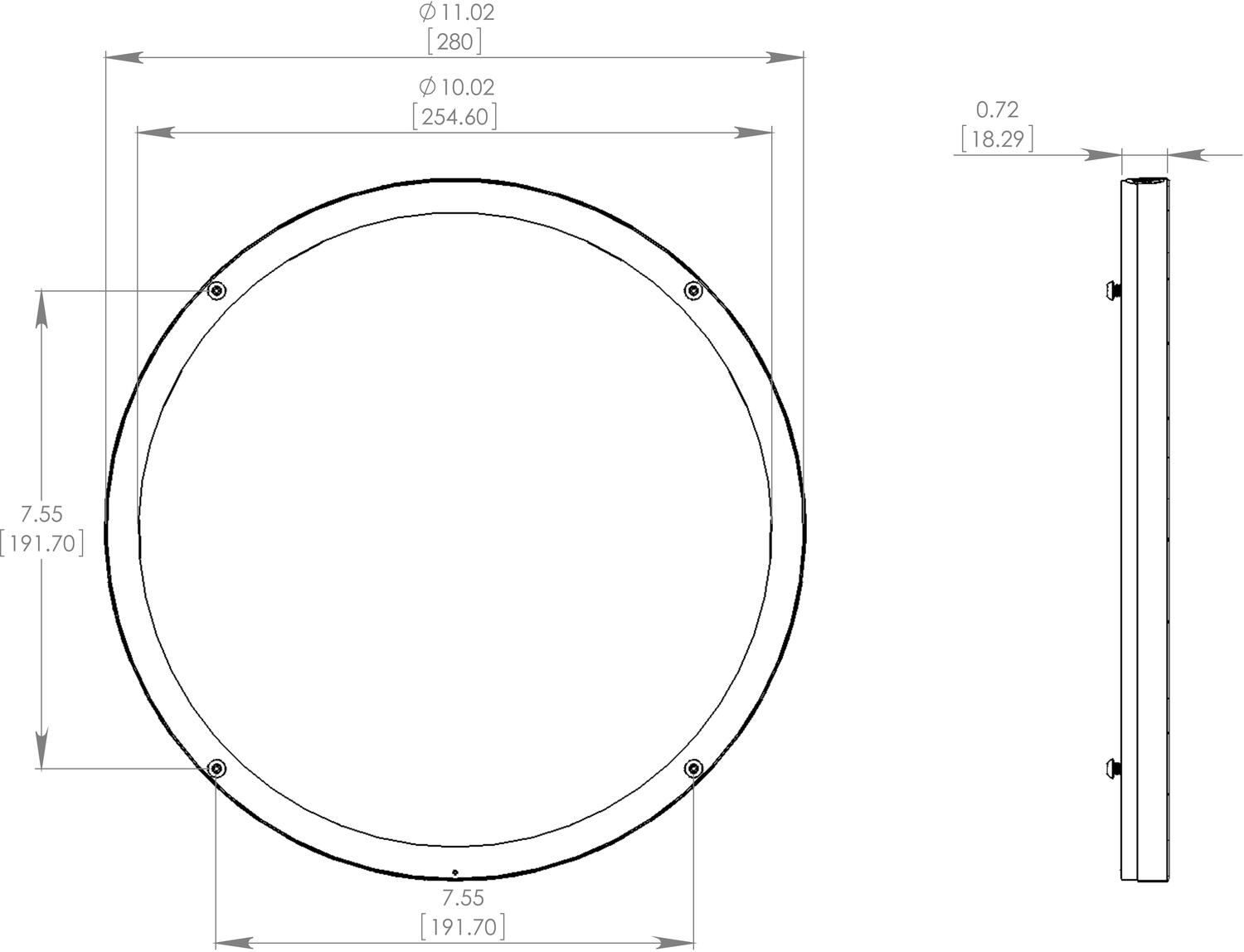

DF197-280.eps

DF197-280.eps

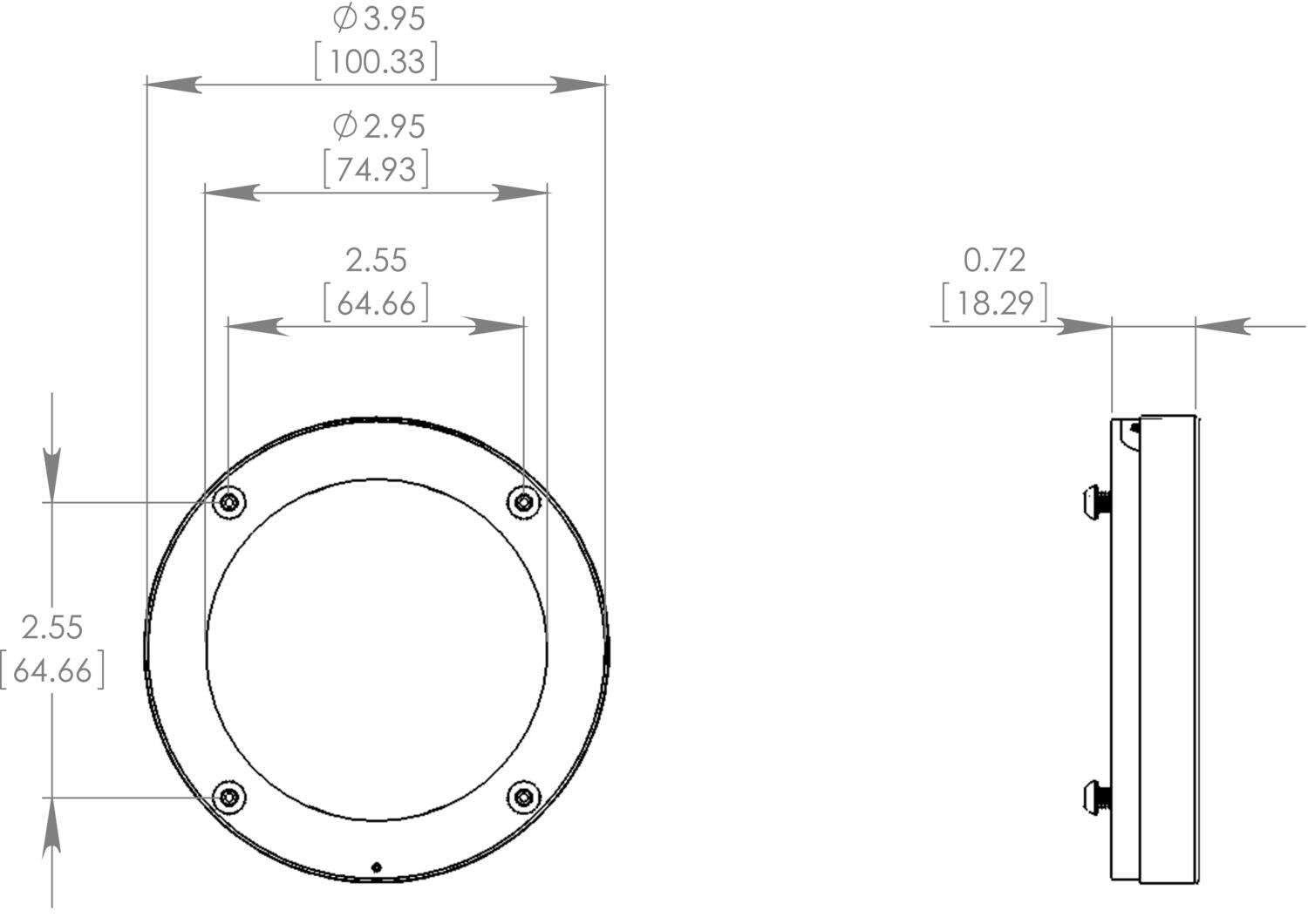

DF197-100.eps

DF197-100.eps

Product description

PRODUCT BEING DISCONTINUED - REFER TO PRODUCT CHANGE NOTICE FOR MORE DETAILS

Accessories

Contact us
Please contact us for more information.
Send e-mail
