FUJINON

5MP, 2/3\" ~ 1\" Fish-eye lens

  • Sensor size up to 1"
  • Resolution 5MP
  • C-mount

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 1.4
Aperture Range Min 16
Focal Length 1.8 mm
Focus Manual
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 3.45 µm
Resolution max 5 MP
Sensor size max 2/3"
Type of lens Standard
Weight 0.135 kg
Viewing Angle (Horizontal) 1/2 " 185
Viewing Angle (Horizontal) 2/3 " 185
Viewing Angle (Vertical) 1/2 " 154.1
Viewing Angle (Vertical) 2/3 " 185
Working Distance 100 mm

Downloads

Technical illustrations

FujinonFishEyeDimensions.tif

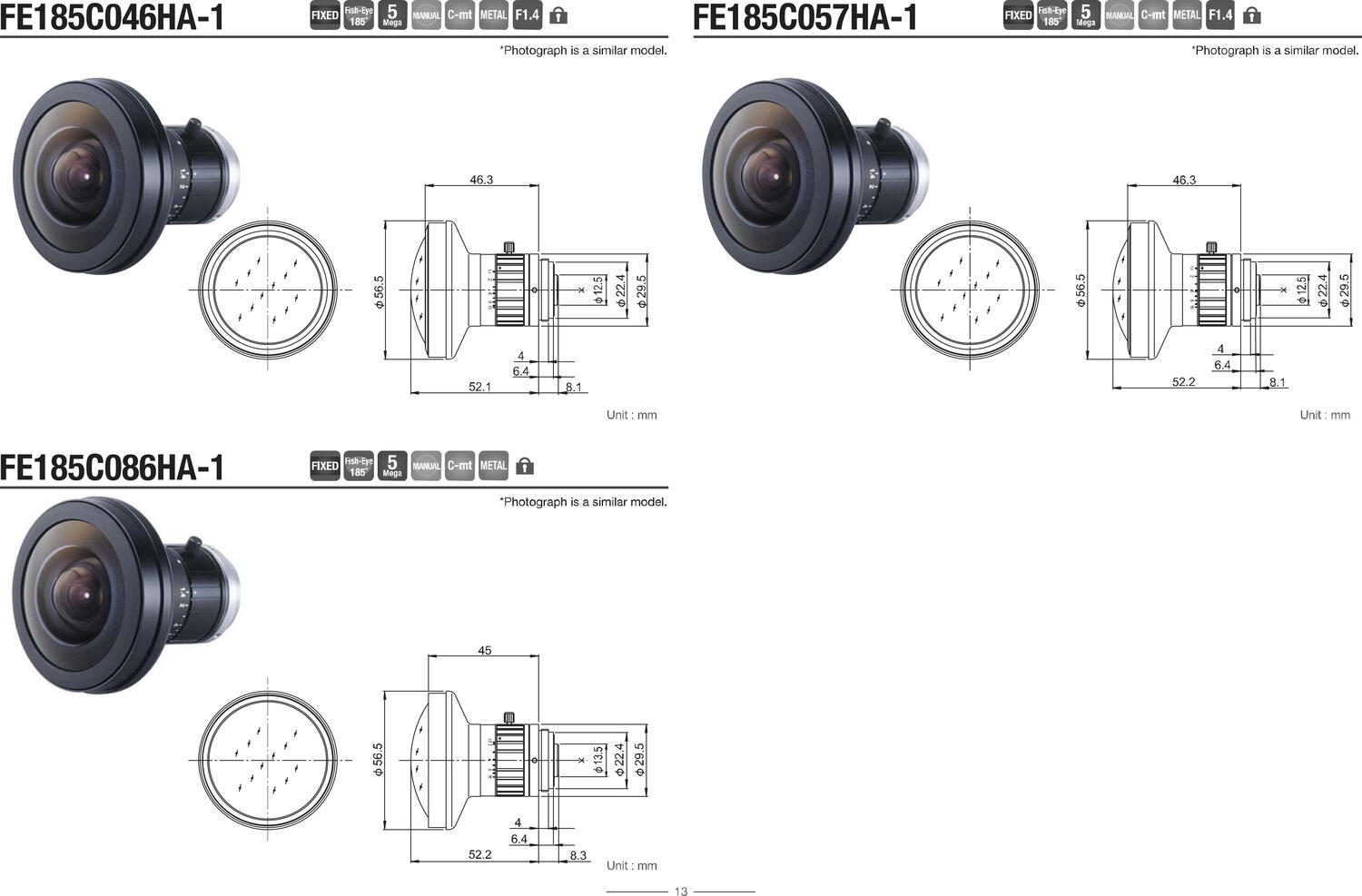

Dimension - Fujinon Fish eye lens

Accessories

Articles Aperture Range Max Focal Length Pixel size min Sensor size max Weight Viewing Angle (Horizontal) 1 " Viewing Angle (Horizontal) 1/2 " Viewing Angle (Vertical) 1 " Viewing Angle (Vertical) 1/2 " Viewing Angle (Vertical) 2/3 " Working Distance
136261_812.tif
OPTIC C FE 1,8MM 5M 2/3" F
Art:
FE185C057HA-1 Copied
1.4
1.8 mm
3.45 µm
2/3"
0.135 kg
185
154.1
185
100 mm
136261_812.tif
OPTIC C FE 2,7MM F1,8 5M 1" F
Art:
FE185C086HA-1 Copied
1.8
2.7 mm
5 µm
1"
0.16 kg
185
185
140.6
200 mm
