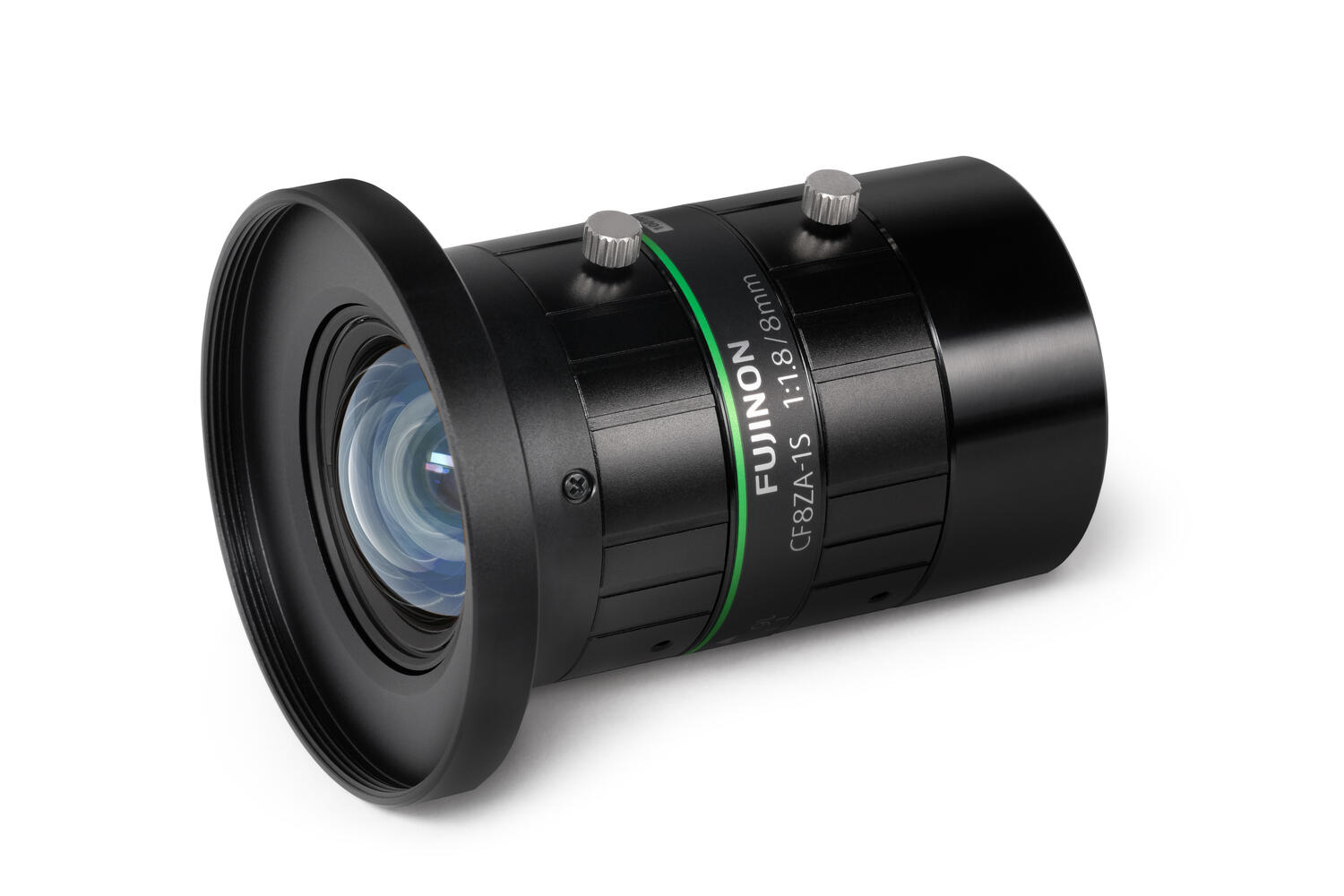

Selected variant
Specifications
| Aperture Range Max | 1.8 |
|---|---|
| Aperture Range Min | 16 |
| Distortion | 4.81 |
| Filter | 52 |
| Focal Length | 8 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
| Pixel size min | 2.74 µm |
|---|---|
| Resolution max | 23 MP |
| Sensor size max | 1.2" |
| Type of lens | Standard |
| Weight | 0.18 kg |
| Viewing angle (horizontal) 1.1" | 85.7 |
| Viewing angle (vertical) 1.1" | 67.5 |
