| Aperture Range Max | 1,8 |
|---|---|
| Distortion | -2,16 |
| Filter | 35,5 |
| Focal Length | 6,5 mm |
| Focus | Fixed |
| Focus distance min | 1500 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
| Pixel size min | 5 µm |
|---|---|
| Resolution max | 0,4 MP |
| Sensor size max | 2/3" |
| Type of lens | Standard |
| Weight | 0,06 kg |
| Viewing Angle (Horizontal) 2/3 " | 71,6 |
| Viewing Angle (Vertical) 2/3 " | 55,5 |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Aperture Range Max | Aperture Range Min | Distortion | Filter | Focal Length | Focus | Focus distance min | Weight | Viewing Angle (Horizontal) 2/3 " | Viewing Angle (Vertical) 2/3 " | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

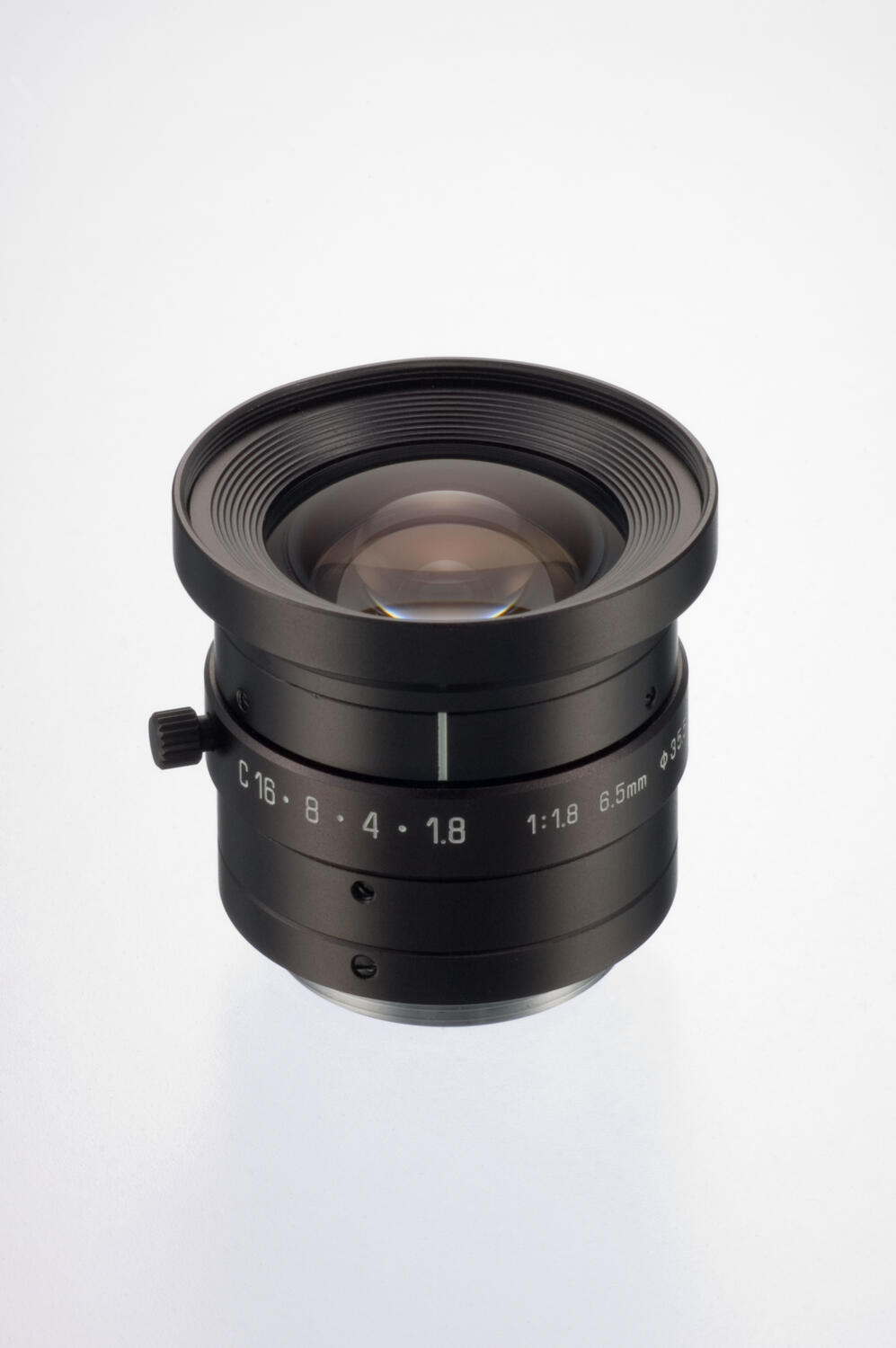

Lens C 6.5mm F1.8 2/3" Tamron
Art:
22HA
Copied
|
1,8
|
|
-2,16
|
35,5
|
6,5 mm
|
Fixed
|
1500 mm
|
0,06 kg
|
71,6
|
55,5
|
| |

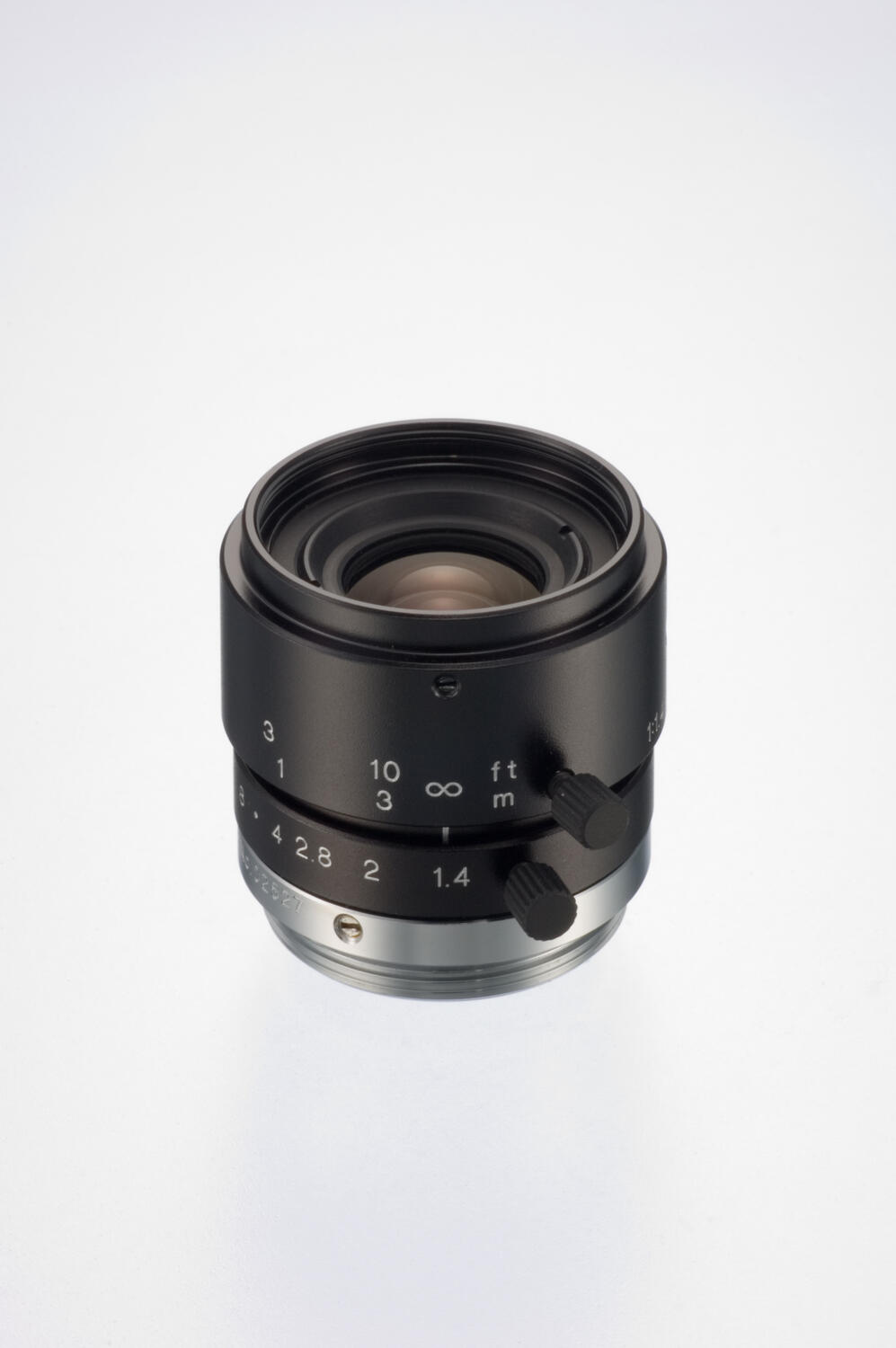

Lens C 8mm F1.4 2/3" Tamron
Art:
219HB
Copied
|
1,4
|
16
|
-3
|
25,5
|
8 mm
|
Manual
|
260 mm
|
0,04 kg
|
59,3
|
45,2
|
| |

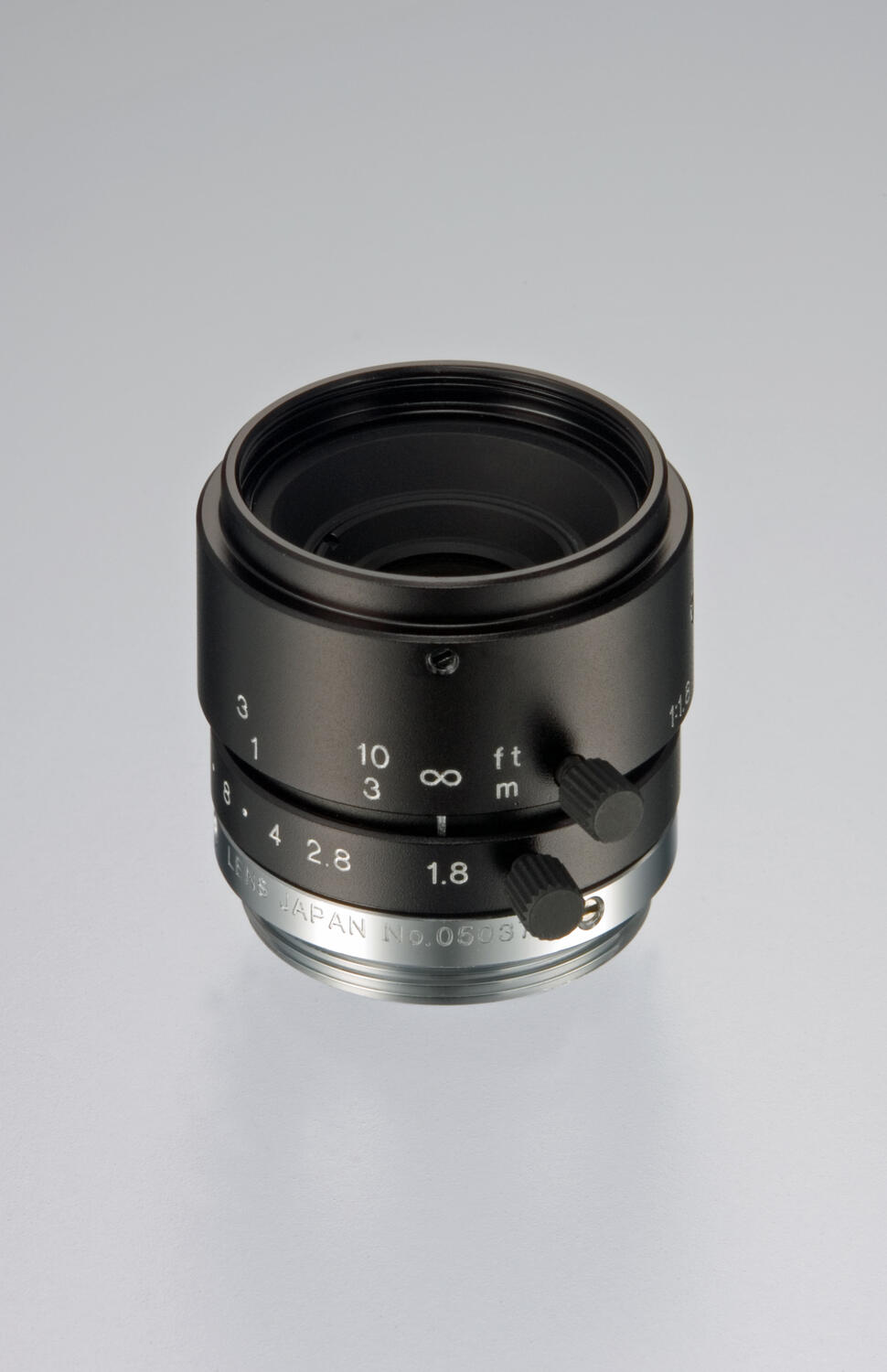

Lens C 12mm F1.8 2/3" Tamron
Art:
25HA/HB
Copied
|
1,8
|
16
|
-1,6
|
25,5
|
12 mm
|
Manual
|
260 mm
|
0,04 kg
|
40,9
|
30,9
|
| |

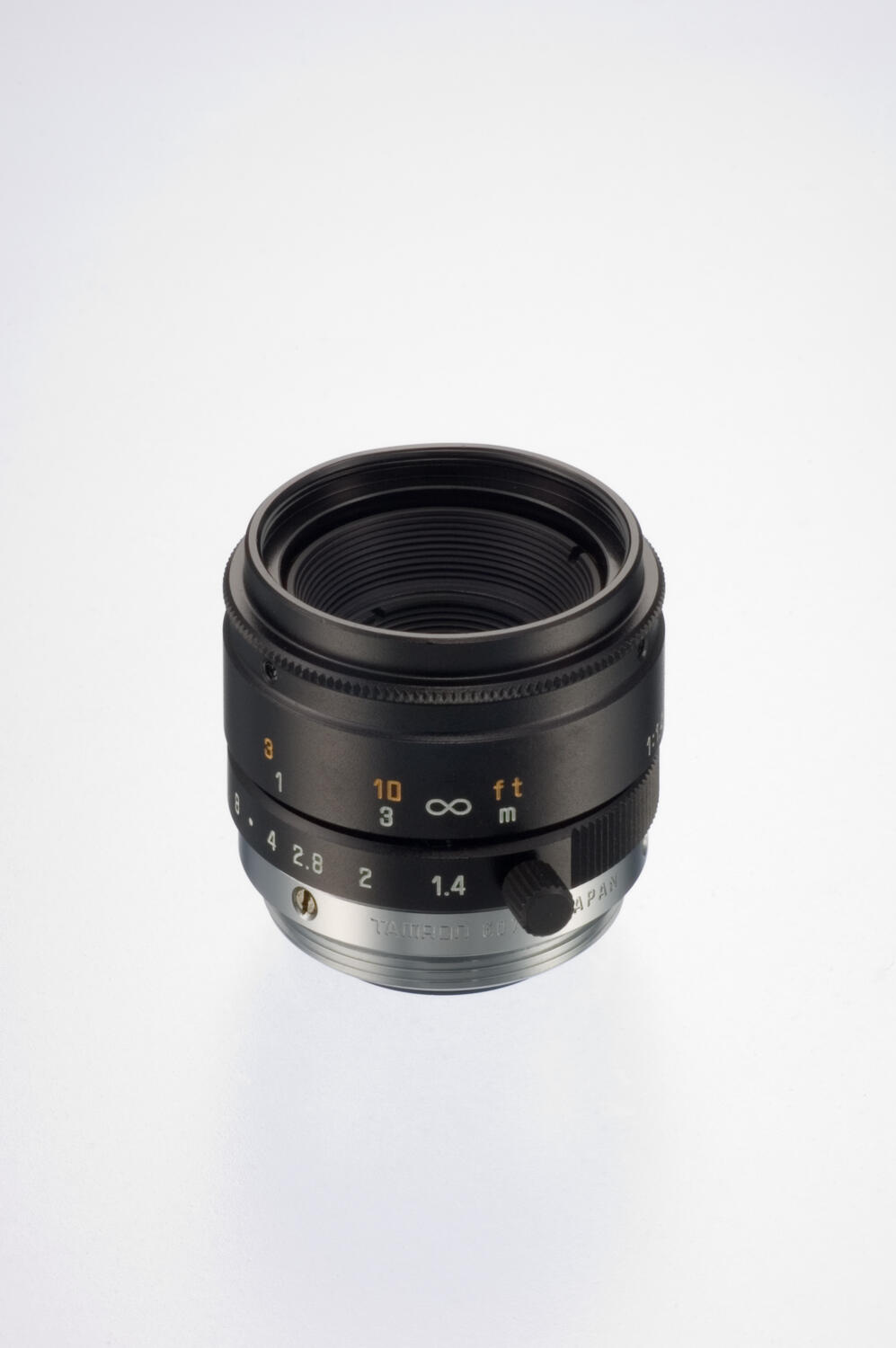

Lens C 16mm F1.4 2/3" Tamron
Art:
17HD/HF
Copied
|
1,4
|
16
|
-1,5
|
25,5
|
16 mm
|
Manual
|
290 mm
|
0,05 kg
|
30,9
|
23,2
|
| |

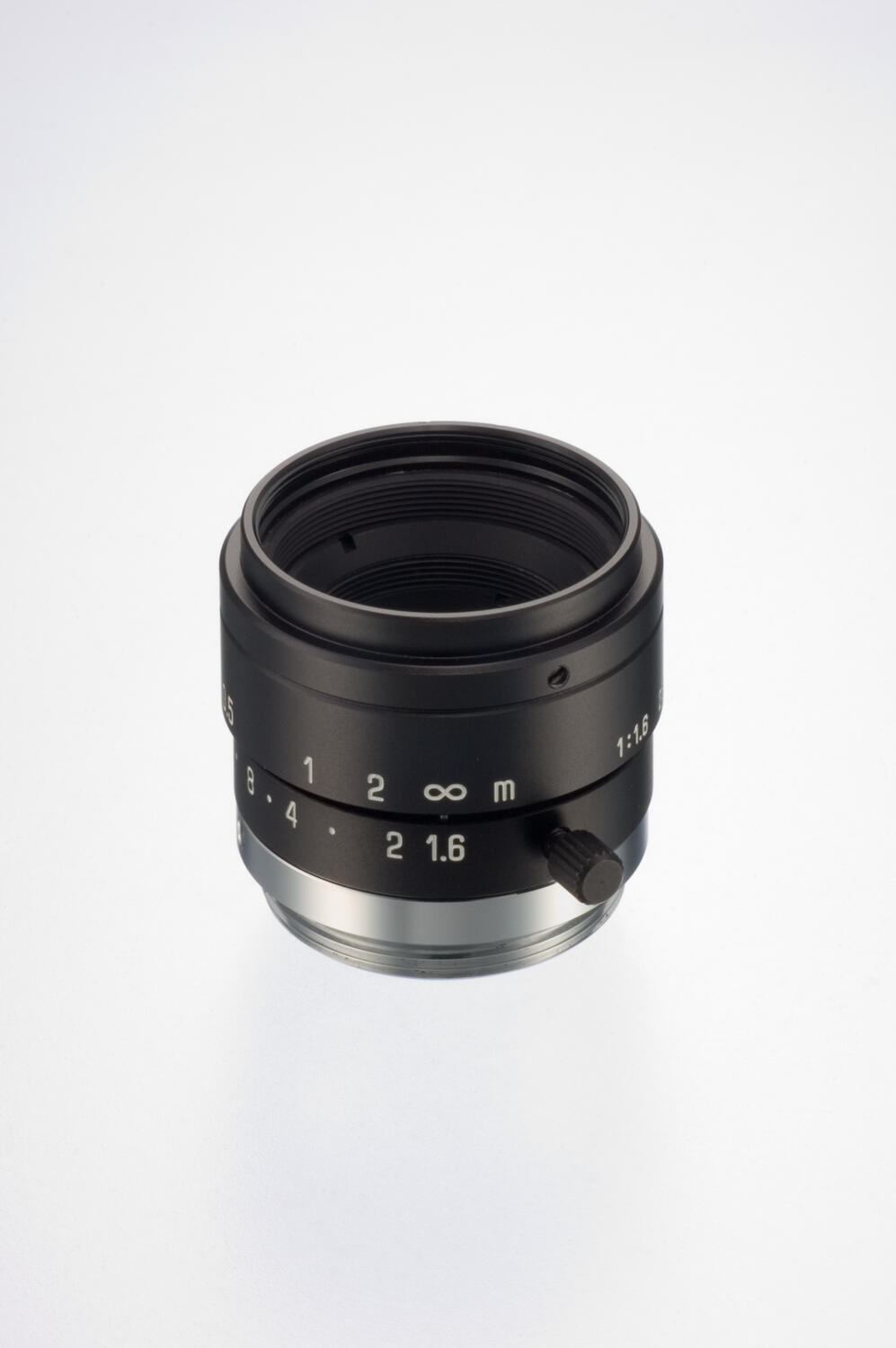

Lens C 25mm F1.6 2/3" Tamron
Art:
20HA/HC
Copied
|
1,6
|
16
|
-0,5
|
25,5
|
25 mm
|
Manual
|
210 mm
|
0,037 kg
|
20
|
15
|
| |

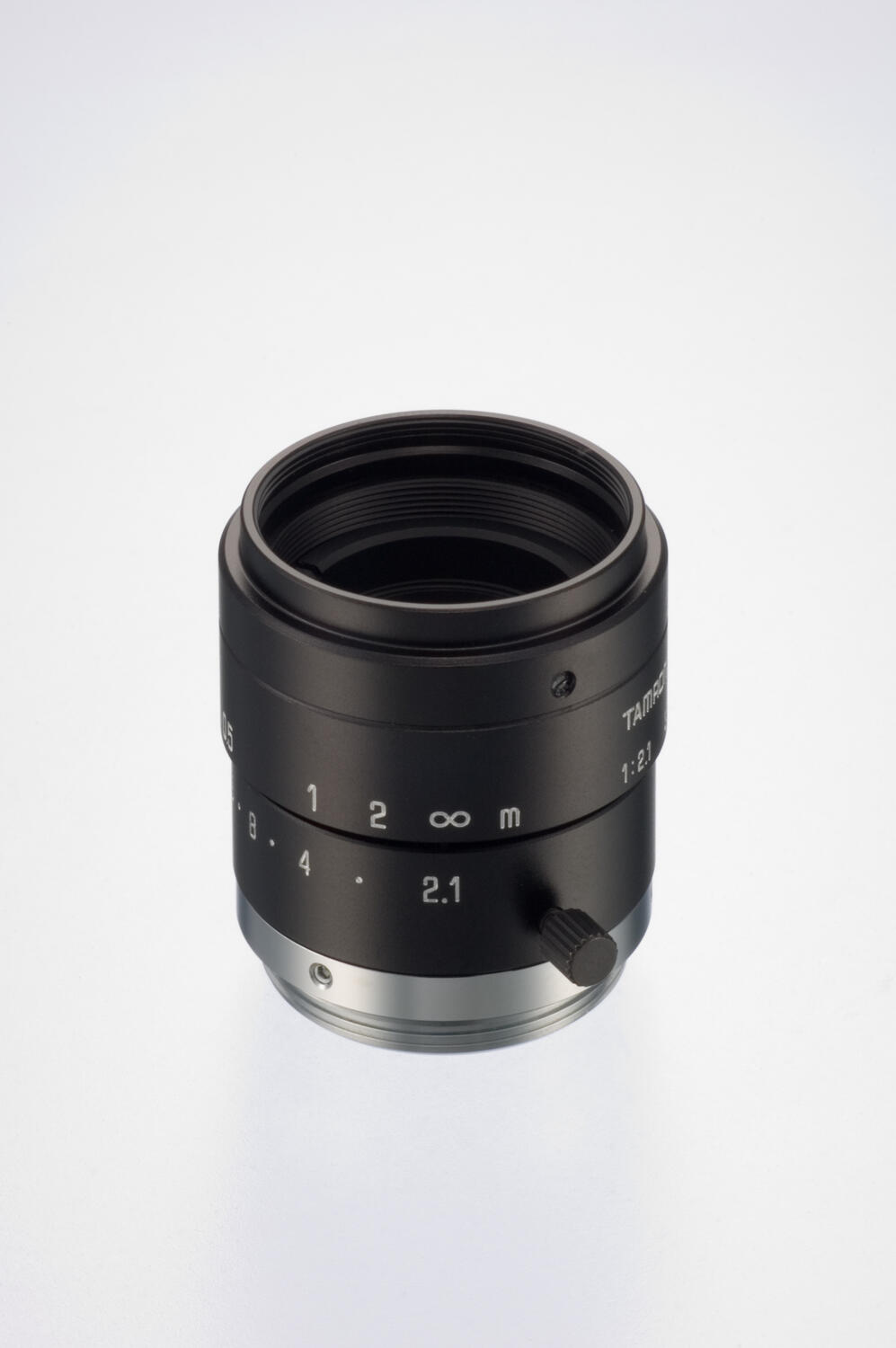

Lens C 35mm F2.1 2/3" Tamron
Art:
35HB
Copied
|
2,1
|
22
|
0,5
|
25,5
|
35 mm
|
Manual
|
300 mm
|
0,044 kg
|
14,3
|
10,8
|
| |

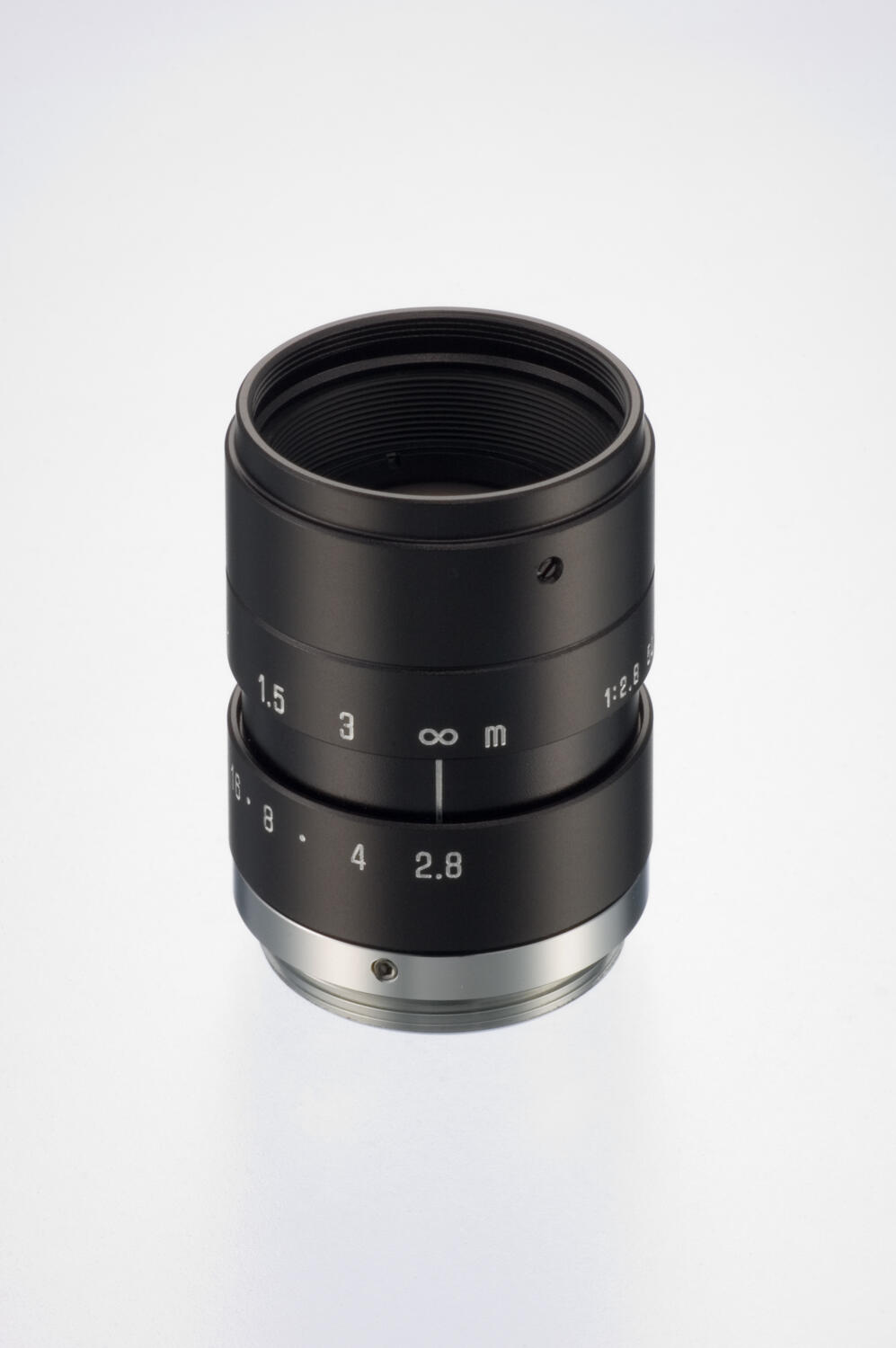

Lens C 50mm F2.8 2/3" Tamron
Art:
21HA/HC
Copied
|
2,8
|
22
|
0,5
|
25,5
|
50 mm
|
Manual
|
440 mm
|
0,05 kg
|
10
|
7,5
|
| |

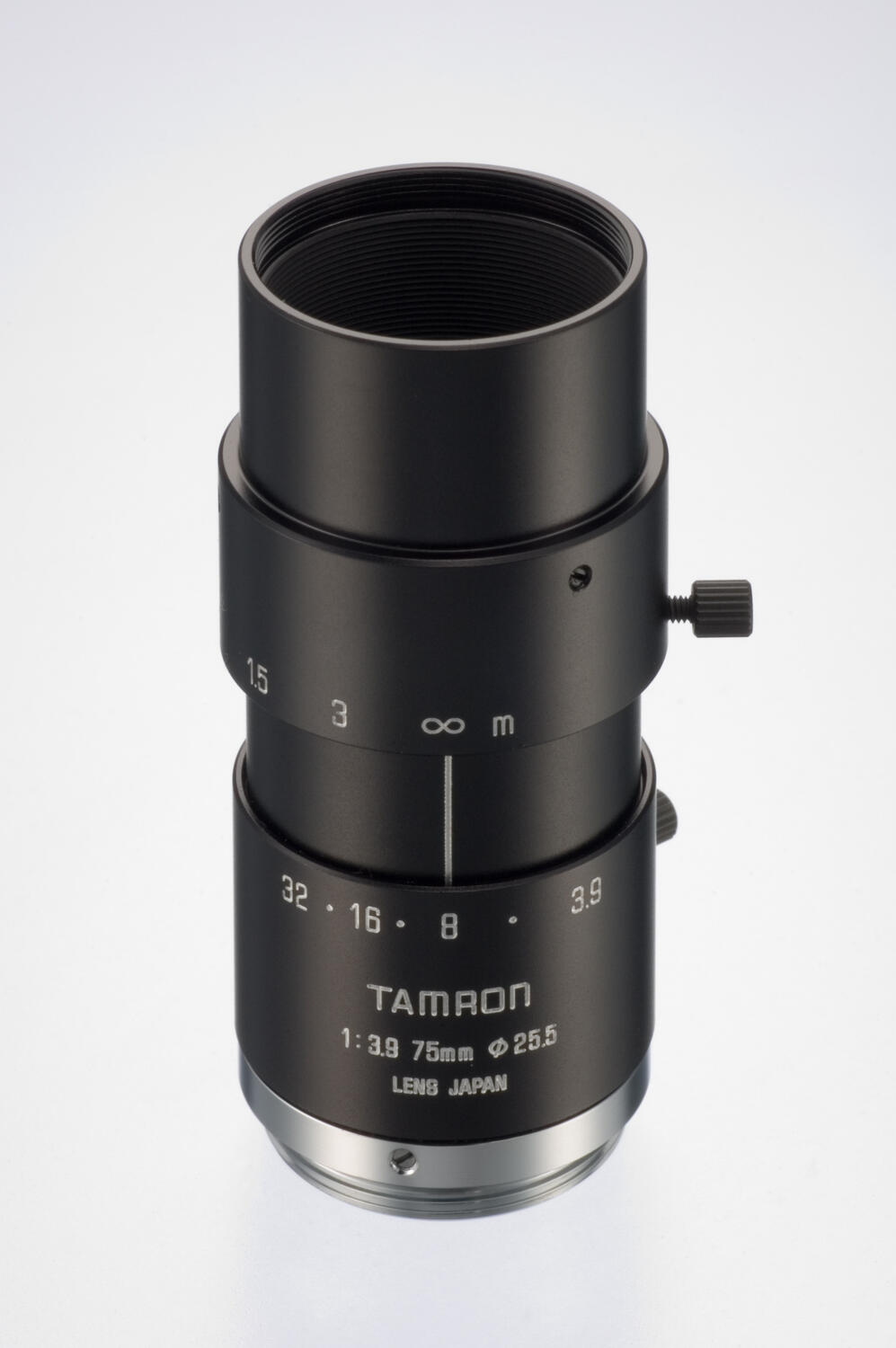

Lens C 75mm F3.9 2/3" Tamron
Art:
1A1HB
Copied
|
3,9
|
32
|
0,1
|
25,5
|
75 mm
|
Manual
|
500 mm
|
0,068 kg
|
6,9
|
5,2
|
|
Select a variant in the list
