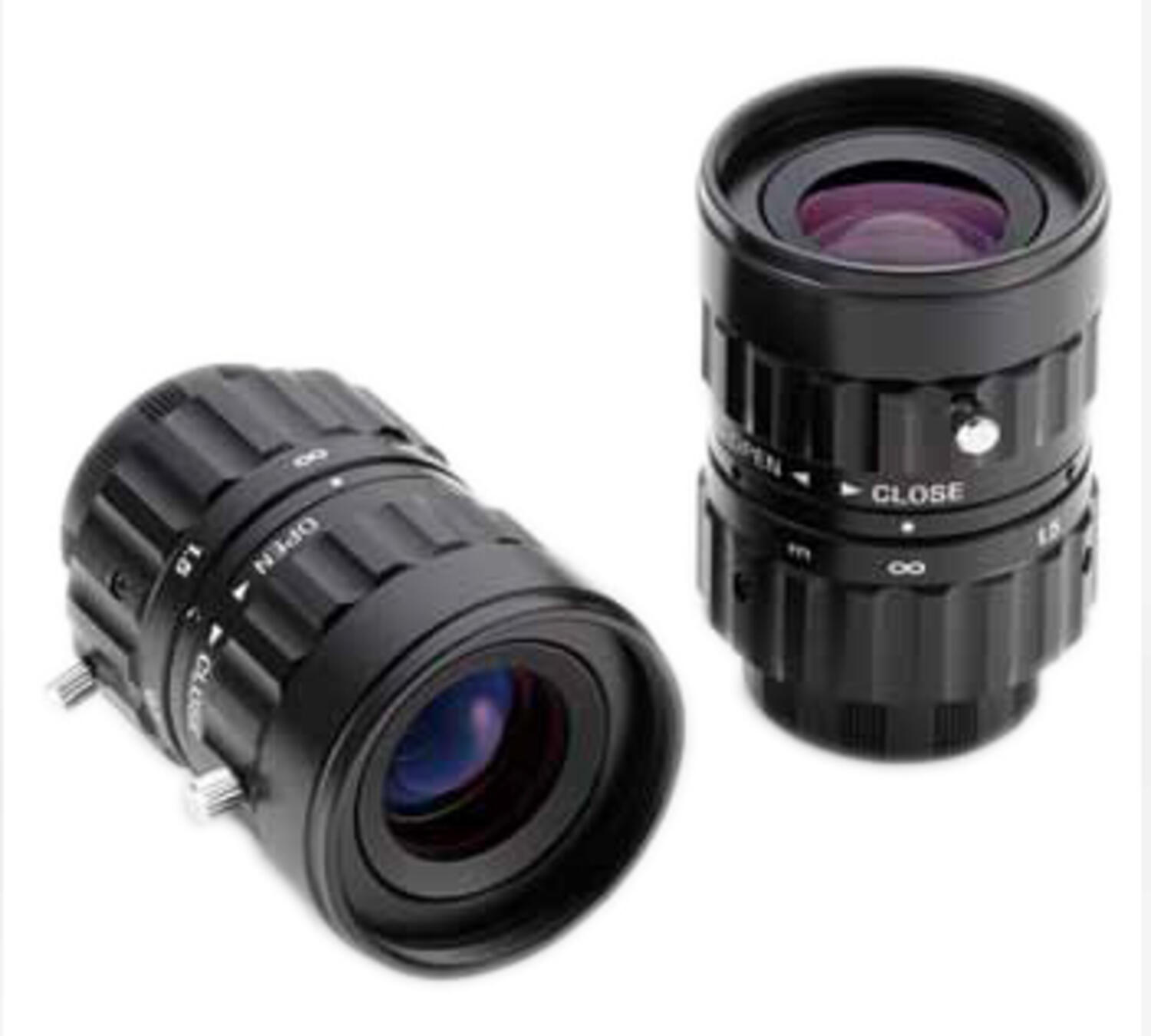

VS TECHNOLOGY
10MP, 2/3\" lens
This particular lens was specifically made to deliver the most optimal resolution for any camera supporting up to a 2/3" sensor. It's 200Lp/mm resolution is maintained from the center of the lens, to its very edge. With reduced shading and distortion, in terms of resolution, this lens simply cannot be beaten.
- 2/3" sensor support
- 200Lp/mm resolution
- 10MP
- Reduced Shading
- Minimized Distortion
- Extremely high 10 MP resolution
- Sensor size up to 2/3"
- C-mount
Selected variant
Specifications
| Aperture Range Max | 2.8 |
|---|---|
| Aperture Range Min | 22 |
| Distortion | -0.02 |
| Filter | 34 |
| Focal Length | 16 mm |
| Focus | Manual |
| Focus distance min | 350 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
|---|---|
| Pixel size min | 2 µm |
| Resolution max | 10 MP |
| Sensor size max | 2/3" |
| Type of lens | Standard |
| Weight | 0.106 kg |
Downloads
Product description
This particular lens was specifically made to deliver the most optimal resolution for any camera supporting up to a 2/3" sensor. It's 200Lp/mm resolution is maintained from the center of the lens, to its very edge. With reduced shading and distortion, in terms of resolution, this lens simply cannot be beaten.
- 2/3" sensor support
- 200Lp/mm resolution
- 10MP
- Reduced Shading
- Minimized Distortion
