TAMRON

4MP, 2/3\" lenses

  • Sensor size up to 2/3"
  • Resolution 4MP
  • C-mount

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 1.4
Aperture Range Min 22
Distortion -0.1
Filter 30.5
Focal Length 16 mm
Focus Manual
Focus distance min 150 mm
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 4 µm
Resolution max 4 MP
Sensor size max 2/3"
Type of lens Standard
Weight 0.08 kg
Viewing Angle (Horizontal) 2/3 " 30.9
Viewing Angle (Vertical) 2/3 " 23.4

Downloads

Accessories

Articles Aperture Range Max Aperture Range Min Distortion Focal Length Focus distance min Weight Viewing Angle (Horizontal) 2/3 " Viewing Angle (Vertical) 2/3 "
Lens C 16mm F1.4 2/3" Tamron
Art:
23FM16SP Copied
1.4
22
-0.1
16 mm
150 mm
0.08 kg
30.9
23.4

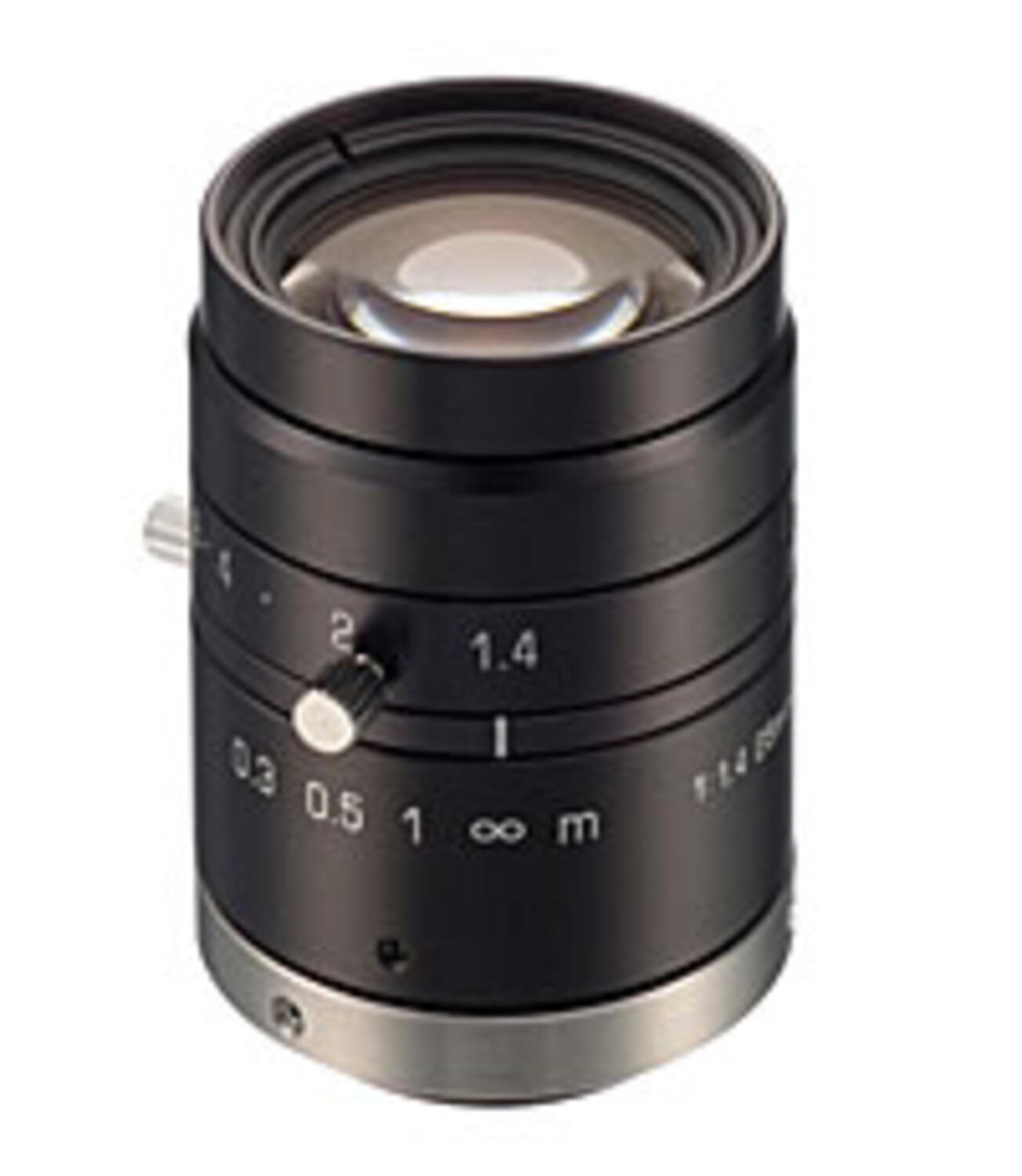

Lens C 25mm F1.4 2/3" Tamron
Art:
23FM25SP Copied
1.4
22
-0.05
25 mm
150 mm
0.103 kg
20
15.1

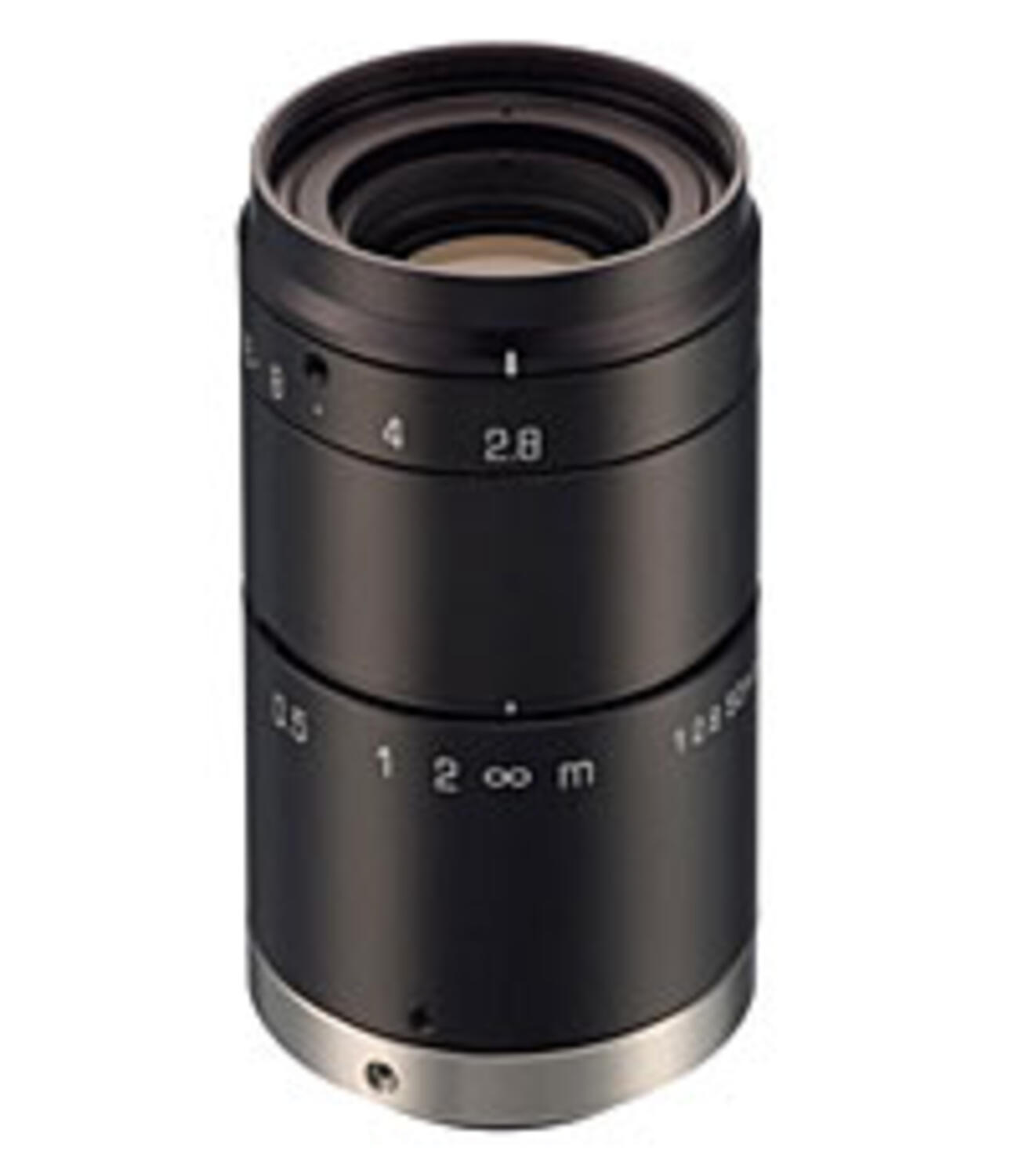

Lens C 50mm F1.4 2/3" Tamron
Art:
23FM50SP Copied
2.8
32
-0.01
50 mm
200 mm
0.117 kg
10.1
7.6
