FUJINON
5MP, 2/3\" ~ 1/1.2\" lenses

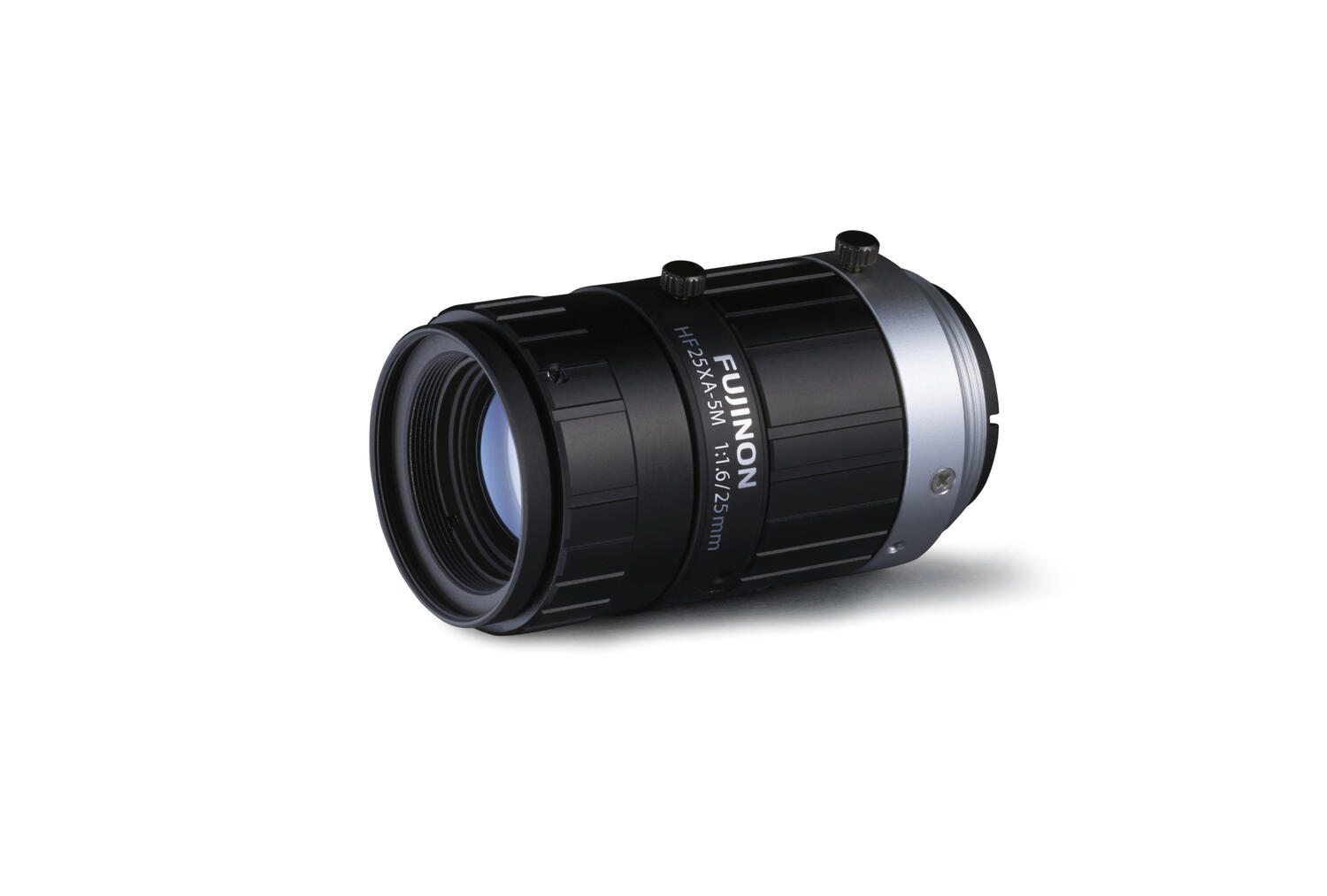

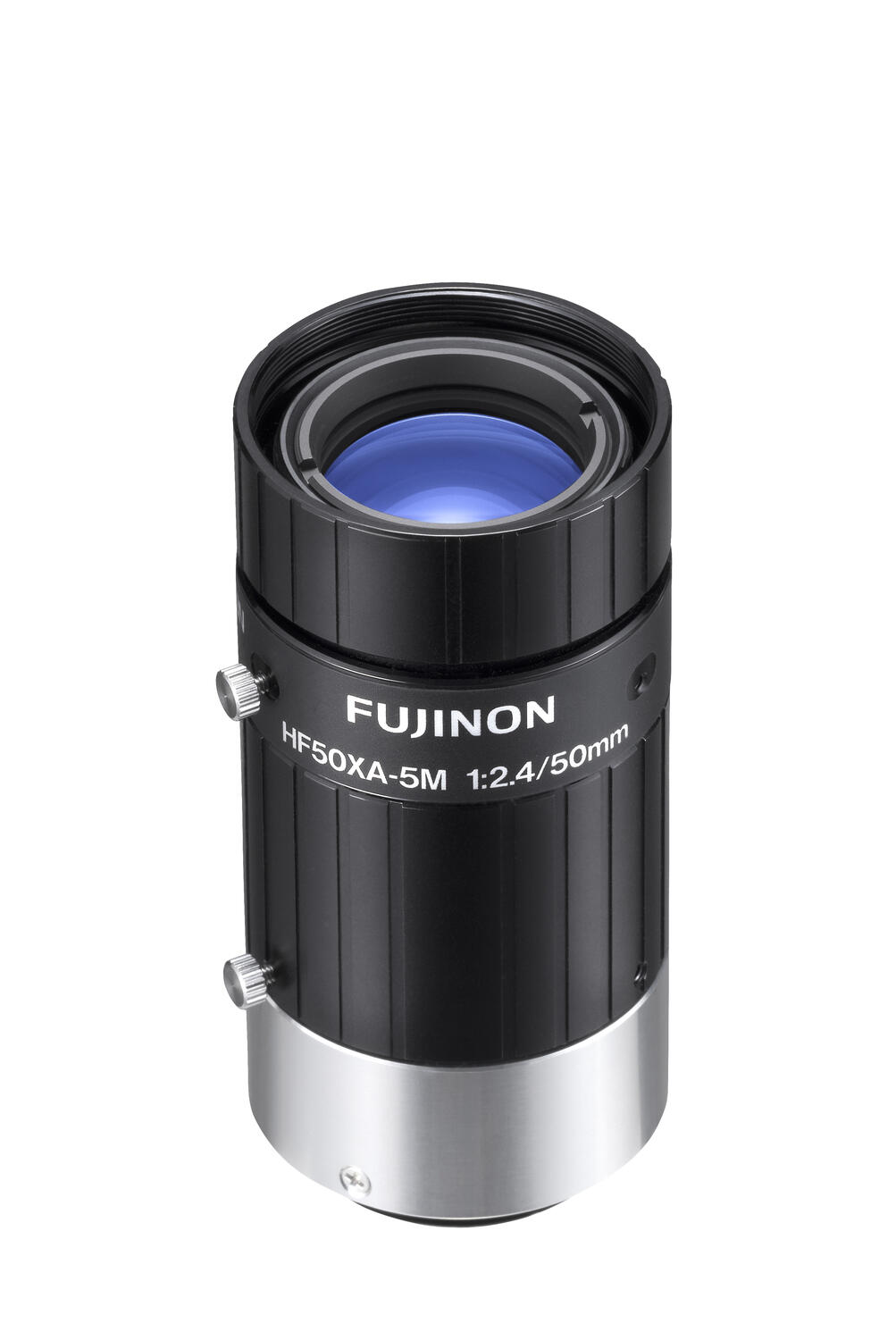

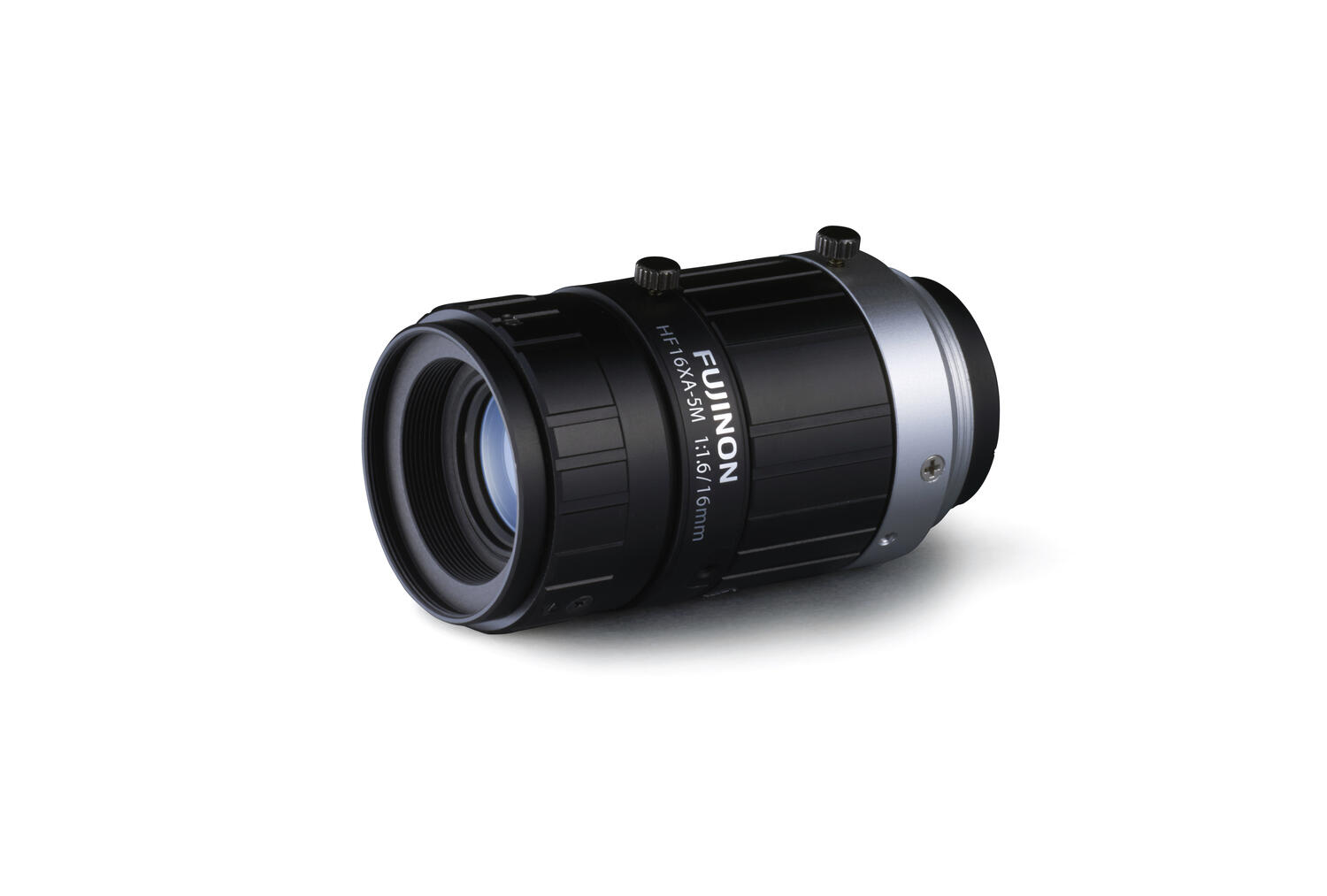

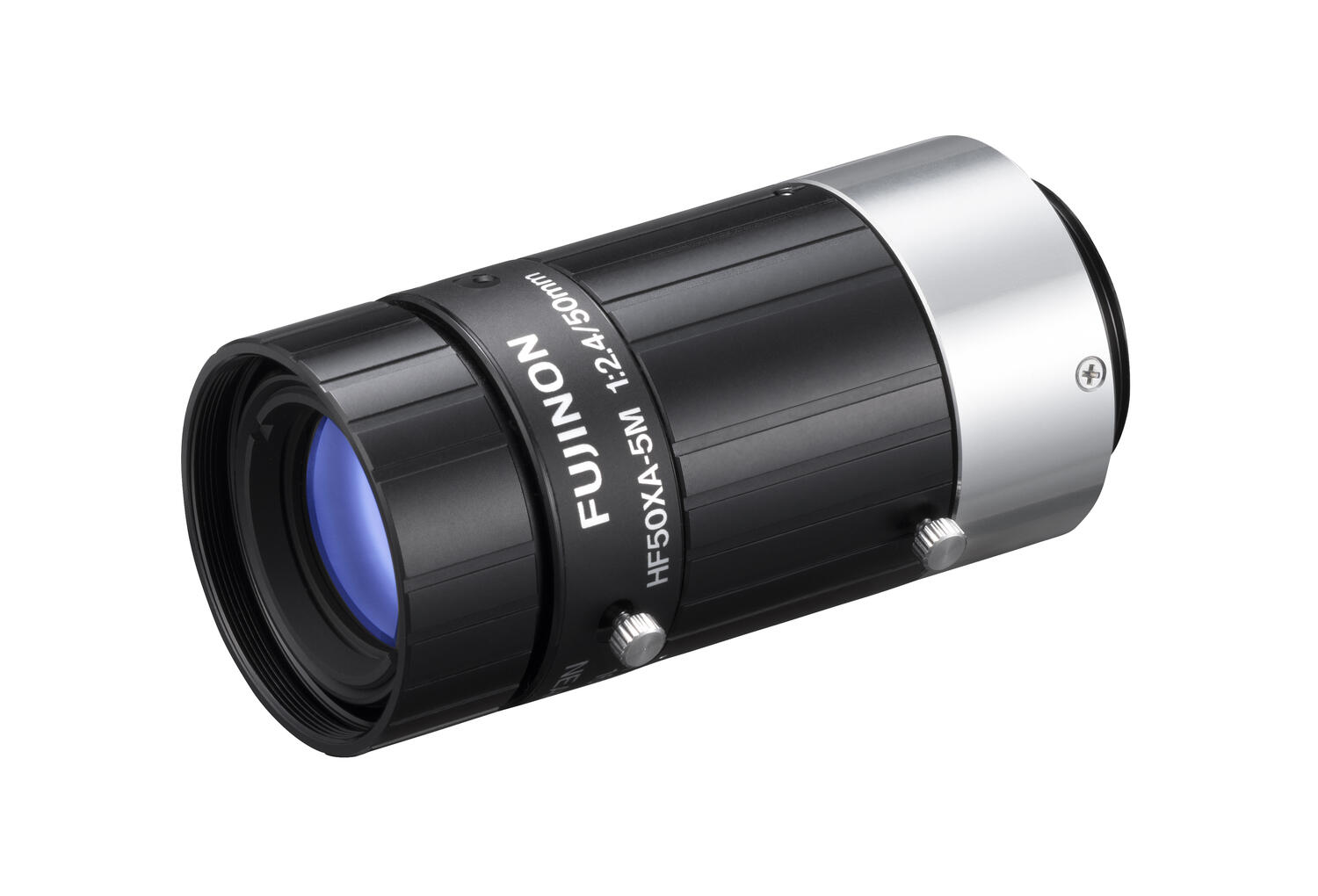

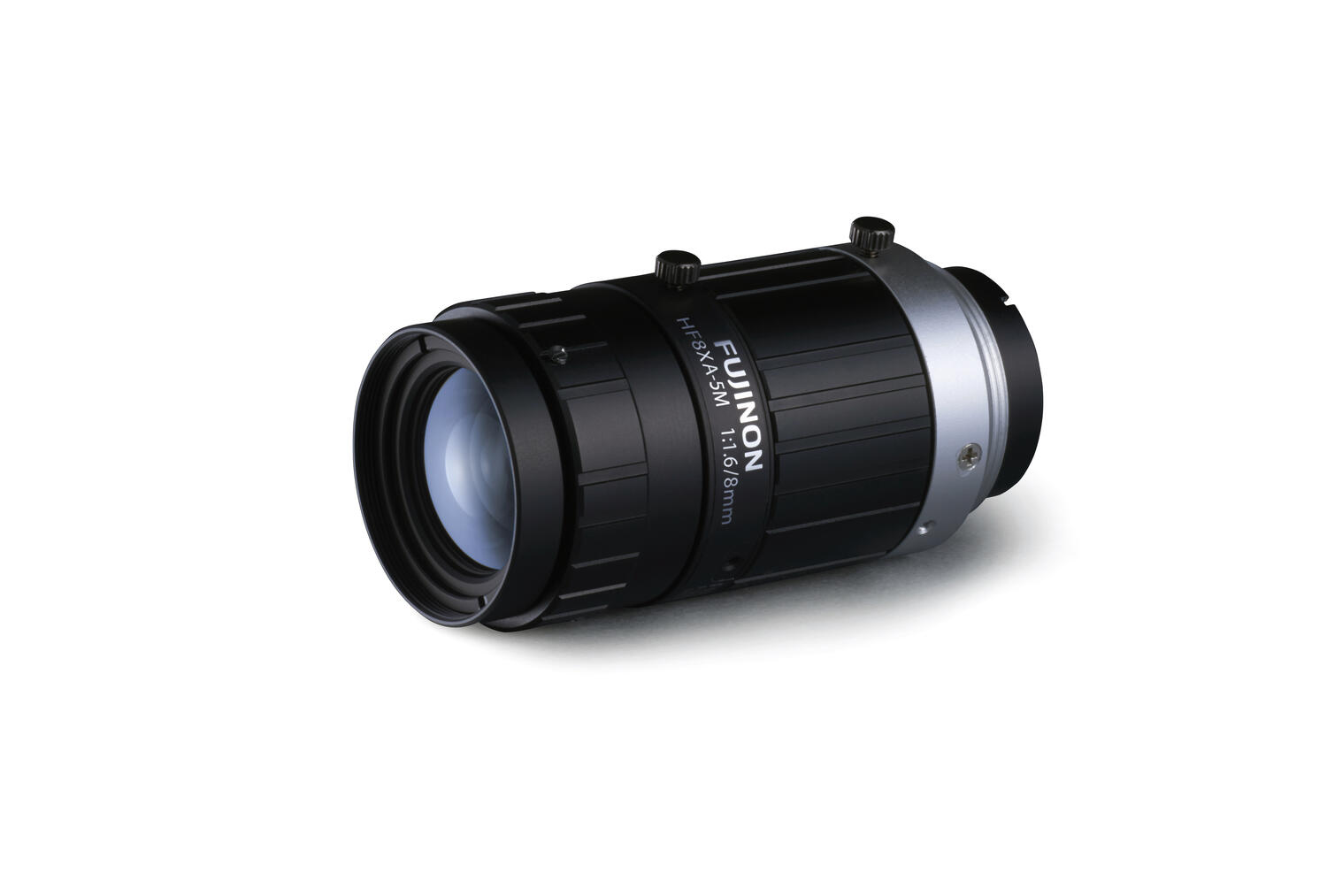

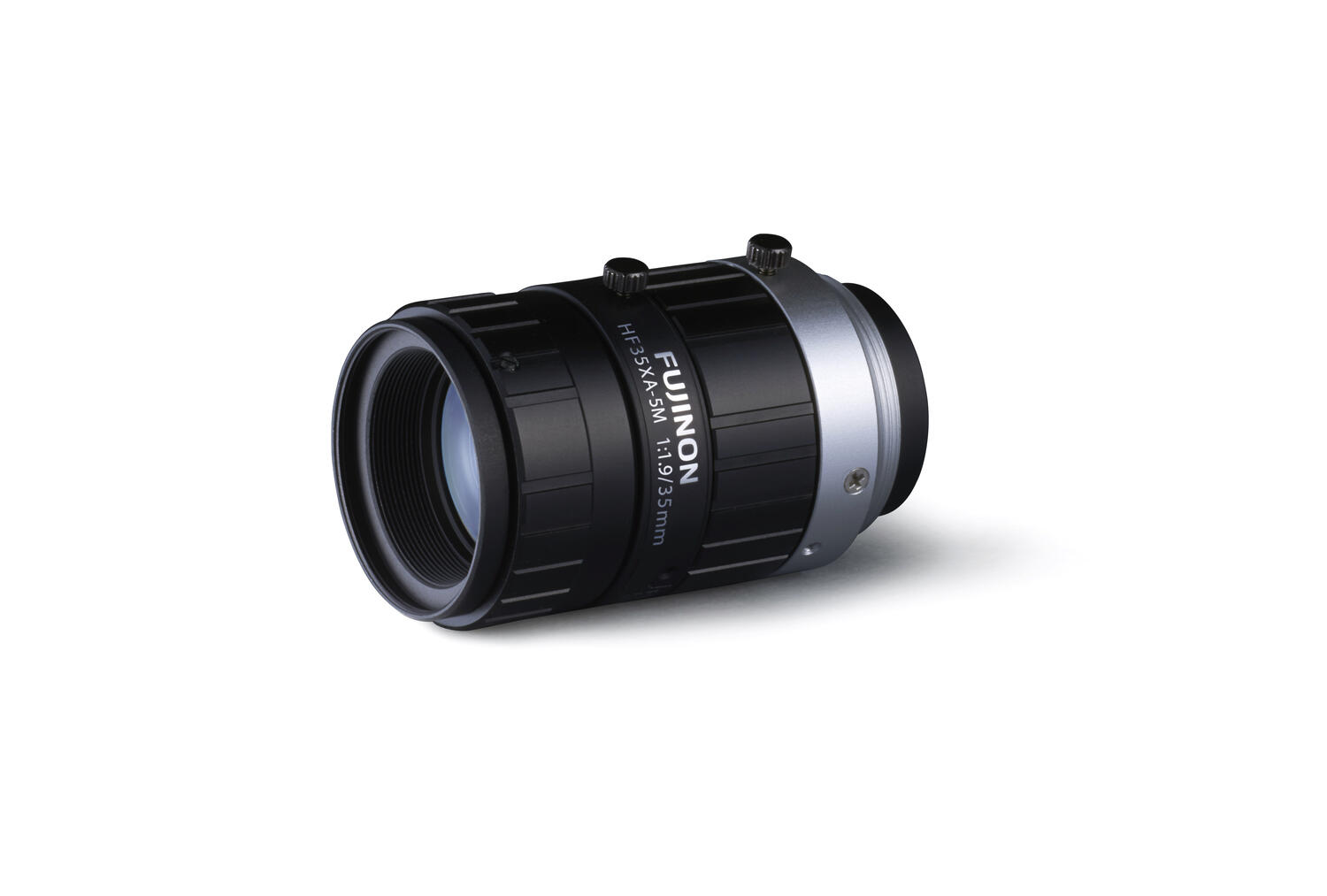

The Fujinon HF-XA-5M series features “4D High Resolution”, which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths between 6mm and 50mm, allowing users to choose the optimum model according to their usage. These high-resolution lenses are compatible with a 2/3-inch sensor with a 3.45 µm pixel pitch, equivalent to 5 megapixels resolution. Lenses between 12mm and 50m are aso compatible with some 1/1.2" sensors.
- Sensor size up to 2/3"
- Resolution 5MP
- C-mount
Selected variant
Specifications
| Aperture Range Max | 1.9 |
|---|---|
| Aperture Range Min | 16 |
| Distortion | -2.88 |
| Filter | 37.5 |

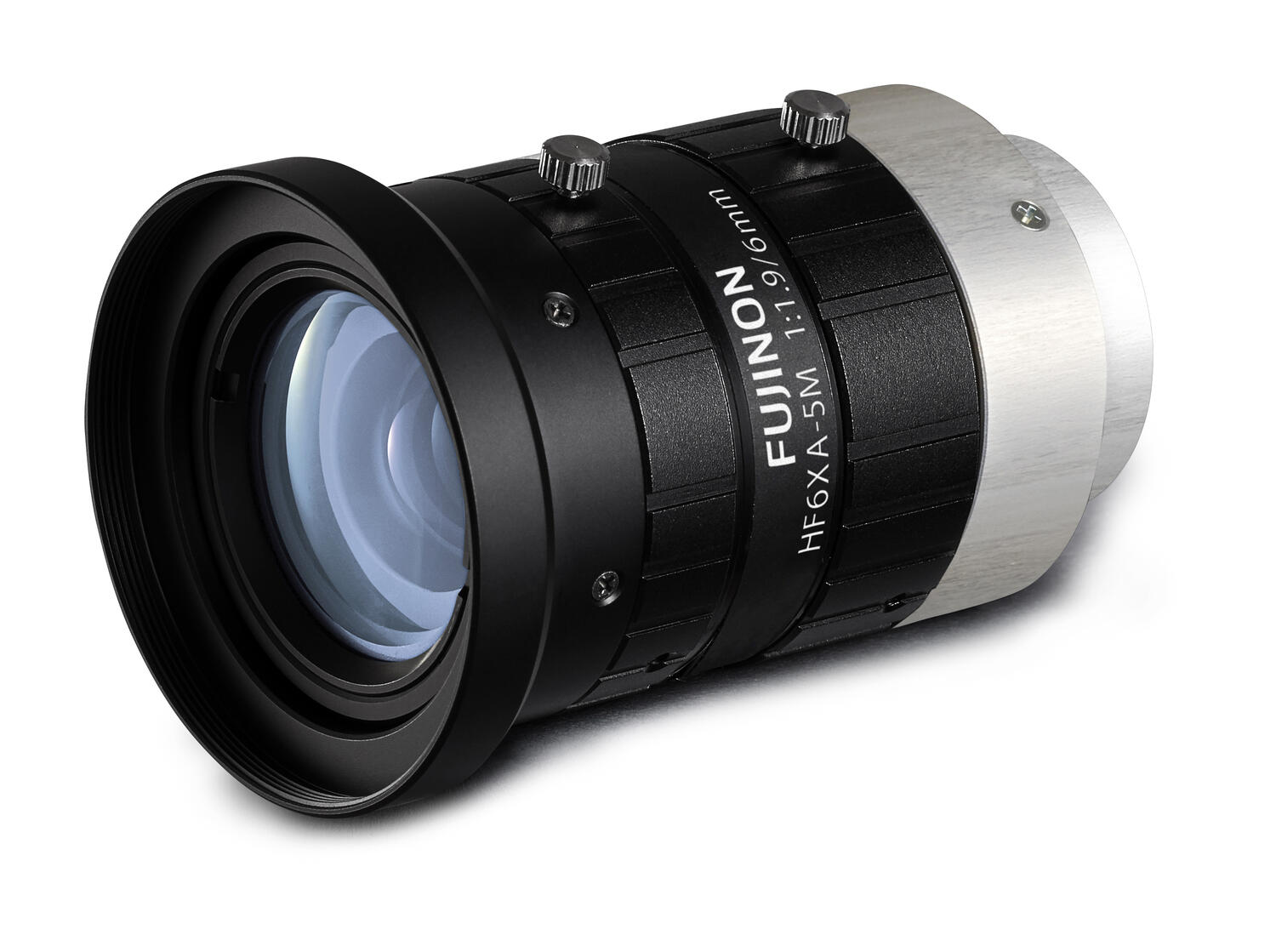

| Focal Length | 6 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
| Pixel size min | 3.45 µm |
|---|---|
| Resolution max | 5 MP |
| Sensor size max | 2/3" |
| Type of lens | Standard |
| Weight | 0.1 kg |
| Viewing Angle (Horizontal) 2/3 " | 74.7 |
| Viewing Angle (Vertical) 2/3 " | 58.1 |
Downloads
Product description
The Fujinon HF-XA-5M series features “4D High Resolution”, which mitigates resolution degradation even when changing a working distance or aperture value. The lenses' compact design accommodates installation at a variety of conditions at production lines. The series is available in six models of various focal lengths between 6mm and 50mm, allowing users to choose the optimum model according to their usage. These high-resolution lenses are compatible with a 2/3-inch sensor with a 3.45 µm pixel pitch, equivalent to 5 megapixels resolution. Lenses between 12mm and 50m are aso compatible with some 1/1.2" sensors.
