FUJINON

5MP, 2/3\" lenses

  • Sensor size up to 2/3"
  • Resolution 5MP
  • C-mount

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 1.4
Aperture Range Min 22
Distortion 0.11
Filter 49
Focal Length 16 mm
Focus Manual
Focus distance min 100 mm
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 3.45 µm
Resolution max 5 MP
Sensor size max 2/3"
Type of lens Standard
Weight 0.285 kg
Viewing Angle (Horizontal) 2/3 " 30.2
Viewing Angle (Vertical) 2/3 " 22.9

Downloads

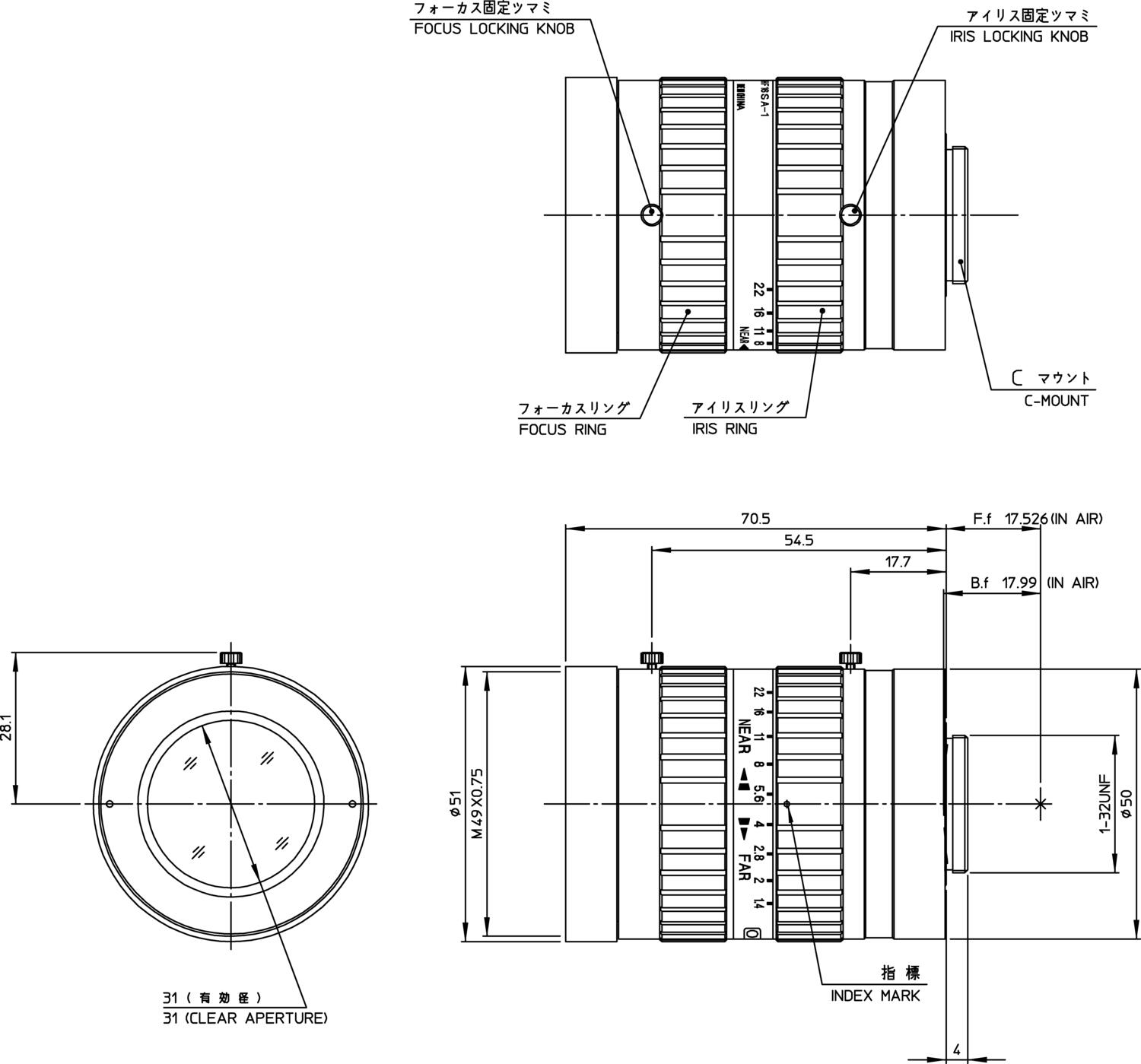

Measurements and connections

Accessories

Articles Aperture Range Max Distortion Focal Length Focus distance min Weight Viewing Angle (Horizontal) 2/3 " Viewing Angle (Vertical) 2/3 "

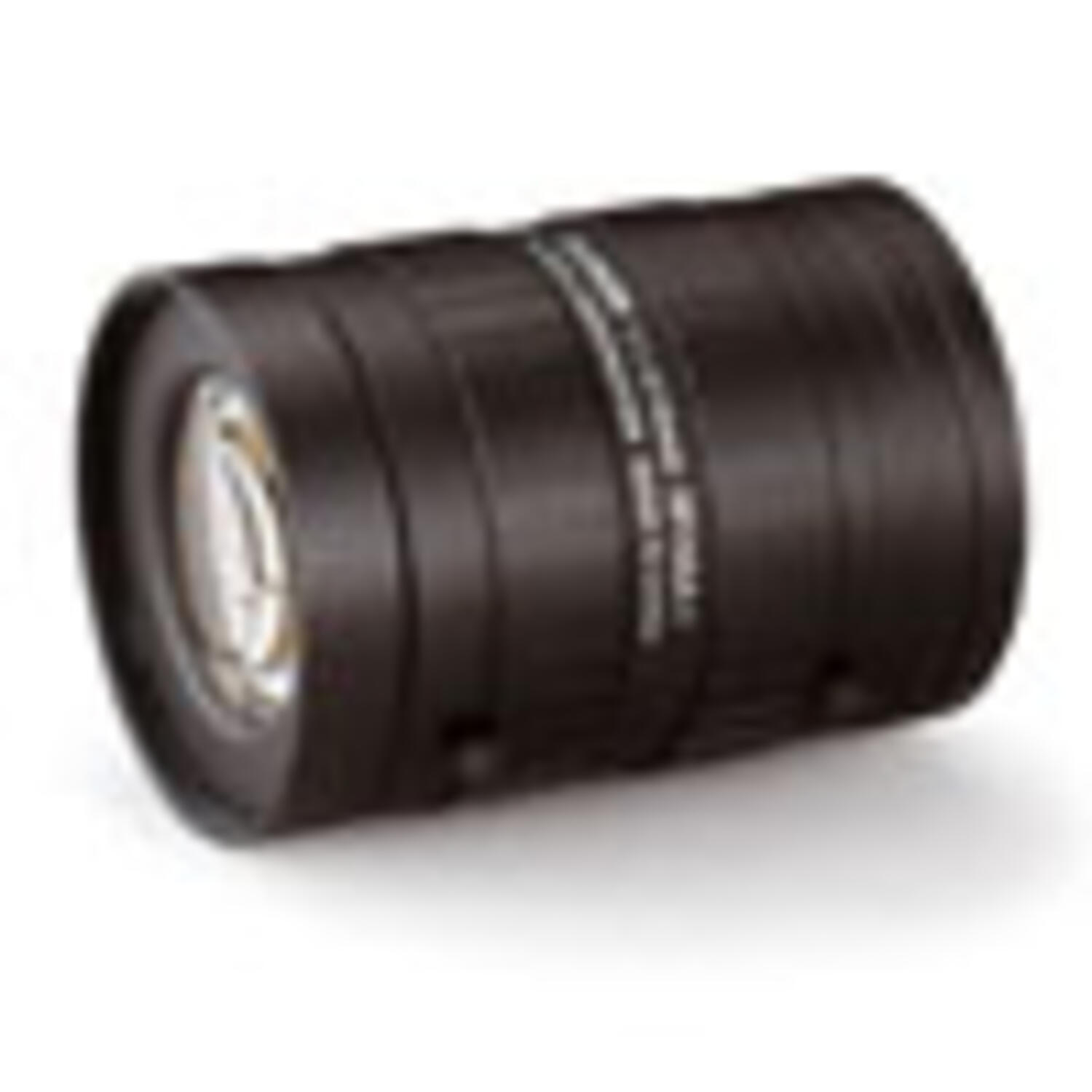

OPTIC C FIX 16MM 5M 2/3" F
Art:
HF16SA-1 Copied
1.4
0.11
16 mm
100 mm
0.285 kg
30.2
22.9

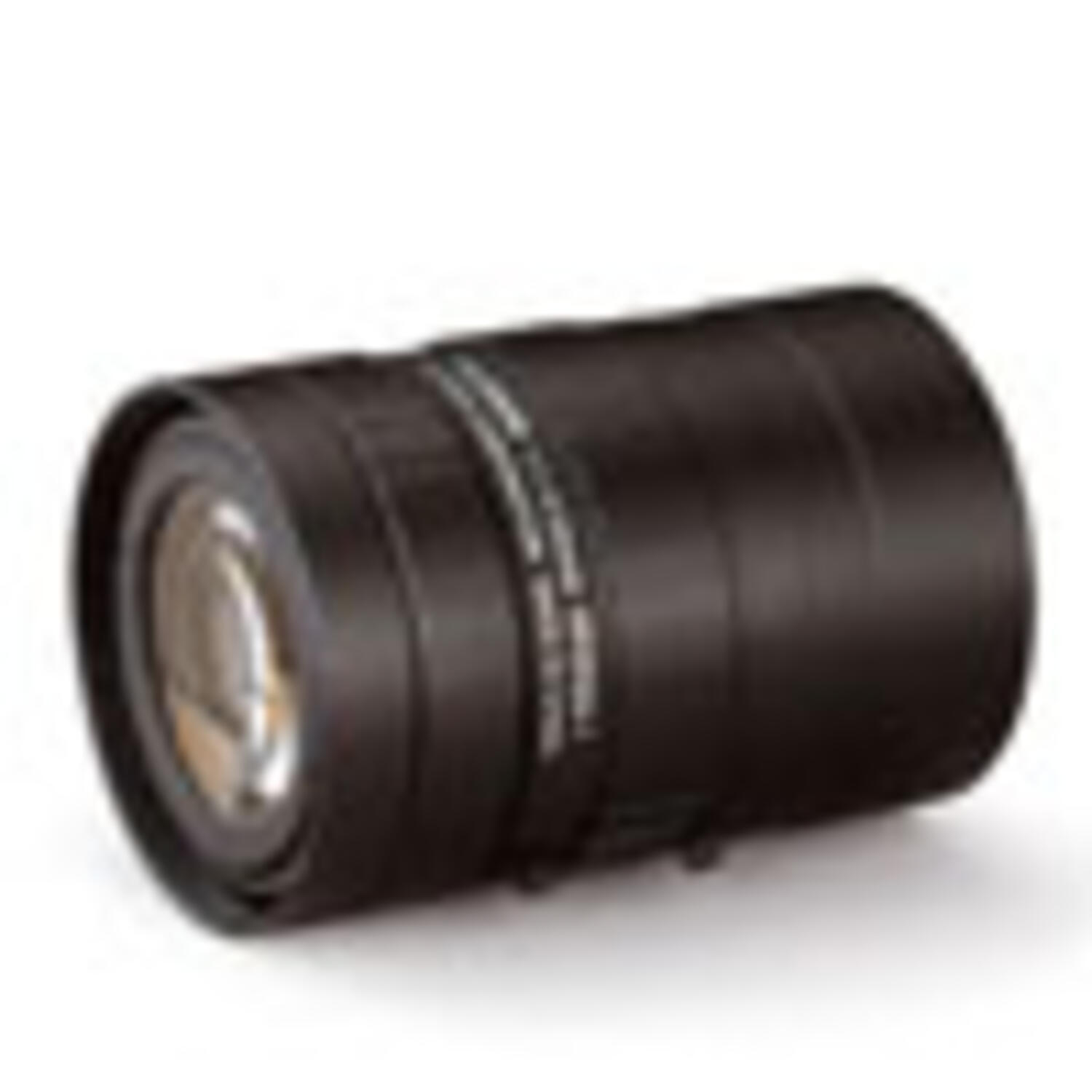

OPTIC C FIX 25MM 5M 2/3" F
Art:
HF25SA-1 Copied
1.4
-0.06
25 mm
100 mm
0.315 kg
20.8
15.7

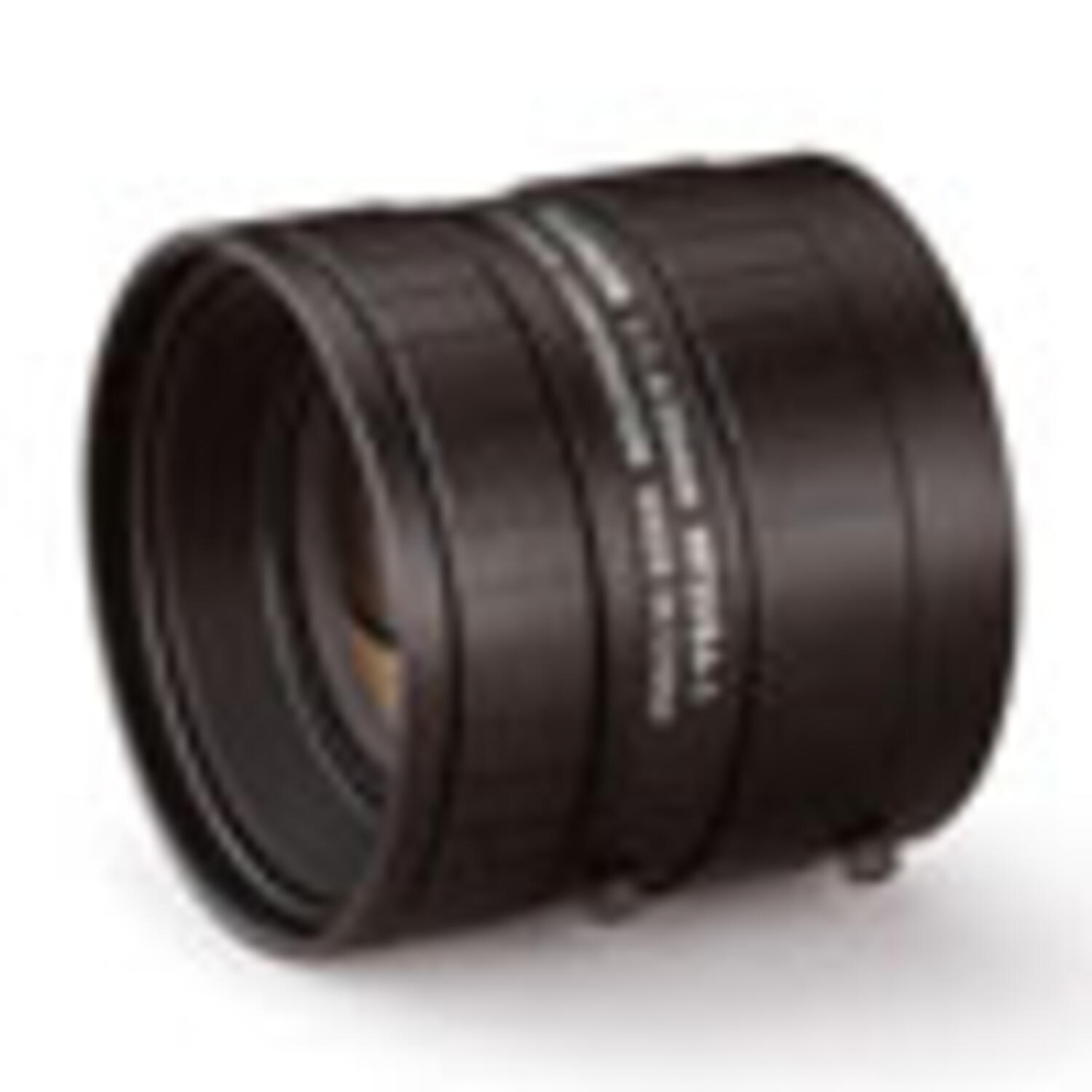

OPTIC C FIX 35MM 5M 2/3" F
Art:
HF35SA-1 Copied
1.4
0.07
35 mm
200 mm
0.315 kg
14
10.5

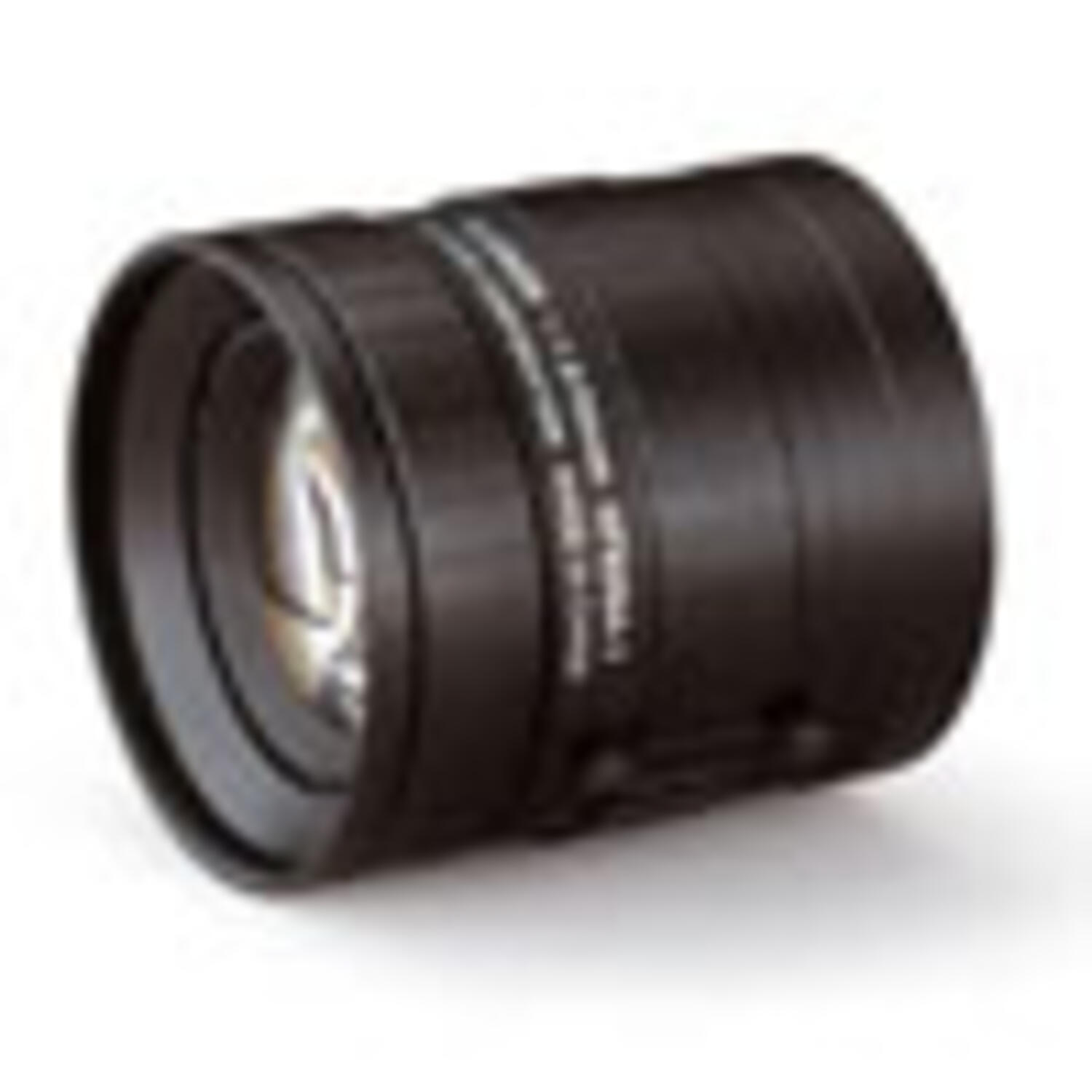

OPTIC C FIX 50MM 5M 2/3" F
Art:
HF50SA-1 Copied
1.8
0.08
50 mm
400 mm
0.24 kg
9.7
7.3

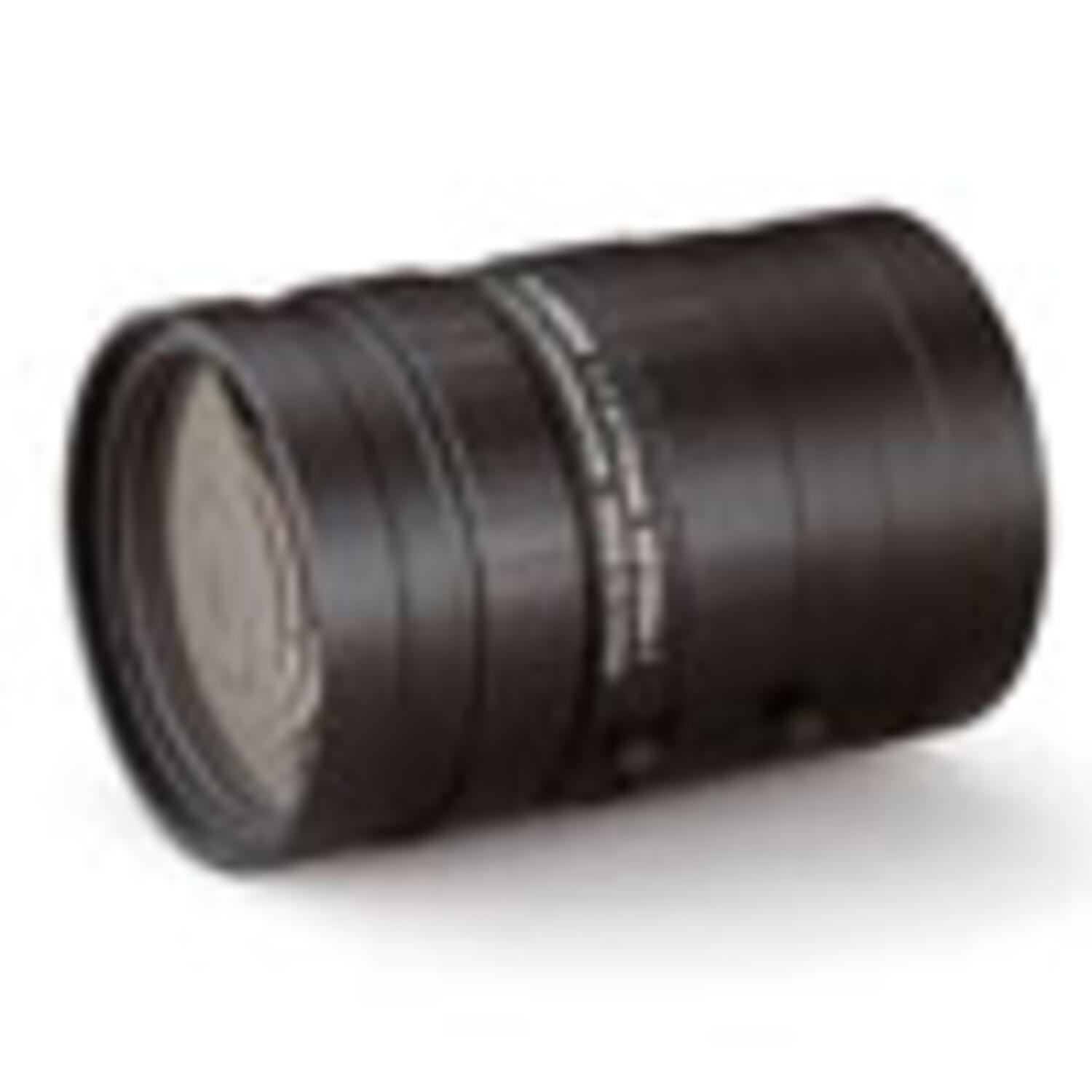

OPTIC C FIX 75MM 5M 2/3" F
Art:
HF75SA-1 Copied
1.8
0.01
75 mm
900 mm
0.305 kg
6.7
5

Selected variant

Select a variant in the list
