| Aperture Range Max | 1,4 |
|---|---|
| Aperture Range Min | 16 |
| Diameter | 39 mm |
| Distortion | 0,5 |
| Filter | 37 |
| Focal Length | 8 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
|---|---|
| Lens Barrel | C-Mount |
| Pixel size min | 4,2 µm |
| Resolution max | 3 MP |
| Sensor size max | 2/3" |
| Type of lens | Standard |
| Weight | 0,22 kg |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Aperture Range Max | Diameter | Distortion | Filter | Focal Length | Focus distance min | Weight | ||
|---|---|---|---|---|---|---|---|---|---|

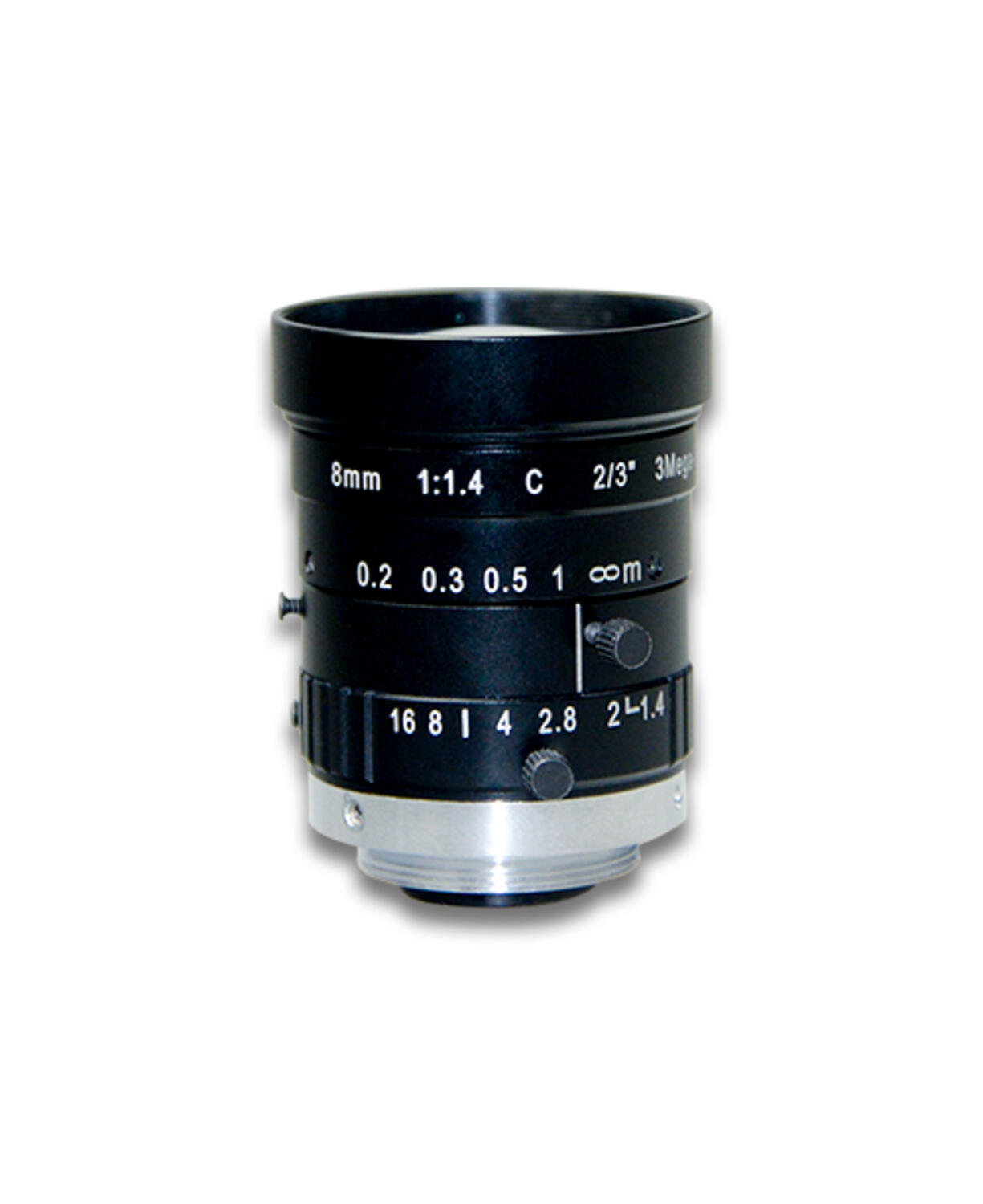

Lens C 8mm F1.8 2/3" Azure
Art:
AZURE-0818M3M
Copied
|
1,4
|
39 mm
|
0,5
|
37
|
8 mm
|
100 mm
|
0,22 kg
|
| |

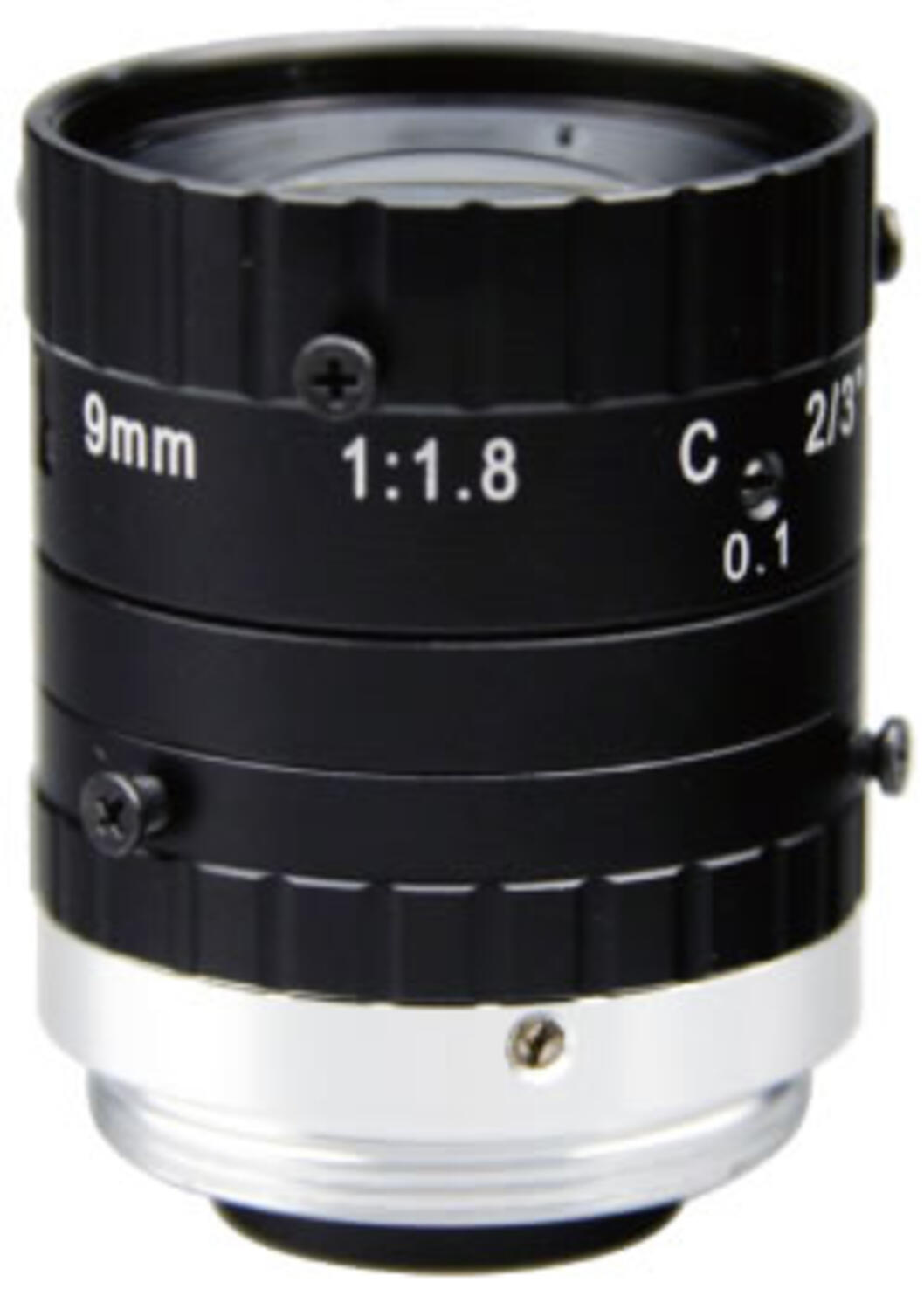

Lens C 9mm F1.8 2/3" Azure
Art:
AZURE-0918M3M
Copied
|
1,8
|
29 mm
|
-0,5
|
27
|
9 mm
|
100 mm
|
0,063 kg
|
| |

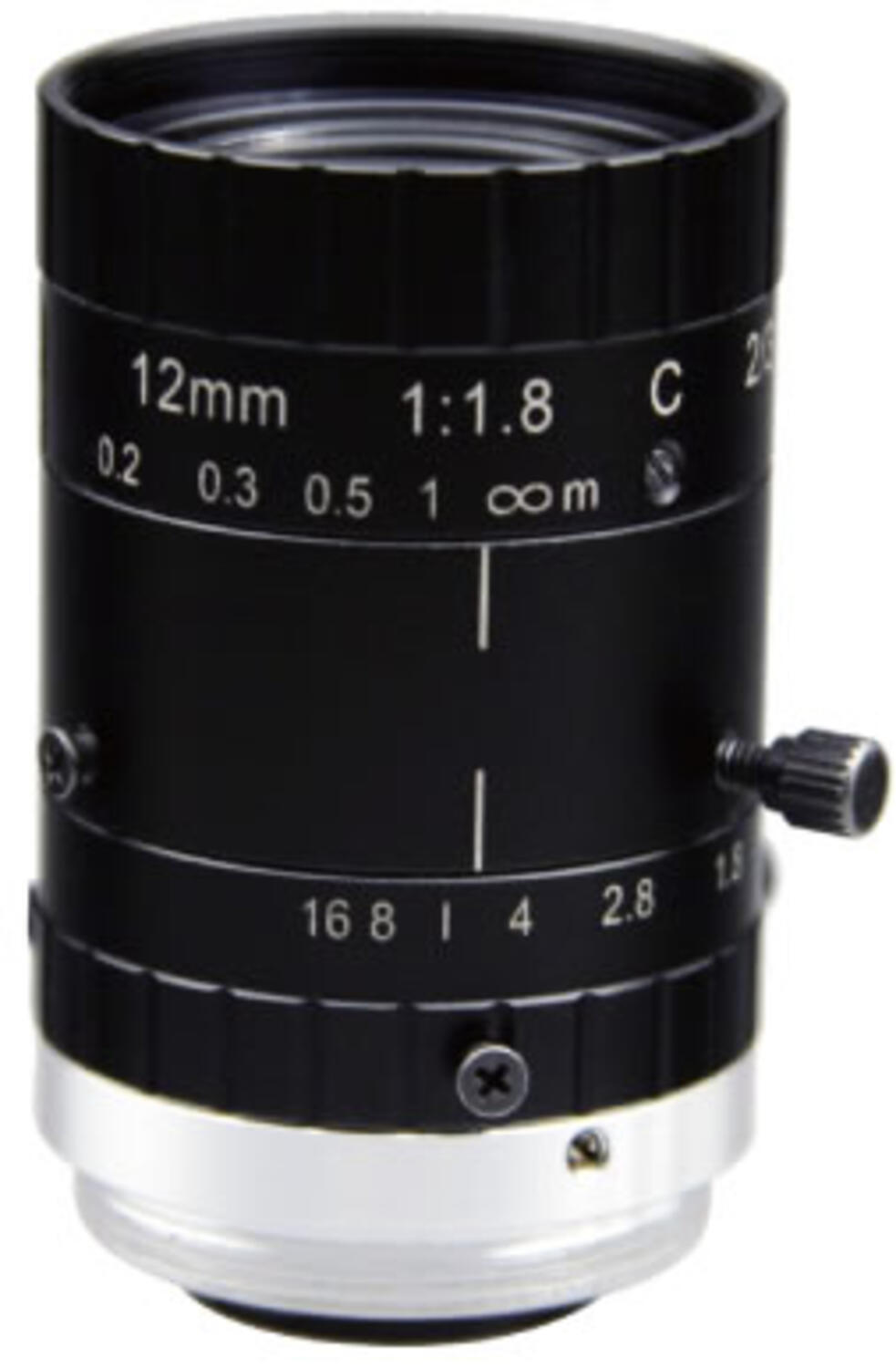

Lens C 12mm F1.8 2/3" Azure
Art:
AZURE-1218M3M
Copied
|
1,8
|
29 mm
|
-0,3
|
27
|
12 mm
|
100 mm
|
0,073 kg
|
| |

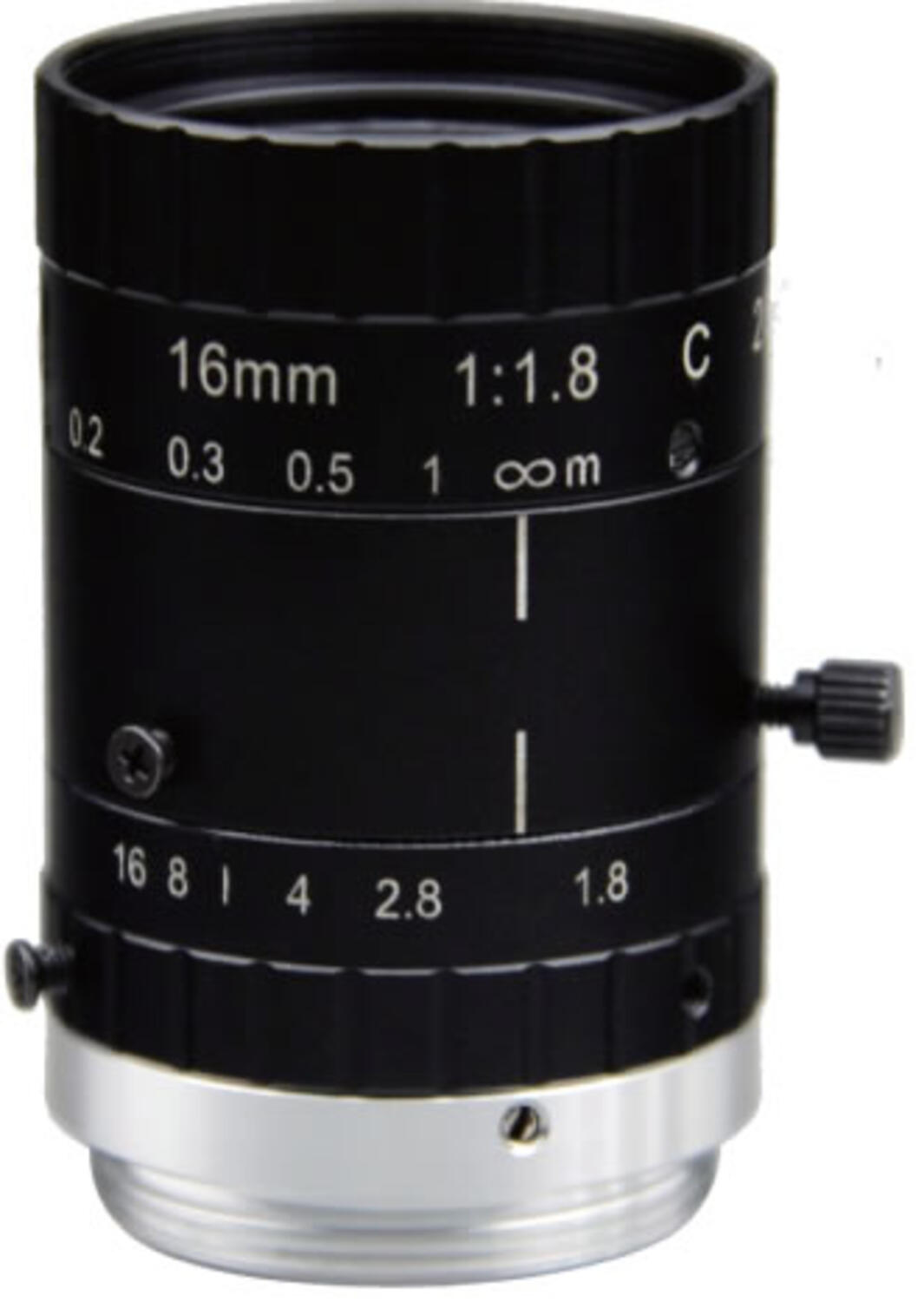

Lens C 16mm F1.8 2/3" Azure
Art:
AZURE-1618M3M
Copied
|
1,8
|
29 mm
|
-0,3
|
27
|
16 mm
|
100 mm
|
0,071 kg
|
| |

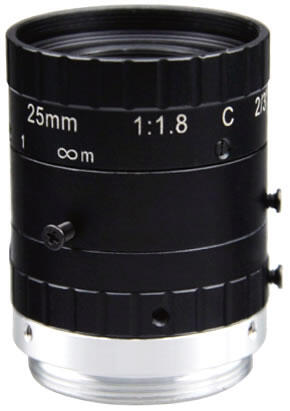

Lens C 25mm F1.8 2/3" Azure
Art:
AZURE-2518M3M
Copied
|
1,8
|
29 mm
|
-0,1
|
27
|
25 mm
|
150 mm
|
0,0605 kg
|
| |
Lens C 35mm F1.8 2/3" Azure
Art:
AZURE-3518M3M
Copied
|
1,8
|
29 mm
|
0,1
|
27
|
35 mm
|
250 mm
|
0,071 kg
|
| |

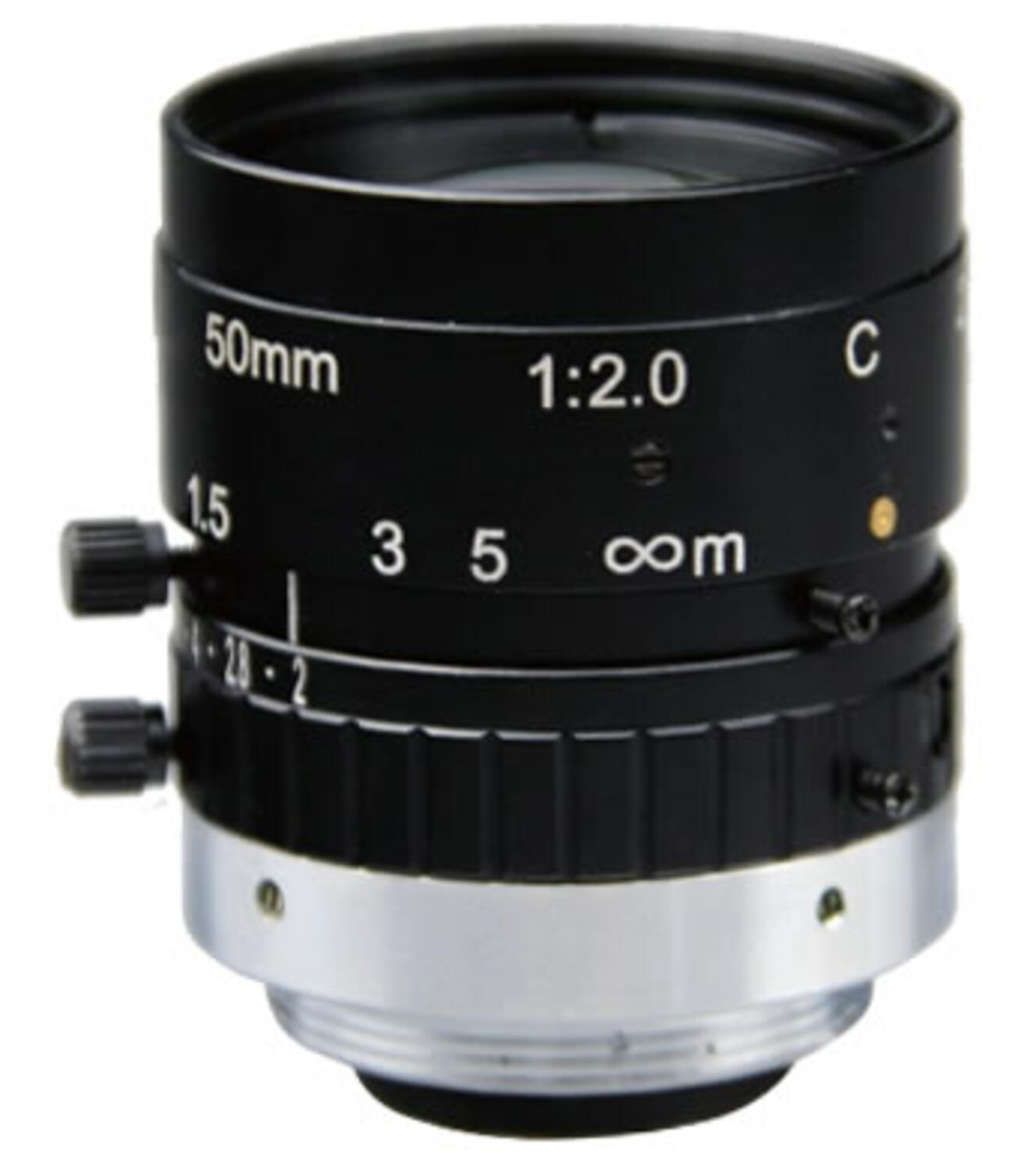

Lens C 50mm F1.8 2/3" Azure
Art:
AZURE-5018M3M
Copied
|
1,8
|
29 mm
|
-0,1
|
27
|
50 mm
|
500 mm
|
0,06 kg
|
|
Select a variant in the list
