| Aperture Range Max | 1.4 |
|---|---|
| Aperture Range Min | 32 |
| Distortion | -1.6 |
| Filter | 52 |
| Focal Length | 4 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
|---|---|
| Pixel size min | 3.3 µm |
| Resolution max | 5 MP |
| Sensor size max | 1/2" |
| Type of lens | Standard |
| Weight | 0.142 kg |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Aperture Range Max | Distortion | Filter | Focal Length | Focus distance min | Sensor size max | Weight | ||
|---|---|---|---|---|---|---|---|---|---|

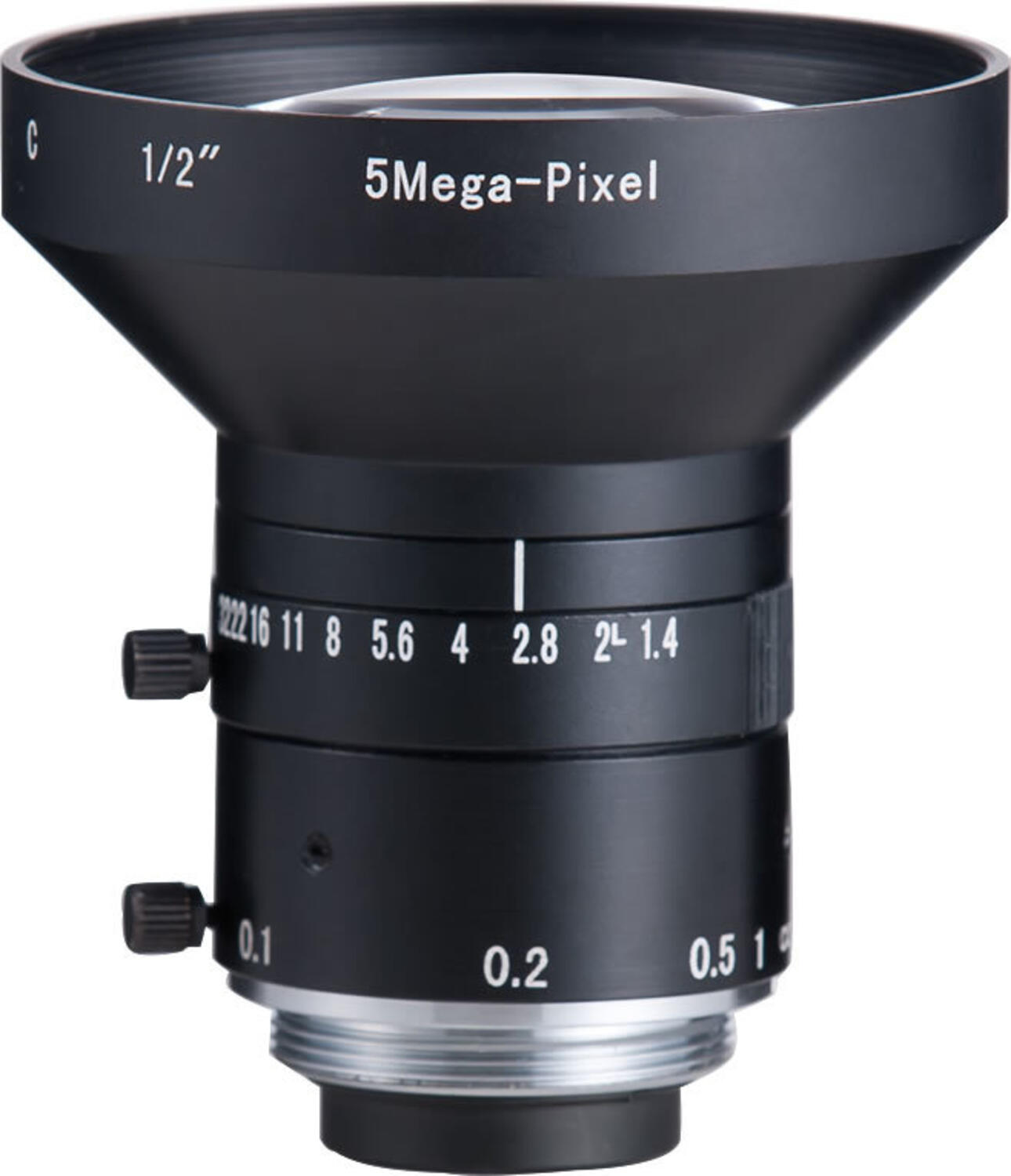

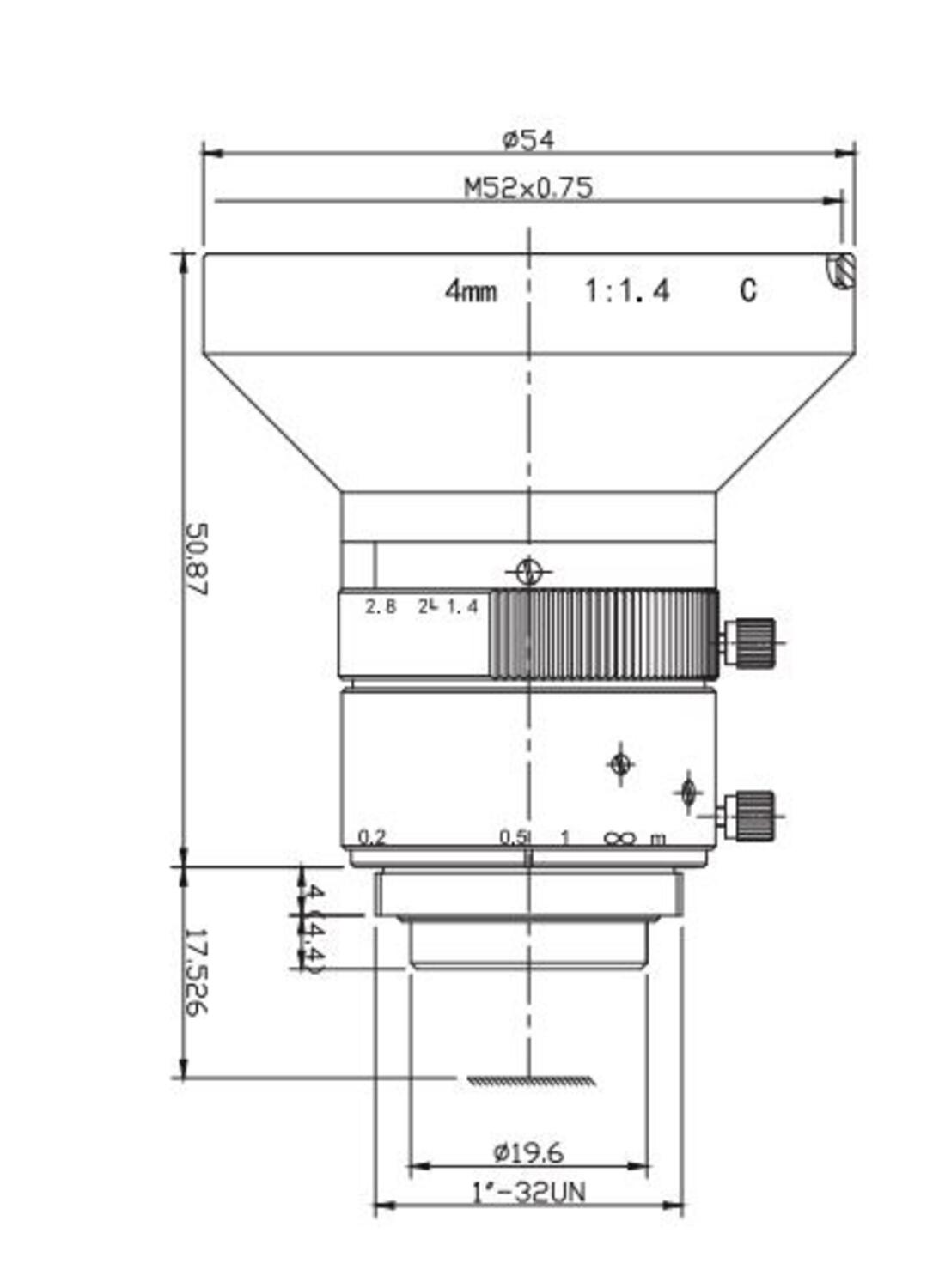

OPTIK C F 4MM 5MP 1/2" AZ
Art:
AZURE-0414M5M
Copied
|
1.4
|
-1.6
|
52
|
4 mm
|
100 mm
|
1/2"
|
0.142 kg
|
| |
|
OPTIK C F 6MM 5MP 1/2" AZ
Art:
AZURE-0614M5M
Copied
|
1.4
|
-1
|
35.5
|
6 mm
|
50 mm
|
1/2"
|
0.14 kg
|
| |
|

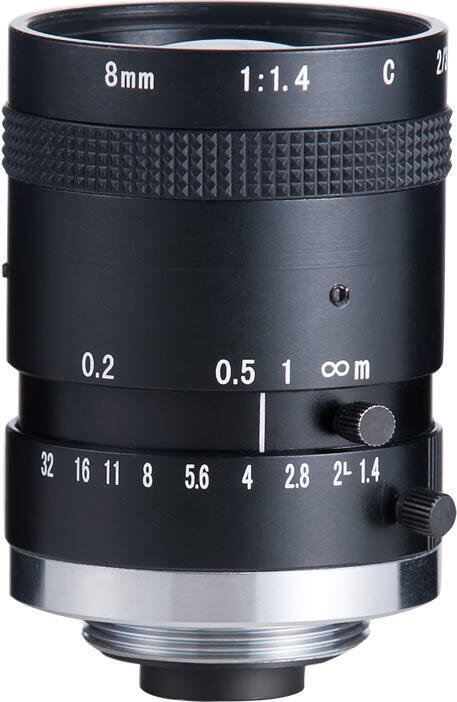

OPTIK C F 8MM 5MP 2/3" AZ
Art:
AZURE-0814M5M
Copied
|
1.4
|
-1
|
35.5
|
8 mm
|
100 mm
|
2/3"
|
0.156 kg
|
| |
|

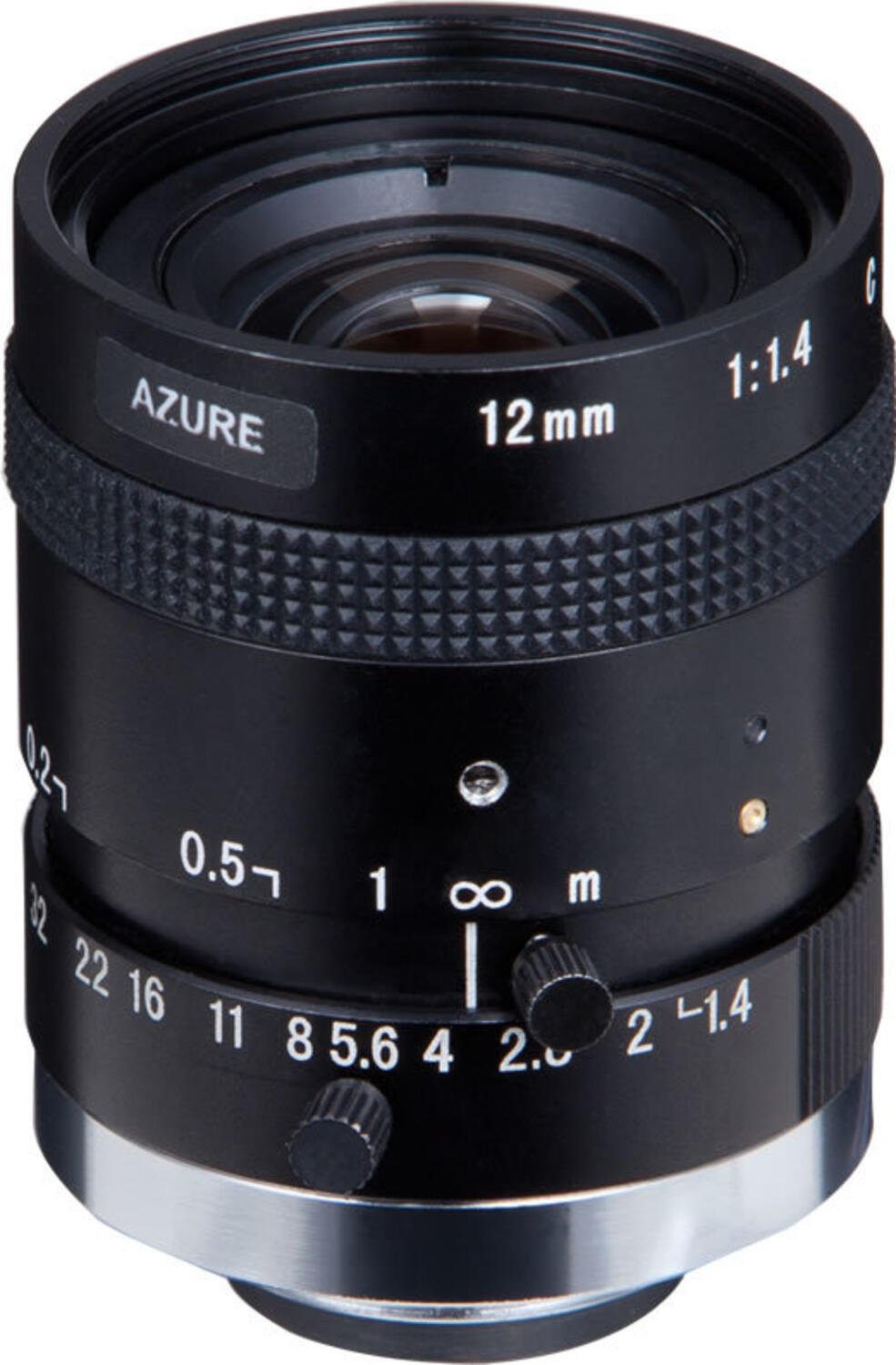

5MP man focus lens, 12mm 2/3, C mount, F1.4, man iris
Art:
AZURE-1214M5M
Copied
|
1.4
|
-0.2
|
35.5
|
12 mm
|
100 mm
|
2/3"
|
0.15 kg
|
| |
|
OPTIC C F 16MM 5MP 2/3" AZ
Art:
AZURE-1614M5M
Copied
|
1.4
|
0.2
|
35.5
|
16 mm
|
200 mm
|
2/3"
|
0.139 kg
|
| |
|

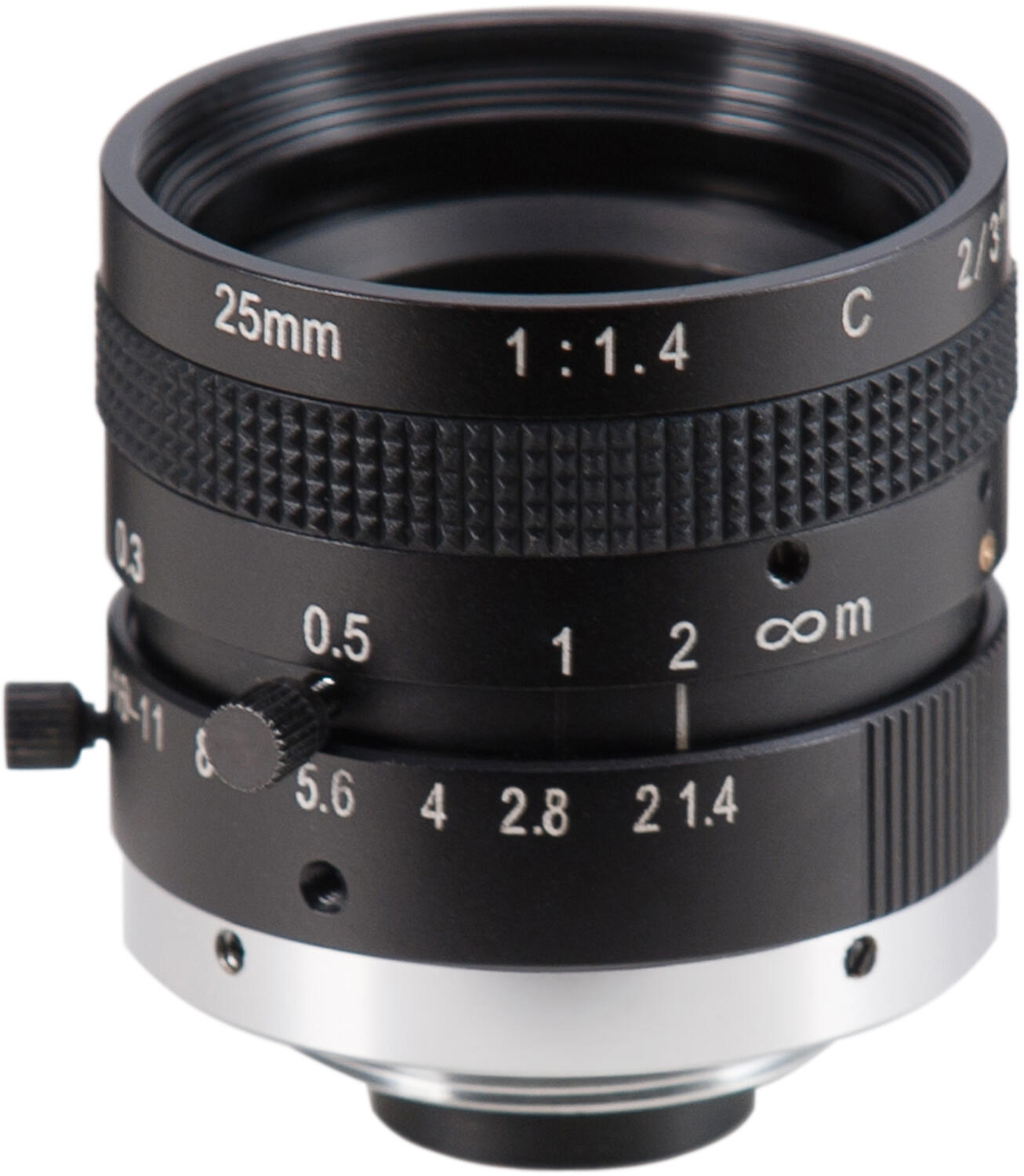

OPTIC C F 25MM 5MP 2/3" AZ
Art:
AZURE-2514M5M
Copied
|
1.4
|
-0.1
|
35.5
|
25 mm
|
300 mm
|
2/3"
|
0.11 kg
|
| |
|

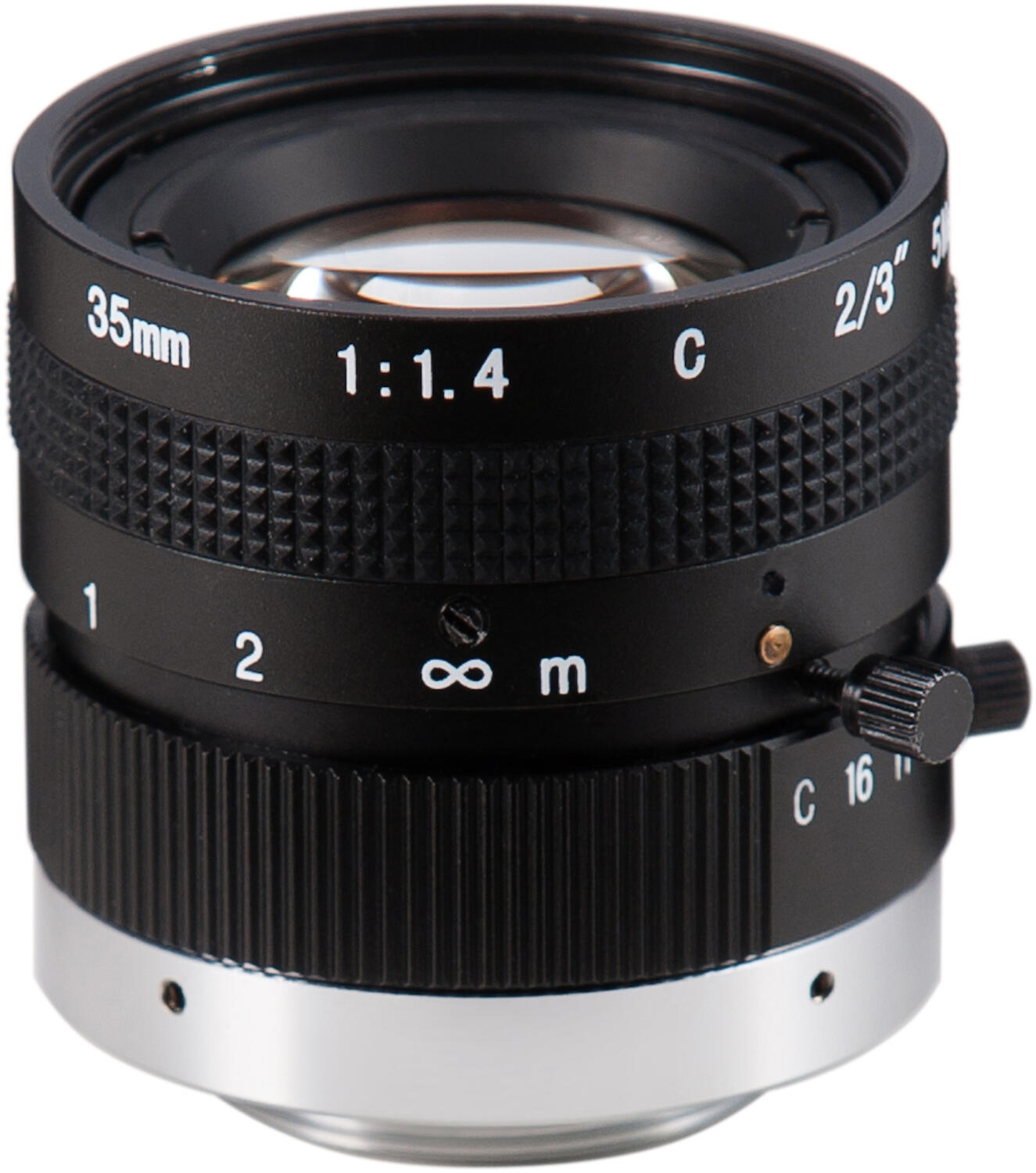

OPTIK C F 35MM 5MP 2/3" AZ
Art:
AZURE-3514M5M
Copied
|
1.4
|
-0.1
|
35.5
|
35 mm
|
350 mm
|
2/3"
|
0.12 kg
|
| |
|
OPTIK C F 50MM 5MP 2/3" AZ
Art:
AZURE-5020M5M
Copied
|
2
|
-0.1
|
35.5
|
50 mm
|
400 mm
|
2/3"
|
0.152 kg
|
| |
|

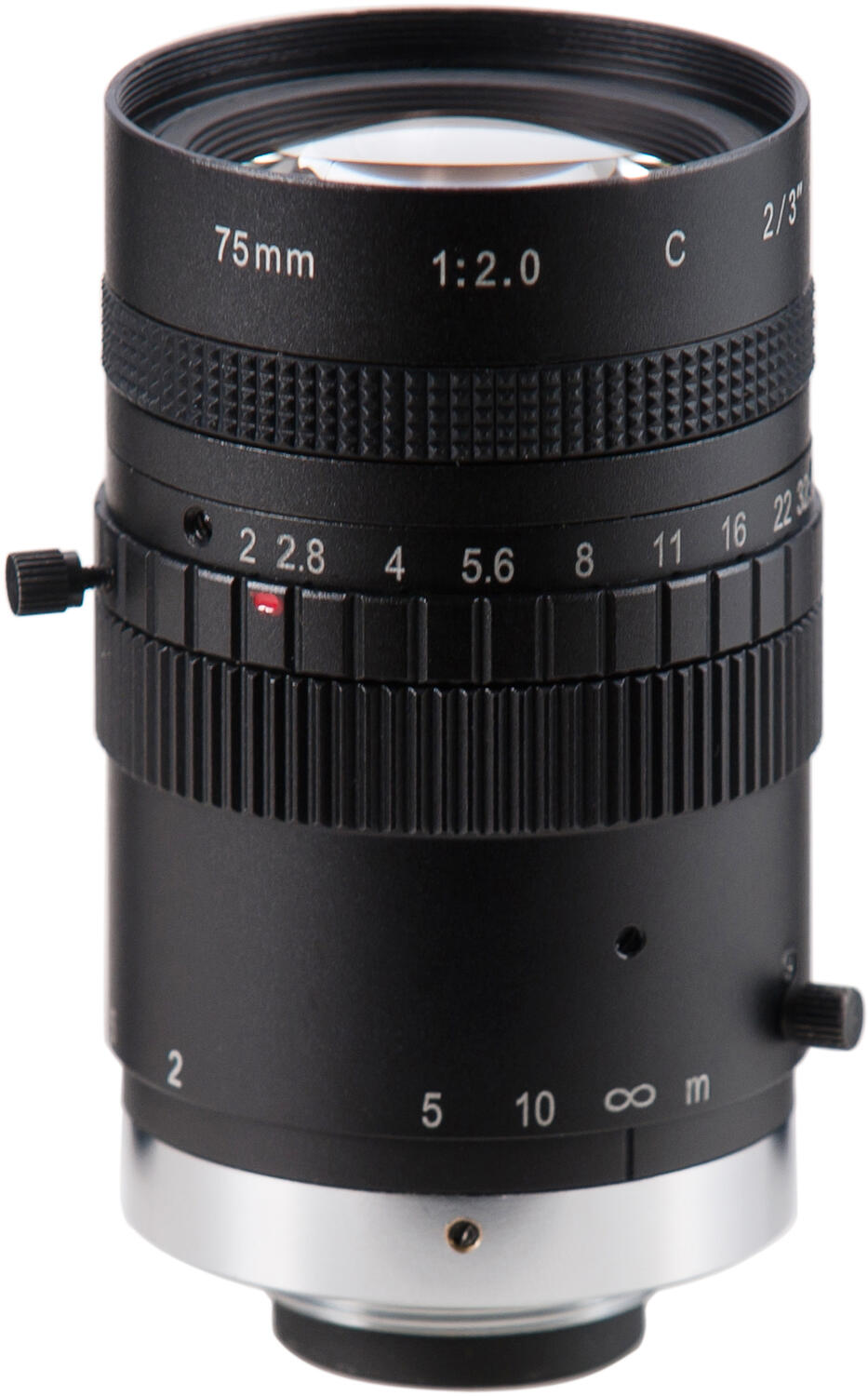

OPTIK C F 75MM 5MP 2/3" AZ
Art:
AZURE-7520M5M
Copied
|
2
|
-0.1
|
40.5
|
75 mm
|
1000 mm
|
2/3"
|
0.29 kg
|
|
Select a variant in the list
