VS TECHNOLOGY

21MP, 4/3\" macro lenses

The VS-LLD series' distortionless design, in combination with a Floating System of internal lens elements, allows it to deliver high resolution performance at any magnification. With a maximum sensor size of up to 4/3" it is a great selection to use for any application using a large sensor format that needs a distortionless image.



  • 4/3" sensor support
  • 9 models available
  • Focal lengths 10 - 50mm
  • Distortionless
  • High Resolution
  • Floating System
Read more
  • Sensor size up to 4/3"
  • Resolution 21MP
  • C-mount

Selected variant

VST.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Aperture Range Max 2.9
Distortion -0.92
Focal Length 10 mm
Focus Manual
Focus distance min 53.1 mm
Iris Manual iris
Lens Barrel C-Mount
Pixel size min 3.45 µm
Resolution max 21 MP
Sensor size max 4/3"
Type of lens Standard
Weight 0.45 kg

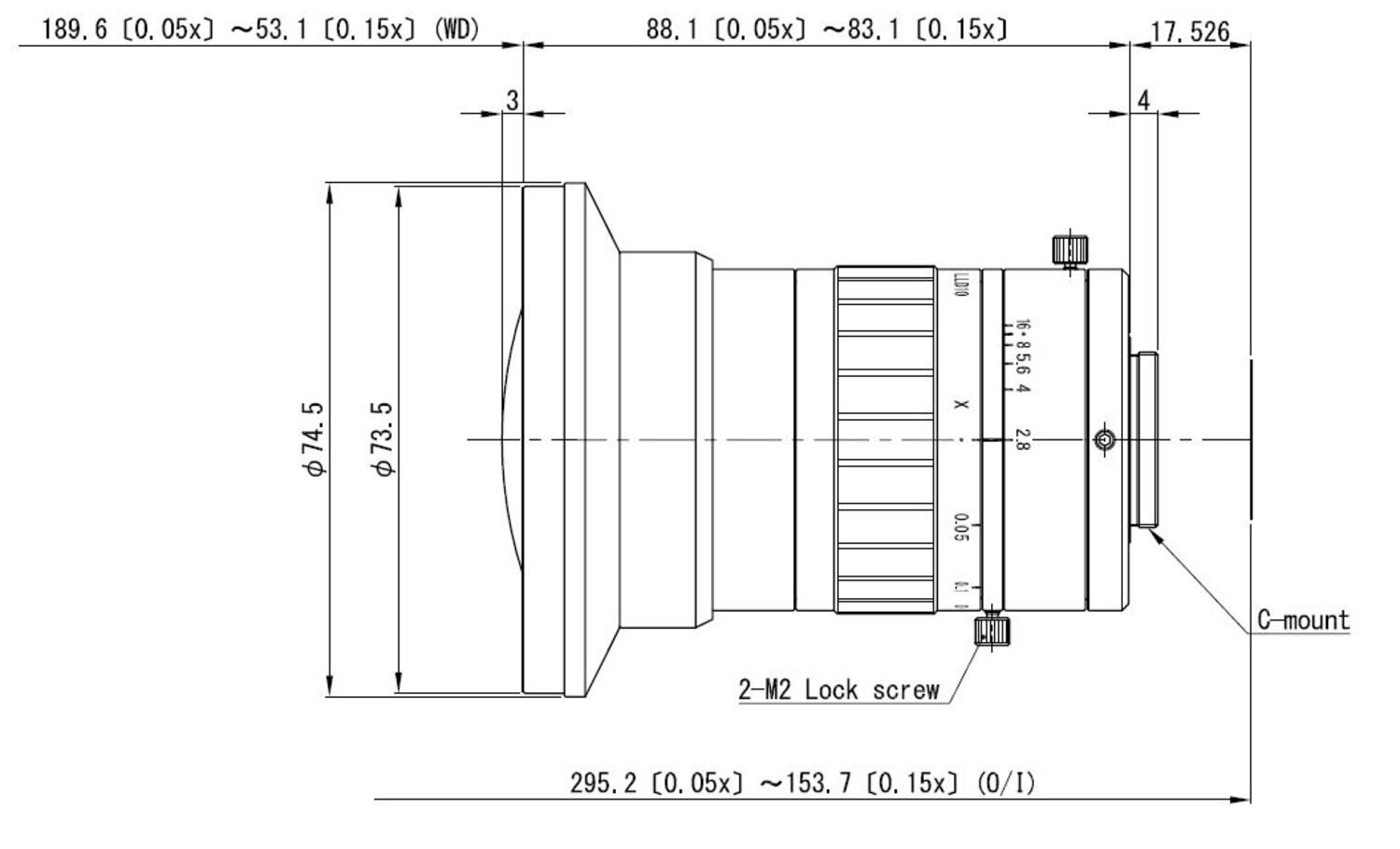

Measurements and connections

Product description

The VS-LLD series' distortionless design, in combination with a Floating System of internal lens elements, allows it to deliver high resolution performance at any magnification. With a maximum sensor size of up to 4/3" it is a great selection to use for any application using a large sensor format that needs a distortionless image.



  • 4/3" sensor support
  • 9 models available
  • Focal lengths 10 - 50mm
  • Distortionless
  • High Resolution
  • Floating System

Accessories

Articles Aperture Range Max Distortion Filter Focal Length Focus distance min Weight
Lens C 10mm 4/3" VST
Art:
VS-LLD10 Copied
2.9
-0.92
10 mm
53.1 mm
0.45 kg
Lens C 12.5mm 4/3" VST
Art:
VS-LLD12.5 Copied
2.5
-0.4
62
12.5 mm
40.9 mm
0.38 kg
Lens C 15mm 4/3" VST
Art:
VS-LLD15 Copied
2.1
-0.64
49
15 mm
56.8 mm
0.33 kg
Lens C 18mm 4/3" VST
Art:
VS-LLD18 Copied
2.1
-0.49
43
18 mm
53.8 mm
0.32 kg
Lens C 20mm 4/3" VST
Art:
VS-LLD20 Copied
2.1
-0.3
43
20 mm
61.8 mm
0.31 kg
Lens C 25mm 4/3" VST
Art:
VS-LLD25 Copied
2.1
-0.24
43
25 mm
66 mm
0.285 kg
Lens C 30mm 4/3" VST
Art:
VS-LLD30 Copied
2.2
-0.04
46
30 mm
93.1 mm
0.31 kg
Lens C 35mm 4/3" VST
Art:
VS-LLD35 Copied
2.2
-0.1
46
35 mm
129.5 mm
0.295 kg
Lens C 50mm 4/3" VST
Art:
VS-LLD50 Copied
2.2
-0.09
46
50 mm
205.4 mm
0.25 kg
