MIDWEST OPTICAL SYSTEMS
Midwest Optical - DB735
Dual bandpass filters are ideal for color camera applications that need to be in operation 24 hours a day and use IR lighting at night. These filters enhance the camera's ability to capture clear images regardless of lighting conditions.
· Ideal for color camera day / night applications
· Visible light and a narrow IR band
· Block interfering IR wavelength
· Provides clear images in the dark when used with appropriate IR illumination
- Dual IR-bandpassfilter

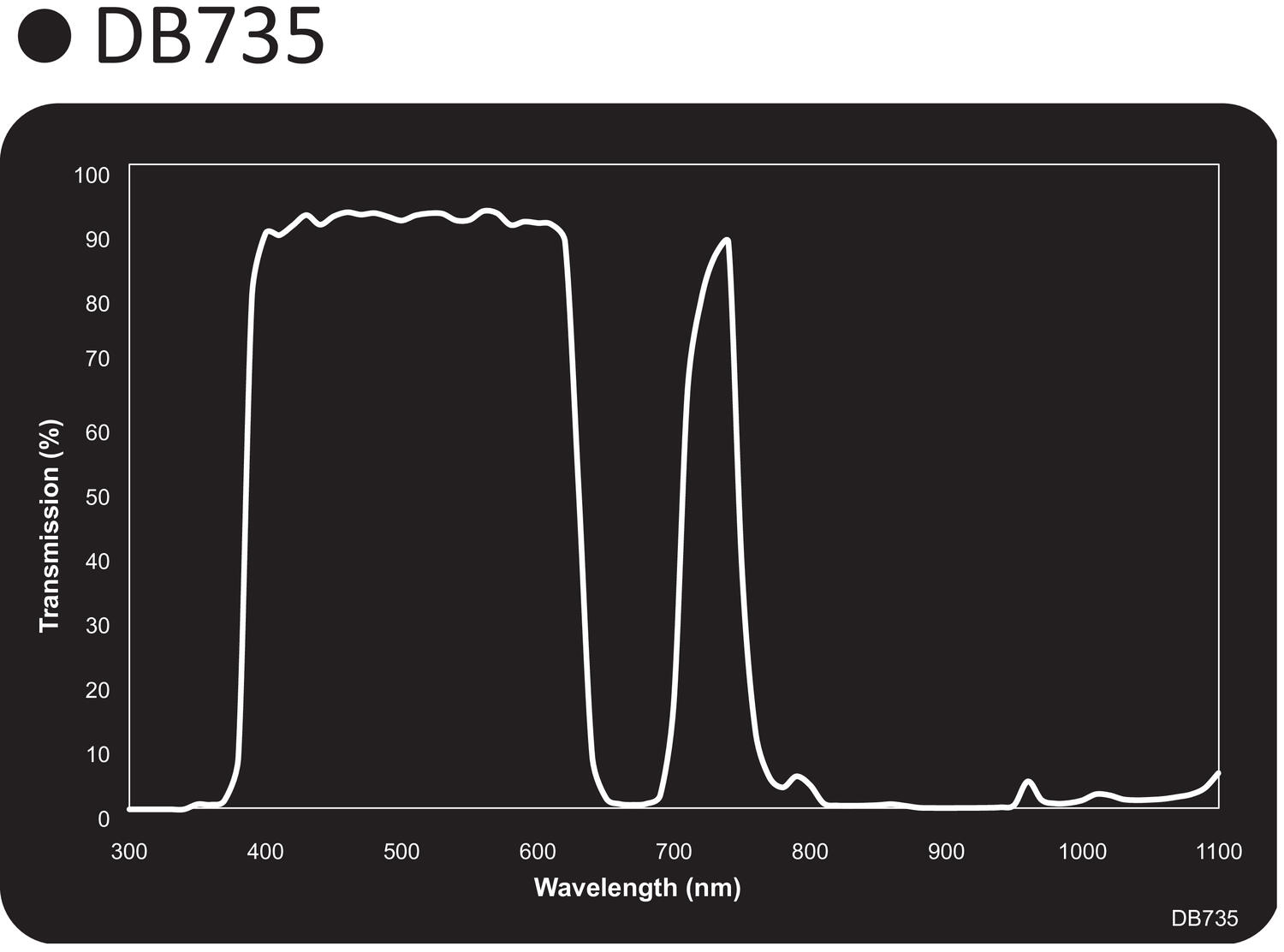

- Work area 385-650 nm and 705-765 nm
- Filter Visible + 735nm NIR
Selected variant
Specifications
| Filter thread (thread diameter x pitch) | C-Mount |
|---|
Downloads
Product description
Dual bandpass filters are ideal for color camera applications that need to be in operation 24 hours a day and use IR lighting at night. These filters enhance the camera's ability to capture clear images regardless of lighting conditions.
· Ideal for color camera day / night applications
· Visible light and a narrow IR band
· Block interfering IR wavelength
· Provides clear images in the dark when used with appropriate IR illumination
